Can I use the MDS03F-12 to provide 12V for medical control electronics or instrumentation?

Yes, this medical-grade converter delivers a constant 12V output from a 9-36VAC input range. Its 3W power rating and 0.25A output current make it a fit for lower-power 12V electronics rather than heavier 12V loads.

Is the MDS03F-12 suitable for embedded 12V circuits inside test, monitoring, or automation devices?

It is well suited to embedded designs that need a regulated 12V rail and have a wide-input source from 9-36VAC. The 31.8 x 20.3 x 12.2 mm size supports compact layouts in enclosed equipment.

Can this model power low-power 12V subsystems in industrial or medical equipment?

Yes, if the subsystem needs constant 12V and stays within 3W and 0.25A, this model aligns with that requirement. Its medical-grade classification and UL, CE, CB, CCC, EAC, and ENEC certifications may also matter in regulated equipment contexts.

Will the MDS03F-12 handle cold or hot operating conditions, and is it outdoor rated?

The specified operating temperature range is -40C to +90C, so the unit is rated across a broad temperature span. The provided specs do not include an IP rating, so outdoor exposure suitability is not established here.

What are the main differences between MDS03F-12 and its sibling models?

The MDS03F series shown here keeps the same 3W rating and 9-36VAC input range across all variants. The output choices are 5V at 0.6A for MDS03F-05, 12V at 0.25A for this model, and 15V at 0.2A for MDS03F-15.

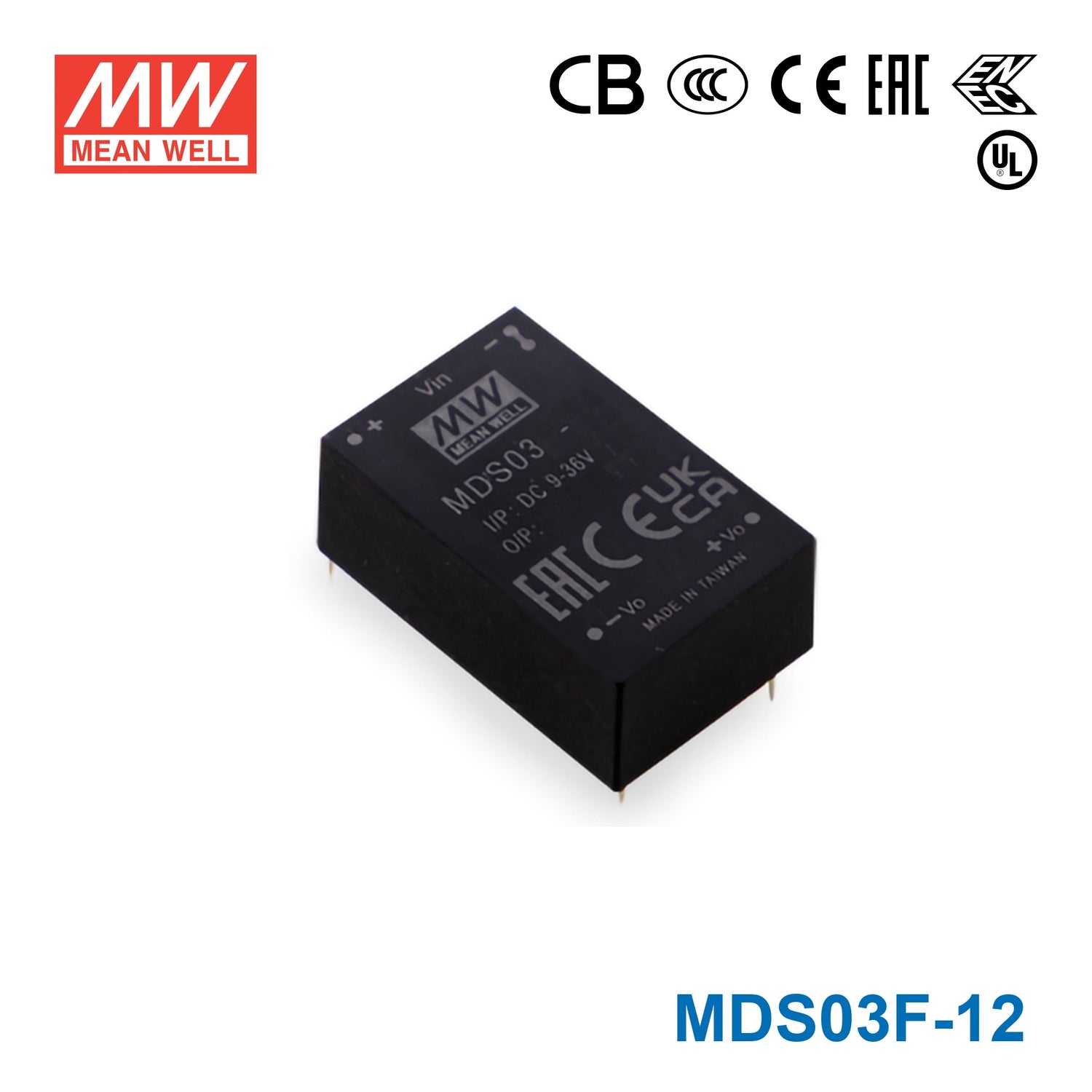

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

Mean Well MDS03F-12 Medical Grade DC/DC Converter 3W - 9-36V input, 12V output 250mA

12V3WDC/DCMedical Grade

SKU:

MDS03F-12

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The MDS03F is a 3W Mean Well power converter (input range: 9~36Vdc).

Key Features

✓ Input voltage range: 9~36Vdc
✓ 6KVDC reinforced I/O isolation
✓ Protections: Short circuit / Overload
✓ Safety approvals: IEC60601-1(LVD) 3 edition, EAC TP TC 004
✓ 3 years warranty
