Can I use the MDS03F-15 where a medical or industrial device needs a 15V auxiliary rail?

Yes, this medical-grade DC-DC converter is intended for constant 15V output from a 9-36VAC input range. Its 3W rating and 0.2A output current make it suitable for light auxiliary loads, not larger 15V power demands.

Is the MDS03F-15 appropriate for 15V analog or interface circuits in embedded equipment?

It is a practical option when the design needs a regulated 15V rail and operates within a 3W envelope. The 31.8 x 20.3 x 12.2 mm dimensions also support compact embedded assemblies.

Can this converter be used inside laboratory, diagnostic, or automation instruments with wide input variation?

Yes, the 9-36VAC input range gives it flexibility for equipment that may see different upstream supply conditions. The constant-voltage 15V output and 0.017 kg weight make it suitable for low-power instrument sections.

Is the MDS03F-15 suited to outdoor equipment or only controlled enclosures?

The temperature specification of -40C to +90C supports a wide operating range. But no IP rating is listed in the supplied data, so the specs do not define outdoor, washdown, or exposed-environment suitability.

How does the MDS03F-15 differ from the other MDS03F versions?

All listed MDS03F versions are medical-grade 3W converters with the same 9-36VAC input range. The family outputs shown are 5V at 0.6A for MDS03F-05, 12V at 0.25A for MDS03F-12, and 15V at 0.2A for this model.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

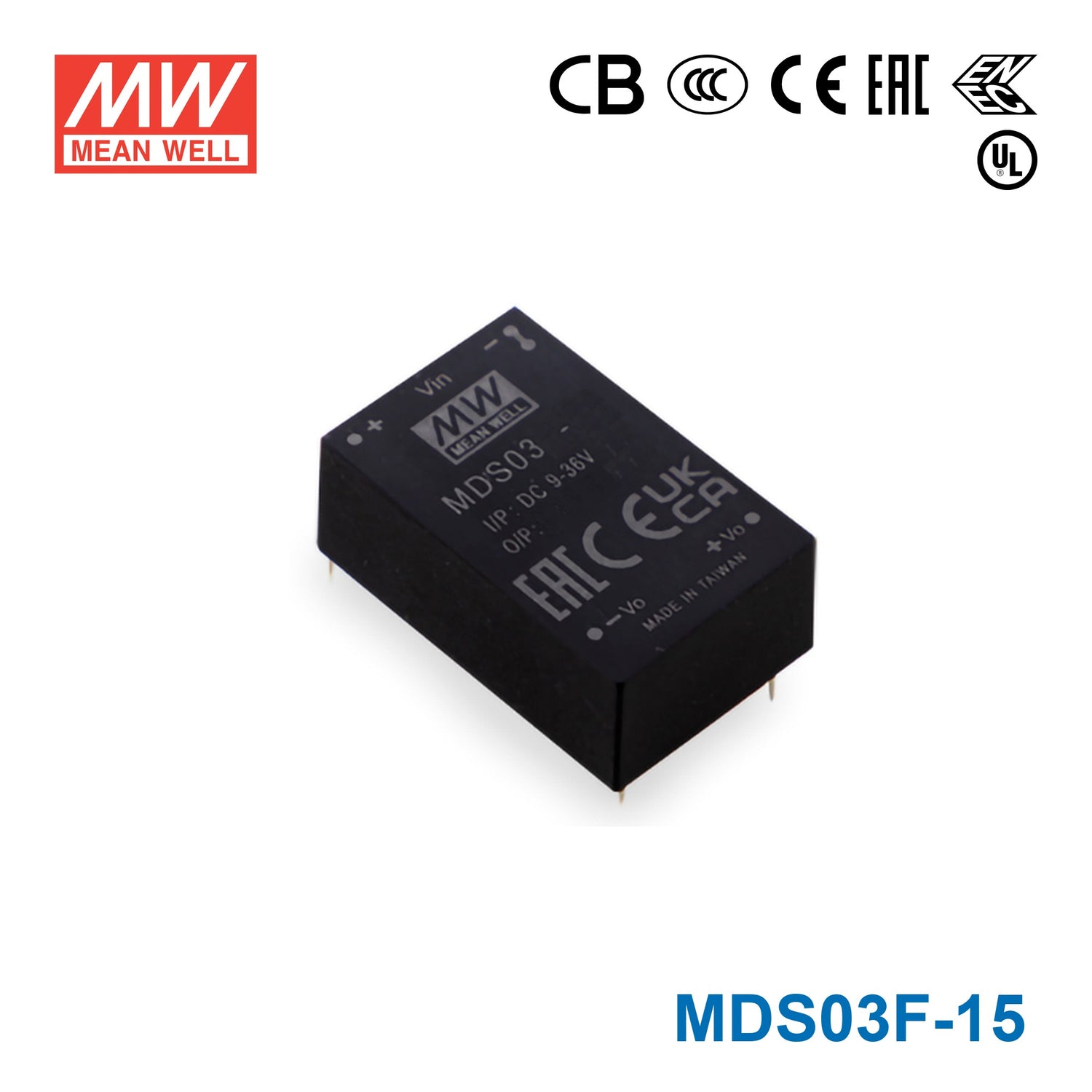

Mean Well MDS03F-15 Medical Grade DC/DC Converter 3W - 9-36V input, 15V output 200mA

15V3WDC/DCMedical Grade

SKU:

MDS03F-15

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The MDS03F is a 3W Mean Well power converter (input range: 9~36Vdc).

Key Features

✓ Input voltage range: 9~36Vdc
✓ 6KVDC reinforced I/O isolation
✓ Protections: Short circuit / Overload
✓ Safety approvals: IEC60601-1(LVD) 3 edition, EAC TP TC 004
✓ 3 years warranty
