Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

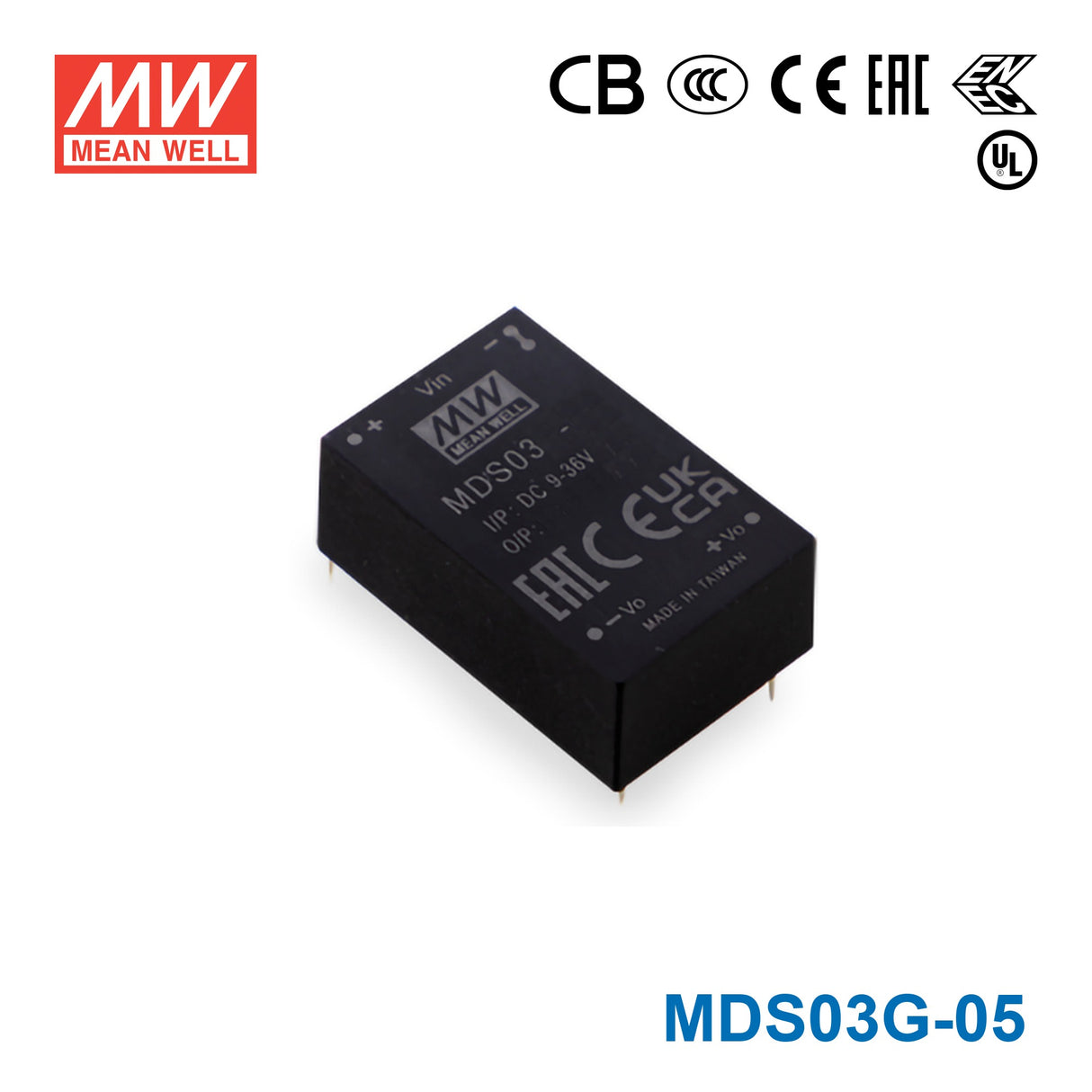

Mean Well MDS03G-05 Medical Grade DC/DC Converter 3W - 18-75V input, 5V output 600mA

5V3WDC/DCMedical Grade

SKU:

MDS03G-05

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The MDS03G is a 3W Mean Well power converter (input range: 9~36Vdc).

Key Features

✓ Input voltage range: 9~36Vdc
✓ 6KVDC reinforced I/O isolation
✓ Protections: Short circuit / Overload
✓ Safety approvals: IEC60601-1(LVD) 3 edition, EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

Can I use the MDS03G-05 to power a 5V embedded controller inside industrial equipment?

Yes, it is a constant-voltage 5V DC/DC converter rated for 3W and up to 0.6A output. That makes it suitable for low-power 5V embedded control circuits that stay within those output limits and can accept the converter's 18-75V input range.

Is the MDS03G-05 a fit for 5V sensor interface or monitoring electronics in automation cabinets?

It can fit low-power 5V sensor interface, monitoring, or logic boards when the load does not exceed 0.6A or 3W. Its compact 31.8 × 20.3 × 12.2 mm size also suits dense control assemblies where space is limited.

Can this converter be used for medical-grade 5V auxiliary power in OEM equipment?

This model is identified as medical grade and carries CB, CCC, CE, EAC, ENEC, and UL certifications. For OEM designs that need a regulated 5V auxiliary rail, it is intended for loads up to 0.6A from an 18-75V input source.

How does the MDS03G-05 compare with the other MDS03G models?

All three MDS03G models are 3W medical-grade DC/DC converters with the same 18-75V input range, 31.8 × 20.3 × 12.2 mm dimensions, 0.017 kg weight, -40°C to +90°C operating range, certifications, and 3-year warranty. The difference is output: the MDS03G-05 provides 5V at 0.6A, the MDS03G-12 provides 12V at 0.25A, and the MDS03G-15 provides 15V at 0.2A.

Is the MDS03G-05 suitable for outdoor or harsh-temperature installations?

Its specified operating temperature is -40°C to +90°C, so the temperature range is broad for demanding equipment environments. However, no IP rating is listed, so these specs do not establish outdoor, washdown, or exposed-weather suitability on their own.
