Can I use the MDS03G-15 to power 15V analog or signal-conditioning circuits?

Yes, for low-power 15V analog, measurement, or signal-conditioning electronics that stay within 0.2A and 3W. It provides constant-voltage 15V output from an 18-75V input range.

Is the MDS03G-15 suitable for a 15V auxiliary rail in industrial or embedded systems?

It is suitable for low-power auxiliary 15V rails where the load does not exceed 0.2A. The compact 31.8 × 20.3 × 12.2 mm size also helps when space is tight inside embedded or industrial assemblies.

Can this model support low-current 15V instrumentation inside medical-grade equipment?

This converter is identified as medical grade and includes CB, CCC, CE, EAC, ENEC, and UL certifications. For low-current 15V instrumentation or support circuitry, it is rated for up to 0.2A output and 3W total power.

How does the MDS03G-15 compare to the 5V and 12V versions?

All MDS03G units share a 3W rating, 18-75V input range, 31.8 × 20.3 × 12.2 mm dimensions, 0.017 kg weight, -40°C to +90°C operating range, the same certification set, and a 3-year warranty. The output options are 5V at 0.6A for MDS03G-05, 12V at 0.25A for MDS03G-12, and 15V at 0.2A for MDS03G-15.

Is the MDS03G-15 rated for outdoor environments?

The datasheet details an operating temperature range of -40°C to +90°C, which supports broad thermal conditions. However, no IP rating is listed, so the published specs do not confirm outdoor, wet, or dust-exposed installation suitability.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

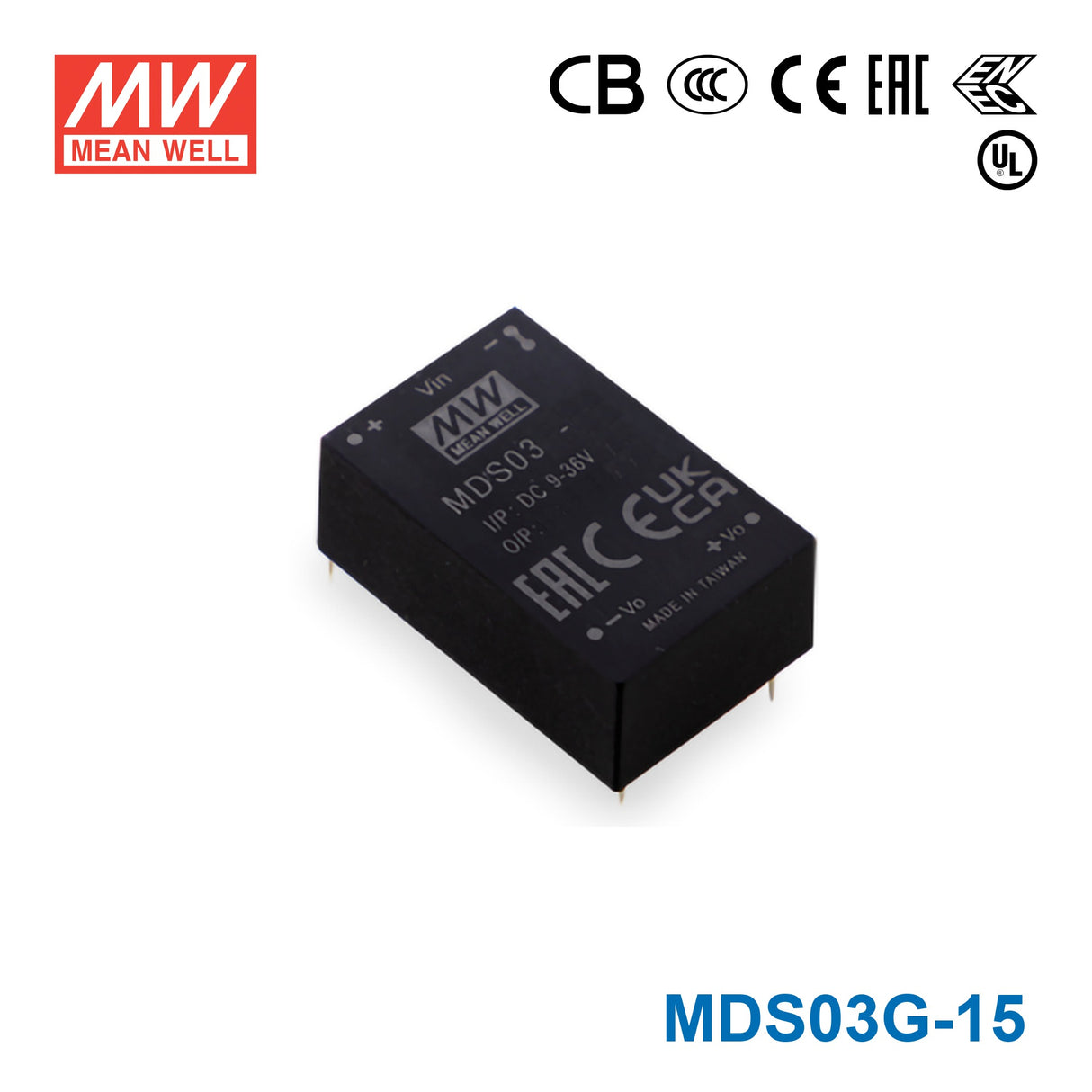

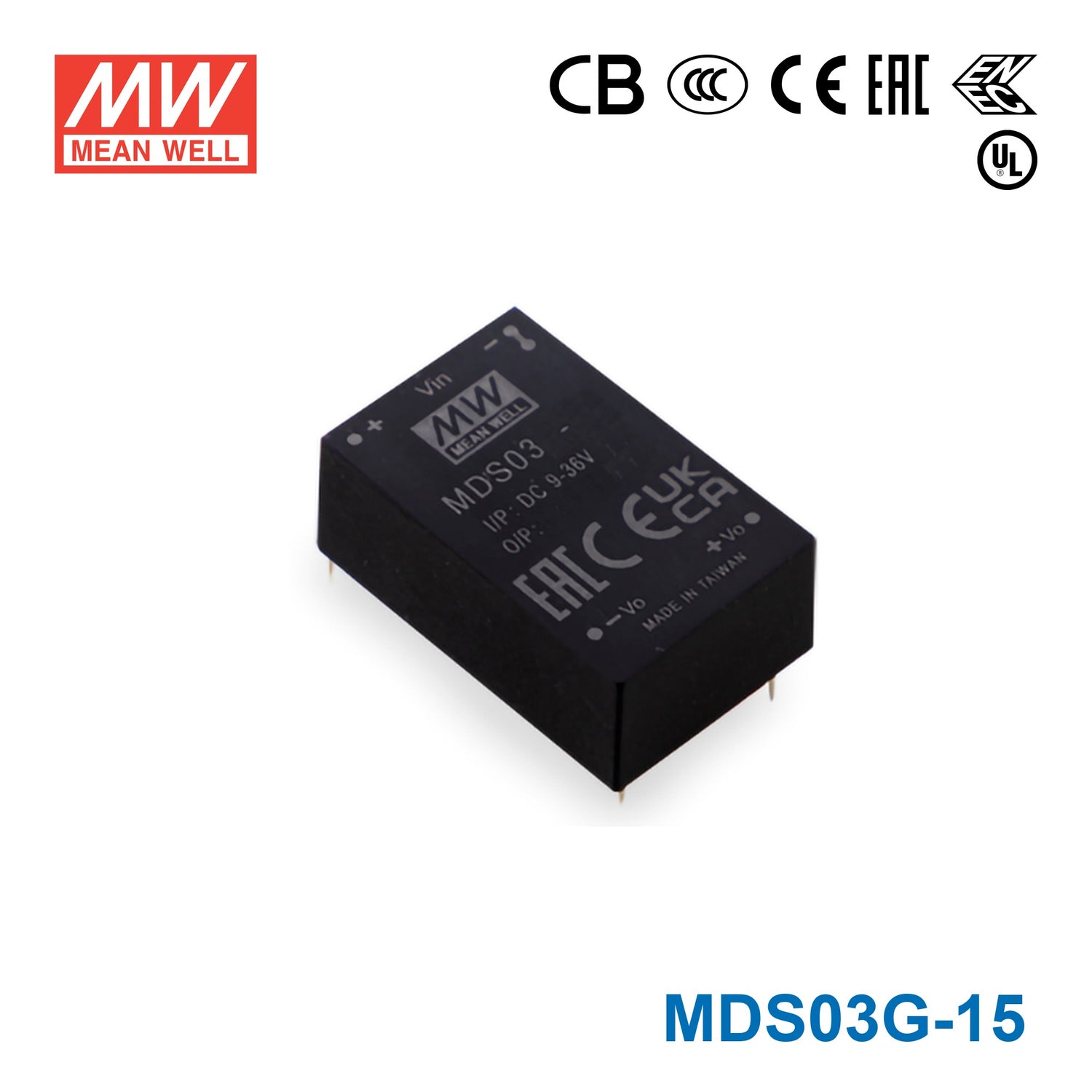

Mean Well MDS03G-15 Medical Grade DC/DC Converter 3W - 18-75V input, 15V output 200mA

15V3WDC/DCMedical Grade

SKU:

MDS03G-15

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The MDS03G is a 3W Mean Well power converter (input range: 9~36Vdc).

Key Features

✓ Input voltage range: 9~36Vdc
✓ 6KVDC reinforced I/O isolation
✓ Protections: Short circuit / Overload
✓ Safety approvals: IEC60601-1(LVD) 3 edition, EAC TP TC 004
✓ 3 years warranty
