Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

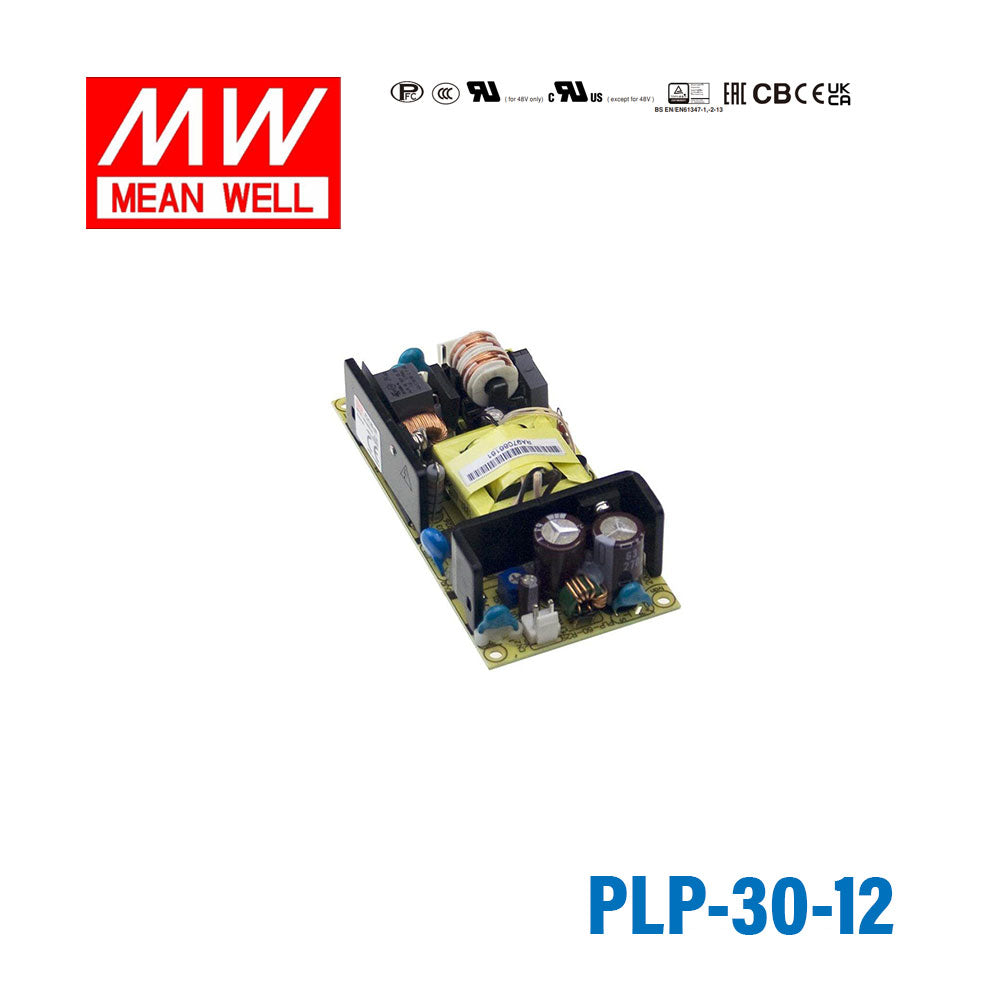

Mean Well PLP-30-12 Single Output LED Driver 30W

PCB type, Class 2 power unit, output current adjustable, suitable for built-in applications

SKU:

PLP-30-12

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input/Full range

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage

Cooling by free air convection

Class 2 power unit

Output current level adjustable

100% full load burn-in test

High reliability

Suitable for built-in applications of LED lighting

2 years warranty

General Specification

AC input voltage range	90~264VAC 127~370VDC
AC inrush current (max.)	Cold start, 25A at 230VAC
DC adjustment range	75%~100% rated current
Over current protection	100%~110%
Over voltage protection	upto 150% rated voltage
Short circuit protection	Hiccup mode
Withstand voltage	I/P - O/P: 3.75kVAC, I/P - FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-30~+70°C
Safety standards	BS EN/EN61347-1, BS EN/EN61347-2-13
EMC standards	EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11,
Connection	JST B3P/B2P
Dimension (LxWxH)	101.6x50.8x26.6
Packing	108pcs/13Kg

Specifications

Brand

Mean Well
Series

PLP Series
Power Rating

30 Watt
Output Voltage

12 Volt
Rated Current

2.5 Ampere
Input Voltage

90V~264V
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

10.16 cm
Width

5.08 cm
Height

2.66 cm
Weight

0.12 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Mean Well PLP-30-12 used for?

The Mean Well PLP-30-12 is a 30W single-output LED driver intended for built-in LED lighting applications. It provides a 12V output and is suited to commercial or OEM use where a compact, reliable power unit is needed.

What are the main electrical ratings of the PLP-30-12?

This model is rated for 30W total output power with a 12V output and 2.5A rated current. It accepts a universal AC input range of 90 to 264VAC and also supports 127 to 370VDC input.

Is the PLP-30-12 dimmable?

No, the PLP-30-12 is a non-dimmable LED driver. It is intended for applications that need fixed-output performance rather than integrated dimming control.

Does the PLP-30-12 include protection features?

Yes, this model includes protection for short circuit, overload, and over voltage conditions. These built-in protections help support reliability in LED lighting applications.

Can the output current be adjusted on the PLP-30-12?

Yes, the output current level is adjustable on this model. The listed DC adjustment range is 75% to 100% of rated current.

What operating temperatures can the PLP-30-12 handle?

The PLP-30-12 is specified for operation from -30°C to 70°C. That range makes it suitable for a wide variety of indoor equipment and enclosed lighting applications, provided the overall system is designed within the product limits.

How does the PLP-30-12 support long-term reliability?

This model features free air convection cooling, active PFC, and 100% full load burn-in testing. It is also backed by a 2-year warranty and is described by Mean Well as a high-reliability design for LED lighting use.

Model	Power	Voltage	Current	IP Rating
Mean Well PLP-30-48 Single Output LED Driver 30W	30W	48V	0.63A	Indoor	View
Mean Well PLP-30-24 Single Output LED Driver 30W	30W	24V	1.3A	Indoor	View
