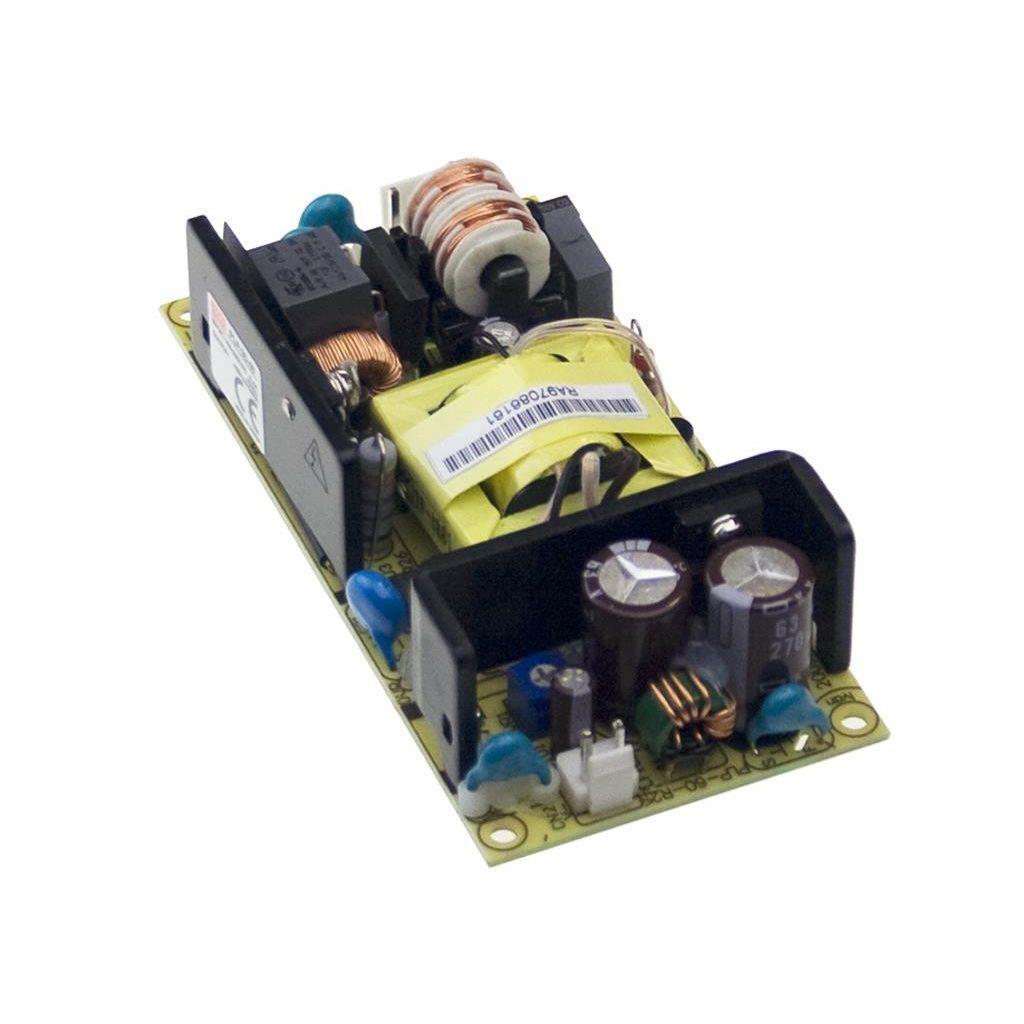

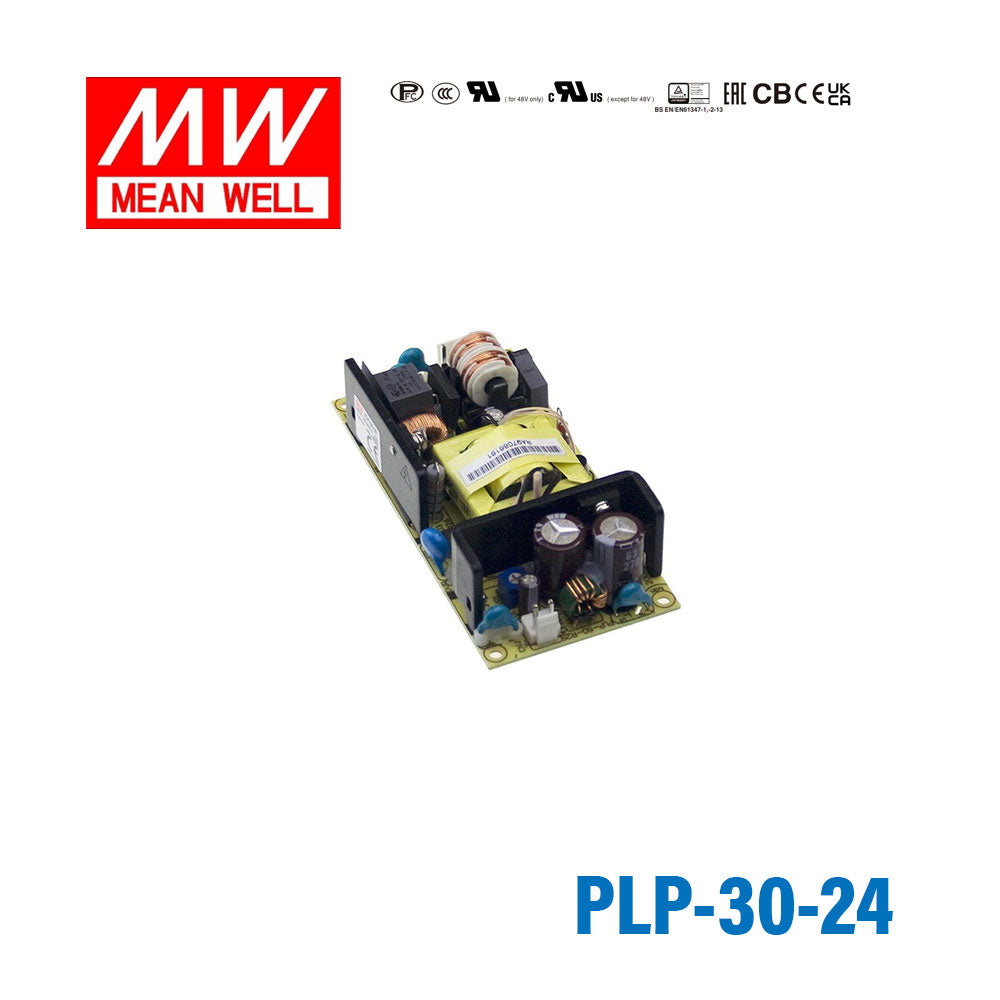

Mean Well PLP-30-24 Single Output LED Driver 30W

PCB type, Class 2 power unit, output current adjustable, suitable for built-in applications

SKU:

PLP-30-24

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input/Full range

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage

Cooling by free air convection

Class 2 power unit

Output current level adjustable

100% full load burn-in test

High reliability

Suitable for built-in applications of LED lighting

2 years warranty

General Specification

AC input voltage range	90~264VAC 127~370VDC
AC inrush current (max.)	Cold start, 25A at 230VAC
DC adjustment range	75%~100% rated current
Over current protection	100%~110%
Over voltage protection	upto 150% rated voltage
Short circuit protection	Hiccup mode
Withstand voltage	I/P - O/P: 3.75kVAC, I/P - FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-30~+70°C
Safety standards	BS EN/EN61347-1, BS EN/EN61347-2-13
EMC standards	EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11,
Connection	JST B3P/B2P
Dimension (LxWxH)	101.6x50.8x26.6
Packing	108pcs/13Kg

Specifications

Brand

Mean Well
Series

PLP Series
Power Rating

30 Watt
Output Voltage

24 Volt
Rated Current

1.3 Ampere
Input Voltage

90V~264V
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

10.16 cm
Width

5.08 cm
Height

2.66 cm
Weight

0.12 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the output rating of the Mean Well PLP-30-24?

The Mean Well PLP-30-24 is rated for 30W output. This model provides a 24V output and a rated current of 1.3A. It is intended for constant voltage LED lighting applications that match those output requirements.

Is the PLP-30-24 dimmable?

No, the PLP-30-24 is a non-dimmable LED driver. It is designed for applications where a stable 24V output is needed without integrated dimming control. Buyers needing dimming should compare it against models with a dedicated dimming function.

What kinds of applications is the PLP-30-24 suited for?

This model is described as suitable for built-in LED lighting applications. Its plastic case, Class 2 power unit design, and free air convection cooling make it a practical option for enclosed lighting products and general LED power supply use. It is best matched to applications requiring a 24V, 30W LED driver from a recognized industrial brand.

What input range does the Mean Well PLP-30-24 support?

The PLP-30-24 has a universal AC input range of 90 to 264VAC and also supports 127 to 370VDC input. That wide range makes it suitable for buyers sourcing for different mains environments. It also includes built-in active PFC as listed in the product specifications.

Can the output current be adjusted on this model?

Yes, the PLP-30-24 lists an adjustable output current level. The stated DC adjustment range is 75% to 100% of rated current. This gives some flexibility when selecting the driver for compatible LED loads within the model's rated range.

What operating temperature range is specified for the PLP-30-24?

This model is specified for operation from -30°C to 70°C. That range makes it suitable for a variety of commercial and industrial lighting environments, provided the overall application stays within the product's rated conditions. Buyers should still confirm the full application design stays within the published limits.

What protection and reliability features does the PLP-30-24 include?

The PLP-30-24 includes protection for short circuit, overload, and over voltage. It also features 100% full load burn-in testing and is described as a high reliability model. Mean Well lists a 2-year warranty for this LED driver.
