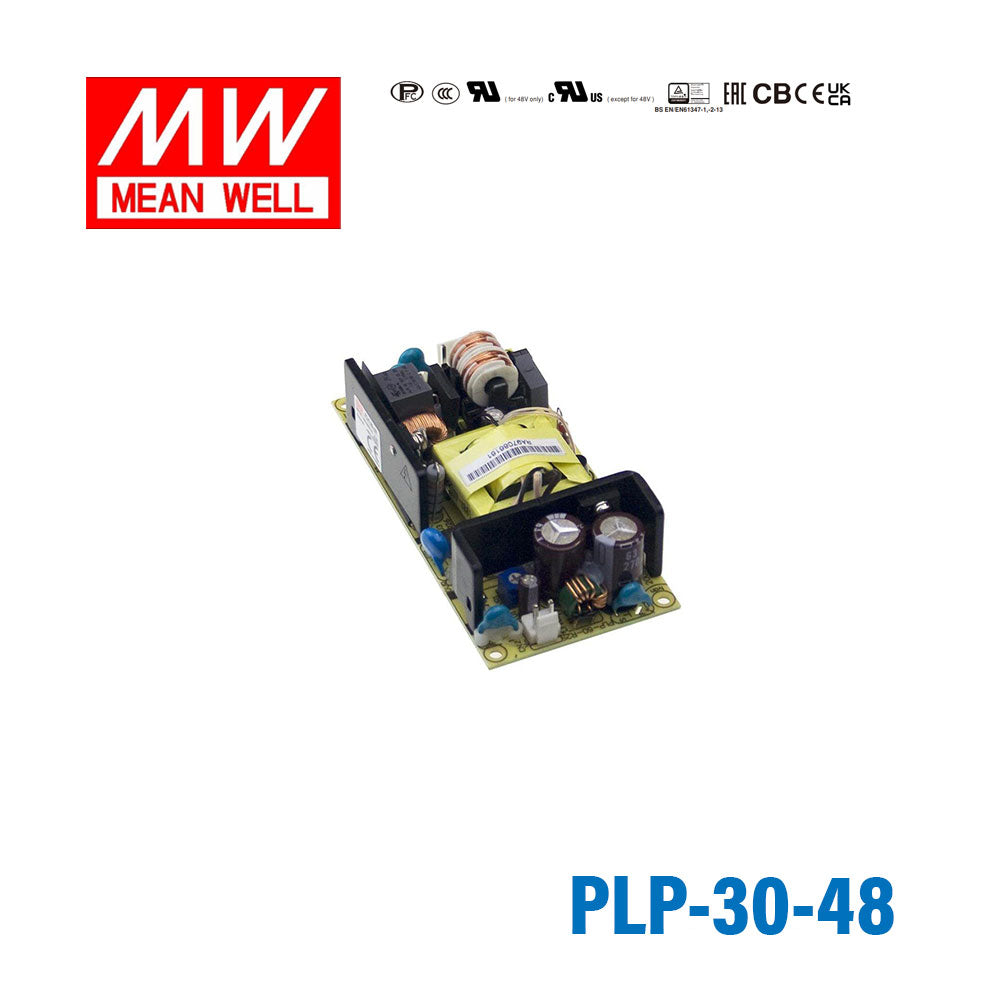

Mean Well PLP-30-48 Single Output LED Driver 30W

PCB type, Class 2 power unit, output current adjustable, suitable for built-in applications

SKU:

PLP-30-48

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input/Full range

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage

Cooling by free air convection

Class 2 power unit

Output current level adjustable

100% full load burn-in test

High reliability

Suitable for built-in applications of LED lighting

2 years warranty

General Specification

AC input voltage range	90~264VAC 127~370VDC
AC inrush current (max.)	Cold start, 25A at 230VAC
DC adjustment range	75%~100% rated current
Over current protection	100%~110%
Over voltage protection	upto 150% rated voltage
Short circuit protection	Hiccup mode
Withstand voltage	I/P - O/P: 3.75kVAC, I/P - FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-30~+70°C
Safety standards	BS EN/EN61347-1, BS EN/EN61347-2-13
EMC standards	EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11,
Connection	JST B3P/B2P
Dimension (LxWxH)	101.6x50.8x26.6
Packing	108pcs/13Kg

Specifications

Brand

Mean Well
Series

PLP Series
Power Rating

30 Watt
Output Voltage

48 Volt
Rated Current

0.63 Ampere
Input Voltage

90V~264V
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

10.16 cm
Width

5.08 cm
Height

2.66 cm
Weight

0.12 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the output rating of the Mean Well PLP-30-48?

The Mean Well PLP-30-48 is rated for 30W output power. This model has a 48V output and a rated output current of 0.63A. It is designed as a single output LED driver for applications that need those electrical ratings.

Is the PLP-30-48 dimmable?

No. The product data for this model identifies it as non-dimmable. If your project requires dimming control, this specific version is not the right choice.

What input range does the PLP-30-48 support?

This driver supports a universal AC input range of 90 to 264VAC, and it also lists a DC input range of 127 to 370VDC. That wide input range makes it suitable for many commercial and industrial power environments. The unit also includes built-in active PFC.

What protections are included in the Mean Well PLP-30-48?

The PLP-30-48 includes protection for short circuit, overload, and over voltage. These built-in protections help support reliability in LED lighting applications. Mean Well also notes that the unit receives a 100% full load burn-in test.

What operating temperatures can the PLP-30-48 handle?

This model is specified for operation from -30°C to 70°C. That range makes it a practical option for many indoor and enclosed built-in LED lighting applications. Actual suitability still depends on the thermal conditions of the finished equipment.

What kinds of applications is the PLP-30-48 intended for?

Mean Well describes the PLP-30-48 as suitable for built-in LED lighting applications. It is a compact plastic-case LED driver with free air convection cooling and Class 2 power unit classification. Those characteristics make it relevant for OEM and commercial lighting products that need a 30W, 48V driver.

What warranty comes with the Mean Well PLP-30-48?

The listed warranty period for the PLP-30-48 is 2 years. This matches the product specification provided for this model. For procurement or project planning, that gives buyers a clear baseline warranty term from the manufacturer.
