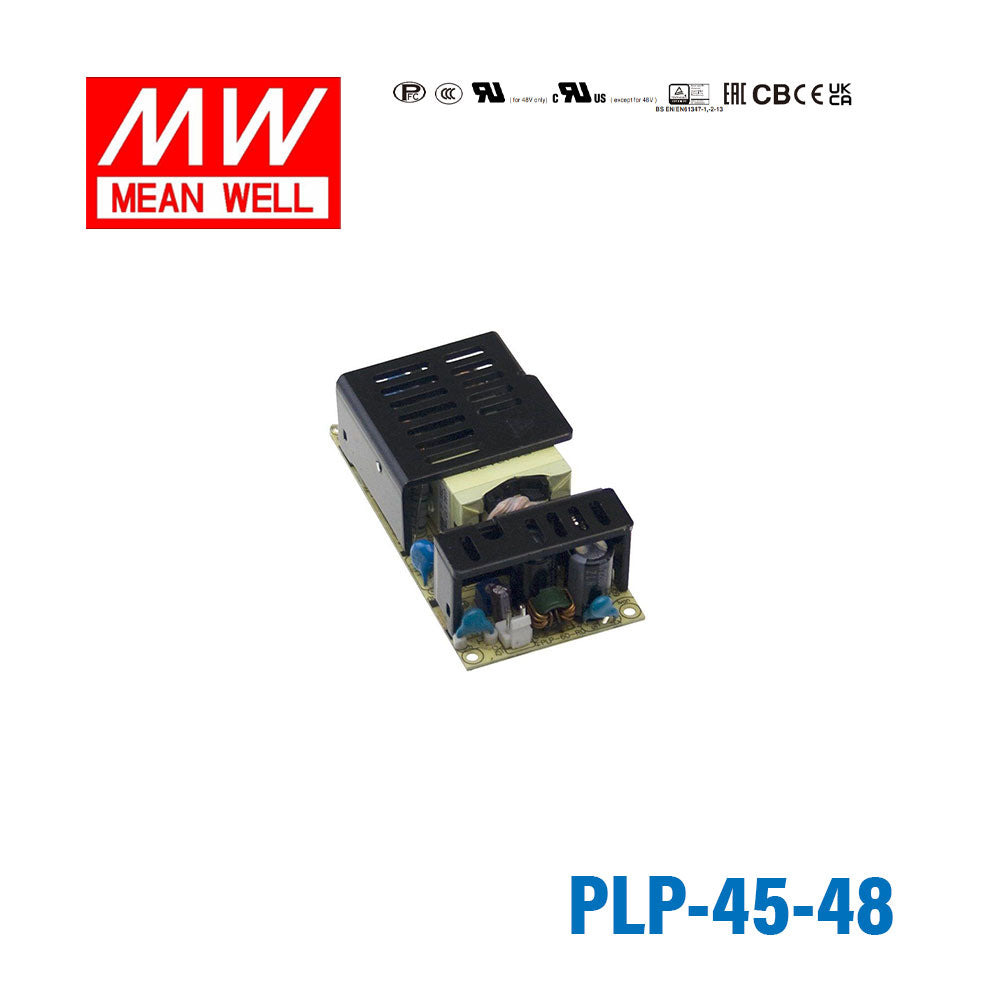

Mean Well PLP-45-48 Single Output LED Driver 45W

PCB type, Class 2 power unit, output current adjustable, suitable for built-in applications

|

Description

Features

Universal AC input/Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Class 2 power unit
Output current level adjustable
100% full load burn-in test
High reliability
Suitable for built-in applications of LED lighting
2 years warranty

General Specification

AC input voltage range 90~264VAC   127~370VDC
AC inrush current (max.) Cold start, 25A at 230VAC
DC adjustment range 75%~100% rated current
Over current protection 100%~110%
Over voltage protection upto 150% rated voltage
Short circuit protection Hiccup mode
Withstand voltage I/P - O/P: 3.75kVAC, I/P - FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -30~+70°C
Safety standards BS EN/EN61347-1, BS EN/EN61347-2-13
EMC standards EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11,
Connection JST B3P/B2P
Dimension (LxWxH) 101.6x50.8x26.6
Packing 108pcs/13Kg

Specifications

  • Brand
    Mean Well
  • Series
    PLP Series
  • Power Rating
    45 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    0.95 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -30°C~70°C
  • Warranty
    2 Year
  • Length
    10.16 cm
  • Width
    5.08 cm
  • Height
    2.96 cm
  • Weight
    0.16 kg
