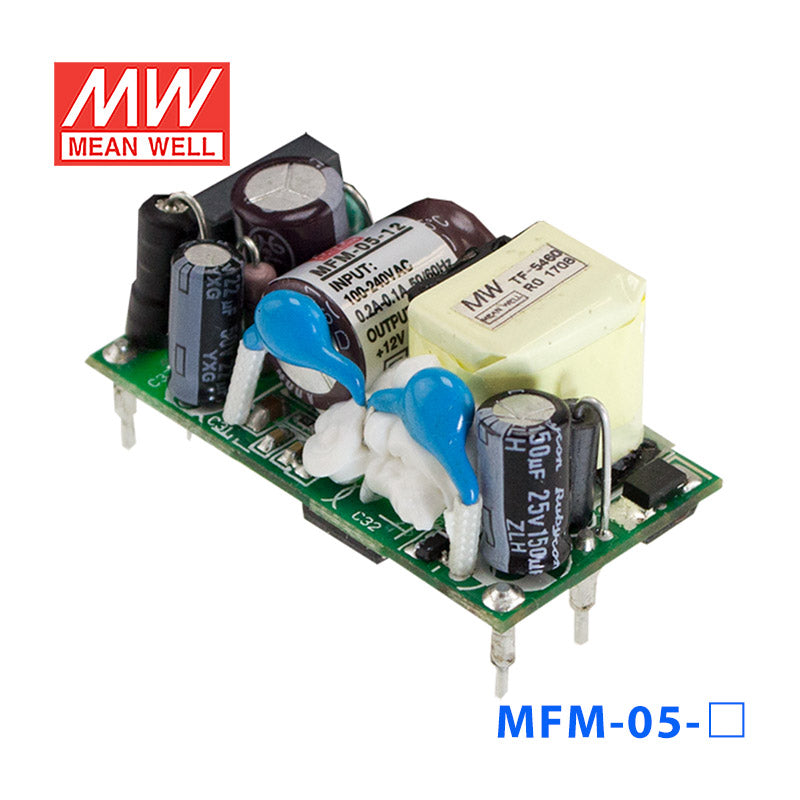

Mean Well MFM-05-12 Power Supply 5W 12V

PCB type, compact size, medical safety approved, no load power consumption < 0.1W, extremely low leakage current

|

Description

Features

1.65"x0.88" compact size
Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Suitable for BF application with appropriate system consideration
No-load power consumption<0.075W
Extremely low leakage current
Wide operating temp. range -40~+85°C
EMI Class B for class II configuration
Protections: Short circuit/ Overload/ Over voltage/Over temperature

No minimum load required

Typical lifetime > 52K hours

3 years warranty

General Specification

AC input voltage range 80~264VAC
AC inrush current Cold start 25A/115VAC
Leakage current

Touch current<80 μA/264VAC

Overload protection 110 ~ 180% rated output power
Over-voltage protection 115%~150% rated output voltage
Setup, rise, hold up time 1000ms, 30ms, 40ms
Withstand voltage I/P-O/P:4KVAC
Working temperature -40~+85°C
Vibration 10~500Hz, 5G 10min./1 cycle, period for 60min. Each along X, Y, Z axes
Safety standards IEC60601-1, BS EN/EN60601-1
EMC standards EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Operating altitude 5000 meters
Dimension (LxWxH) 42x22.3x20.5
Packing 270pcs / 5.8kg

Specifications

  • Brand
    Mean Well
  • Series
    MFM Series
  • Power Rating
    5 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    0.42 Ampere
  • Input Voltage
    80V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    3 Year
  • Length
    4.2 cm
  • Width
    2.23 cm
  • Height
    2.05 cm
  • Weight
    0.02 kg
