Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

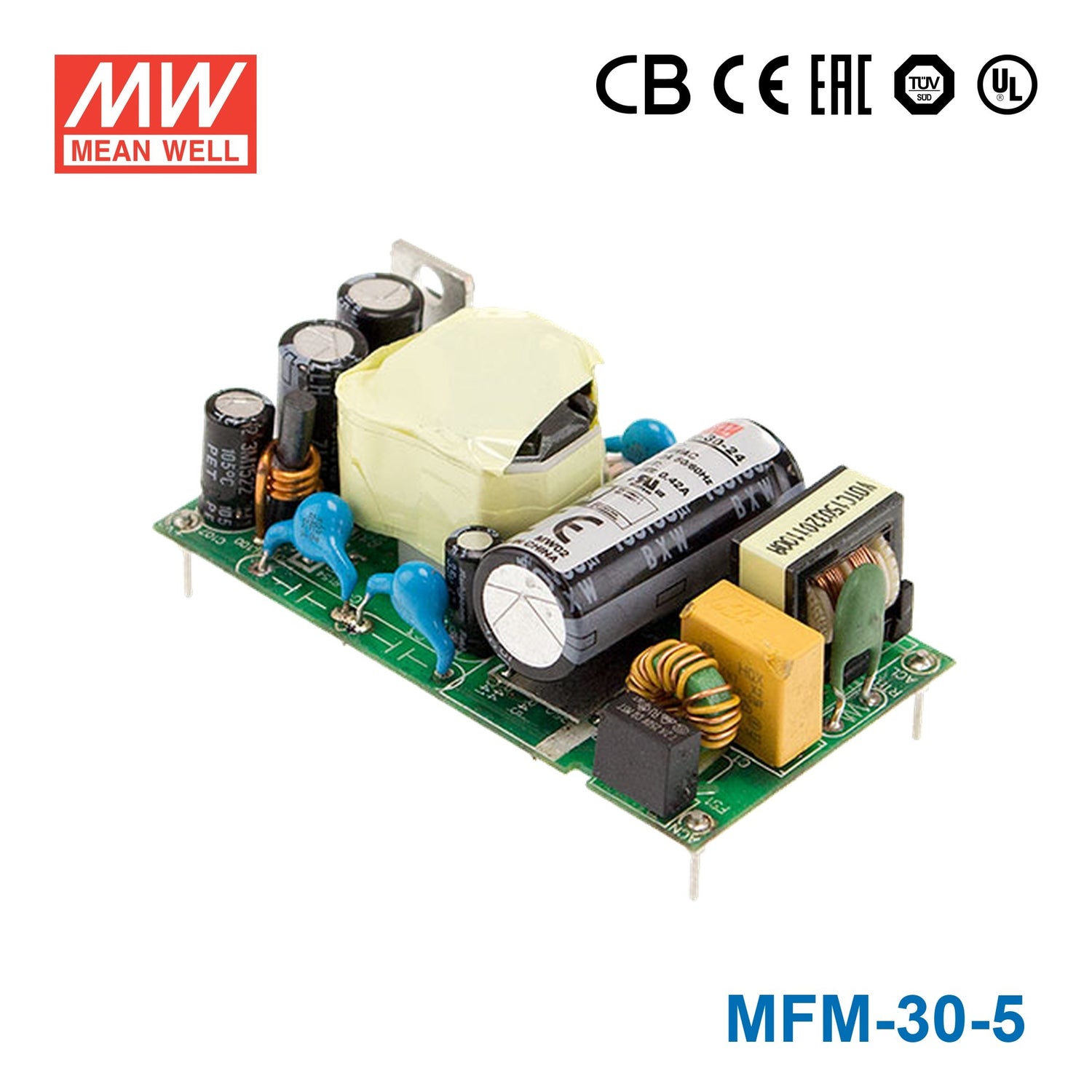

Mean Well MFM-30-5 Power Supply 30W 5V
Please Login for Pricing
Description
Description
Features
| 2.58"x1.38" compact size |
| Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1 |
| Suitable for BF application with appropriate system consideration |
| No-load power consumption<0.075W |
| Extremely low leakage current |
| Wide operating temp. range -40~+85°C |
| EMI Class B for class II configuration |
| Protections: Short circuit/ Overload/ Over voltage/Over temperature |
| No minimum load required |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC |
| AC inrush current | Cold start 25A/115VAC |
| Leakage current | Touch current <80 μA/264VAC |
| Overload protection | 115 ~ 165% rated output power |
| Over-voltage protection | 106%~136% rated output voltage |
| Setup, rise, hold up time | 1000ms, 30ms, 40ms |
| Withstand voltage | I/P-O/P:4KVAC |
| Working temperature | -40~+85°C |
| Vibration | 10~500Hz, 5G 10min./1cycle, period for 60min. Each along X, Y, Z axes |
| Safety standards | IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved; Design refer to BS EN/EN60335-1(by request) |
| EMC standards | EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Operating altitude | 5000 meters |
| Dimension (LxWxH) | 65.5x35x23 |
| Packing | 144pcs / 8.6kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesMFM Series
-
Power Rating30 Watt
-
Output Voltage5 Volt
-
Rated Current6 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length6.55 cm
-
Width3.5 cm
-
Height2.3 cm
-
Weight0.05 kg
