Over 15 years experience of providing support of MEAN WELL Power Supplies

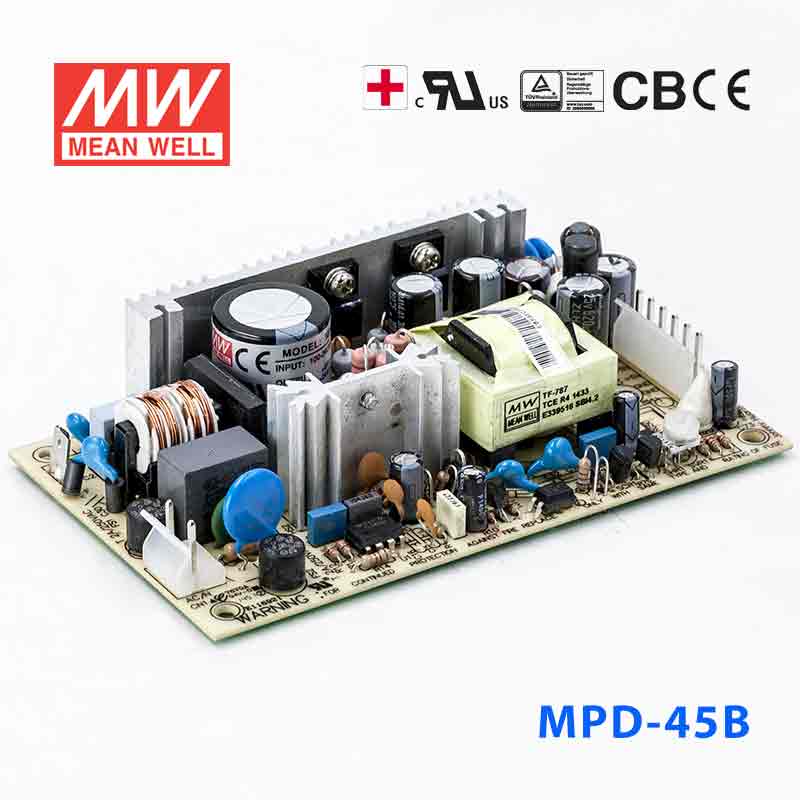

Mean Well MPD-45B Power Supply 45W 5V 24V
Log in to see priceMEAN WELL MPD-45 Series Power Supplies are 45W dual output medical type power supplies with high reliability,3 years warranty.
Features
- Universal AC input / Full range
- Low leakage current <250pA
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Medical safety approved (2 x MOPP between primary to secondary)
- 100% full load burn-in test
- Fixed switching frequency at 45KHz
- 3 years warranty
-
BrandMean Well
-
SeriesMPD Series
-
Power Rating44.8 Watt
-
Output Voltage5 Volt
-
Rated Current3.2 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length12.7 cm
-
Width7.6 cm
-
Height2.8 cm
-
Weight0.2 kg
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MPD Series Models
5 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well MPD-65B Power Supply 65W 5V 24V | 65.5W | 5V | 3.5A | View |
| Mean Well MPD-65A Power Supply 65W 5V 12V | 61.1W | 5V | 5.5A | View |
| Mean Well MPD-45A Power Supply 45W 5V 12V | 40W | 5V | 3.2A | View |
| Mean Well MPD-200B Power Supply 200W 5V 24V | 200W | 5V | 15A | View |
| Mean Well MPD-200A Power Supply 200W 5V 12V | 200W | 5V | 15A | View |
