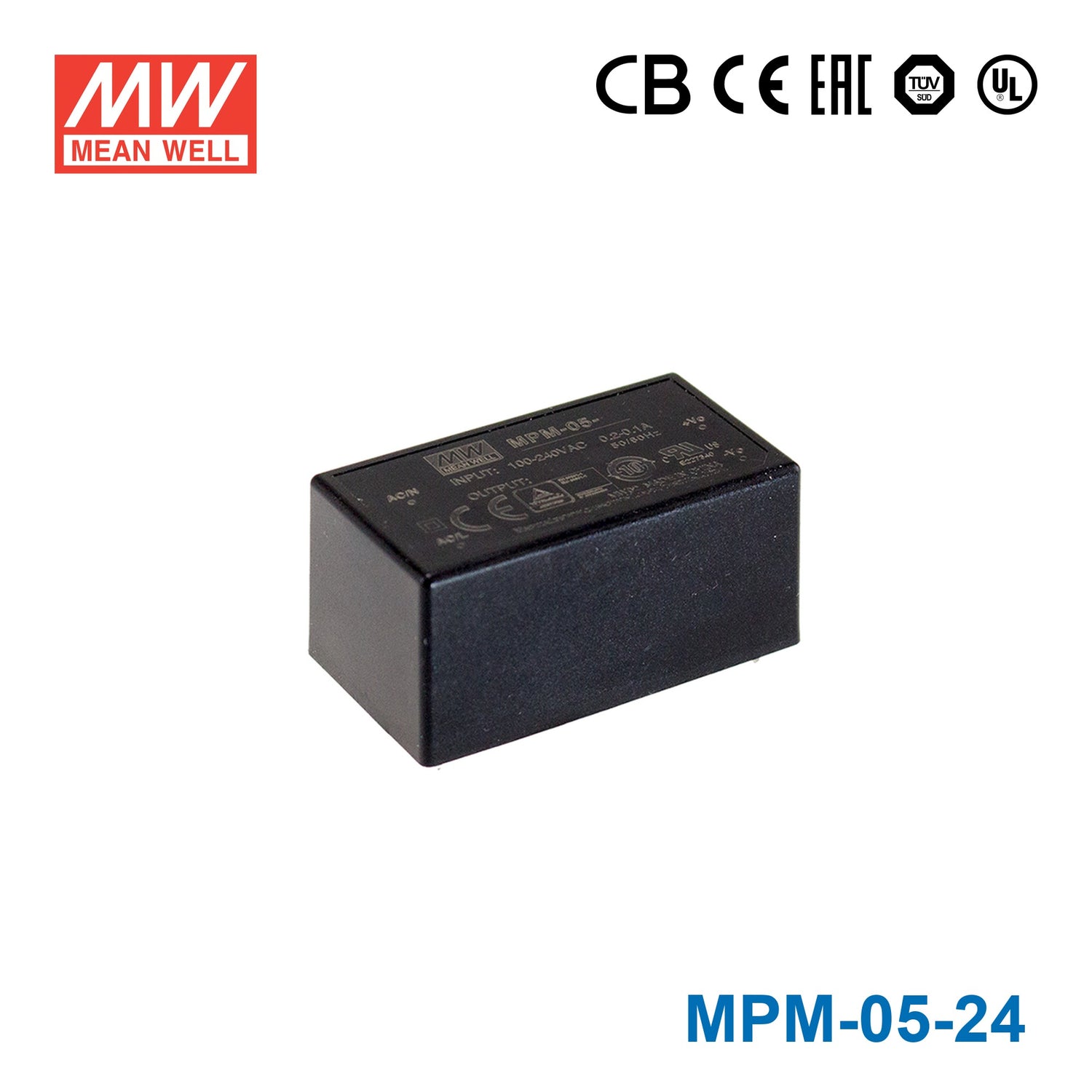

Mean Well MPM-05-24 Power Supply 5W 24V
Please Login for Pricing
Description
Description
Features
| 1.8"x1." compact size |
| Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1 |
| Suitable for BF application with appropriate system consideration |
| No load power consumption<0.075W |
| Extremely low leakage current |
| Wide operating temp. range -40~+85°C |
| EMI class B for class II configuration |
| Protections: Short circuit/ Overload/ Over voltage/Over temperature |
| No minimum load required Typical lifetime>48K hours |
| 3 years warranty |
General Specification
| AC input voltage range | 80 ~ 264VAC |
| AC inrush current | COLD START 25A/115VAC |
| Leakage current | Touch current <80 μA/264VAC |
| Overload protection | 110 ~ 180% rated output power |
| Over voltage protection | 115%~151% rated output voltage |
| Setup, rise, hold up time | 1000ms, 30ms, 40ms |
| Withstand voltage | I/P-O/P:4KVAC |
| Working temperature | -40~+85°C |
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes |
| Safety standards | IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved ; Design refer to BS EN/EN60335-1(by request) |
| EMC standards | EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Case No | 291A |
| Dimension (LxWxH) | 45.7x25.4x21.5 |
| Packing | 270pcs / 10.5kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating5.5 Watt
-
Output Voltage24 Volt
-
Rated Current0.23 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length4.57 cm
-
Width2.54 cm
-
Height2.15 cm
-
Weight0.04 kg
