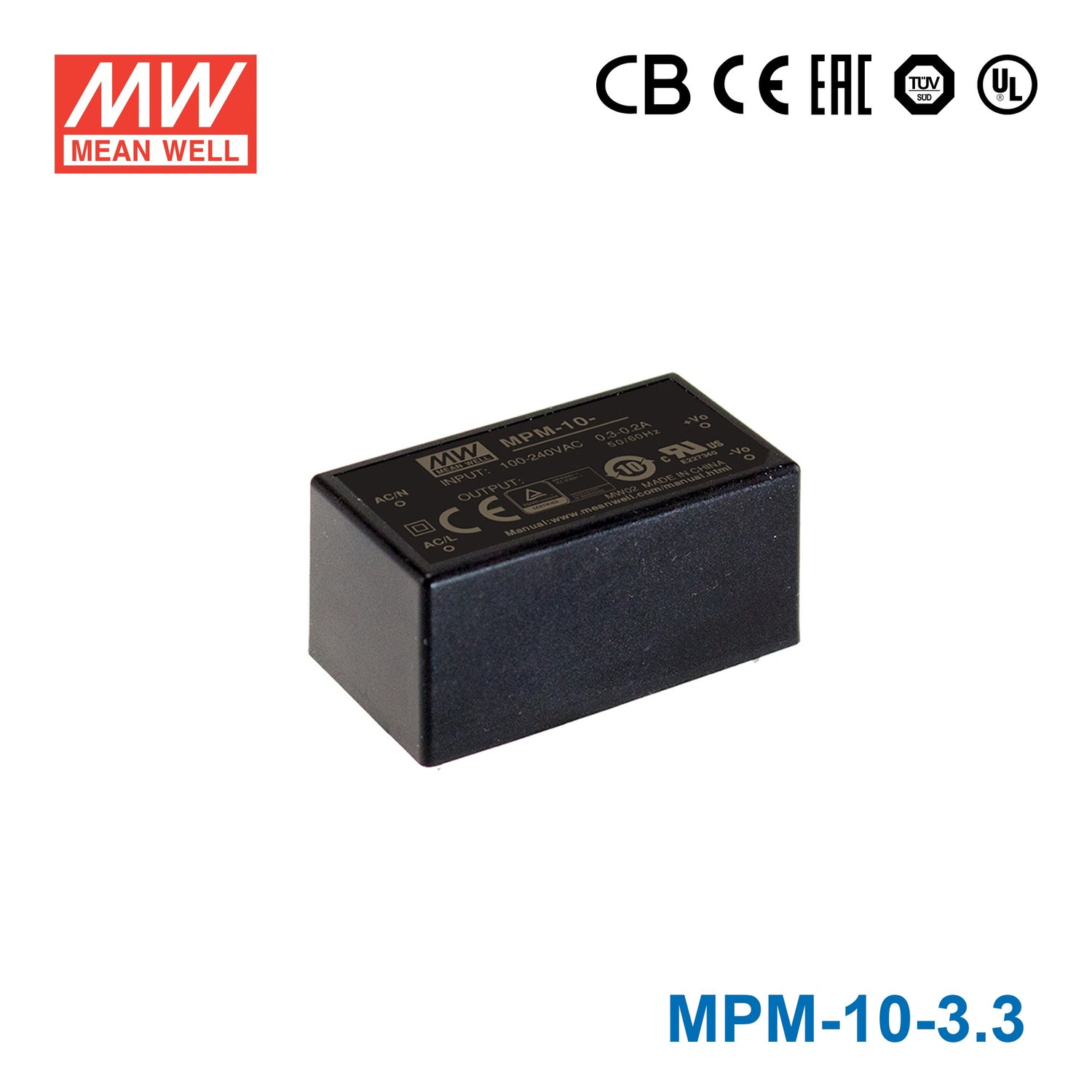

Mean Well MPM-10-3.3 Power Supply 10W 3.3V
Please Login for Pricing
Description
Description
Touch current<80 μA/264VAC
Key Features
- ✓1.8"x1" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No load power consumption<0.075W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -30~+85°C
- ✓EMI class B for class II configuration
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load required
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating8.3 Watt
-
Output Voltage3.3 Volt
-
Rated Current2.5 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length4.57 cm
-
Width2.54 cm
-
Height2.15 cm
-
Weight0.04 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MPM-10-3.3 to power a 3.3V embedded controller or logic board?
Yes, if the board requires a constant 3.3V supply and draws no more than 8.3W or 2.5A. That makes it more appropriate for embedded logic, controllers, and digital electronics than for higher-current 3.3V loads.
Is this a good fit for 3.3V industrial IoT or communications electronics?
It can fit low-voltage industrial electronics that run on 3.3V constant voltage and stay within 2.5A. The wide 80-264VAC input also suits equipment intended for varied AC input conditions on the front end.
Can the MPM-10-3.3 be used inside compact automation or instrumentation equipment?
Yes, its 45.7 × 25.4 × 21.5 mm size and 0.035 kg weight make it well suited for tight internal layouts. It is intended for compact 3.3V electronics that need up to 8.3W of constant voltage output.
Would this work for a 3.3V sensor-processing or control subsystem?
It can work for a 3.3V subsystem if the total draw remains at or below 2.5A and 8.3W. For designs with higher 3.3V current demand, a larger 3.3V model in the same series would be more appropriate.
Can I use this power supply in outdoor equipment or cold industrial environments?
The specified operating range is -30°C to +85°C, which supports use across cold and hot internal equipment environments. No IP rating is provided, so it should be considered for protected indoor or enclosure-mounted use rather than direct outdoor exposure.
