Can I use the MPM-15-15 for a 15V industrial control or analog circuit?

Yes, if the load needs a constant 15V output and stays within 15W and 1A. It is better suited to low-power 15V control and analog electronics than to heavier 15V loads that require more than 1A.

Is this power supply suitable for 15V instrumentation or signal-conditioning electronics?

It can be used for 15V instrumentation or signal-conditioning sections when total demand does not exceed 1A and 15W. The constant voltage output is intended for electronics that expect a fixed 15V DC supply.

Can the MPM-15-15 be used inside compact OEM equipment or medical-related devices?

Yes, its 52.4 × 27.2 × 24.0 mm package and 0.056 kg weight support compact internal designs. The listed medical safety approval, encapsulated construction, and low-leakage feature set make it suitable for low-power 15V internal equipment use.

Would this work for a 15V communications, test, or embedded subsystem?

It can work for low-power 15V subsystems as long as the total load remains within 15W and 1A. For 15V applications that need more current headroom, a higher-wattage 15V model in the same series would be more appropriate.

Is the MPM-15-15 appropriate for outdoor applications or wide-temperature installations?

The operating temperature range is -40°C to +85°C, so it supports broad internal temperature conditions. No IP rating is given in the provided specs, so it should be selected for protected indoor or enclosure-mounted use rather than direct outdoor exposure.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

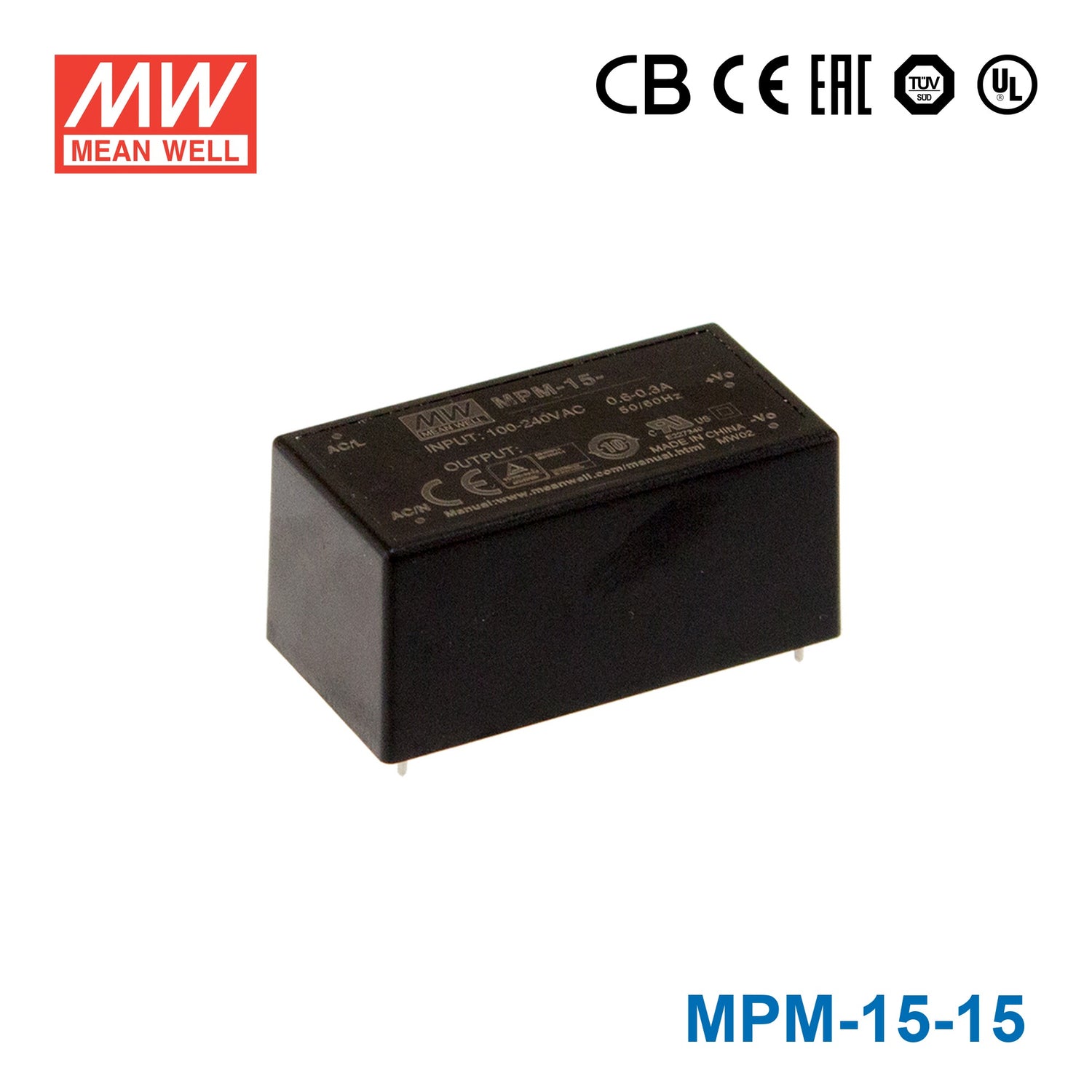

Mean Well MPM-15-15 Power Supply 15W 15V 1A

encapsulatedcompact sizemedical safety approvedno load power consumption < 0.1Wextremely low leakage current

SKU:

MPM-15-15

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Touch current <80 μA/264VAC

Key Features

✓2.06"x1.07" compact size
✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
✓Suitable for BF application with appropriate system consideration
✓No-load power consumption<0.1W
✓Extremely low leakage current
✓Wide operating temp. range -40~+85°C
✓EMI Class B for class II configuration
✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
✓No minimum load required
✓3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well MPM-15-5 Power Supply 15W 5V 3A	15W	5V	3A	View
Mean Well MPM-15-3.3 Power Supply 15W 3.3V 3.5A	11.6W	3.3V	3.5A	View
Mean Well MPM-15-24 Power Supply 15W 24V 630mA	15.1W	24V	0.63A	View
Mean Well MPM-15-12 Power Supply 15W 12V 1.25A	15W	12V	1.25A	View
