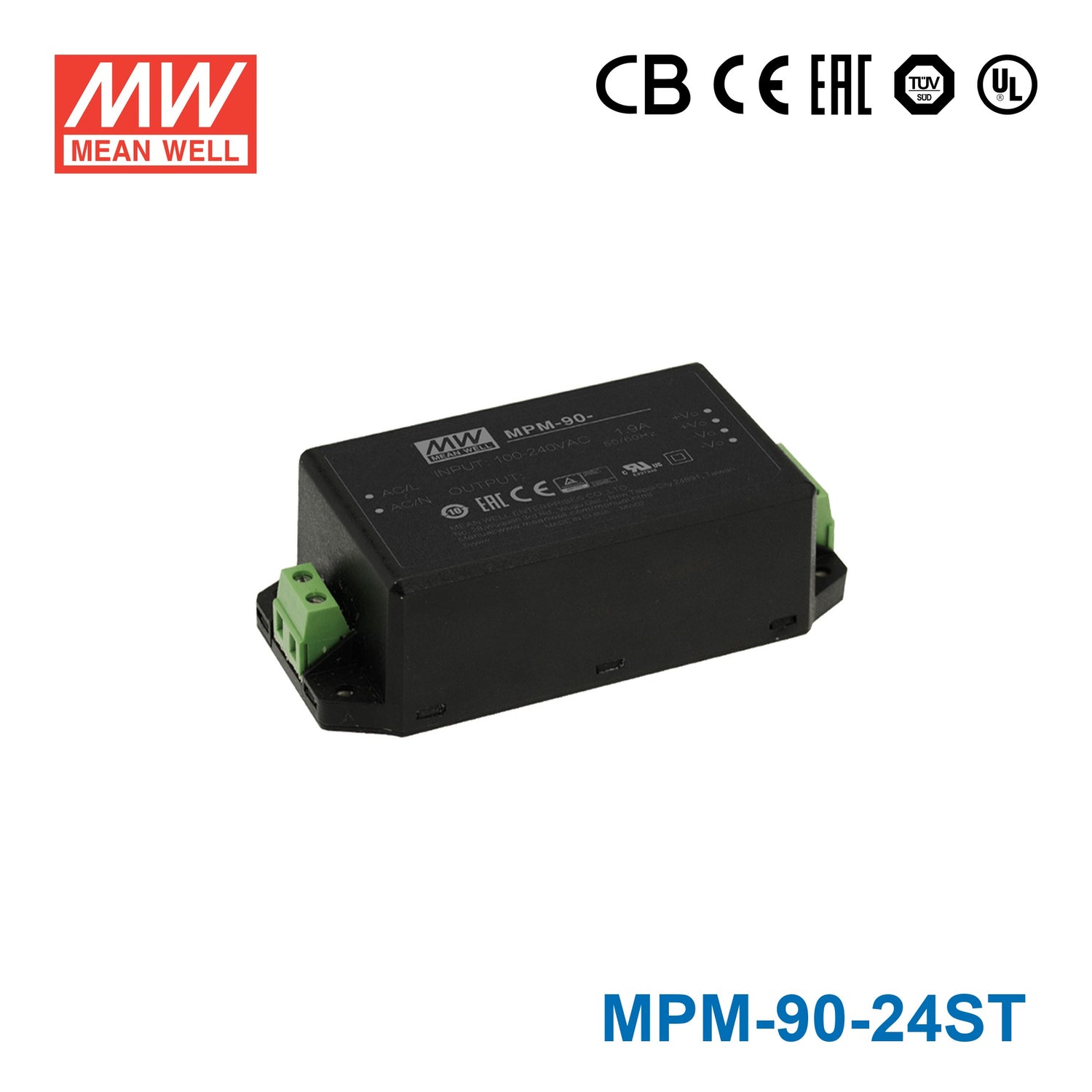

Mean Well MPM-90-24ST Power Supply 90W 24V

encapsulated, compact size, medical safety approved, no load power consumption < 0.1W, extremely low leakage current

|

Description

Features

3.43"x2.05", compact size

PCB, chassis or screw terminal mounting version

Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Suitable for BF application with appropriate system consideration
No load power consumption<0.1W
Extremely low leakage current
Wide operating temp. range -30~+80°C

EMI class B without additional components

Isolation Class II

Protections: Short circuit/ Overload/ Over voltage/Over temperature

No minimum load required

Operating altitude up to 4000 meters ( Note.7 )
100W peak (10 sec.)
3 years warranty

General Specification

AC input voltage range 80~264VAC; 113~370VDC
AC inrush current Cold start 30A/115VAC
Leakage current

Touch current<100 μA/264VAC

Overload protection 115 ~ 160% rated output power
Over voltage protection 105%~135% rated output voltage
Setup, rise, hold up time 1000ms, 30ms, 40ms
Withstand voltage I/P-O/P:4KVAC
Working temperature -30~+80°C
Vibration 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes
Safety standards IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved; Design refer to BS EN/EN60335-1(by request)
EMC standards EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Case No IRM60
Dimension (LxWxH) 87x52x29.5
Packing 60pcs / 12.8kg

Specifications

  • Brand
    Mean Well
  • Series
    MPM Series
  • Power Rating
    90 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    3.75 Ampere
  • Input Voltage
    80V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~80°C
  • Warranty
    3 Year
  • Length
    10.9 cm
  • Width
    5.2 cm
  • Height
    3.35 cm
  • Weight
    0.22 kg
