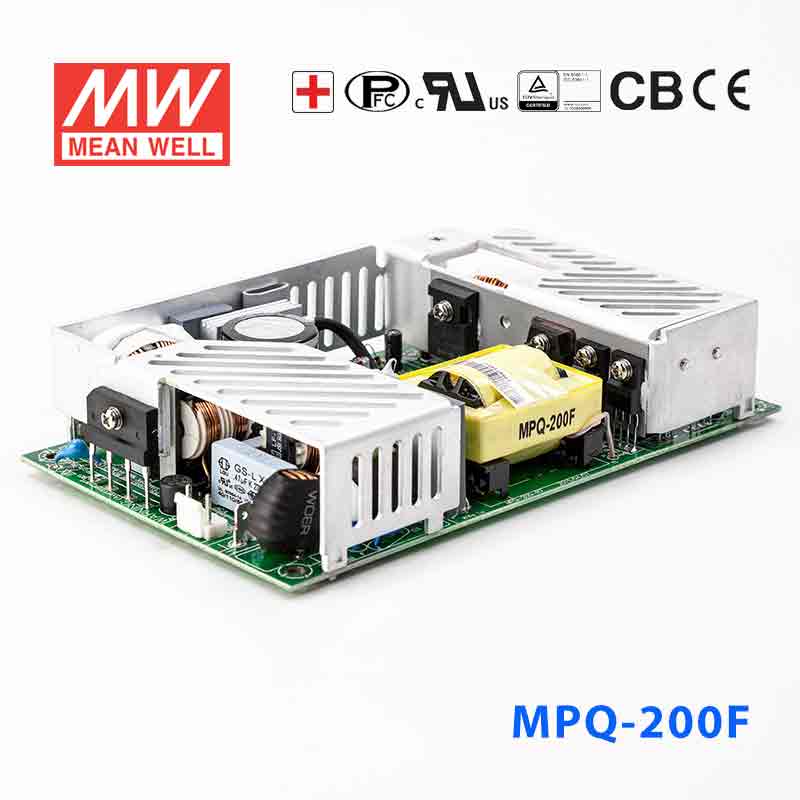

Mean Well MPQ-200F Power Supply 200W 5V 24V 15V -15V

extremely low leakage current

|

Description

Features

Universal AC input/Full range
Low leakage current < 150μA
Protections: Short circuit/Overload/Over voltage/Over temperature
Free air convection for 140W and forced air convection for 200W
Medical safety approved(2 x MOPP between primary to secondary)
With power good and fail signal output
Built-in remote ON-OFF control
Built-in remote sense function
Fixed switching frequency at 100KHz
3 years warranty

General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current Cold start 40A
Leakage current

<150 μA/264VAC

Overload protection 120 ~ 160% rated output power
Over voltage protection 115%~135% rated output voltage
Setup, rise, hold up time 1000ms, 20ms, 16ms
Withstand voltage I/P-O/P:4KVAC, I/P-FG:2KVAC, O/P-FG:1.5KVAC
Working temperature -20~+70°C
Vibration 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes
Safety standards IEC60601-1, BS EN/EN60601-1
EMC standards EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection Input: JST B3P-VH, Output: JST B8P-VH
Dimension (LxWxH) 177.8x107.2x35.5
Packing 24pcs / 16.8kg

Specifications

  • Brand
    Mean Well
  • Series
    MPQ Series
  • Power Rating
    200 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    15 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~70°C
  • Warranty
    3 Year
  • Length
    17.78 cm
  • Width
    10.72 cm
  • Height
    3.55 cm
  • Weight
    0.66 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

{ "id":8430801584427, "variants" :[{ "context":"default", "variant_id": 45664064602411, "sku":"MPQ-200F", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_identity\/redirect?locale=en\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

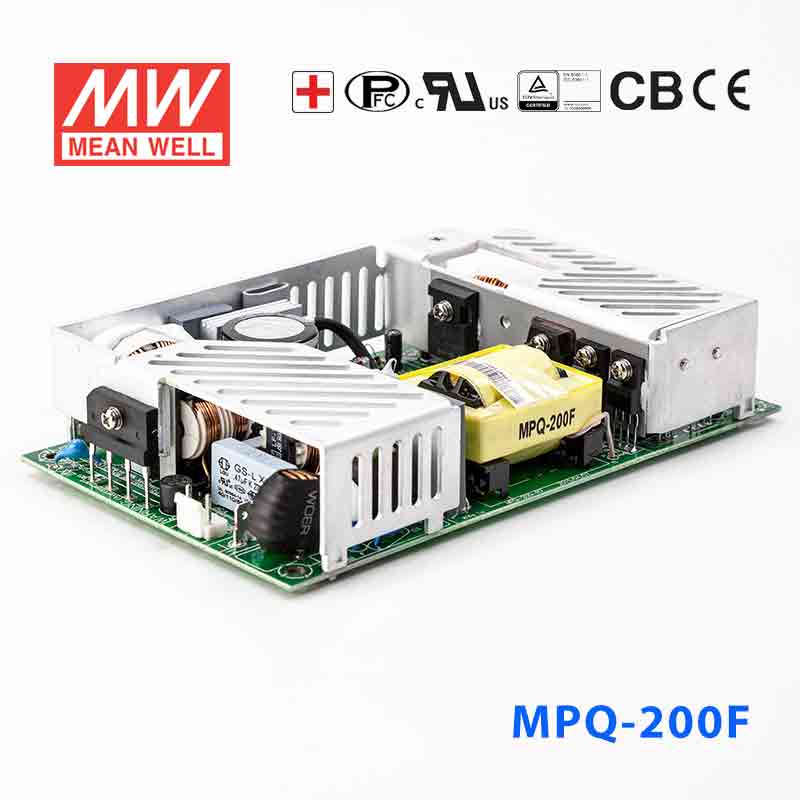

Mean Well MPQ-200F Power Supply 200W 5V 24V 15V -15V
