Mean Well

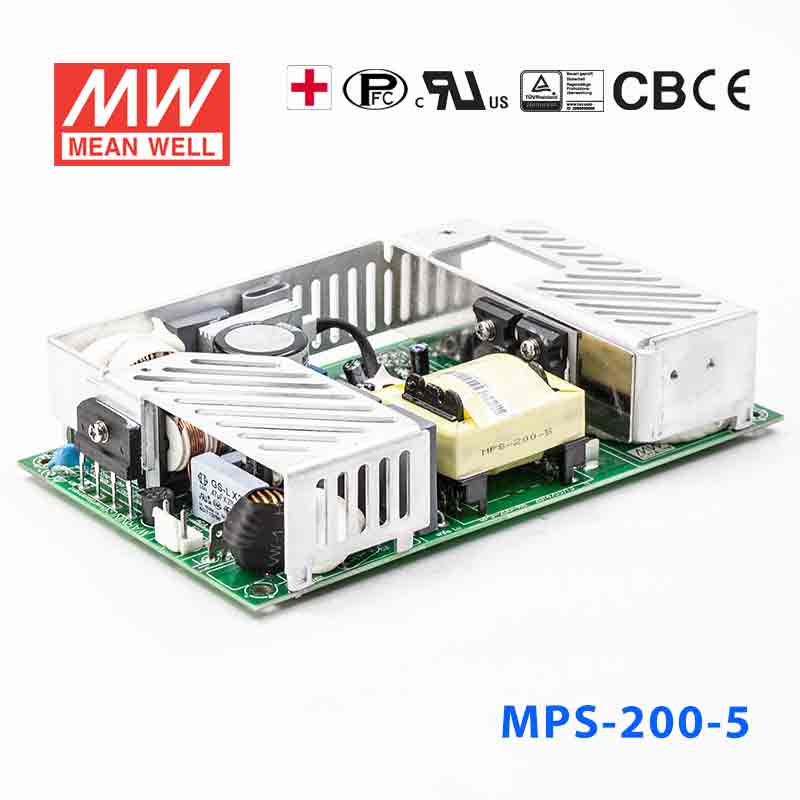

Mean Well MPS-200-5 Power Supply 200W 5V he rated current is based on there being a fan that can provide 25CFM. 40A

SKU MPS-200-5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by RPS-200-5
Available to order
|

Overview

MPS-200-5 is the 5V output model of this series: rated current 40A, typical efficiency 81%.

Features

  • Universal AC input / Full range
  • Low leakage current <180μA
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Free air convection for 140W and forced air convection for 200W
  • ANSI/AAMI ES60601-1 medical safety approved
  • With power good and fail signal output
  • Built-in remote ON-OFF control
  • Built-in remote sense function
  • Fixed switching frequency at 100KHz
  • 3 years warranty

Specifications

MPS-200-5Specifications from the official datasheet (2012-02-20 edition)Download datasheet PDF

Output Chart

OUTPUT VOLTAGE
5V
RATED CURRENT
40A
OUTPUT CURRENT MINIMUM LOAD
0A
OUTPUT CURRENT CONVECTION (max.)
28A
OUTPUT CURRENT WITH FAN (25CFM)
40A
OUTPUT CURRENT PEAK LOAD WITH 25CFM FAN (Max.)Note 4
48A
RIPPLE & NOISE (Max.)Note 2
80mVp-p
VOLTAGE TOLERANCENote 3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
EFFICIENCY (typ.)
81%

Specification

AC INPUT VOLTAGE
90~264 VAC, 47~440Hz / 127~370VDC.
POWER FACTOR (Typ.)
PF>0.95/230VAC PF>0.98/115VAC at full load
AC INPUT CURRENT (Typ.)
Maximum input current 3.5A at 115VAC, 60Hz or 1.6A at 230VAC, 60Hz with 100% output load.
INRUSH CURRENT (Typ.)
Inrush current is less than 25A at 115VAC or less than 40A at 230VAC under cold start conditions. Limiting provided by internal thermistors.
SETUP, RISE TIME
1000ms, 20ms / 230VAC at full load; 3000ms, 20ms / 115VAC at full load
HOLD-UP TIME (Typ.)
16ms / 230VAC at full load; 16ms / 115VAC at full load
LEAKAGE CURRENT
Leakage current is less than 180μA at 264VAC for earth leakage current; Leakage current is less than 100μA at 264VAC for patient leakage current
DC OUTPUT ADJ. RANGE
DC output voltage (or CH1 of multiple output models) can be adjusted between -5%~+10% rated output voltage by potential meter.
OVERLOAD PROTECTION
Fully protected against short circuit and output overload. The hiccup type protection will be activated at 120~160% rated load and recovers automatically after fault condition is removed.
OVER VOLTAGE PROTECTION
Provided on output channel 1 only at 115%~135% rated output voltage. Output will be shut down when this protection is activated.
OVER TEMPERATURE PROTECTION
When the temperature of TSW1 which detect on heat sink of power transistor reaches 95℃, This protection is activated. Then output will be shut down and recovers automatically after temperature goes down.
POWER GOOD / FAIL SIGNAL
TTL logic high for power good and TTL low for power fail. When the output voltage reaches 90% of rated value, a +5V TTL signal will be sent out with a 10~500ms delay; At least 1ms before the output voltage goes below 90% of the rated value, the TTL signal will be turned off. * MPS-200-3.3 does not have this function.
REMOTE CONTROL
RC+/RC-:0 ~ 0.8V=power on; 4 ~ 10V=power off sink current<4~10mA
WORKING TEMP.
Whole series can operate from -20~70℃. Please refer to the derating curves.
WORKING HUMIDITY
20~90% RH non-condensing.
STORAGE TEMP., HUMIDITY
-40~+85℃, 10~90% RH
TEMP. COEFFICIENT
±0.04%/℃ on all outputs at full load between 0~50℃ of ambient temperature.
VIBRATION
2G of acceleration, vibrating frequency adjust from 10Hz ~500Hz within a 10-minute cycle. 6 testing cycles (60 minutes) each along X, Y, Z axes.
SAFETY STANDARDS
Medical : ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved; Commercial : Also design refer to UL60950-1, TUV EN60950-1
WITHSTAND VOLTAGE
4000VAC between input and output; 1500VAC between input and F.G.; 1500VAC between output and F.G.
ISOLATION RESISTANCE
>100M Ohms for I/P-O/P, I/P-FG, O/P-FG by using 500VDC test voltage.
EMI COMPLIANCE
Conducted & Radiation: EN55011, Class B; EN55022, Class B. Harmonic distortion: EN61000-3-2. Voltage flicker: EN61000-3-3
EMS COMPLIANCE
ESD air: EN61000-4-2, Level 3, 8KV. ESD contact: EN61000-4-2, Level 2, 4KV. RF field susceptibility: EN61000-4-3, Level 2, 3V/m; Level 3, 10V/m. EFT(Electrical Fast Transient)/Burst: EN61000-4-4, Level 2, 1KV/5KHz; Level 3, 2KV/5KHz. Lightning/Surge: EN61000-4-5, Level 4, 2KV/Line-Line, 4KV/Line-Earth. Conducted RF susceptibility: EN61000-4-6, Level 2, 3Vrms/m; Level 3, 10Vrms/m. Magnetic field immunity: EN61000-4-8, Level 2, 3A/m; Level 3, 10A/m. Voltage dip, interruption: EN61000-4-11, Compliance. Digital phone carrier immunity: ENV50204, Level 2, 3V/m, 900MHz; Level 3, 10A/m, 900MHz
MTBF
262,100 hours min. at full load and 25℃ of ambient temperature, calculated per MIL-HDBK-217F.
DIMENSION (L*W*H)
177.8x107.2x35.5mm or 7"x4.22"x1.4"
PACKING
0.66Kg; 24pcs/16.8Kg/0.99CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  5. 5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
  6. 6. Derating may be needed under low input voltages. Please check the derating curve for more details.

Technical drawings

MPS-200-5 Mechanical Specification(MPS-200)
Mechanical Specification(MPS-200)
MPS-200-5 Derating Curve (MPS-200)
Derating Curve (MPS-200)
MPS-200-5 Mechanical Specification(MPD/T/Q-200)
Mechanical Specification(MPD/T/Q-200)
MPS-200-5 Derating Curve (MPD/T/Q-200)
Derating Curve (MPD/T/Q-200)

Downloads

FAQ

Can I use the MPS-200-5 for 5V industrial controllers or logic hardware?

Yes, this is a 5V constant-voltage supply rated for 200W and 40A with 25CFM forced air cooling (28A under free air convection). It suits high-current 5V industrial logic, controller boards, and processing hardware that need a regulated 5V DC source within that output capacity.

Is the MPS-200-5 suitable for powering multiple 5V single-board computers or embedded devices?

It can be, as long as the combined 5V load stays within 200W and 40A. The high current output makes it useful for grouped 5V embedded systems, production fixtures, and compute-oriented electronics that draw more current than small desktop adapters provide.

Would this model work for 5V USB-adjacent control electronics or industrial peripherals?

It is appropriate for 5V control electronics and peripherals that require a constant-voltage DC bus and remain within the 40A maximum output current. In industrial and embedded settings, 5V models like this are commonly used where many low-voltage loads share one central supply.

Can the MPS-200-5 be used in a factory test station for 5V boards?

Yes, it is a practical option for 5V board test stations, burn-in racks, and embedded validation setups that need a stable 5V source. The full 40A rating requires 25CFM forced air cooling; under free air convection it is limited to 28A.

Is the MPS-200-5 intended for outdoor environments?

The unit is specified for -20°C to +70°C operation (subject to the derating curves), but no IP rating is shown in the product data. It should therefore be treated as a supply for indoor or protected enclosure use rather than exposed outdoor service.
