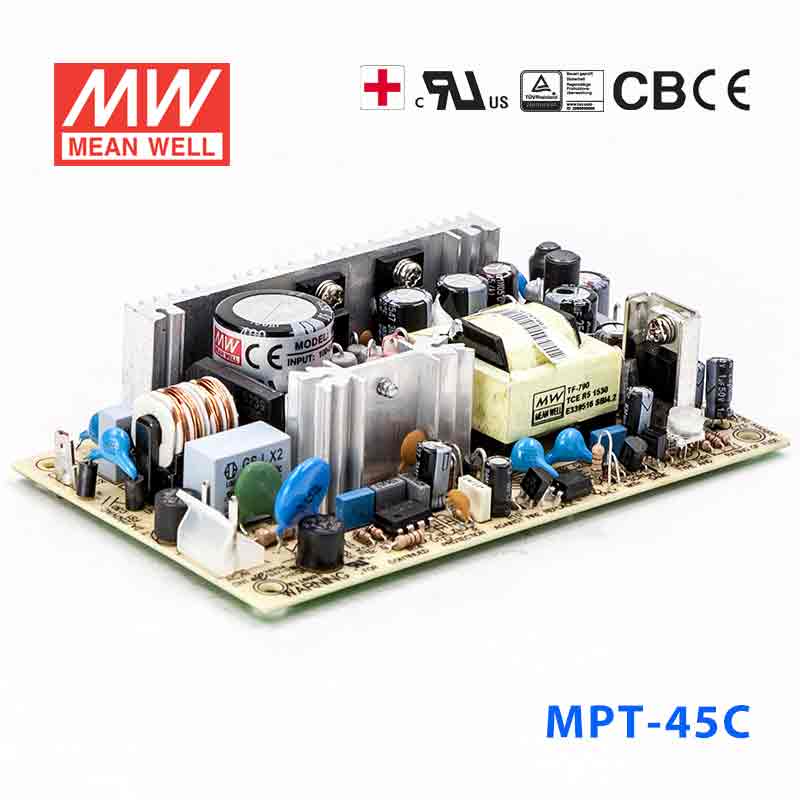

Mean Well MPT-45C Power Supply 45W 5V 15V -15V


|

Description

Features

Universal AC input / Full range
Low leakage current<0.5mA
Protections: Short circuit/ Overload/ Over voltage
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at 65KHz
2 years warranty

General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current Cold start 15A/115VAC
Leakage current

<0.75mA

Overload protection 130% ~ 185% rated output power
Over-voltage protection 115%~135% rated output voltage
Setup, rise, hold up time 800ms, 20ms, 60ms
Withstand voltage I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
Working temperature -10~+60°C
Vibration 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes
Safety standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,11
Connection I/P: 2 Pin Molex 5722-02, O/P: 8 Pin Molex 5273-08
Dimension (LxWxH) 127x76x28
Packing 72pcs / 17kg

Specifications

  • Brand
    Mean Well
  • Series
    MPT Series
  • Power Rating
    43.5 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    3 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -10°C~60°C
  • Warranty
    3 Year
  • Length
    12.7 cm
  • Width
    7.6 cm
  • Height
    2.8 cm
  • Weight
    0.21 kg
