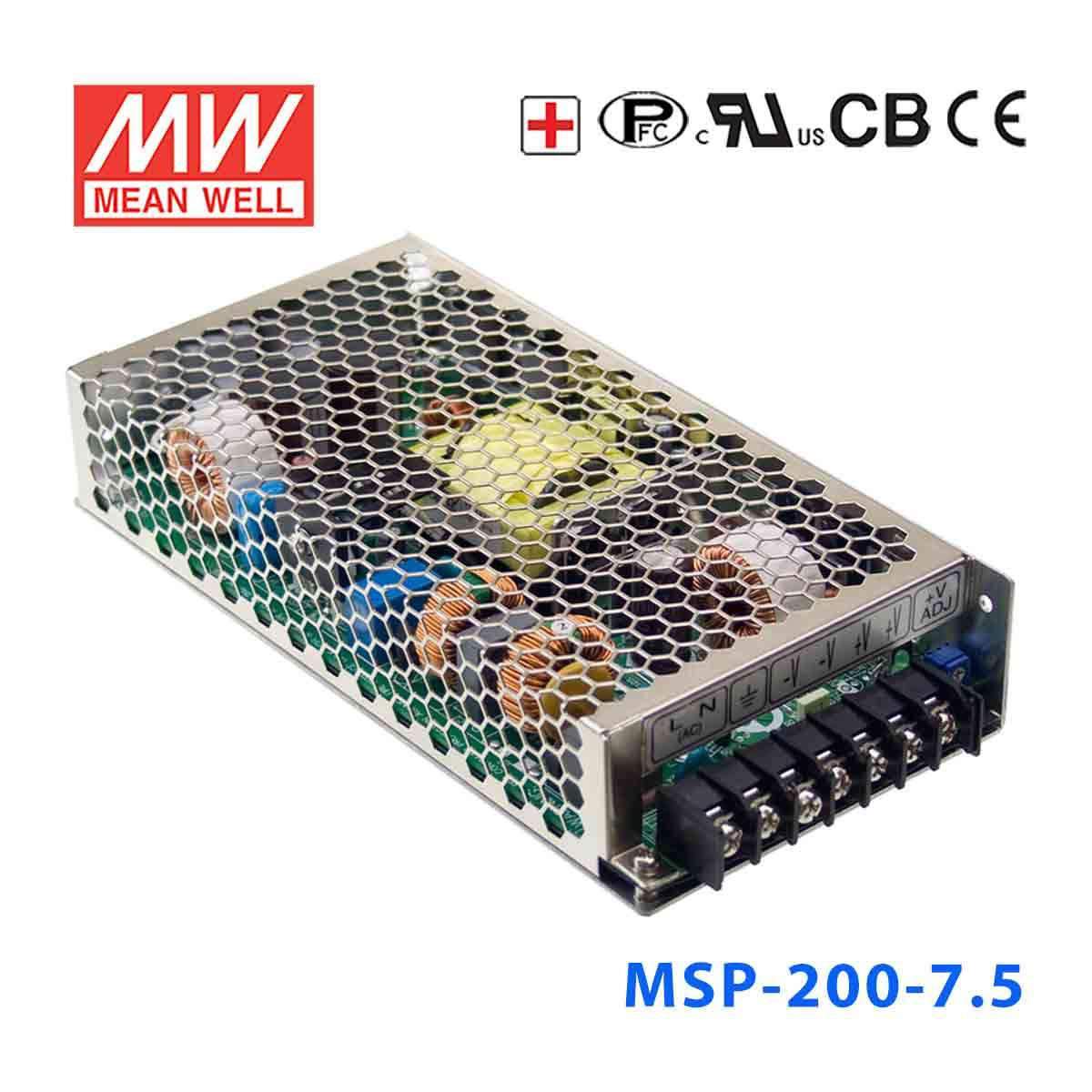

Mean Well MSP-200-7.5 Power Supply 200.3W 7.5V 26.7A

built-in active PFCmedical safety approvedhigh efficiencyno load power consumption < 0.5~0.8W

SKU MSP-200-7.5

Log in to see price Trade pricing & online ordering for account holders

Select model — 5 in this family

MSP-200-7.5

MSP-100-7.5 100W 7.5V Backorder

MSP-200-7.5 200W 7.5V Backorder

MSP-300-7.5 300W 7.5V Backorder

MSP-450-7.5 450W 7.5V Backorder

MSP-600-7.5 600W 7.5V Backorder

Product variants

Available to order

Overview

MSP-200-7.5 is the 7.5V output model of this series: rated current 26.7A, rated power 200.3W, typical efficiency 86%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
1U low profile 38mm
Medical safety approved (MOOP level)
Built-in remote ON-OFF control
Standby 5V@0.3A
Built-in remote sense function
No load power consumption<0.5W (Note.6)
5 years warranty

Specifications

MSP-200-7.5Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE: 7.5V
RATED CURRENT: 26.7A
CURRENT RANGE: 0 ~ 26.7A
RATED POWER: 200.3W
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
VOLTAGE ADJ. RANGE: 6.8 ~ 9V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.): 86%
AC CURRENT (Typ.): 2.2A/115VAC 1.1A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 70A/230VAC
LEAKAGE CURRENT^Note.7: Earth leakage current < 300μA/264VAC , Touch leakage current < 100μA/264VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 9.4 ~ 10.9V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

5V STANDBY: 5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.)
REMOTE CONTROL: RC+/RC- : 4 ~10V or open = power on ; 0 ~ 0.8V or short = power off

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: IEC 60601-1:2005+A1+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2 EAC TP TC 004 approved; Design refer to BS EN/EN60335-1, BS EN/EN 62368-1(by request)
ISOLATION LEVEL: Primary-Secondary: 2×MOOP, Primary-Earth: 1×MOOP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 ℃ / 70% RH
EMC EMISSION: Compliance to BS EN/EN55011 (CISPR11) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55035, BS EN/ EN60601-1-2, EAC TP TC 020

OTHERS

MTBF: 1609.5K hrs min. Telcordia SR-332 (Bellcore) ; 186.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*98*38mm (L*W*H)
PACKING: 0.77Kg; 18pcs/14.9Kg/0.87CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. No load power consumption<0.5W when RC+ & RC- (CN100 pin1,2) 0 ~ 8V or short.
7. Touch current was measured from primary input to DC output.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

MSP-200-7.5 Mechanical Specification — Mechanical Specification

MSP-200-7.5 Block Diagram — Block Diagram

MSP-200-7.5 Derating Curve — Derating Curve

MSP-200-7.5 Function Manual (2) — Function Manual (2)

MSP-200-7.5 2.Remote Sense — 2.Remote Sense

Downloads

Datasheet1

MSP-200-7.5 datasheetMSP-200-SPEC.PDF · 2024-10-30 edition PDF Download

Certificates3

UL Certificate(MSP-200)(EN) PDF Download

CB Certificate(MSP-200)(EN) PDF Download

EMC Certificate(MSP-200)(EN) PDF Download

Test reports1

Test Report(MSP-200-7.5)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the MSP-200-7.5 for a 7.5V embedded or industrial electronics load?

Yes, if the device is built for constant 7.5V DC input and the total draw stays within 26.7A and 200.3W. This makes it relevant for equipment that specifically needs a regulated 7.5V rail rather than 5V or 12V.

Is the MSP-200-7.5 suitable for legacy 7.5V control or instrumentation equipment?

It can be used for 7.5V equipment that requires a constant voltage supply and fits within the output limit. The rated output is 7.5V at 26.7A, with total power up to 200.3W.

Can this power supply support a 7.5V automation or test bench subsystem?

It is suitable where the subsystem expects stable 7.5V DC and the load remains under 26.7A and 200.3W. The 85-264VAC input is also useful when AC input conditions vary between locations.

Does the MSP-200-7.5 work in cold or hot operating environments?

Its specified operating range is -40°C to +70°C, with output derating at higher ambient temperatures according to the derating curve. The provided specs do not include an IP rating, so they do not establish outdoor or moisture-exposed use.

How does the MSP-200-7.5 fit within the MSP-200 lineup?

The MSP-200 family spans 132W at 3.3V and 40A, 175W at 5V and 35A, 200.3W at 7.5V and 26.7A, 200.4W at 12V and 16.7A, 201W at 15V and 13.4A, 201.6W at 24V and 8.4A, 205.2W at 36V and 5.7A, and 206.4W at 48V and 4.3A. The MSP-200-7.5 is the dedicated 7.5V version, the third-lowest voltage in the family, and the lowest-voltage model rated at about 200W.
