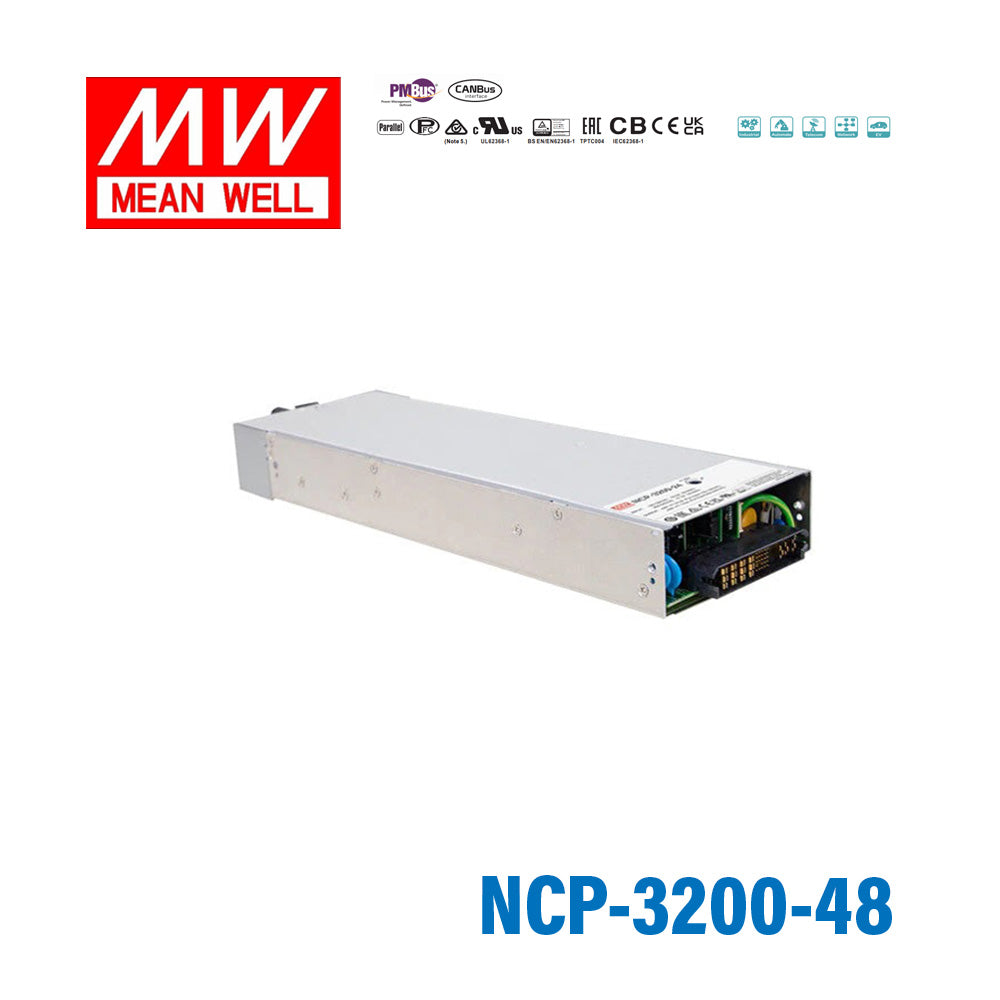

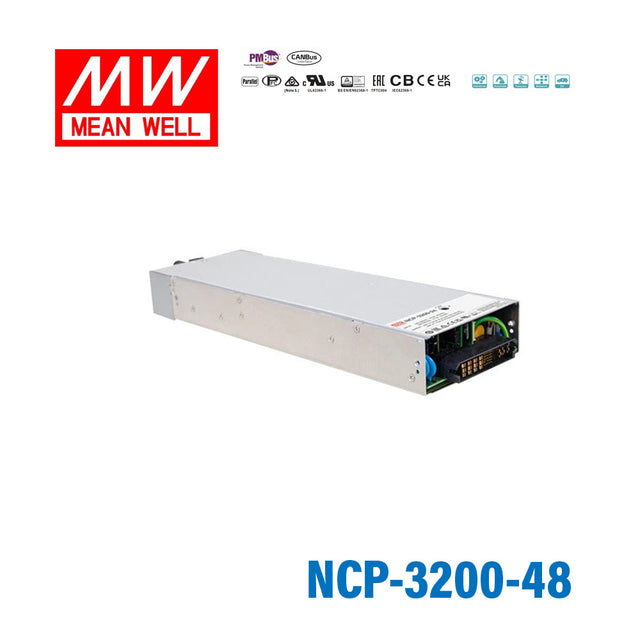

Mean Well NCP-3200-48 2-in-1 Rack Power Supply and Charger, 3192W 4...
Please Login for Pricing
Description
Description
The NCP-3200 is a 3200W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1, CSA C22.2 , TUV BS EN/EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNCP Series
-
Power Rating3200 Watt
-
Output Voltage48 Volt
-
Rated Current133 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length32.58 cm
-
Width10.7 cm
-
Height4.1 cm
-
Weight2.3 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well NCP-3200-48 designed for?
The NCP-3200-48 is a 2-in-1 rack power supply and charger designed for high-power 48V applications. It is suited to systems that need either a regulated DC power source or charger functionality in a rack-based setup.
What are the main output specifications of the NCP-3200-48?
This model is rated for 3192W output power with a 48V output and 133A rated current. These specs make it appropriate for demanding industrial and commercial power applications that require substantial 48V DC capacity.
Can the NCP-3200-48 operate as both a power supply and a charger?
Yes. This model supports selectable power supply or charger mode through PMBus, CANBus, or SBP-001 on 24V and 48V versions, which includes the 48V NCP-3200-48. It also includes built-in 2-stage and 3-stage charging curves plus a programmable curve option.
Is the NCP-3200-48 suitable for parallel or redundant power systems?
Yes. It supports active current sharing for up to 10 rack shelves, and the maximum parallel system can include up to 40 units. It also includes a built-in OR-ing FET or diode and supports hot swap capability.
What communication and control options are available on the NCP-3200-48?
The NCP-3200-48 supports both PMBus and CANBus protocols. It also includes programmable output voltage and output current, which can be useful in systems that need controlled power management and monitoring.
What operating temperature range does the NCP-3200-48 support?
This model is rated for operation from -30°C to 70°C. That wide temperature range makes it suitable for demanding environments where ambient conditions may vary significantly.
What protection and reliability features are included in the NCP-3200-48?
The NCP-3200-48 includes protection for short circuit, overload, over voltage, and over temperature. It also uses intelligent fan speed control, is designed with reference to the SEMI F47 standard, and carries a 5-year warranty.
Other NCP-3200 Models
1 other model| Model | Power | Battery Type | Battery Voltage | Charging Current | |
|---|---|---|---|---|---|
| Mean Well NCP-3200-24 2-in-1 Rack Power Supply and Charger, 3192W 24V 133A | 3200W | Lithium and Lead Acid Battery | 24V | — | View |
