Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

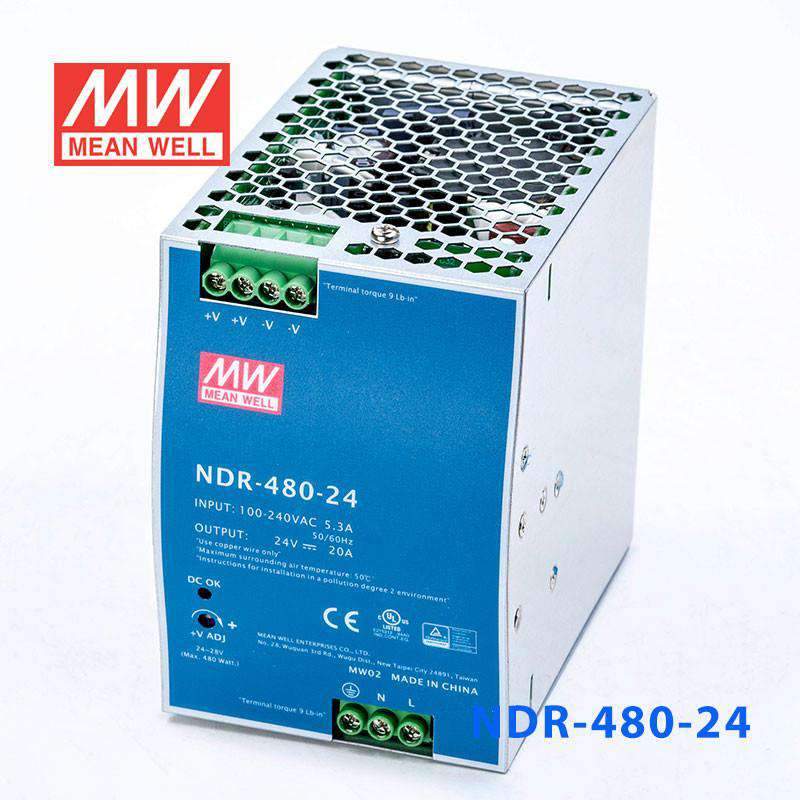

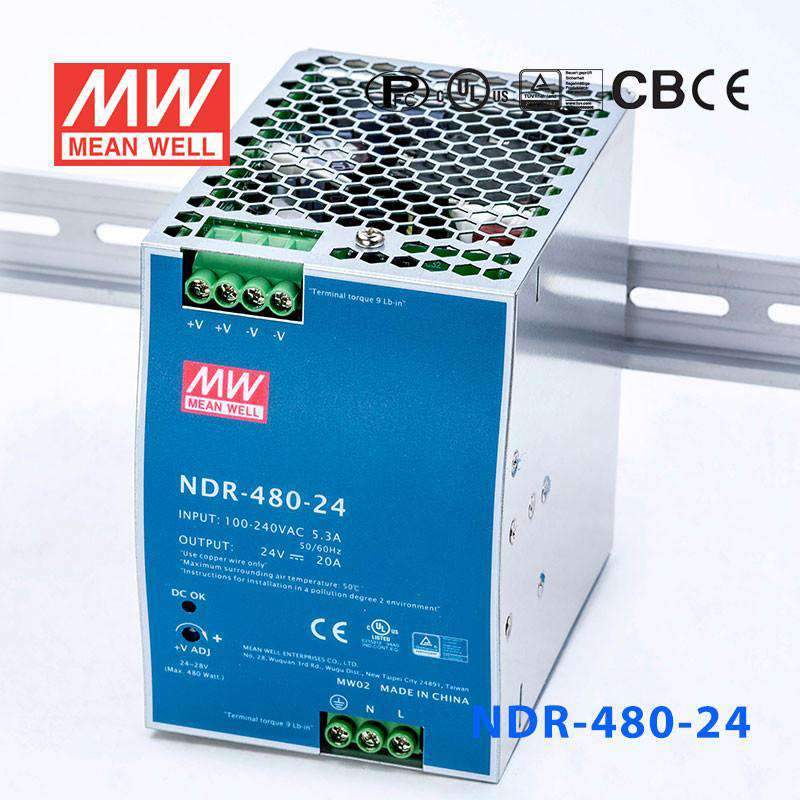

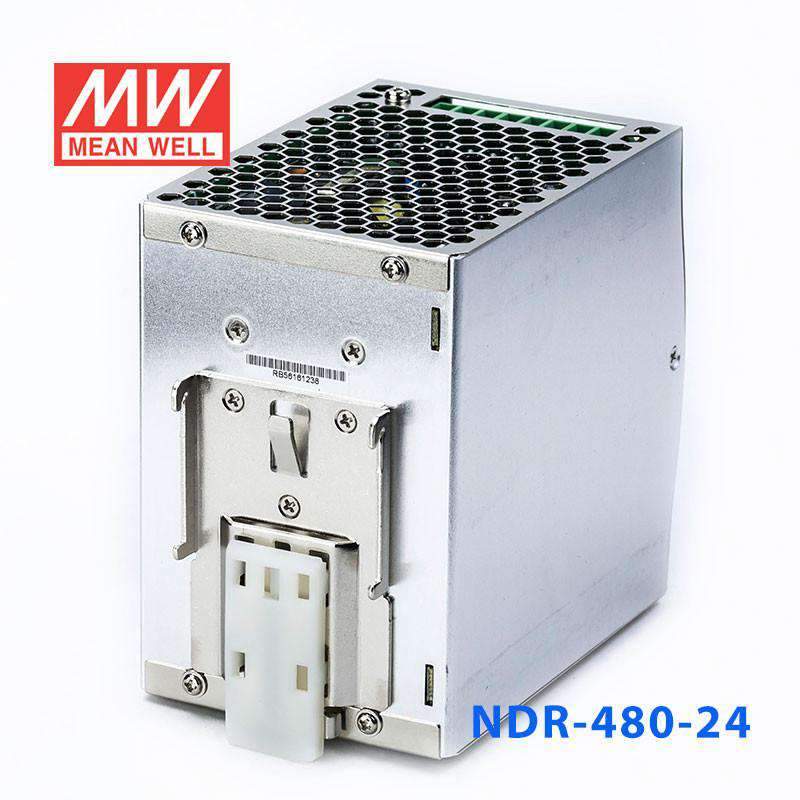

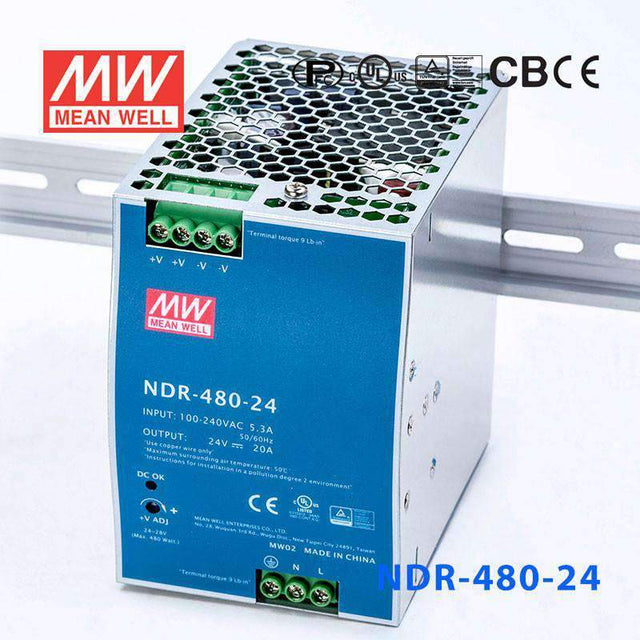

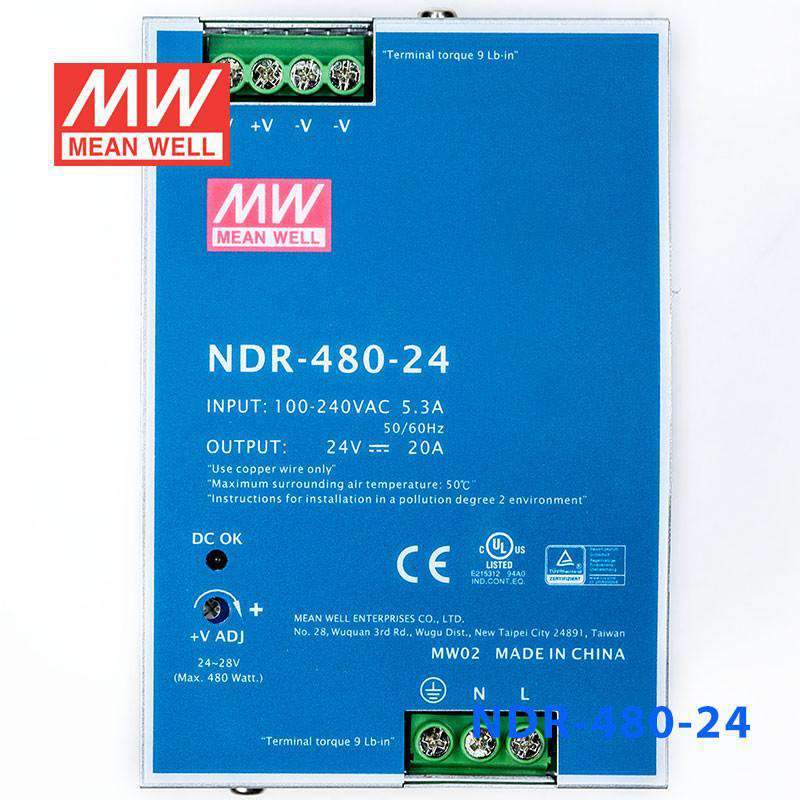

Mean Well NDR-480-24 Single Output Industrial Power Supply 480W 24V...
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Cooling by free air convection |

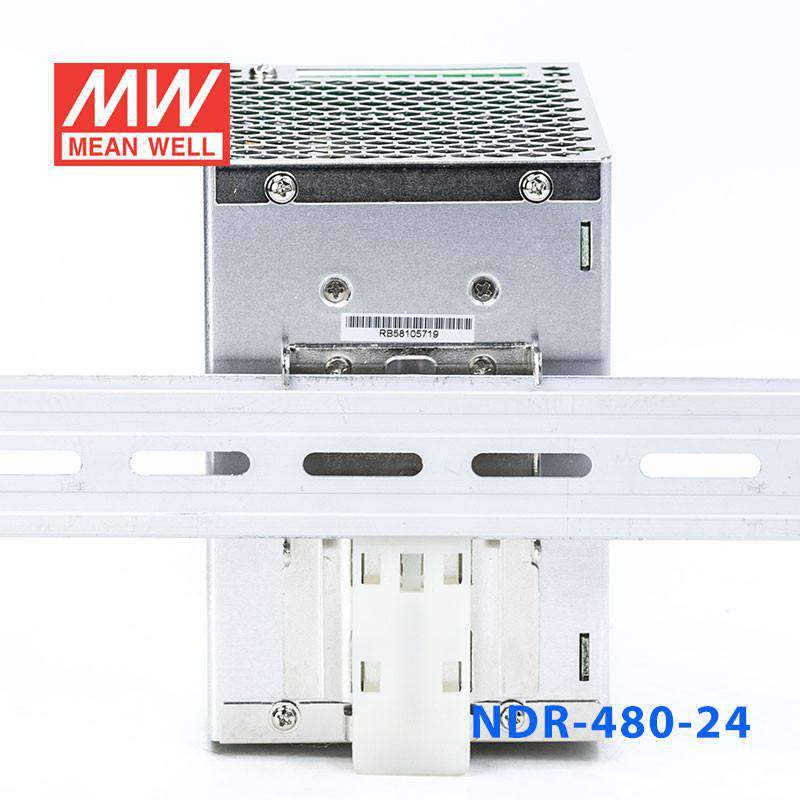

| Can be installed on DIN rail TS-35 / 7.5 or 15 |
| UL508 (industrial control equipment) approved |
| EN61000-6-2 (EN50082-2) industrial immunity level |
| 100% full load burn-in test |
| Low cost |
| 3 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current (max.) | Cold start, 35A at 230VAC |
| DC adjustment range | 12V: 12~14V, 24V: 24~28V, 48V: 48~55V |
| Overload protection | 105%~130% Constant current limiting, auto-recovery |
| Over voltage protection | 14V: 14~17V, 24V: 29~33V, 48V: 56~65V |
| Over temperature protection | Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -20~+70°C(refer to output derating curve) |
| Safety standards | UL508, TUV EN60950-1 approved |
| EMC standards | EN55022(CISPR22), EN61204-3 Class B,EN61000-3-2,-3 , EN61000-4-2,3,4,5,6,8,11,EN55024, EN61000-6-2(EN50082-2), EN61204-3 |
| Connection (screw DIN terminal) | I/P: 3 poles, O/P: 4 poles |
| Dimension (LxWxH) (mm) | 85.5x 125.2x 128.5mm |
| Packing | 8pcs / 13kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesNDR Series
-
Power Rating480 Watt
-
Output Voltage24 Volt
-
Rated Current20 Ampere
-
Input Voltage90V~264V
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length12.85 cm
-
Width12.52 cm
-
Height8.55 cm
-
Weight1.5 kg
