Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

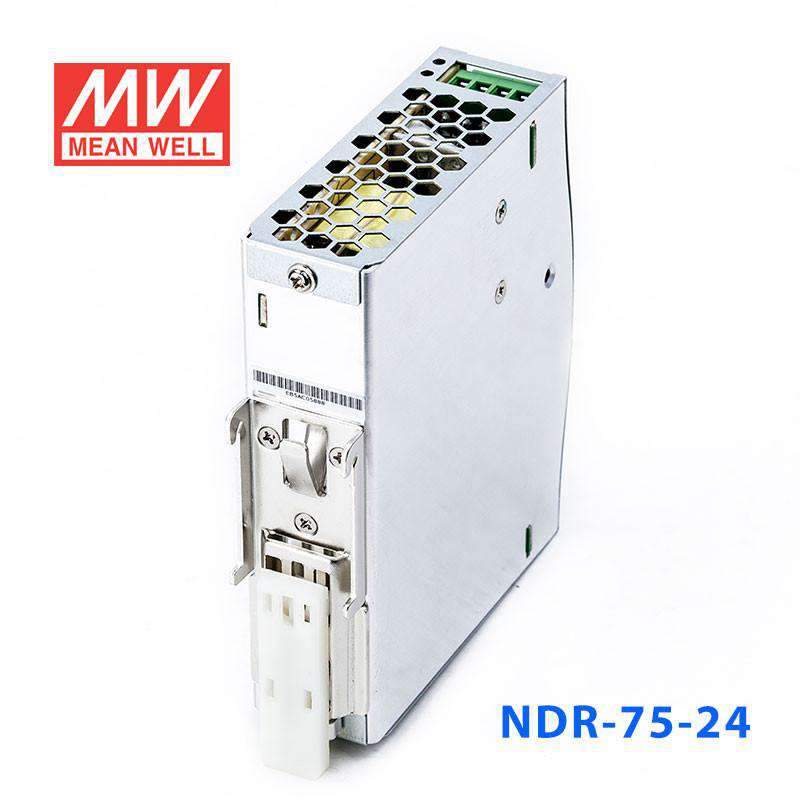

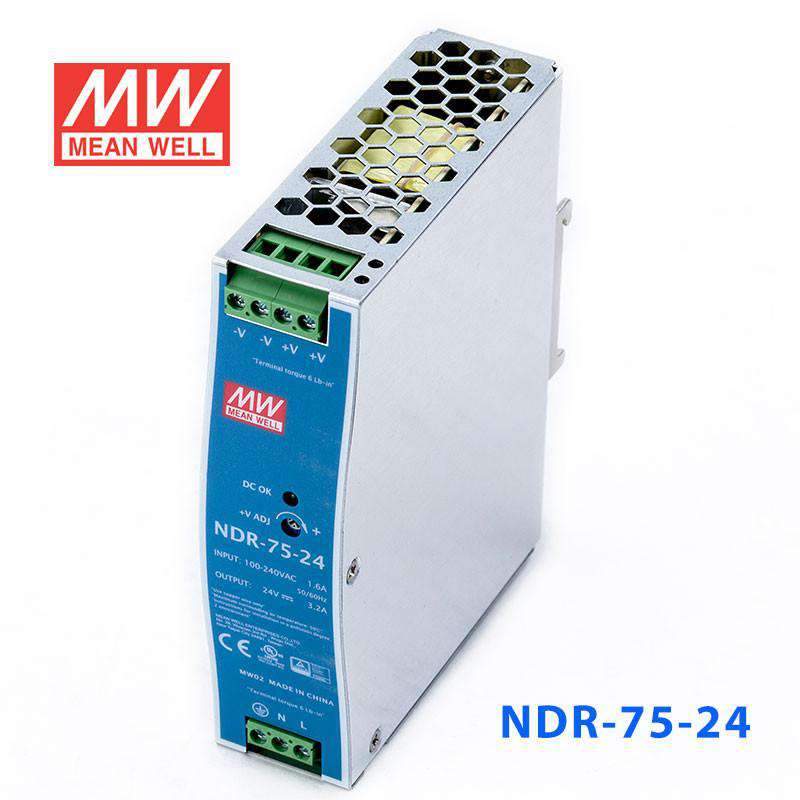

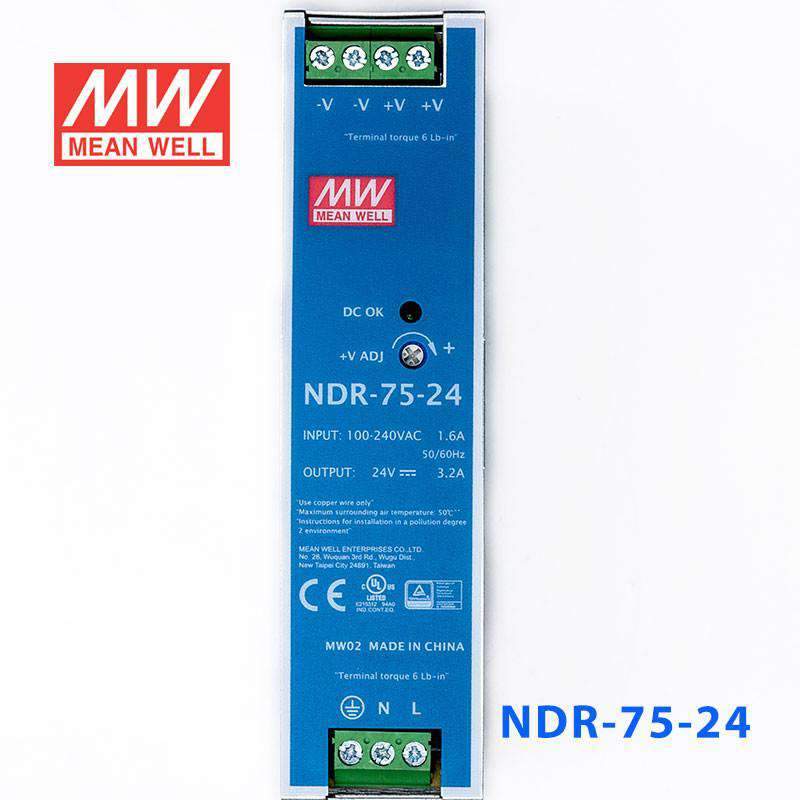

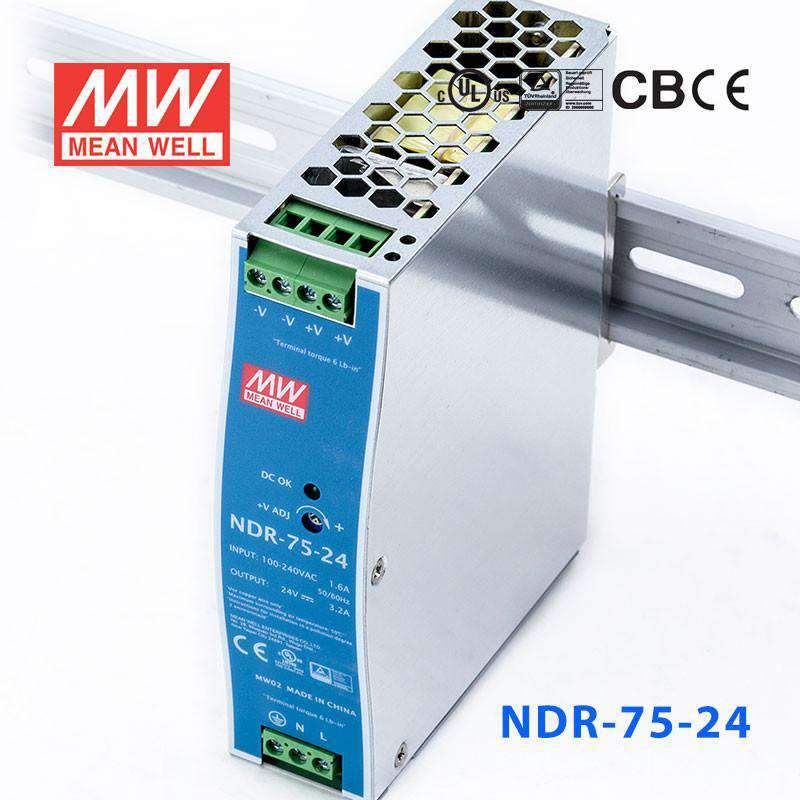

Mean Well NDR-75-24 Single Output Industrial Power Supply 75W 24V 3.2A - DIN Rail

metal caseeconomical modelslim sizeEMC EN55022 class B

SKU NDR-75-24

Log in to see price Trade pricing & online ordering for account holders

Select model — 4 in this family

NDR-75-24

NDR-75-24 75W 24V In stock

NDR-120-24 120W 24V In stock

NDR-240-24 240W 24V In stock

NDR-480-24 480W 24V Low stock

Product variants

Notify me when it's back in stock

The NDR-75 is a 75W Mean Well DIN rail power converter with a 32mm profile (input range: 90~264VAC, operating temperature: -20~+70℃).

Key Features

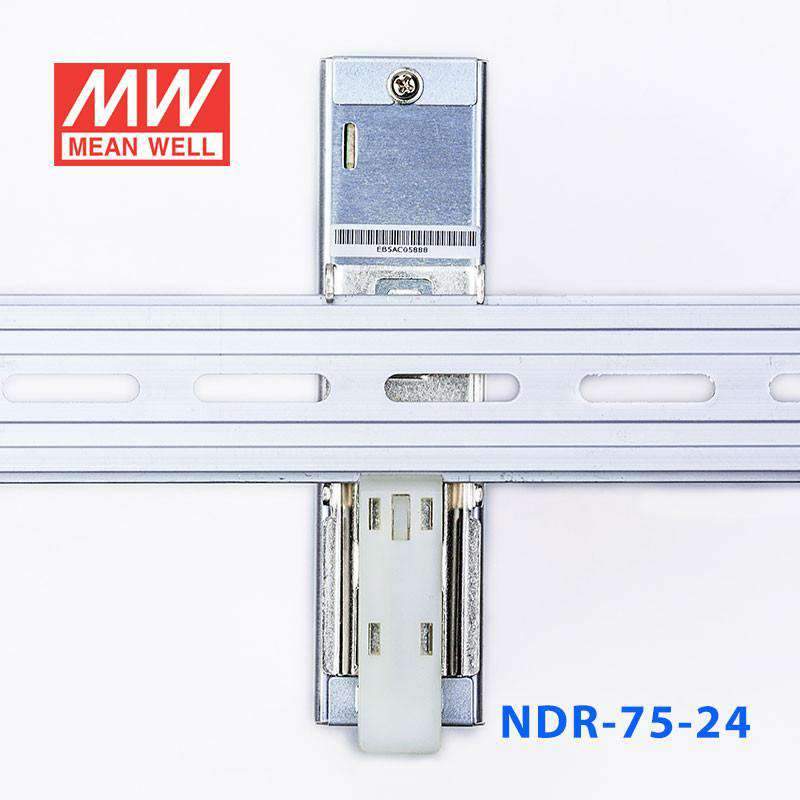

✓ 32mm width — DIN rail TS-35 compatible
✓ Input voltage range: 90~264VAC
✓ DC output voltage adjustable ±10%
✓ 3KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Wide operating temperature: -20~+70℃
✓ Protections: Short circuit / Overload / Over voltage / Over temperature
✓ Safety approvals: Ul508, TUV EN60950-1
✓ 3 years warranty

Frequently Asked Questions

Can I use the NDR-75-24 for a 24V PLC cabinet power supply?

Yes, it is appropriate for 24V PLC cabinet loads that require 24VDC and remain within 3.2A and 76.8W. The DIN rail form factor and 32.0 mm slim width help when cabinet space is limited. It accepts 90-264VAC input.

Is the NDR-75-24 suitable for 24V industrial automation and control equipment?

It is a fit for 24V industrial automation and control devices when the combined load does not exceed 3.2A or 76.8W. The unit is built as a DIN rail power supply with a metal case and compact 125.2 × 102.0 × 32.0 mm dimensions. That makes it practical for organized cabinet layouts.

Can this model power 24V building management panel devices?

It can be used for 24V building management panel equipment if the total 24V demand stays within 3.2A and 76.8W. The NDR-75-24 is a DIN rail unit, which aligns with control cabinet installations. Its listed certifications are CB, CE, cUL, EAC, c_rcm, and TÜV.

How does the NDR-75-24 compare with other NDR series options?

The NDR-75-24 provides 24V at 3.2A for 76.8W. Other siblings are NDR-75-12 at 12V, 6.3A, 75.6W; NDR-75-48 at 48V, 1.6A, 76.8W; NDR-120-12 at 12V, 10A, 120W; NDR-120-24 at 24V, 5A, 120W; NDR-120-48 at 48V, 2.5A, 120W; NDR-240-24 at 24V, 10A, 240W; NDR-240-48 at 48V, 5A, 240W; NDR-480-24 at 24V, 20A, 480W; and NDR-480-48 at 48V, 10A, 480W.

Is the NDR-75-24 meant for open-area use or enclosed cabinet use?

Its DIN rail format, metal case, and slim profile point to control cabinet or enclosure use rather than exposed placement. The operating temperature range is -20°C to +70°C. This listing does not provide an external IP rating, so cabinet protection should be handled by the enclosure.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well NDR-75-12 Single Output Industrial Power Supply 75W 12V 6.3A - DIN Rail	75.6W	12V	6.3A	Indoor	View
Mean Well NDR-75-48 Single Output Industrial Power Supply 75W 48V 1.6A - DIN Rail	76.8W	48V	1.6A	Indoor	View
