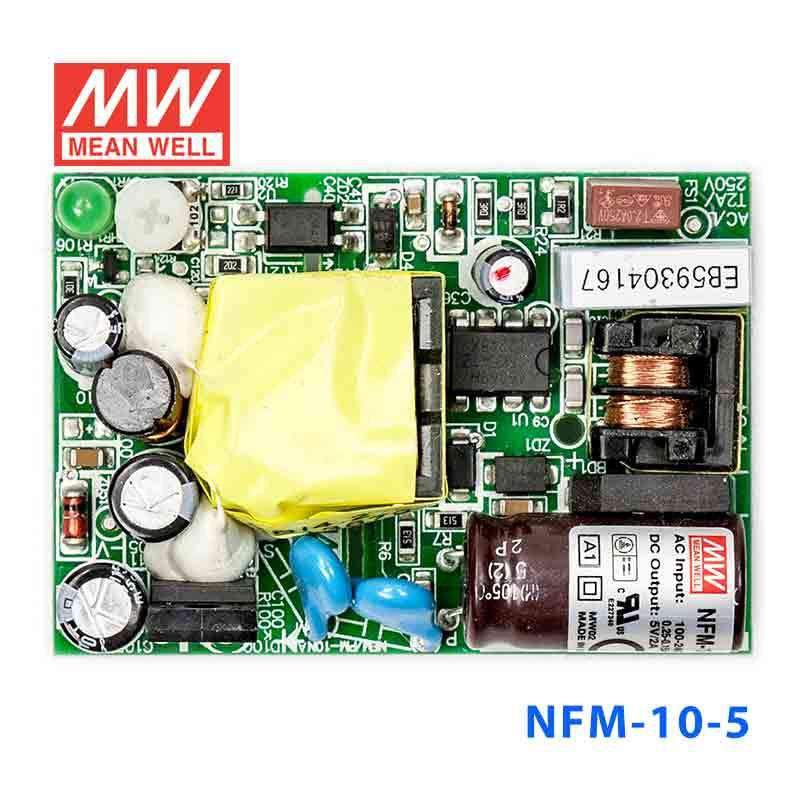

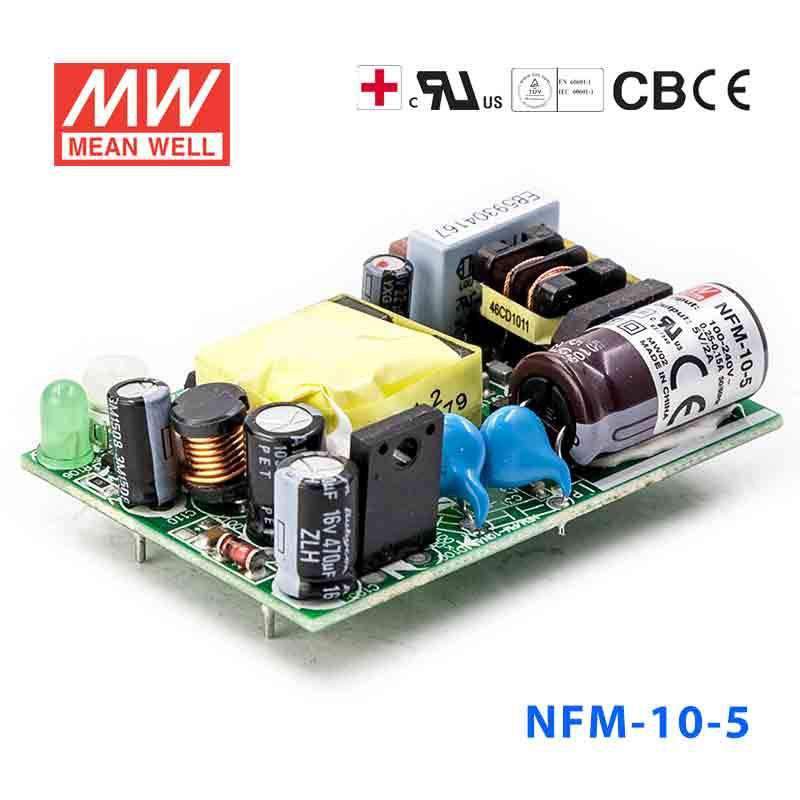

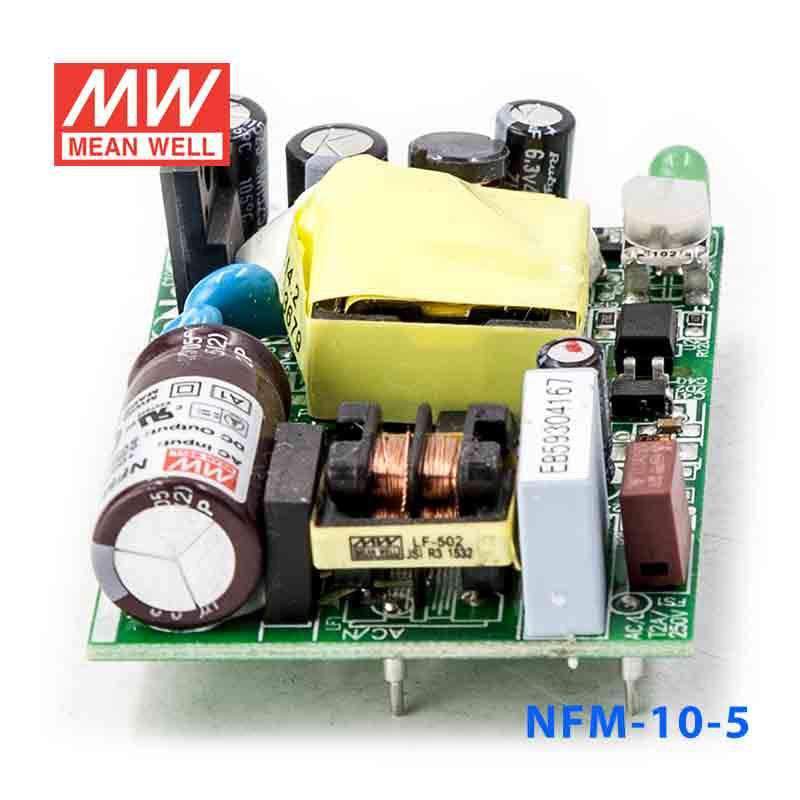

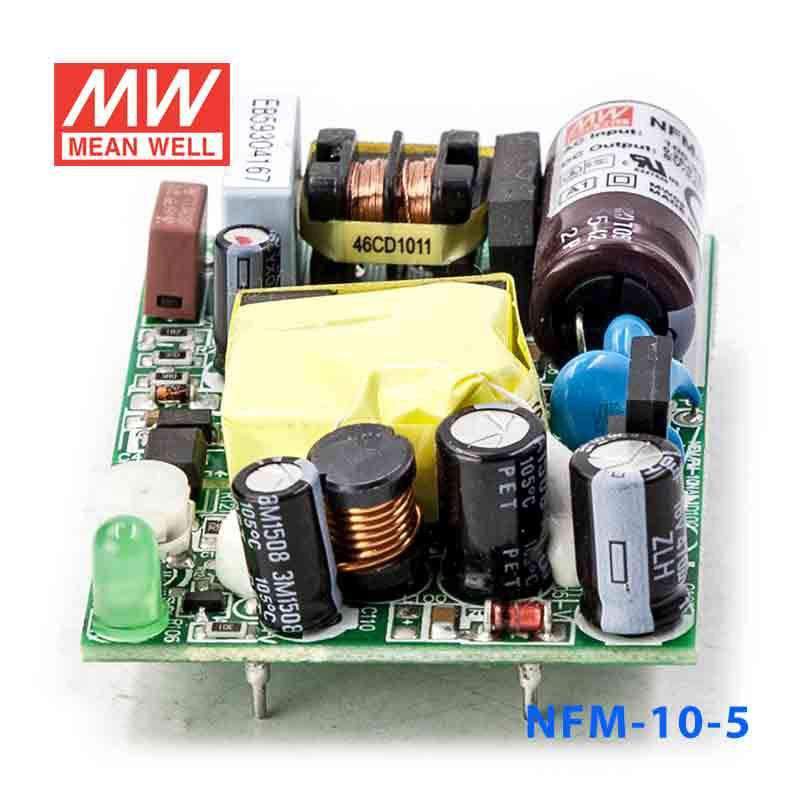

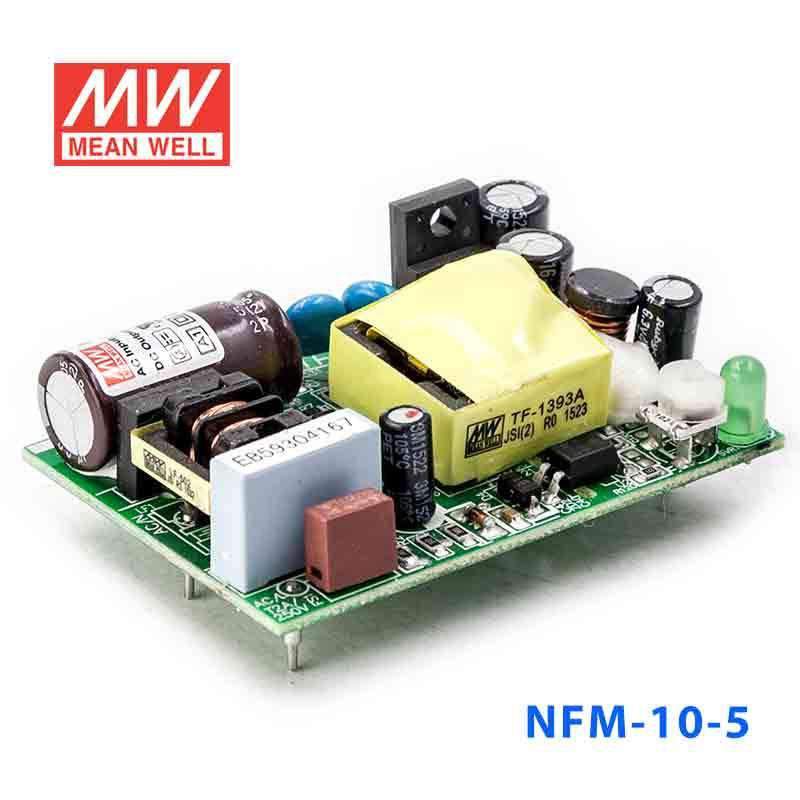

Mean Well NFM-10-5 Power Supply 10W 5V 2A

SKU NFM-10-5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by MFM-10-5
Available to order
|

Overview

NFM-10-5 is the 5V output model of this series: rated current 2A, rated power 10W, typical efficiency 74%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Ultra-miniature size, light weight
  • Cooling by free air convection
  • Isolation classⅡ
  • Medical safety approved (2 x MOPP between primary to secondary)
  • No load power consumption<0.5W
  • 100% full load burn-in test
  • Fixed switching frequency at 67KHz
  • High reliability
  • Suitable for BF application with appropriate system consideration
  • 3 years warranty

Specifications

NFM-10-5Specifications from the official datasheet (2022-09-20 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
2A
CURRENT RANGE
0 ~ 2A
RATED POWER
10W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
4.5 ~ 5.5V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
1800ms, 20ms/230VAC 1800ms, 20ms/115VAC at full load
HOLD UP TIME (Typ.)
100ms/230VAC 24ms/115VAC at full load

INPUT

VOLTAGE RANGE
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 440Hz
EFFICIENCY (Typ.)
74%
AC CURRENT (Typ.)
0.25A/115VAC 0.15A/230VAC
INRUSH CURRENT (Typ.)
COLD START 25A/115VAC 45A/230VAC
LEAKAGE CURRENTNote.6
Touch current < 80μA/264VAC

PROTECTION

OVERLOAD
Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
5.75 ~ 6.75V Protection type : Shut off o/p voltage, clamping by zener diode
OVER TEMPERATURENote.5
Tj 140℃ typically (U1) detect on main control IC Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
ANSI/AAMI ES60601-1,TUV EN60601-1, IEC60601-1, EAC TP TC 004 approved
ISOLATION LEVEL
Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to EN55011(CISPR11), EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55035, EN60601-1-2, EN61204-3, medical level, EAC TP TC 020

OTHERS

MTBF
723.2Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
65*45*22mm (L*W*H)
PACKING
0.045Kg; 120pcs/6.4Kg/0.94CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
  5. 5. The over temperature protection (OTP) is the built-in function of the control IC (U1). The activating level described above is based on the specification provided by the IC manufacturer.
  6. 6. Touch current was measured from primary input to DC output.
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

NFM-10-5 Mechanical Specification
Mechanical Specification
NFM-10-5 Block Diagram
Block Diagram
NFM-10-5 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the NFM-10-5 for a 5V single-board computer or embedded controller?

It is designed for constant 5V output and can supply up to 2A with a 10W rating. That suits many compact embedded controllers, microprocessor boards, or digital logic assemblies that run on 5V. The connected load needs to stay within both the 2A and 10W limits.

Is the NFM-10-5 a good choice for 5V industrial USB-style electronics or interface boards?

It can fit 5V interface electronics if the total demand does not exceed 2A. In industrial or automation equipment, that makes it more appropriate for lower-power communication boards, converters, or logic hardware than for larger 5V loads. The wide 85-264VAC input supports common global AC input ranges.

Can this model power 5V sensors, relays, and logic in a small control panel?

It can support mixed 5V control electronics where the combined load remains within 10W and 2A. That is useful for compact assemblies with a modest 5V demand rather than systems with heavy actuator loads. Its small 65.0 x 45.0 x 22.0 mm size also helps in space-limited panels.

Is the NFM-10-5 suitable for indoor and outdoor environments?

The specified operating range is -20C to +70C, so the temperature tolerance is broad for protected equipment use. No IP rating is listed in the provided specs, so the product data does not confirm sealing against dust or water. Based on that, it should be treated as suitable for protected environments unless a separate rating is provided.

How does the NFM-10-5 compare with other 5V NFM power supplies?

The listed 5V siblings are NFM-05-5 at 5W and 1A, NFM-10-5 at 10W and 2A, NFM-15-5 at 15W and 3A, and NFM-20-5 at 22W and 4.4A. The NFM-10-5 is the mid-range option between the 5W entry model and the higher-current 15W and 20W versions. If your 5V load needs more than 2A, a larger sibling would be required.
