Mean Well

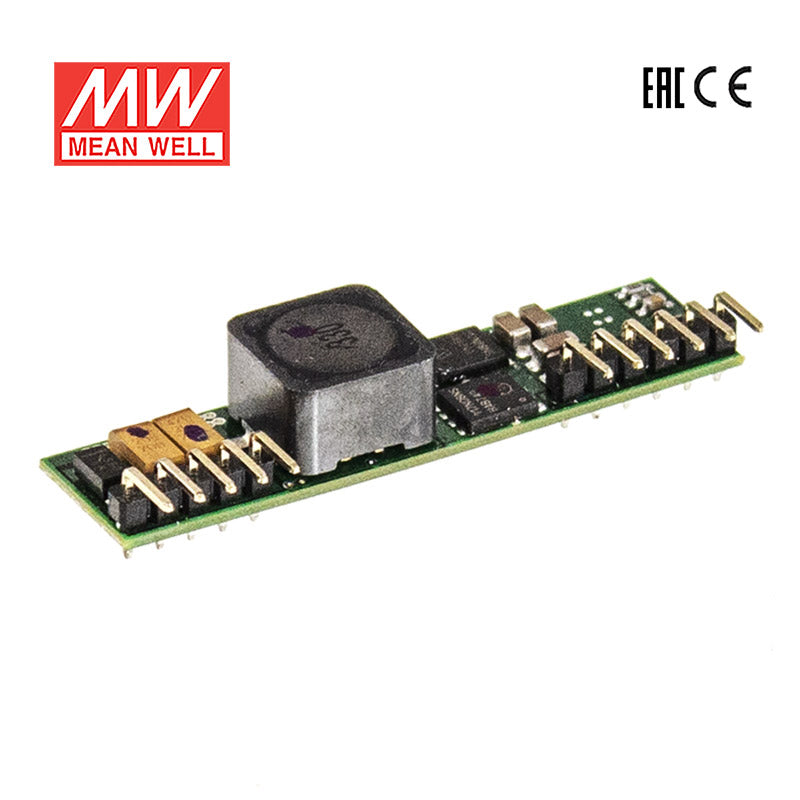

Mean Well NID35-15 DC-DC Converter - 36W - 20~53V in 15V out 2.4A

SKU NID35-15
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

NID35-15 is the 15V output model of this series: rated power 36W, typical efficiency 96%.

Features

  • Economical open frame design
  • Wide input range
  • High efficiency up to 96%
  • Remote ON / OFF control
  • Compact size 2.0"×0.512"× 0.433"(SIP package)
  • Protections: Short circuit / Overload / Over voltage
  • -30~+85℃ wide working temperature
  • Cooling by free air convection
  • Comply to BS EN/EN55032 ClassA without additional components
  • Trimming output (optional)
  • 3 years warranty

Specifications

NID35-15Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
15V
CURRENT RANGE
0 ~ 2.4A
RATED POWER
36W
RIPPLE & NOISE (max.)Note.2
150mVp-p
LINE REGULATIONNote.3
±0.5%
LOAD REGULATIONNote.4
±0.5%
VOLTAGE TOLERANCE
±2.0%
SWITCHING FREQUENCY (Typ.)
200KHz
EXTERNAL CAPACITANCE LOAD (max.)
47uf/50V low ESR

INPUT

VOLTAGE RANGE
20 ~ 53VDC
NORMAL VOLTAGE
24VDC (or 48VDC)
EFFICIENCY (Typ.) 24Vin
96%
EFFICIENCY (Typ.) 48Vin
94%
DC CURRENT Full load
1620mA/24VDC
DC CURRENT No load
30mA

PROTECTION

PROTECTION
Fuse recommended (3A)
OVERLOAD (Typ.)
120 ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
17.5~ 21V Protection type : Shut off o/p voltage, clamp by TVS diode
SHORT CIRCUIT
All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed

FUNCTION

REMOTE CONTROL
Power on : 1.2VDC < R.C ~ com < 12VDC or open circuit ; power off : R.C ~ com < 0.4VDC or short circuit (PIN5,6 & PIN11)

ENVIRONMENT

SAFETY STANDARDS
EAC TP TC 004 approved
WORKING TEMP.
-30 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 85% RH non-condensing
STORAGE TEMP.
-30 ~ +105℃
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 55℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARD
BS EN/EN62368-1(LVD)
EMC EMISSION
ParameterStandardTest Level
ConductedBS EN/EN55032Class A without external components,Class B with external components
RadiatedBS EN/EN55032Class A without external components,Class B with external components
EMC IMMUNITY

BS EN/EN55035

ParameterStandardTest Level
RadiatedBS EN/EN61000-4-3Level 2, 3V/m; criteria A
EFT / BurstBS EN/EN61000-4-4Level 2, 1KV; criteria A
SurgeBS EN/EN61000-4-5Level 2, 1KV/Line-Line,criteria A
ConductedBS EN/EN61000-4-6Level 2, 3V; criteria A

OTHERS

MTBF
12321.5K hrs min. Telcordia SR-332 (Bellcore) ; 757.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
50.8*13*11mm or 2.0"*0.512"*0.433" inch (L*W*H)
WEIGHT
9g;440psc/4.96Kg/0.94CUFT
Test conditions and notes4
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH Ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Line regulation is measured from low line to high line at rated load.
  4. 4.Load regulation is measured from 10% to 100% rated load.

Technical drawings

NID35-15 Derating Curve
Derating Curve
NID35-15 Pin Configuration
Pin Configuration
NID35-15 EMC Suggestion Circuit
EMC Suggestion Circuit

Downloads

FAQ

Can I use the NID35-15 for 15V industrial control or embedded electronics?

Yes, this model provides constant-voltage 15V output rated at 36W and 2.4A. It is appropriate for 15V electronic loads in industrial or embedded systems when the total demand stays within 36W and 2.4A. It is not intended for loads that require a different output voltage.

Is the NID35-15 suitable for 15V instrumentation or automation interface boards?

It can be a fit where the equipment requires a regulated 15V rail and the load stays within 2.4A. With a 36W rating, it suits smaller 15V instrumentation, interface, or control sections rather than high-power assemblies. The converter uses constant-voltage output, which matches standard 15V electronics.

Can this converter power a compact 15V subsystem from a variable input source?

It is designed for a 20 to 53V input range and outputs 15V constant voltage. That makes it relevant for compact 15V subsystems fed from an input source that moves within that range. Output capacity is limited to 36W and 2.4A.

How does the NID35-15 compare with the other NID35 models?

The NID35-15 delivers 36W at 15V with 2.4A output. Its siblings are NID35-12 at 34.8W, 12V, 2.9A; NID35-24 at 36W, 24V, 1.5A; and NID35-5 at 17.5W, 5V, 3.5A. Across the family, the output voltage changes first, and current and wattage adjust with it.

Is the NID35-15 meant for outdoor use or temperature-challenging indoor panels?

The specified operating temperature range is -30°C to +85°C, so it is rated for demanding indoor temperature conditions. The provided specs do not list an IP rating or enclosure class. Based on the listed information, temperature capability is defined but outdoor exposure protection is not.
