Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

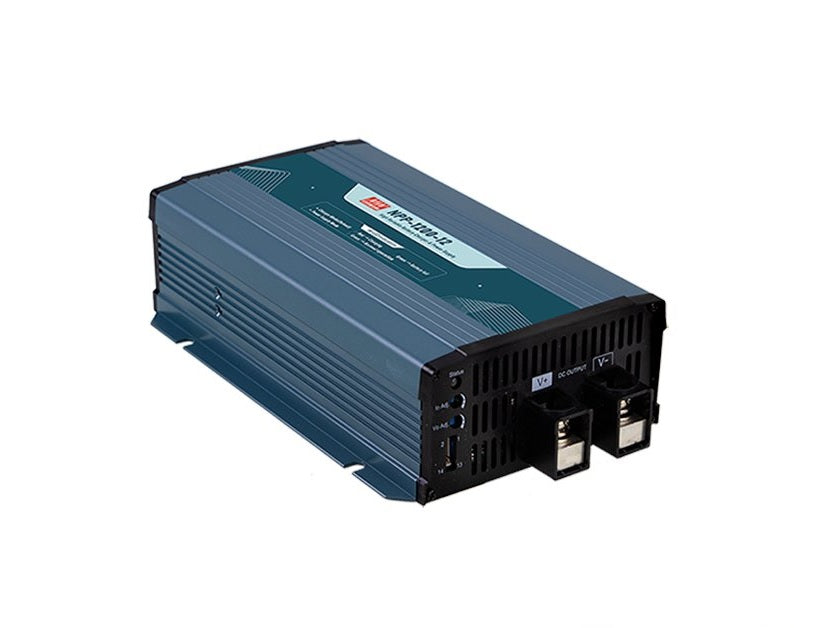

Mean Well NPB-1200-24 Battery Charger 1209.6W 24V - Suitable for Lead-acid and Li-ion 36A

ultra wide charging range auto sensing functioncharging voltage/current/timeout can be programmed through SBP-001charging curves/stages can be selected through dip switch

SKU:

NPB-1200-24

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The NPB-1200 is a 1200W Mean Well power converter (input range: 10.5~21V, operating temperature: -30~+70℃).

Key Features

✓ Input voltage range: 10.5~21V
✓ 3KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Wide operating temperature: -30~+70℃
✓ Protections: Short circuit / Over voltage / Over temperature / Reverse polarity / Under voltage
✓ Active PFC — meets international energy efficiency regulations
✓ Remote ON/OFF control
✓ Safety approvals: EN/EN60335-1/2-29 , UL62368-1, EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

What batteries is the Mean Well NPB-1200-24 suitable for?

The NPB-1200-24 is suitable for both lead-acid and lithium-ion batteries. It is designed as an intelligent general-purpose charger with selectable default charging curves, which helps it fit a wider range of battery charging applications.

What is the output rating of the NPB-1200-24 battery charger?

This model is rated at 1209.6W with a 28.8V output and 36A rated current. That makes it a high-power charger suited to demanding 24V battery charging requirements in commercial and industrial settings.

Can the charging settings be adjusted on this model?

Yes. The NPB-1200-24 allows charging current adjustment from 50% to 100% of rated current via the front panel, and charging voltage, charging current, and timeout can be programmed through the SBP-001. It also supports selection of default charging curves and 2-stage or 3-stage charging through DIP switch settings.

What kinds of applications is the NPB-1200-24 typically used for?

The NPB-1200-24 is intended for 24V battery charging applications that need a reliable, programmable high-power charger. Buyers often consider this type of charger for professional battery-backed equipment, industrial systems, and other B2B environments where battery chemistry flexibility and control options matter.

Is the Mean Well NPB-1200-24 suitable for harsh or wide-temperature environments?

Yes, this charger is specified for operation from -30°C to +70°C. It also includes temperature-controlled fan operation and automatic derating on over-temperature, which supports use in more demanding environments.

Does the NPB-1200-24 support system integration or monitoring features?

Yes. This model includes built-in CANbus protocol support, which can be useful in systems that require charger communication capability. That makes it more flexible than basic standalone chargers where integration features are not available.

What certifications and warranty come with the NPB-1200-24?

The NPB-1200-24 complies with UL/EN 62368-1 and IEC/EN 62368-1/-2-29 certifications. Mean Well backs this model with a 3-year warranty.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Battery Type	Battery Voltage	Charging Current
Mean Well NPB-1200-48 Battery Charger 1209.6W 48V - Suitable for Lead-acid and Li-ion 18A	1200W	Lithium and Lead Acid Battery	—	—	View
Mean Well NPB-1200-12 Battery Charger 1176W 12V - Suitable for Lead-acid and Li-ion 70A	1200W	Lithium and Lead Acid Battery	—	—	View
