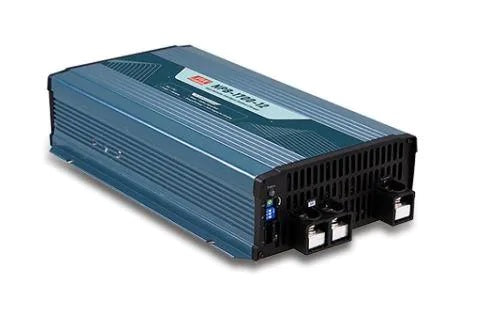

Mean Well NPB-1700-12 Battery Charger 1428W 12V - Suitable for Lead-acid and Li-ion 85A

ultra wide charging range auto sensing functioncharging voltage/current/timeout can be programmed through SBP-001charging curves/stages can be selected through dip switch

SKU NPB-1700-12

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

NPB-1700-12 is the model of this series: typical efficiency 92%.

NPB-1700 is a miniaturized, versatile, and ultra-wide voltage intelligent charger. It utilizes a fully digital control design with automatic battery voltage detection technology, with five key features including intelligent, versatile, user friendly, safe, and compact. The series have four models with output voltage ranges of 10.5~21V, 21~42V and 42~80V respectively. The charging voltage range of each model is wide enough to cover a variety of different battery voltages and battery chemistries, and there is a built-in intelligent voltage detection charging mode (Note this mode is set to OFF by factory default and is suitable for lithium batteries with BMS only). The NPB-1700 can pair with MEAN WELL's SBP-001 programmer for digital configuration, such as adjust charging voltage/current, and set charging cycle time to protect battery lifetime. Through the user-friendly DIP S.W. on front panel, user may also directly adjust the 2/3 stage charging, current (50~100%), and select between the 4 types of preset charging curves. In addition, a CANBus communication protocol is built in to meet professional applications, which allows remote controlling and monitoring for the status of the charger. In terms of safety, it has intelligent detection for proper battery voltage and connection as well as protection from reverse polarity. It passes ITE IEC/EN/UL62368-1 and household appliance EN60335-1/-2-29 dual safety and 3-year warranty to guarantee reliable operation. The NPB-1700 is truly an intelligent, safe, and reliable universal charger with outstanding cost performance.

Features

Auto ranging with ultra-wide charging voltage (10.5~21V, 21~42V, 42~80V; Please refer to page 8 for setting)
Built-in CANBus protocol for control, setting and monitoring
Programmable charging curve via SBP-001
Manual setting for 2/3 stage and 4 built-in charging curves via DIP S.W
Multiple protections: Short circuit / Over voltage / Over temperature/ Battery under voltage /Battery reverse polarity (No damage)
Charger OK and Battery Full signal
Temperature compensation function to prolong battery life (Lead-acid only)
-30℃~+70℃ wide operating temperature
Thermal controlled DC fan for noise reduction
Remote ON/OFF control
Smart programmer available (Order NO.: SBP-001, sold separately)
Carry handle accessory available(Order NO.: Carry handle, sold separately)
Comply with 62368-1 + 60335-1/-2-29 dual certification
Suitable for lead-acid (Pb) and li-ion batteries
3 years warranty

Specifications

NPB-1700-12Specifications from the official datasheet (2025-04-11 edition)

OUTPUT

BOOST CHARGE VOLTAGE(Vboost)(default): 14.4V
FLOAT CHARGE VOLTAGE(Vfloat)(default): 13.8V
CHARGE VOLTAGE RANGE^Note.3: 10.5 ~ 21V
MAX. OUTPUT CURRENT(CC)^Note.4: 85A
MAX. POWER^Note.4: 1428W
RECOMMENDED BATTERY CAPACITY (AMP HOURS)^Note.5: 300 ~ 1000AH
LEAKAGE CURRENT FROM BATTERY (Typ.): <1mA

INPUT

VOLTAGE RANGE^Note.6: 90 ~ 264VAC 250 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.98/115VAC, PF>0.95/230VAC at full load
EFFICIENCY (Typ.)^Note.7: 92%
AC CURRENT (Typ.): 14.8A/115VAC 9.3A/230VAC
INRUSH CURRENT (Typ.): COLD START 50A at 230VAC
LEAKAGE CURRENT: 0.75mA/240VAC (60335-1/2-29), 1.5mA Peak/240VAC (62368-1)

PROTECTION

SHORT CIRCUIT^Note.8: Protection type : Constant current limiting, charger will shutdown, re-power on to recover
OVER VOLTAGE^Note.9: 21.5 ~ 26V; Protection type : Shut down and latch off o/p voltage, re-power on to recover
REVERSE POLARITY: Protected internal reverse detection, No damage, re-power on to recover after fault condition is removed
OVER TEMPERATURE: Shut down O/P voltage, recovers automatically after temperature goes down

FUNCTION

CHARGING STAGE: 2 or 3 stage selectable through DIP S.W on panel
CHARGING PARAMETERS ADJUSTABLE: Programmable: Constant current(CC), Tapper current(TC), Constant voltage(CV) and Float voltage(FV) can be set through SBP-001 with computer; Manual setting: 4 built-in charging curves adjustable via DIP S.W on panel, Please refer to function manual for more detail
AUTO RANGING FOR CHARGING (Typ.): Please refer to function manual for more detail (page 8); Charging current adjustable 50~100% by via potentiometer on panel (Only for auto ranging mode)
CANBUS INTERFACE: CANBus 2.0B, Can control, Setting and monitoring(Vo,Io,charging curve, internal temp. and DC output ON/OFF)
CHARGER OK SIGNAL: The TTL signal out, Charger OK = H(4.5 ~ 5.5V) ; Charger failure or protection status =L( -0.5 ~ +0.5V)
BATTERY FULL SIGNAL: The TTL signal out, Battery full = H(4.5 ~ 5.5V ); Charging = L(-0.5 ~ +0.5V)
REMOTE CONTROL: Short : Charger normal work Open : Charger stop charging
TEMPERATURE COMPENSATION: By external NTC
FAN SPEED CONTROL: Depends on internal temperature

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^{Note 10}: Conducted: BS EN/EN55032 (CISPR32) Class B; Radiated: BS EN/EN55032 (CISPR32) Class A; Harmonic Current: BS EN/EN61000-3-2 Class A; Voltage Flicker: BS EN/EN61000-3-3
EMC IMMUNITY^{Note 10}: ESD: BS EN/EN61000-4-2 Level 3, 8KV air ; Level 2, 4KV contact; Radiated: BS EN/EN61000-4-3 Level 2, 3V/m; EFT / Burst: BS EN/EN61000-4-4 Level 2, 1KV; Surge: BS EN/EN61000-4-5 Level 2, 1KV/Line-Line, Level 3, 2KV/Line-Earth; Conducted: BS EN/EN61000-4-6 Level 2, 3Vrms; Magnetic Field: BS EN/EN61000-4-8 Level 1, 1A/m; Voltage Dips and Interruptions: BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 478.9K hrs min. Telcordia SR-332 (Bellcore) ; 41.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 307.7*184*70mm (L*W*H)
PACKING: 2.96Kg; 4pcs/ 14Kg / 2.58CUFT

Technical drawings

NPB-1700-12 Block Diagram — Block Diagram

NPB-1700-12 Derating Curve — Derating Curve

NPB-1700-12 Function Manual — Function Manual

NPB-1700-12 2.Programmable charging curve — 2.Programmable charging curve

NPB-1700-12 NPB-1700 series — NPB-1700 series

NPB-1700-12 (NPB-1700) 108 79 — (NPB-1700) 108 79

NPB-1700-12 NPB-1700 pin assigment — NPB-1700 pin assigment

NPB-1700-12 ※ Software Interface — ※ Software Interface

NPB-1700-12 ※ When using the auto ranging charging curve function,… — ※ When using the auto ranging charging curve function,…

NPB-1700-12 (1) Default factory setting is OFF via DC output side… — (1) Default factory setting is OFF via DC output side…

NPB-1700-12 ※ Back to non-auto ranging as following — ※ Back to non-auto ranging as following

NPB-1700-12 5.CANBus communication interface — 5.CANBus communication interface

NPB-1700-12 PIN6 Charger OK — PIN6 Charger OK

NPB-1700-12 PIN5 Battery Full — PIN5 Battery Full

NPB-1700-12 PIN7 Remote ON-OFF — PIN7 Remote ON-OFF

Typical applications

AGV
E-Bike, E-Scooter, Camping car, Bus, Specialty vehicles
Robotic lawn mower
Washing robot
Recreation craft, Personal yacht or workboat
Surveillance system
Telecommunication base station
Radio system backup solution
Equipments or instruments with back-up battery

Downloads

Datasheet1

NPB-1700-12 datasheetNPB-1700-SPEC.PDF · 2025-04-11 edition PDF Download

Certificates7

Mean Well NPB-NPP-1700-DEKRA MarK Certificate PDF Download

Mean Well NPB-NPP-1700-DEKRA MarK(60335) Certificate PDF Download

Mean Well NPP-NPB-1700-CB Certificate PDF Download

Mean Well NPP-NPB-1700-EMC Certificate PDF Download

Mean Well NPx-1700-CE-dec Certificate PDF Download

Mean Well NPX-1700-UK-dec Certificate PDF Download

Mean Well NPB-NPP-1700-CB(UL) Certificate PDF Download

Test reports1

Mean Well NPB-1700-12 Test Report PDF Download

FAQ

What type of batteries is the Mean Well NPB-1700-12 suitable for?

The NPB-1700-12 is suitable for both lead-acid and lithium-ion batteries. It is designed as an intelligent general-purpose charger, making it a practical option for commercial and industrial battery charging applications that use either chemistry.

What are the main output specifications of the NPB-1700-12?

This model is rated at 1428W maximum power and provides a 14.4V default boost charge voltage with an 85A maximum charging current. These specifications make it a high-power 12V battery charger for demanding applications where fast, reliable charging is important.

Can the charging settings be adjusted on this charger?

Yes. Charging current, voltage and charging timeout can be programmed through the SBP-001, and in auto ranging mode (lithium batteries with BMS only) the charging current can be adjusted from 50% to 100% on the panel. The charger also offers 4 built-in charging curves and 2-stage or 3-stage charging selectable via DIP switch.

What makes the NPB-1700-12 a good choice for fleet, mobility, or industrial battery charging?

This charger combines high output power, support for lead-acid and lithium-ion batteries, and built-in CANbus protocol in one unit. It is well suited to professional environments where programmable charging behavior, battery compatibility, and dependable long-term operation matter.

Can the NPB-1700-12 operate in harsh temperature conditions?

Yes. It has a wide operating temperature range from -30°C to +70°C (refer to the derating curve), helping reduce environmental limitations in demanding sites. It also includes a fan whose speed depends on internal temperature and auto-derating protection when the unit gets too hot.

How does the NPB-1700-12 differ from a basic fixed-output battery charger?

Compared with a basic charger, the NPB-1700-12 offers programmable charging parameters, selectable charging curves, adjustable charging current, and CANbus support. It is intended for buyers who need more control and flexibility across different battery types and commercial use cases.

Does this charger include certifications and warranty coverage for business use?

The NPB-1700-12 is approved to UL62368-1, IEC/EN62368-1 and IEC/EN60335-1/2-29, with CB, Dekra and EAC TP TC 004 approvals listed on the datasheet, which supports its use in professional and industrial purchasing environments.
