What dimming protocols does the NPF-120D-20 accept?

The NPF-120D-20 supports 3-in-1 dimming: PWM signal, 1–10V analog voltage, and resistance (potentiometer) control. All three methods are handled by the same built-in interface, so the driver can be paired with common 0–10V dimmers, DALI-to-analog converters, or simple potentiometer circuits.

Can the NPF-120D-20 be installed in outdoor luminaires without additional weatherproofing?

Yes. The NPF-120D-20 is rated IP67, making it resistant to dust and temporary water immersion. Its -40°C to +90°C operating temperature means it can be embedded in outdoor fixtures across a broad range of climates without supplemental enclosure protection on the driver body.

What LED systems match the NPF-120D-20's 20V output?

The NPF-120D-20 delivers 20V DC at 6A (120W) with a CC range of 12–20V. It suits 20V LED modules in dimmable architectural and retail lighting, mid-voltage linear fixtures designed for 20V constant-current drivers, and museum or gallery lighting where precise intensity control via 1–10V is required.

How does the NPF-120D-20 compare to the non-dimmable NPF-120-20?

Both supply 20V at 6A (120W) with IP67, identical dimensions (191.0 × 63.0 × 37.5 mm), and 0.97 kg weight. The NPF-120D-20 adds built-in 3-in-1 dimming (PWM, 1–10V, resistance); the NPF-120-20 provides a fixed output with no dimming capability. For fixed-brightness designs, the NPF-120-20 is the simpler and often lower-cost option.

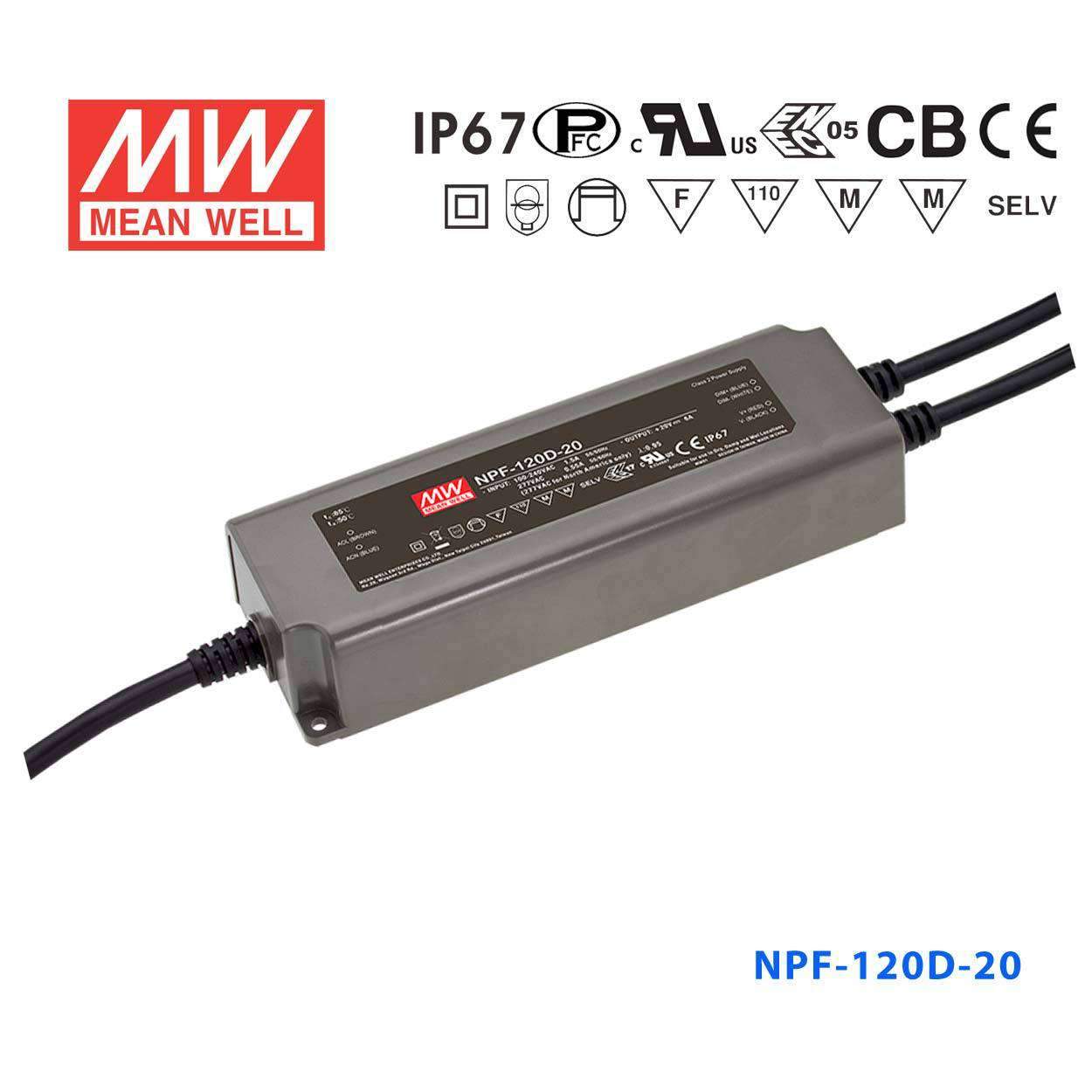

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

Mean Well NPF-120D-20 Power Supply 120W 20V - Dimmable 6A

fully isolated plastic caseIP67Class II design without FGbuilt-in 3 in 1 dimming

SKU NPF-120D-20

Log in to see price Trade pricing & online ordering for account holders

Select model — 8 in this family

NPF-120D-20

NPF-40-20 Fixed output Backorder

NPF-120-20 Fixed output Backorder

NPF-120D-20 Dimmable Backorder

NPF-40D-20 Dimmable Backorder

NPF-60-20 Fixed output Backorder

NPF-60D-20 Dimmable Backorder

NPF-90-20 Fixed output Backorder

NPF-90D-20 Dimmable Backorder

Product variants

Notify me when it's back in stock

The NPF-120D is a 120W Mean Well AC-DC LED driver (input: 90~305VAC, output: 20V, operating temperature: -40~+90°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 20V
✓ Rated output current: 6A
✓ 3-in-1 dimming (0–10V / PWM / resistance)
✓ Class II design — no earth connection required
✓ Ingress protection: IP67
✓ Operating temperature: -40~+90°C
✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
✓ 5 year warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Please log in to write a review.

{ "id":8423864434987, "variants" :[{ "context":"default", "variant_id": 45636235297067, "sku":"NPF-120D-20", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Key Features

✓ Input voltage: 90~305VAC

✓ Output voltage: 20V

✓ Rated output current: 6A

✓ 3-in-1 dimming (0–10V / PWM / resistance)

✓ Class II design — no earth connection required

✓ Ingress protection: IP67

✓ Operating temperature: -40~+90°C

✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL

✓ 5 year warranty
