What dimming methods can control the NPF-120D-24?

The NPF-120D-24 supports 3-in-1 dimming: PWM signal, 1–10V analog, and resistance potentiometer control. All three are built into the driver and can be selected based on the controller available in the installation.

Is the NPF-120D-24 rated for damp or wet-location use?

Yes. The IP67 rating means the NPF-120D-24 is fully sealed against dust and can withstand temporary immersion. Combined with its -40°C to +90°C operating range, it is deployable in outdoor enclosures, damp ceiling voids, and indoor environments with high humidity.

What commercial or industrial LED applications suit the NPF-120D-24?

The NPF-120D-24 outputs 24V DC at 5A (120W) in constant-current mode (CC range 14–24V) with 3-in-1 dimming. It is well suited for 24V dimmable LED strip systems in commercial offices, hospitality ceilings, and retail perimeter lighting controlled via 1–10V panels, as well as 24V industrial LED machine lighting tied to PLC analog outputs.

How does the NPF-120D-24 compare to the NPF-120D-30?

Both share IP67 protection, 3-in-1 dimming, the 191.0 × 63.0 × 37.5 mm housing, and 0.97 kg weight. NPF-120D-24 outputs 24V at 5A (120W, CC range 14–24V); NPF-120D-30 outputs 30V at 4A (120W, CC range 18–30V). Select based on the rated voltage of your LED load.

Buy Mean Well NPF-120D-24 Power Supply - Best Prices in Auckland

☎ 0800 88 87 86

Apply Wholesale and Trade Account Contact us

The NPF-120D is a 120W Mean Well DIN rail power converter with a 191mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).

Key Features

✓ 191mm width — DIN rail TS-35 compatible
✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Wide operating temperature: -40~+80℃
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750(type”HL”), CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Please log in to write a review.

{ "id":8423864467755, "variants" :[{ "context":"default", "variant_id": 45636235329835, "sku":"NPF-120D-24", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Mean Well

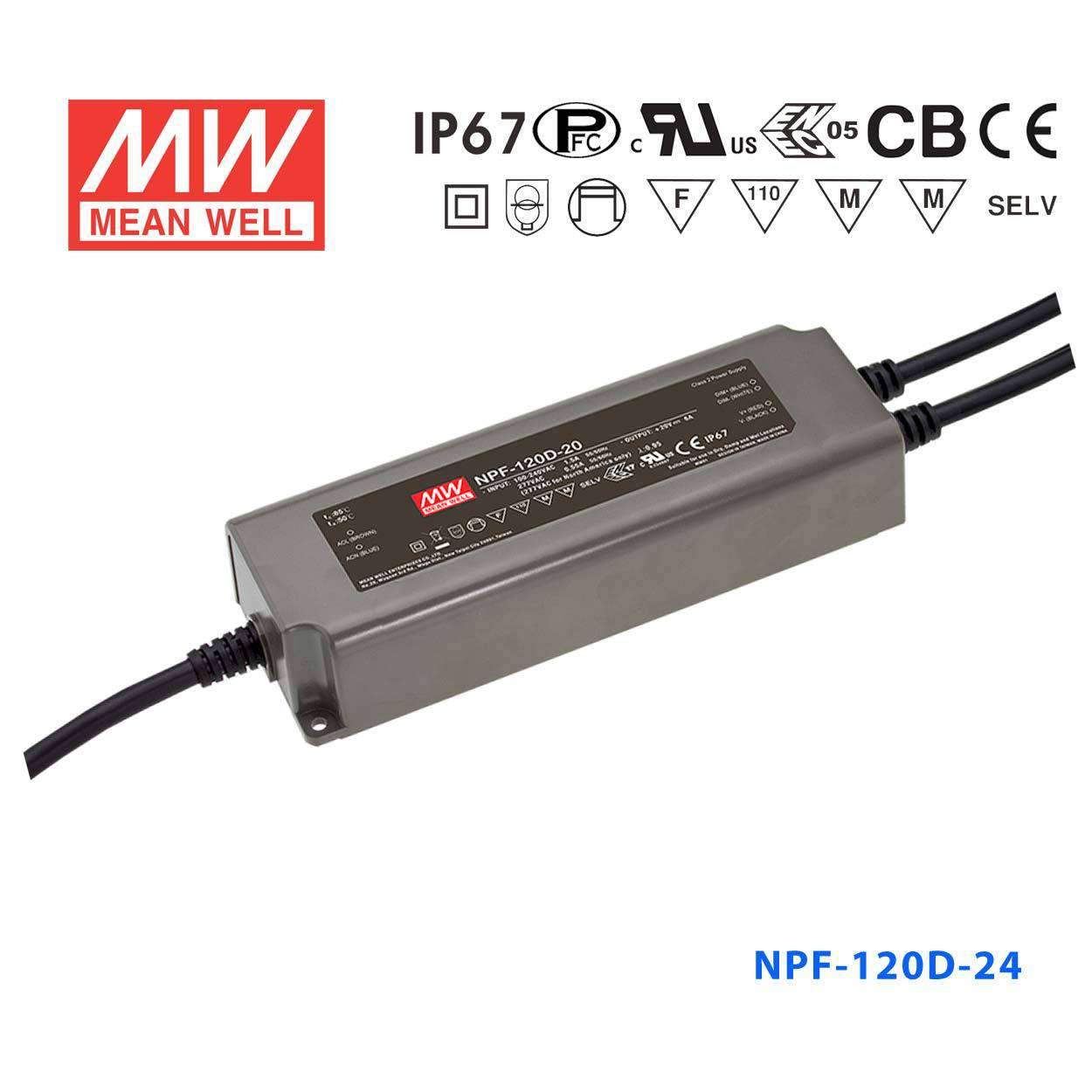

Mean Well NPF-120D-24 Power Supply 120W 24V - Dimmable 5A

The NPF-120D is a 120W Mean Well DIN rail power converter with a 191mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).

Key Features

✓ 191mm width — DIN rail TS-35 compatible
✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Wide operating temperature: -40~+80℃
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750(type”HL”), CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67
✓ 3 years warranty
