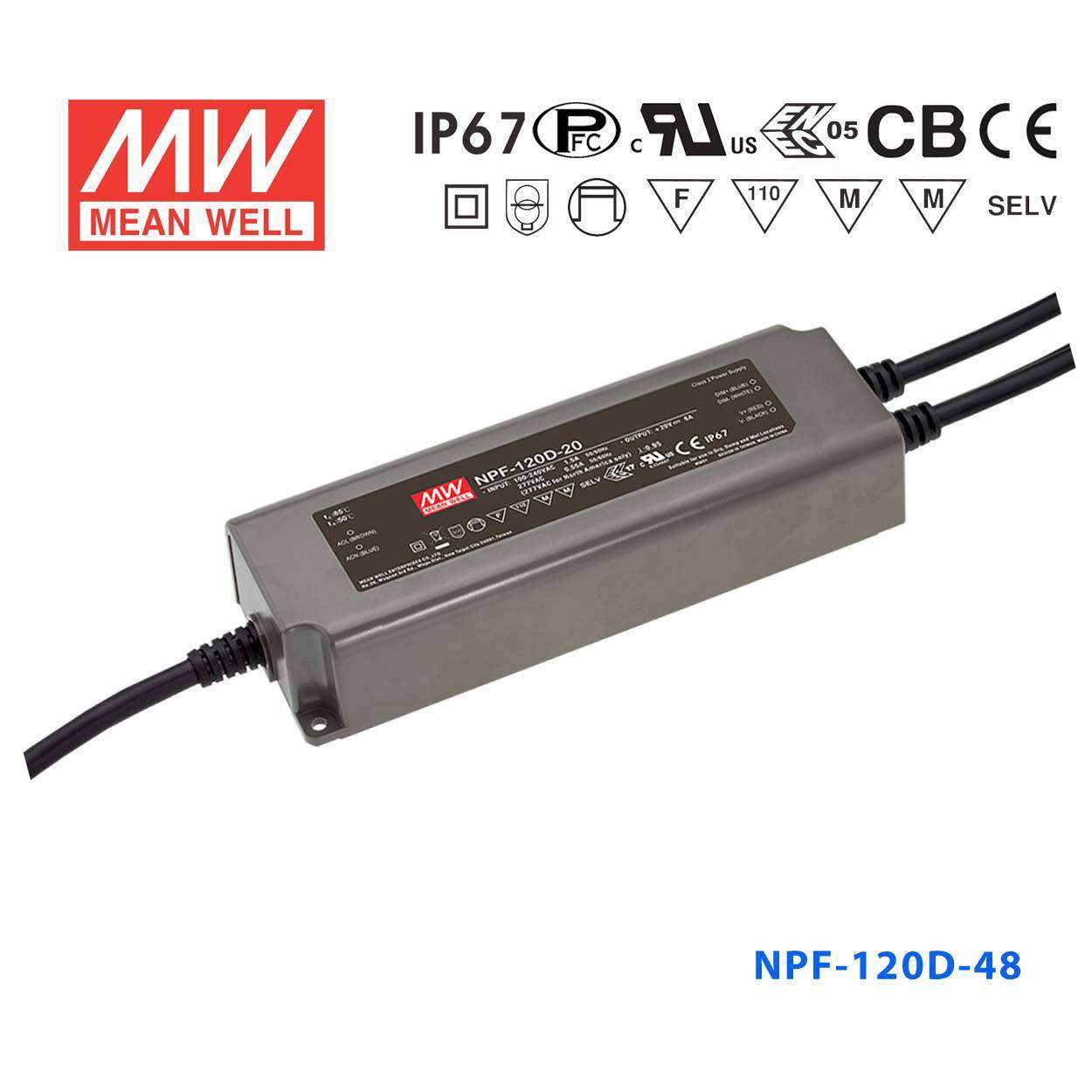

Mean Well NPF-120D-48 Power Supply 120W 48V - Dimmable
Please Login for Pricing
Description
Description
Features
| Plastic housing with class II design |
| Built-in active PFC function |
| Standby power consumption <0.5W |
| IP67 rating for indoor or outdoor installations |
| Function options: 3 in 1 dimming (dim-to-off); Auxiliary DC output |
| Typical lifetime >50000hours |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 60A at 230VAC |
| Over current protection | 95% ~108% Constant current limiting, recovers automatically after fault condition is removed |
| Over voltage protection | 110%~140% Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -40~+80ºC (refer to output derating curve) |
| Safety standards | UL8750(type ”HL”), CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent,IP67 approved; Design refer to EN60335-1 |
| EMC standards | Compliance to EN55015, EN61000-3-2 Class C (@load≥60%) ; EN61000-3-3 |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, SJTW 14AWGx2C (30cm) + UL2464 18AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 191x 63x 37.5 |
Specifications
Specifications
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating120 Watt
-
Output Voltage48 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length19.1 cm
-
Width6.3 cm
-
Height3.75 cm
-
Weight0.97 kg
