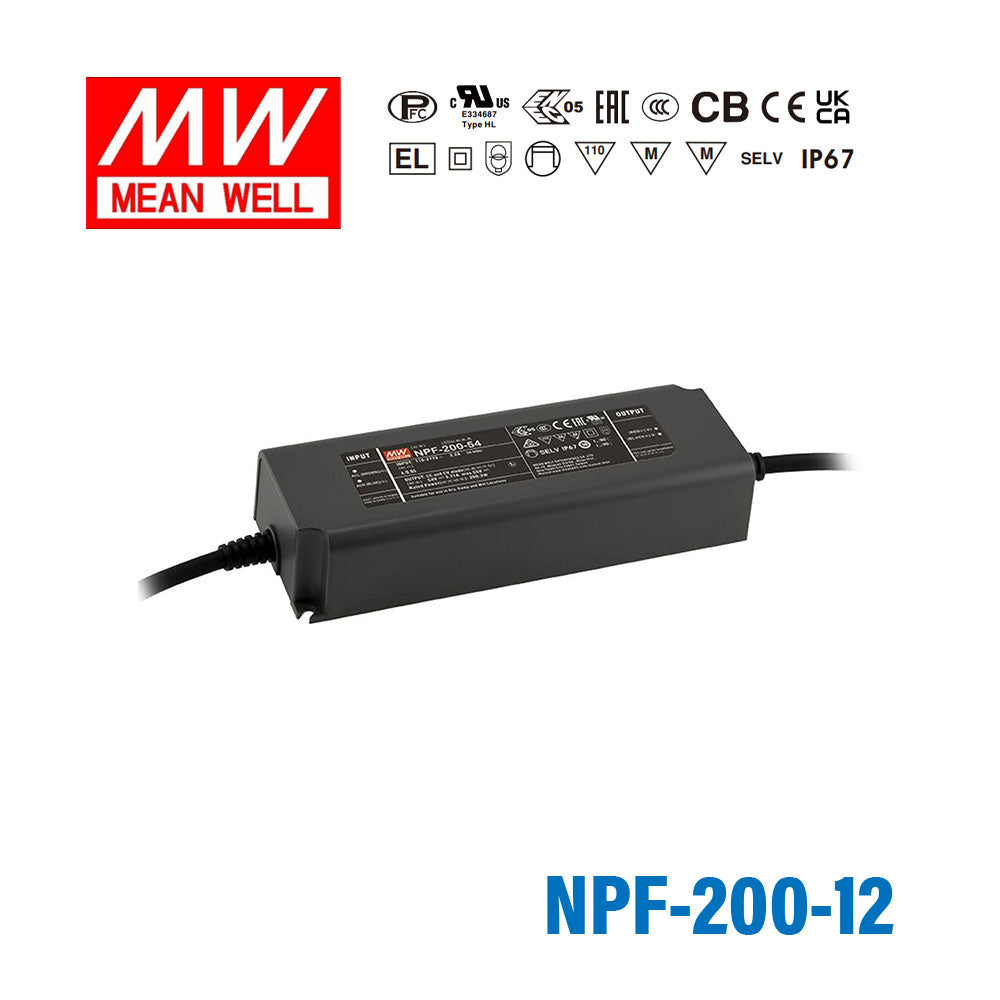

Mean Well NPF-200-12 Power Supply 200W 12V

fully isolated plastic case, IP67, Class II design without FG
SKU:
NPF-200-12

|

Description

Features

Plastic housing with class II design
Constant Voltage + Constant Current mode output
Standby power consumption <0.5W
IP67 rating for indoor or outdoor installations
Dimming function: 3 in 1 dimming(C.V Dim. only) to adjust the output voltage level
Flicker-free Design
Typical lifetime >50000hours
5 years warranty

General Specification

AC input voltage range 100~305VAC 142~431VDC
AC inrush current (max.) COLD START 65A(twidth=550 s measured at 50% Ipeak) at 230V μ AC; Per NEMA 410
Over current protection 95% ~108% Constant current limiting, recovers automatically after fault condition is removed
Over-voltage protection 110%~140% Shut down o/p voltage, re-power on to recover
Withstand voltage I/P - O/P: 3.75kVAC
Working temperature -40~+85ºC (refer to output derating curve)
Safety standards UL8750(type ”HL”), CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent,IP67 approved; Design refer to EN60335-1
EMC standards Compliance to EN55015, EN61000-3-2 Class C (@load≥60%) ; EN61000-3-3
Connection Input UL rated, SJTW 18AWGx2C (30cm)
Connection Output UL rated, 14AWGx2C (30cm)
Dimension (LxWxH)(mm) 195 x 68 x 39.5

Specifications

  • Brand
    Mean Well
  • Series
    NPF Series
  • Power Rating
    200 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    15 Ampere
  • Input Voltage
    100V~305V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    5 Year
  • Length
    19.5 cm
  • Width
    6.8 cm
  • Height
    3.95 cm
  • Weight
    1.03 kg
