Over 15 years experience of providing support of MEAN WELL Power Supplies

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

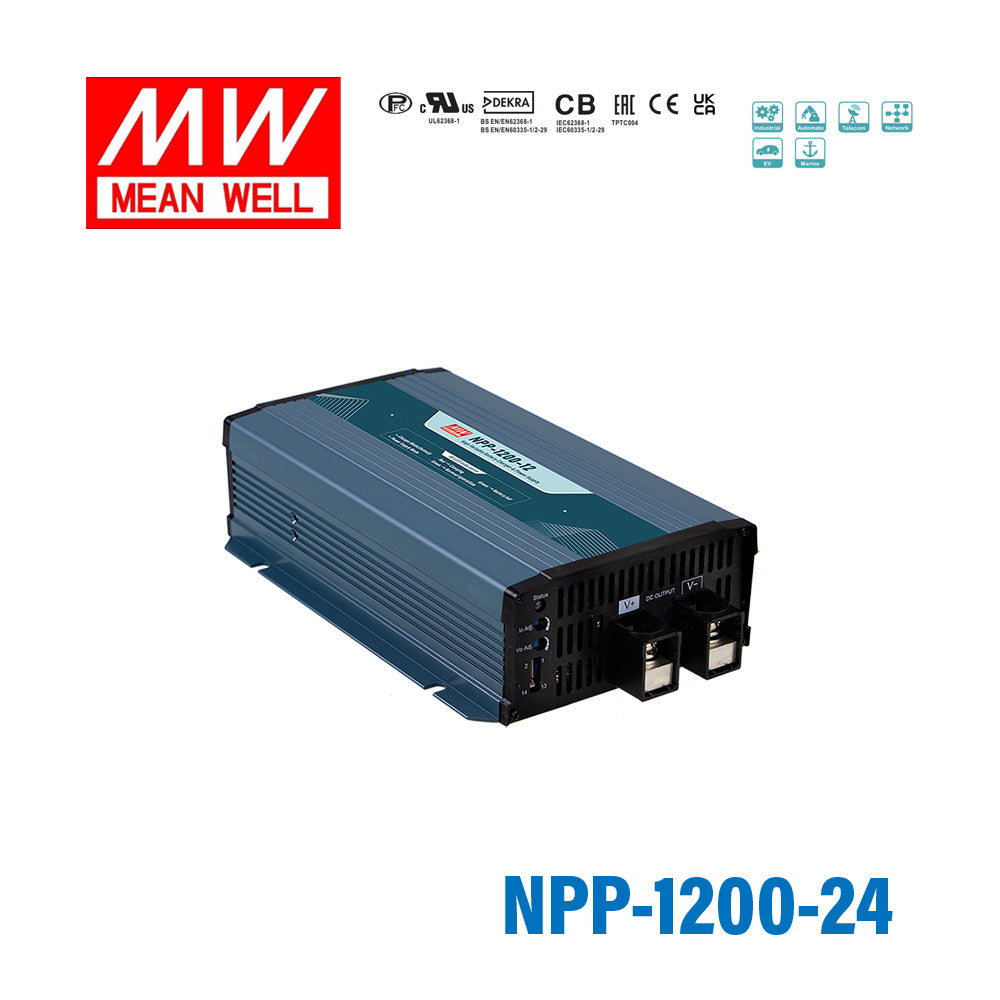

Mean Well NPP-1200-24 1209.6W 24V Battery Charge& Power Supply 2-in-1, Selectable via Jumper

can switch between charger and power supply, 3 stage charging, only suitable for lead-acid batteries, charging voltage/current adjustable through panel

|

Description

NPP-1200's key features include ultra-wide output voltage, adjustable output voltage via VR on front panel (10.5~21V, 21~42V, 42~80V), adjust output current from 50~100%, built-in thermal controlled cooling fan to reduce noise, -30~+70°C operating temperature, built-in remote ON/OFF control, compliance to ITE IEC/EN/UL62368-1 and household appliances EN60335-1/-2-29 dual safety, multiple built-in intelligent protection functions, and 3 years warranty.


FEATURES

  • Multi-function single unit battery charger or power supply operation modes selectable
  • Ultra-wide output voltage (10.5~21V, 21~42V, 42~80V)
  • Output voltage and current adjustable via potentiometer
  • 3-stage charging curve for charging mode
  • -30~+70oC wide operating temperature
  • Thermal controlled DC fan for noise reduction
  • Multiple protections: Short circuit / Over load / Over voltage / Over temperature
  • Suitable for lead-acid batteries
  • Carry handle accessory available (Order No.: DS-Carry handle)
  • Safety approval: CB, UL, DEKRA, EAC, CE, UKCA (62368-1 + 60335-1/-2-29)
  • 3-year warranty

Specifications

  • Brand
    Mean Well
  • Series
    Mean Well NPP Series
  • Power Rating
    1200 Watt
  • Output Voltage
    28.8 Volt
  • Rated Current
    36 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    25 cm
  • Width
    15.8 cm
  • Height
    6.7 cm
  • Weight
    1.93 kg
