Description
Description

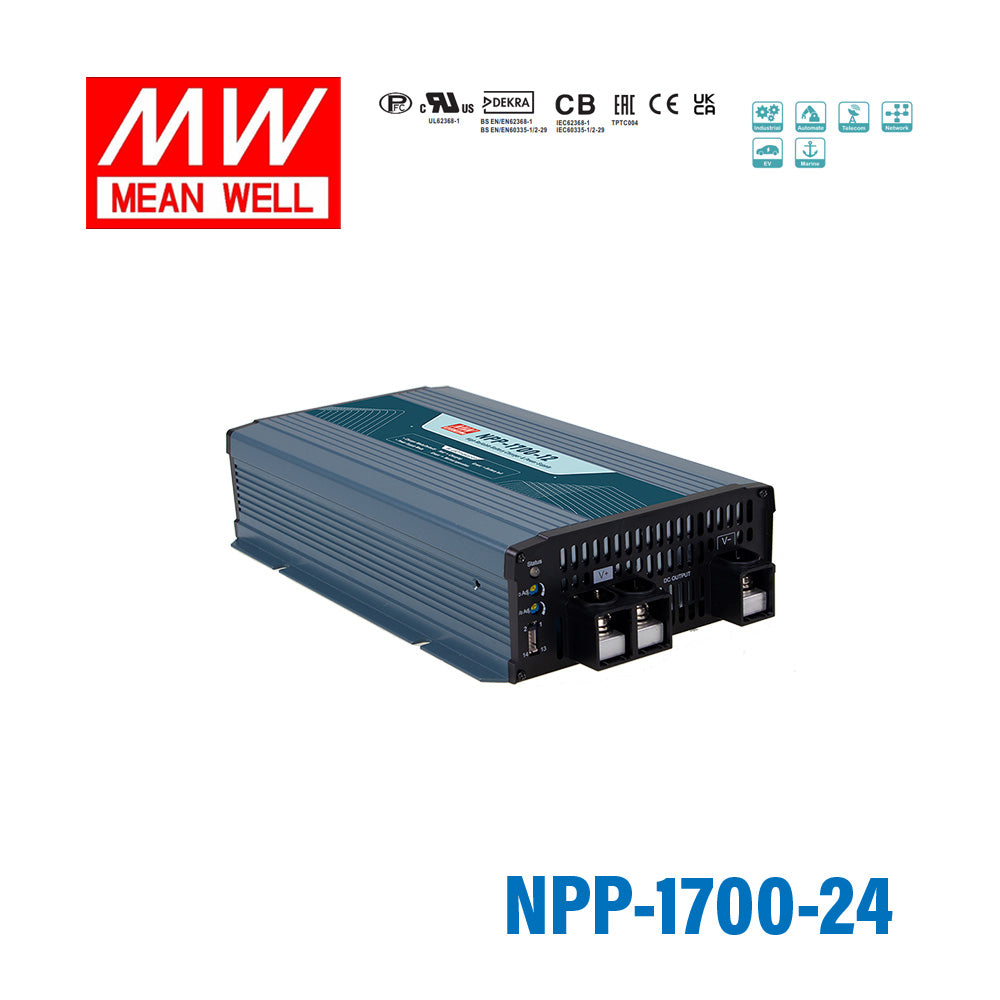

NPP-1700's key features include ultra-wide output voltage, adjustable output voltage via VR on front panel (10.5~21V, 21~42V, 42~80V), adjust output current from 50~100%, built-in thermal controlled cooling fan to reduce noise, -30~+70°C operating temperature, built-in remote ON/OFF control, compliance to ITE IEC/EN/UL62368-1 and household appliances EN60335-1/-2-29 dual safety, multiple built-in intelligent protection functions, and 3 years warranty.
FEATURES
- Multi-function single unit battery charger or power supply operation modes selectable
- Ultra-wide output voltage (10.5~21V, 21~42V, 42~80V)
- Output voltage and current adjustable via potentiometer
- 3-stage charging curve for charging mode
- -30~+70oC wide operating temperature
- Thermal controlled DC fan for noise reduction
- Multiple protections: Short circuit / Over load / Over voltage / Over temperature
- Suitable for lead-acid or li-ion batteries
- Carry handle accessory available (Order No.: DS-Carry handle)
- Safety approval: CB, UL, DEKRA, EAC, CE, UKCA (62368-1 + 60335-1/-2-29)
- 3-year warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNPP Series
-
Power Rating1700 Watt
-
Output Voltage28.8 Volt
-
Rated Current50 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length30 cm
-
Width18.4 cm
-
Height7 cm
-
Weight2.96 kg
