Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

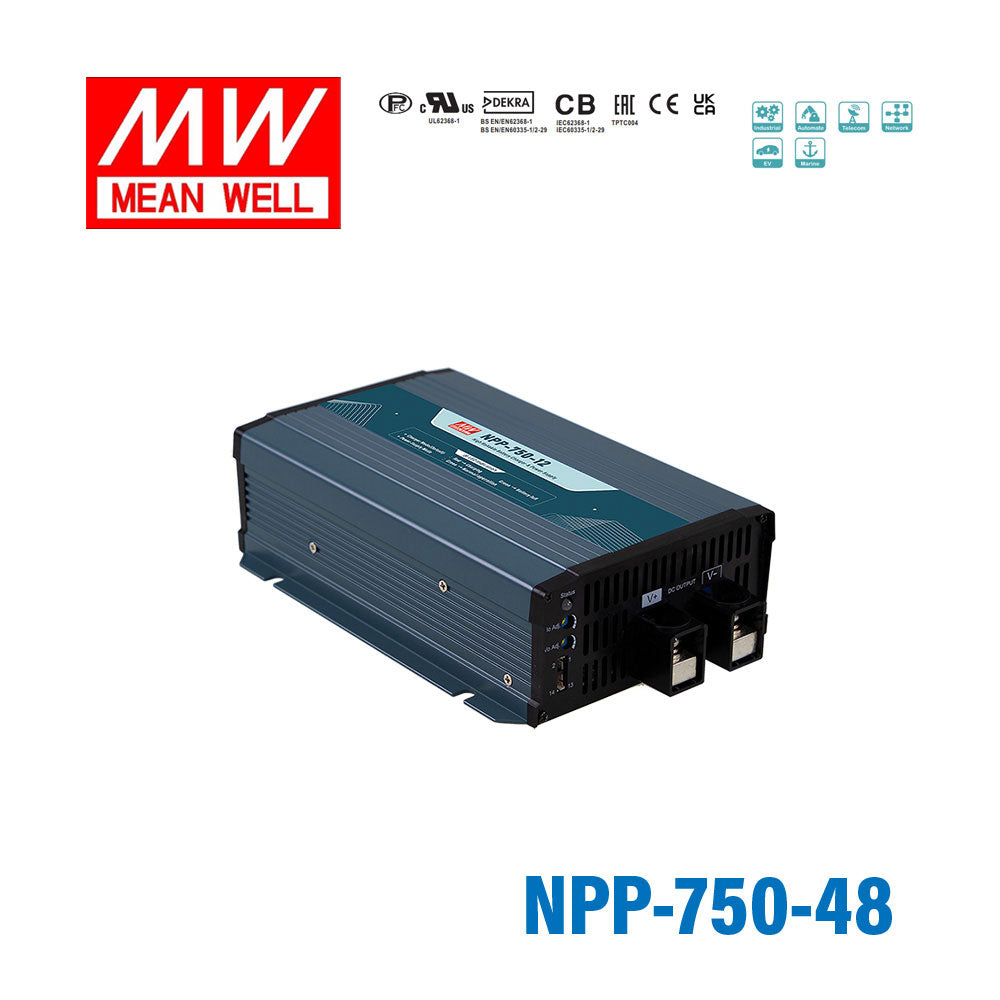

Mean Well NPP-750-48 759.4W 48V Battery Charge& Power Supply 2-in-1, Selectable via Jumper 11.3A

can switch between charger and power supply3 stage chargingonly suitable for lead-acid batteriescharging voltage/current adjustable through panel

SKU:

NPP-750-48

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

NPP-450 and NPB-750's key features include ultra-wide output voltage, adjustable output voltage via VR on front panel (10.5~21V, 21~42V, 42~80V, 54~100V), adjust output current from 50~100%, built-in thermal controlled cooling fan to reduce noise, -30~+70°C operating temperature, built-in remote ON/OFF control, compliance to ITE IEC/EN/UL62368-1 and household appliances EN60335-1/-2-29 dual safety, multiple built-in intelligent protection functions, and 3 years warranty. Both of them are safe, durable, and cost-effective dual-purpose power supply/chargers. The products are suitable for charging applications for electric motorcycles, unicycles, scooters, camping vehicles, UAV, mobile robots, hand-held power tools, floor scrubbers, etc. as well as providing power to drive industrial control, information technology, communication, security control systems and more.

FEATURES

Frequently Asked Questions

What is the Mean Well NPP-750-48 used for?

The NPP-750-48 is a dual-purpose unit that can operate as either a battery charger or a power supply, with the mode selectable by jumper. It is aimed at professional and industrial use cases such as electric scooters, mobile robots, floor scrubbers, security systems, communication equipment, and industrial control systems.

Is the NPP-750-48 a battery charger, a power supply, or both?

This model is designed to serve both roles in a single product. It can be used in charger mode for supported battery-charging applications or in power supply mode when regulated DC output is needed for equipment.

What output does the NPP-750-48 provide?

This model is a 48V-class unit with a listed output voltage of 57.6V and a rated current of 11.3A. It is part of Mean Well's 750W class and includes adjustable output voltage and output current controls.

What battery type is the NPP-750-48 suitable for?

Based on the provided product data, the NPP-750-48 is suitable for lead-acid batteries. It also includes a 3-stage charging curve for charging-mode operation.

Can the NPP-750-48 be used in demanding environments?

Yes. The unit has a wide operating temperature range of -30°C to +70°C, which makes it suitable for tougher indoor or protected equipment environments. It also uses a thermally controlled cooling fan to help reduce noise while supporting thermal management.

What protection and compliance features does the NPP-750-48 include?

The NPP-750-48 includes built-in protection for short circuit, overload, over voltage, and over temperature conditions. It is also listed with multiple safety approvals including CB, UL, DEKRA, EAC, CE, and UKCA, with compliance to 62368-1 and 60335-1/-2-29 standards.

What warranty comes with the NPP-750-48?

This model includes a 3-year warranty. That matches the product's positioning as a durable industrial charger and power supply for long-term use.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Battery Type	Battery Voltage	Charging Current
Mean Well NPP-750-24 756W 24V Battery Charge& Power Supply 2-in-1, Selectable via Jumper 22.5A	750W	Lithium and Lead Acid Battery	—	—	View
Mean Well NPP-750-12 722.4W 12V Battery Charge& Power Supply 2-in-1, Selectable via Jumper 43A	750W	Lithium and Lead Acid Battery	—	—	View
