Mean Well

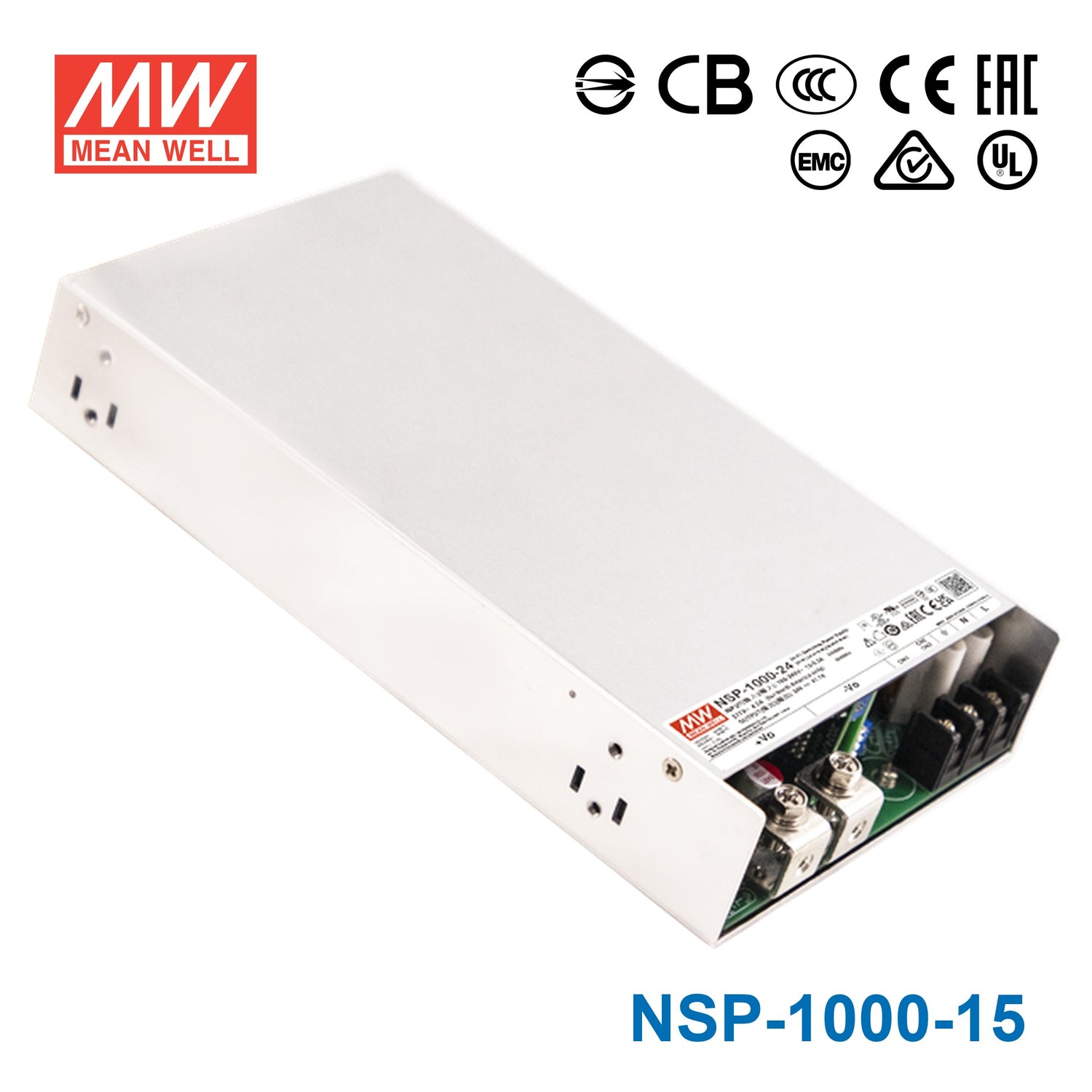

Mean Well NSP-1000-15 1000.5W high reliable multi-industry power supply 15.0V 66.7A

1000W multi-industry enclosed power supply, 15.0VDC output, 200% peak power (5s), up to 93.5% efficiency, 85–305VAC input
SKU:
NSP-1000-15
Please for Pricing
|

Description

The NSP-1000-15 is a 1000W high-reliability AC/DC enclosed power supply delivering 15.0VDC at 66.7A, with 200% peak power capability for 5 seconds. Designed for demanding industrial, medical, telecom, and automation applications, it accepts a wide universal input of 85–305VAC or 120–431VDC and achieves up to 93.5% efficiency. Features include programmable output voltage and current, parallel operation for up to 4 units, CANBus/MODBus communication (by request), and full compliance with IEC/EN/UL 62368-1, IEC/EN 60601-1 (2×MOPP), IEC/EN 60335-1, and IEC/EN 61010-1.

Key Features

  • ✓1000W rated power, 2000W peak for 5 seconds
  • ✓15.0VDC output at 66.7A rated current
  • ✓Universal input: 85–305VAC / 120–431VDC
  • ✓Up to 93.5% typical efficiency
  • ✓Operating temperature: −40°C to +85°C (with derating)
  • ✓Built-in intelligent fan speed control (30dB at 10% load)
  • ✓Remote ON/OFF control and remote sense (up to ±0.5V compensation)
  • ✓Programmable output voltage (0–120%) and current (0–100%)
  • ✓Parallel operation up to 4 units (4000W total)
  • ✓SEMI F47 voltage sag immunity verified

Specifications
  • Brand
    Mean Well
  • Input Voltage
    85V~305V
  • Standards Met
    BSMI,CB,CCC,CE,EAC,EMC,RCM,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Length
    23 cm
  • Width
    12.7 cm
  • Height
    4.1 cm
  • Weight
    1.4 kg

File Downloads

::specification::
