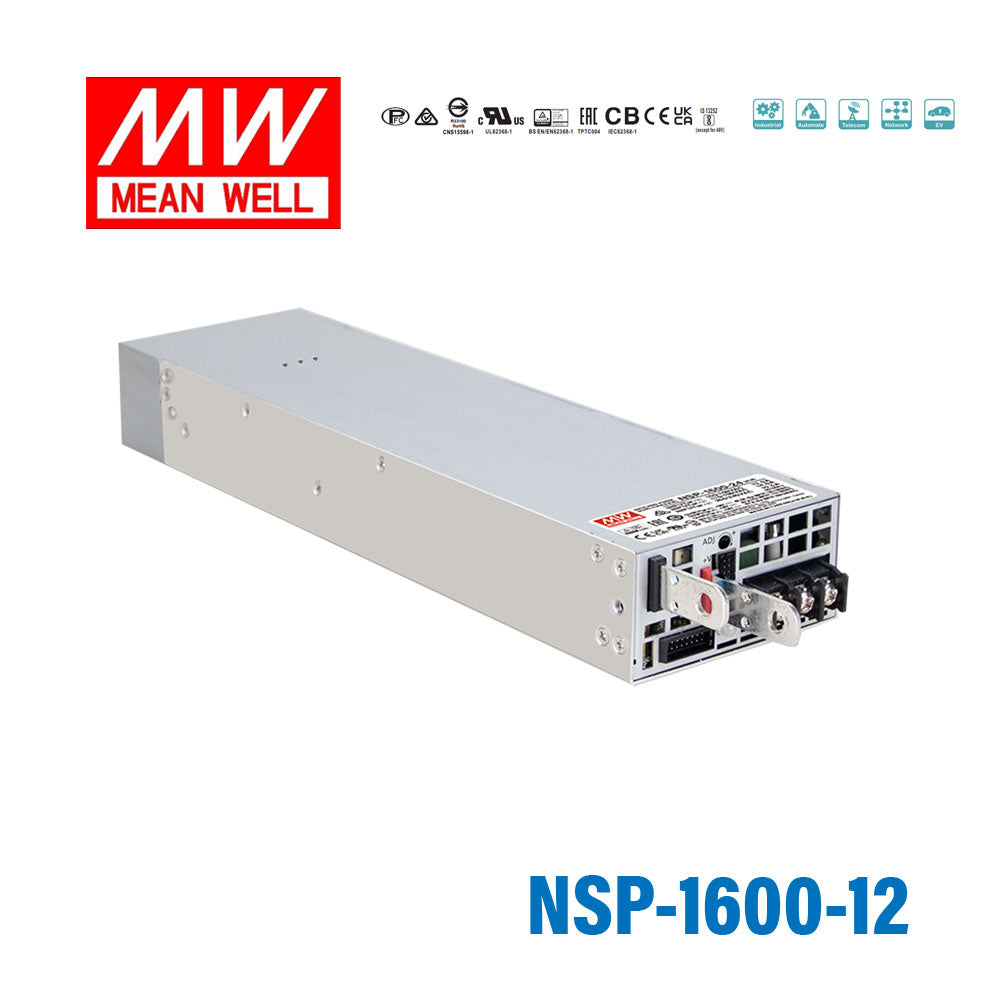

Mean Well NSP-1600-12 1500W 12V Compact Power Supply
Please Login for Pricing
Description
Description
NSP-1600 Series Features:
NSP-1600 is a 1.6KW single output enclosed type AC/DC power supply with a 1U low profile and a high power density up to 20W/inch.
Features:
- Universal AC input/full range
- Built-in active PFC function
- High efficiency up to 92%
- Forced air cooling by built-in DC fan
- Output voltage level programmable
- Built-in remote ON-OFF control/remote sense/ auxiliary power/DC OK signal
- Protections: short circuit/ overload/ over voltage/ over temperature
- Design refer to SEMI F47
- 5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well NSP Series
-
Power Rating1500 Watt
-
Output Voltage12 Volt
-
Rated Current12 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty5 Year
-
Length30 cm
-
Width8.5 cm
-
Height4.1 cm
