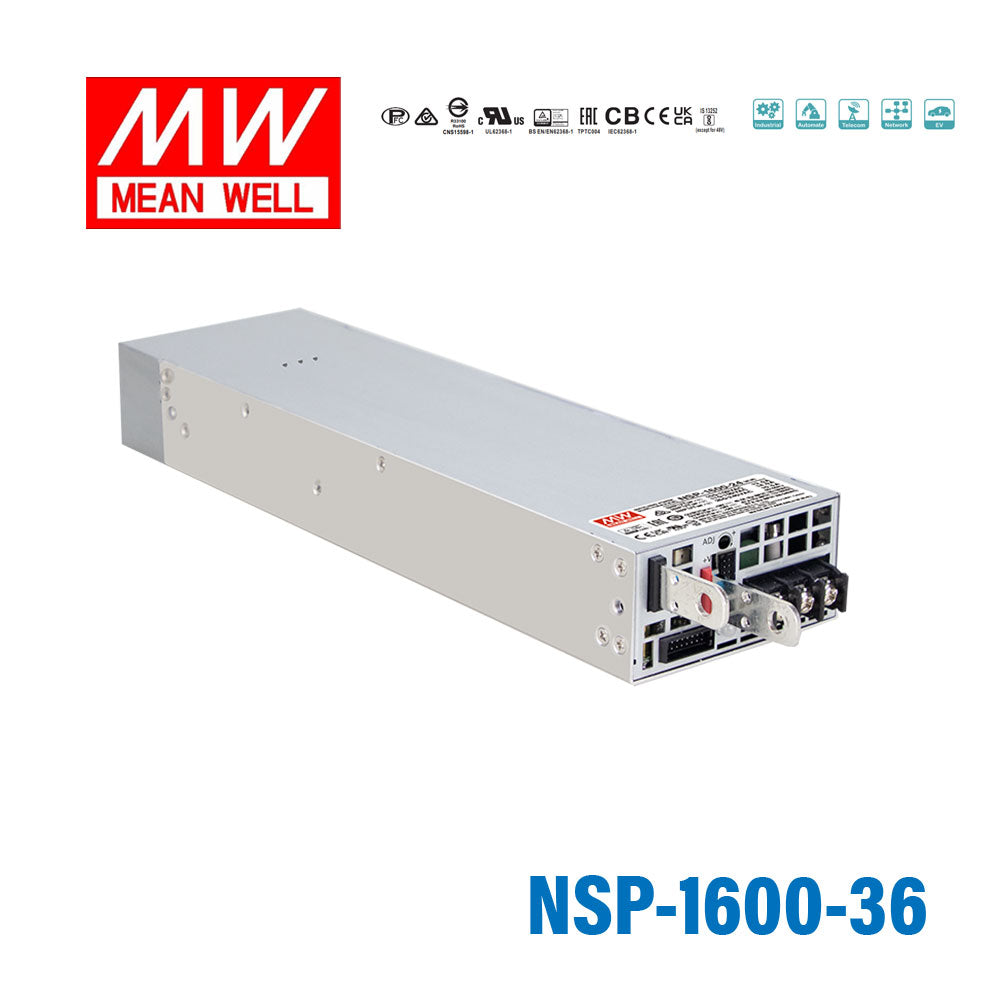

Mean Well NSP-1600-36 1602W 36V Compact Power Supply

built-in active PFC, efficiency up to 92.5%, 1U low profile, high power density up to 25W/inch³

|

Description

NSP-1600 Series Features:

NSP-1600 is a 1.6KW single output enclosed type AC/DC power supply with a 1U low profile and a high power density up to 20W/inch.


Features:

  • Universal AC input/full range
  • Built-in active PFC function
  • High efficiency up to 92%
  • Forced air cooling by built-in DC fan
  • Output voltage level programmable
  • Built-in remote ON-OFF control/remote sense/ auxiliary power/DC OK signal
  • Protections: short circuit/ overload/ over voltage/ over temperature
  • Design refer to SEMI F47
  • 5 years warranty

Specifications

  • Brand
    Mean Well
  • Series
    Mean Well NSP Series
  • Power Rating
    1602 Watt
  • Output Voltage
    36 Volt
  • Rated Current
    44.5 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~70°C
  • Warranty
    5 Year
  • Length
    30 cm
  • Width
    8.5 cm
  • Height
    4.1 cm
