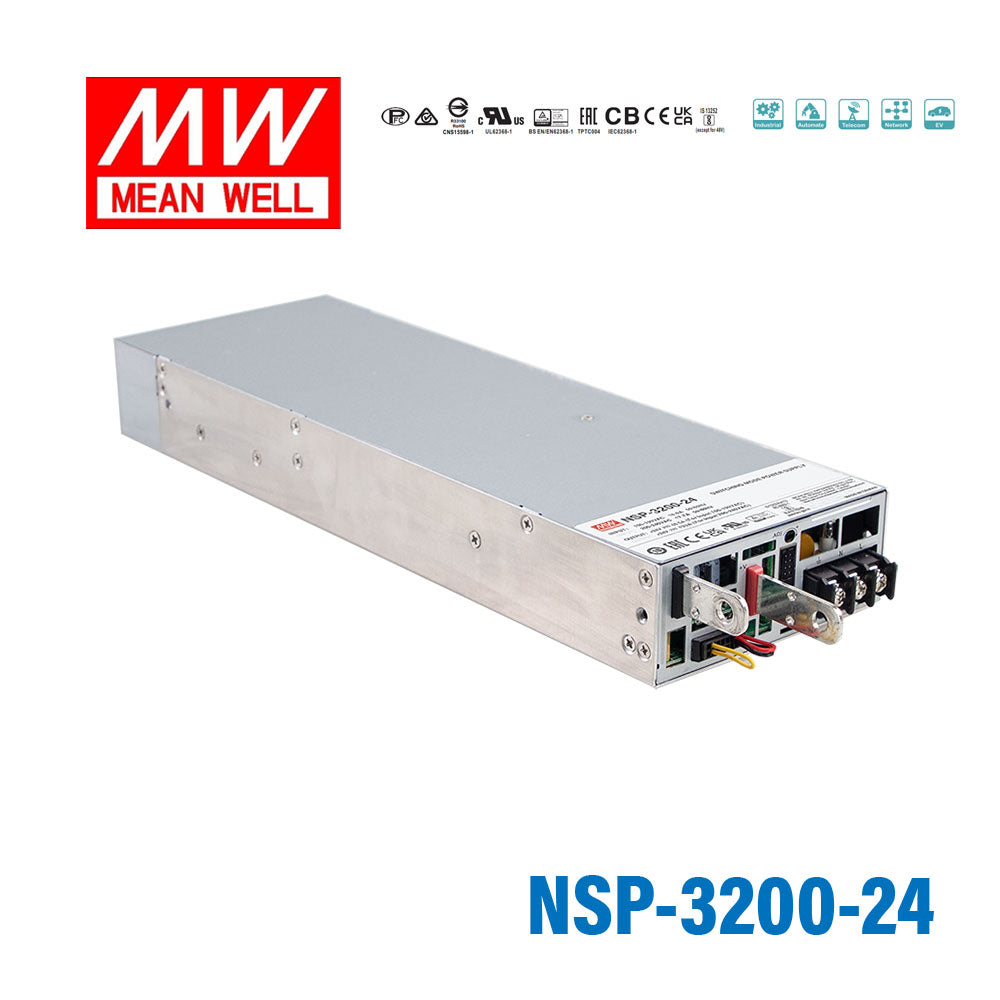

Mean Well NSP-3200-24 3192W 24V Compact Power Supply
Please Login for Pricing
Description
Description
NSP-3200 Series Features:
NSP-3200 is a 3.2KW single output enclosed type AC/DC power supply with 1U low profile and a high power density up to 37W/inch.
Features:
- Universal AC input/Full range
- Built-in active PFC function
- High efficiency up to 94.5%
- Forced air cooling by built-in DC fan
- Output voltage level programmable
- Protections: short circuit/ overload/over voltage/over temperature
- Design refer to SEMI F47
- Optional conformal coating
- 5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well NSP Series
-
Power Rating3192 Watt
-
Output Voltage24 Volt
-
Rated Current133 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty5 Year
-
Length32.58 cm
-
Width10.7 cm
-
Height4.1 cm
