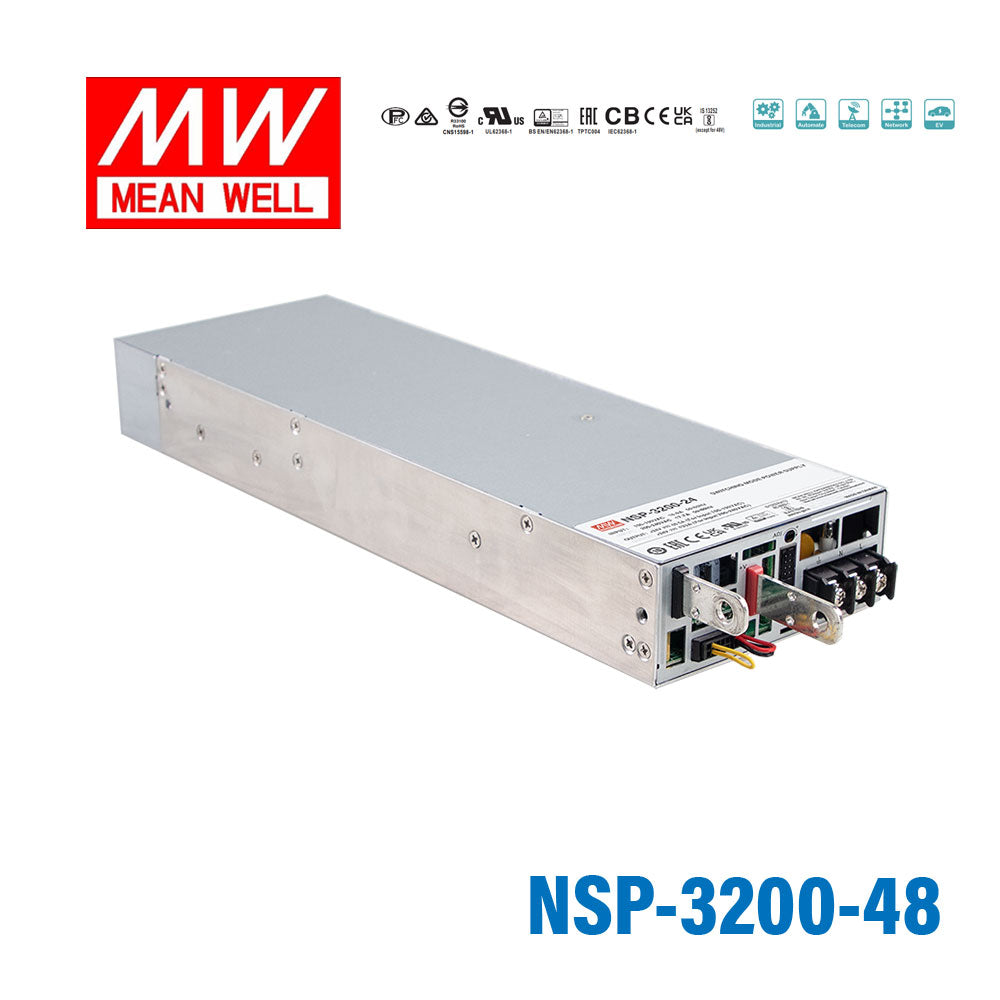

Mean Well NSP-3200-48 3216W 24V Compact Power Supply

48V, 3216W, 67A, Single Output

|

Description

NSP-3200 Series Features:
NSP-3200 is a 3.2KW single output enclosed type AC/DC power supply with 1U low profile and a high power density up to 37W/inch.

Features:
  • Universal AC input/Full range
  • Built-in active PFC function
  • High efficiency up to 94.5%
  • Forced air cooling by built-in DC fan
  • Output voltage level programmable
  • Protections: short circuit/ overload/over voltage/over temperature
  • Design refer to SEMI F47
  • Optional conformal coating
  • 5 years warranty

Specifications

  • Brand
    Mean Well
  • Series
    Mean Well NSP Series
  • Power Rating
    3216 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    67 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~70°C
  • Warranty
    5 Year
  • Length
    32.58 cm
  • Width
    10.7 cm
  • Height
    4.1 cm

File Downloads
