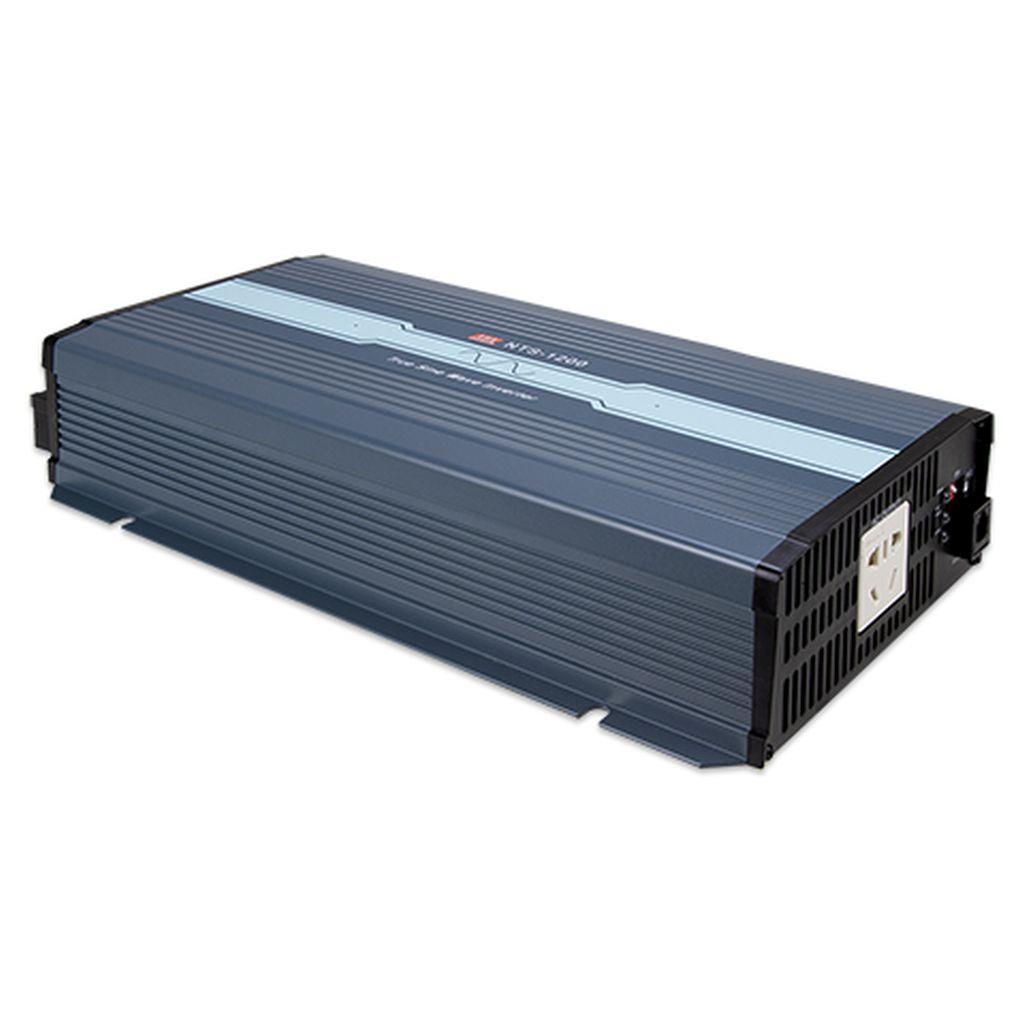

Mean Well NTS-1200-224AU True Sine Wave DC-AC Inverter 1200W 230V out 24V in with AU Socket

fanless designhigh efficiency up to 93%200% peak power capabilitybuilt-in dip switch to adjust AC output voltagefrequency and work mode

SKU:

NTS-1200-224AU

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The NTS-1200 is a 1200W Mean Well power converter (input range: 10~16.5Vdc).

Key Features

✓ Input voltage range: 10~16.5Vdc
✓ Protections: Short circuit / Overload / Over temperature
✓ Remote ON/OFF control
✓ Safety approvals: CB IEC62368-1,Dekra BS EN/EN62368-1,UL458, E13,EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

What is the Mean Well NTS-1200-224AU designed for?

The NTS-1200-224AU is a 1200W true sine wave DC-AC inverter that converts 24V DC input power to 230V AC output. It is suited to business and mobile power applications where clean AC output is needed for sensitive equipment.

Does this inverter provide true sine wave output?

Yes. This model produces a true sine wave output with total harmonic distortion below 3%, which helps support stable operation for equipment that is sensitive to power quality. That makes it a stronger choice than modified sine wave alternatives for many electronics and appliances.

What are the input and output ratings for this model?

This specific model is rated at 1200W, with 24V DC input and 230V AC output. It also supports high surge power up to 2000W for short-duration demand above its continuous rating.

Can the NTS-1200-224AU be used with different battery types?

Yes. Mean Well specifies this inverter as suitable for both lead-acid and lithium-ion battery systems. It also includes battery over-discharge protection through low voltage disconnect.

Is this inverter suitable for harsh or variable temperature environments?

It is designed for a wide operating temperature range of -25°C to +70°C, subject to the output derating curve. The unit also includes a temperature-controlled cooling fan and conformal coating, which support use in demanding environments.

What protection features are included in this inverter?

The NTS-1200-224AU includes protection for short circuit, overload, and over voltage, along with low voltage disconnect for battery protection. For overload temperature events, the unit shuts down output and requires re-powering to recover.

Does this model include any monitoring or remote control options?

Yes. It supports power on-off remote control, has front panel status indicators, and can support RS-232 communication. Remote controllers and the communication cable are listed as separate accessories rather than included items.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Waveform	Frequency
Mean Well NTS-1200-248AU True Sine Wave DC-AC Inverter 1200W 230V out 48V in with AU Socket	1200W	230V	True Sine Wave	50Hz	View
Mean Well NTS-1200-212AU True Sine Wave DC-AC Inverter 1200W 230V out 12V in with AU Socket	1200W	230V	True Sine Wave	50Hz	View
