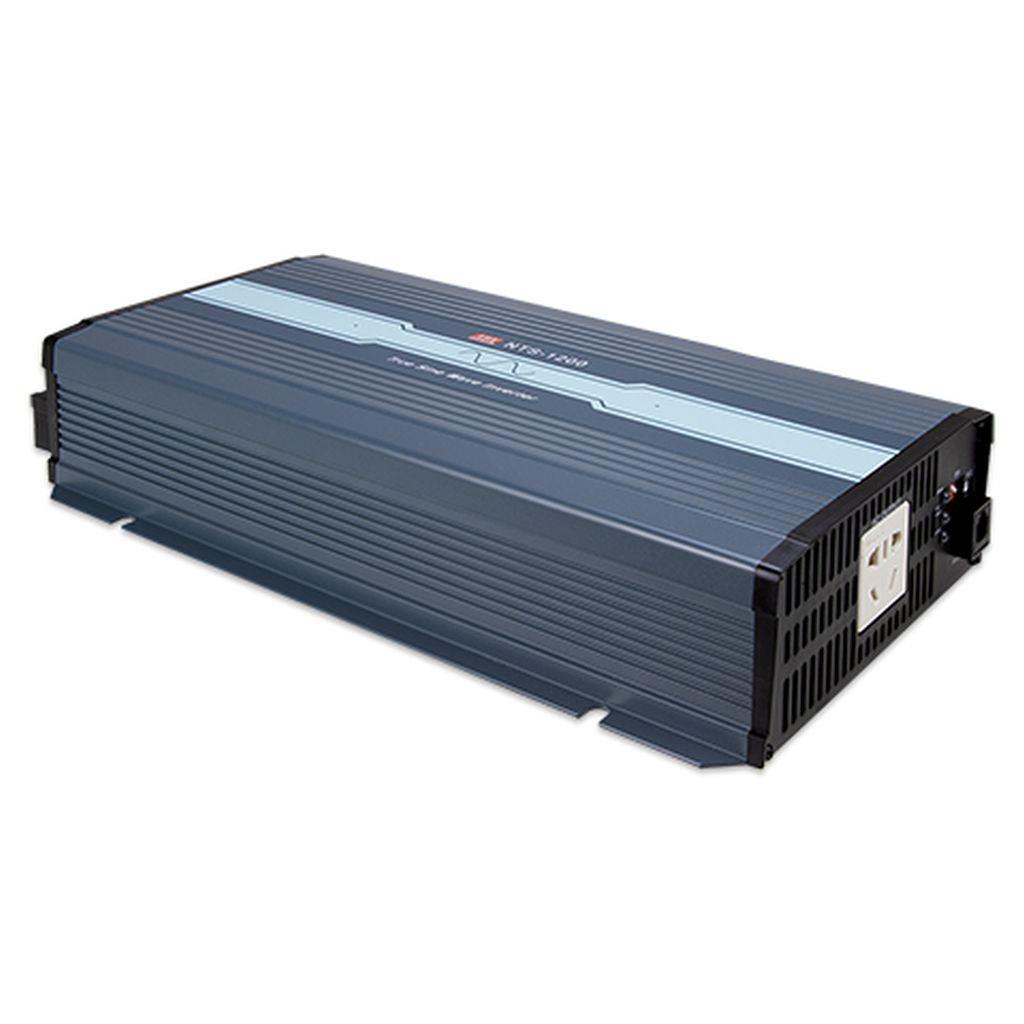

Mean Well NTS-1200-248AU True Sine Wave DC-AC Inverter 1200W 230V out 48V in with AU Socket

fanless designhigh efficiency up to 93%200% peak power capabilitybuilt-in dip switch to adjust AC output voltagefrequency and work mode

SKU:

NTS-1200-248AU

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The NTS-1200 is a 1200W Mean Well power converter (input range: 10~16.5Vdc).

Key Features

✓ Input voltage range: 10~16.5Vdc
✓ Protections: Short circuit / Overload / Over temperature
✓ Remote ON/OFF control
✓ Safety approvals: CB IEC62368-1,Dekra BS EN/EN62368-1,UL458, E13,EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

What type of output does the NTS-1200-248AU provide?

This model provides a true sine wave AC output with THD below 3%. It is designed for applications that need cleaner power than modified sine wave inverters. The nominal output for this version is 230V AC.

What input voltage is required for the NTS-1200-248AU?

The NTS-1200-248AU is a 48V DC input inverter. It is intended for systems using 48V battery-based power sources. The product listing also states it is suitable for lead-acid or lithium-ion batteries.

What kinds of applications is this inverter suitable for?

This 1200W true sine wave inverter is suited to professional and industrial DC-to-AC power applications where stable 230V AC output is needed from a 48V DC source. Typical buyer interest includes mobile power, off-grid equipment, and backup power environments. Its high surge capability can also help with loads that draw extra power briefly at startup.

How much surge power can the NTS-1200-248AU handle?

The unit is rated at 1200W continuous output and supports surge power up to 2000W. That makes it better suited to loads with short startup peaks than an inverter with no stated surge margin. Buyers should still confirm the connected equipment stays within the inverter's rated limits.

Can this inverter operate in demanding temperature conditions?

Yes. The specified operating temperature range is -25C to +70C, subject to the manufacturer's output derating guidance. It also includes a temperature-controlled cooling fan to support operation across changing thermal conditions.

Does the NTS-1200-248AU include protection features?

Yes, this model includes protection for short circuit, overload, and over voltage. It also includes battery over-discharge protection through low voltage disconnect. For overload temperature protection, the output shuts down and recovery requires re-powering the unit.

Are remote control and communication options available for this inverter?

Yes. The product supports power on-off remote control and has compatible remote controller accessories including IRC1, IRC2, and IRC3, which are sold separately. It also supports RS-232 communication using the specified accessory cable, also sold separately.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Waveform	Frequency
Mean Well NTS-1200-224AU True Sine Wave DC-AC Inverter 1200W 230V out 24V in with AU Socket	1200W	230V	True Sine Wave	50Hz	View
Mean Well NTS-1200-212AU True Sine Wave DC-AC Inverter 1200W 230V out 12V in with AU Socket	1200W	230V	True Sine Wave	50Hz	View
