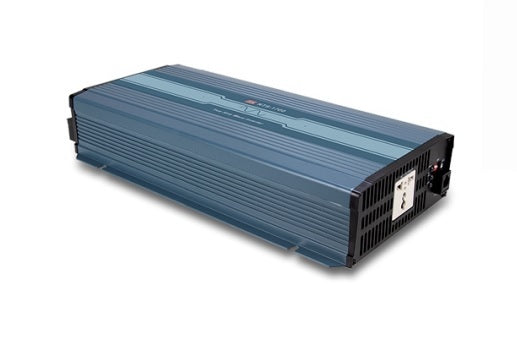

Mean Well NTS-1700-224AU True Sine Wave DC-AC Inverter 1700W 230V out 24V in with AU Socket

fanless designhigh efficiency up to 93%200% peak power capabilitybuilt-in dip switch to adjust AC output voltagefrequency and work mode

SKU NTS-1700-224AU

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

NTS-1700-224AU is the model of this series: typical efficiency 92%.

NTS-1700 is a 1700W highly reliable off-grid true sine wave DC-AC power inverter. Its key features include: digital design with MCU control, streamlined control circuitry that quickly responds to environmental changes and improves reliability, high quality fan with low acoustic noise, 3400W peak power, adjustable AC output voltage and frequency, -25~+70℃ wide operating temperature range, complete protection features, and etc. Combined with batteries, the NTS-1700 is suitable for use in residential, commercial, marine, automobile, mine, construction site, and remote areas with no access to utility power, and the output can be used to power fans, TV, radio, phone charger, PC/laptop, lighting, induction stove, air conditioner, electromechanical tool, communication equipment, power distribution cabinet, outdoor camping equipment, marine AC power, factory equipment, and etc.

Features

True sine wave output (THD<3%)
High surge power up to 3400W
Temperature controlled cooling fan
AC output voltage and frequency selectable by DIP S.W
No load dissipation <1.5W at standby saving mode
-25℃~+70℃ wide operating temperature
Power ON-OFF remote control
Front panel indicator for operation status
Protections : Input : Reverse polarity / DC low alarm / DC low shutdown / Over voltage Output : Short circuit / Overload / Over temp.
Battery over discharge protection (low voltage disconnect)
Suitable for lead-acid or li-ion batteries
Remote controller (IRC1, IRC2, IRC3 accessory sold separately, please refer to: https://www.meanwell.com/webapp/product/search.aspx?prod=IRC1 )
Support RS-232 communication(Communication cable order No.: RJ11-RS232, sold sperately)
Carry handle accessory available(Order NO.: Carry handle, sold separately)
Conformal coating
3 years warranty

Specifications

NTS-1700-224AUSpecifications from the official datasheet (2024-10-30 edition)

AC OUTPUT

RATED POWER(Continuous): 1700W
OVER RATED POWER(3 Min.): 2000W
PEAK POWER(10 Sec.): 2550W
SURGE POWER(30 Cycles): 3400W
AC VOLTAGE: Default setting set at 230VAC 200 / 220 / 230 / 240Vac selectable by DIP S.W
FREQUENCY: Default setting set at 50±0.1Hz 50/60Hz selectable by DIP S.W
WAVEFORM^Note.1: True sine wave (THD<3%)
AC REGULATION: ±3.0% at rated output voltage
FRONT PANEL LED: Please see page 5

DC INPUT

DC VOLTAGE: 24Vdc
VOLTAGE RANGE (Typ.): 20 ~ 33Vdc
DC CURRENT (Typ.): 85A
NO LOAD DISSIPATION (SAVING MODE)(Typ.)^Note.2: Default disable, ≦1.2W ~1.5W by models @ auto detect AC output load≦10W will be changed to saving mode
NO LOAD DISSIPATION (SAVING MODE)(Typ.)^Note.2: 1.4W
OFF MODE CURRENT DRAW: ≦1mA
EFFICIENCY (Typ.)^Note.1: 92%
BATTERY TYPES: Lead Acid or li-ion

PROTECTION

FUSE (INTERNAL): 40A*3
LOW ALARM: 22±0.5Vdc
LOW SHUTDOWN: 20±0.5Vdc
LOW RESTART: 25±0.5Vdc
HIGH ALARM: 31±0.5Vdc
HIGH SHUTDOWN: 33±0.5Vdc
HIGH RESTART: 30±0.5Vdc
BAT. POLARITY: By internal fuse open
OVER TEMPERATURE: Protection type : Shut down o/p voltage, re-power on to recover
OUTPUT SHORT: Protection type : Shut down o/p voltage, re-power on to recover
OVER LOAD (Typ.): 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. Protection type : Shut down o/p voltage, re-power on to recover
CIRCUIT BREAKER (ONLY FOR “GFCI”AC SOCKET): 10A
GFCI PROCTECTION: None

FUNCTION

REMOTE CONNECTOR: Power ON-OFF remote control by front panel dry contact connector(by RELAY), Open : Normal work ; Short : Remote off
REMOTE ACCESSORY: Remote controller sold separately, Order No.: IRC1,IRC2,IRC3
RS-232 COMMUNICATION: RS-232 ~ RJ11 Type connector (Please refer to page 4 for more details)

ENVIRONMENT

WORKING TEMP.: -25 ~ +70℃(Refer to “Derating curve”)
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -30 ~ +70℃ / -22 ~ +158℉, 10 ~ 95% RH non-condensing
VIBRATION: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: CB IEC62368-1,Dekra BS EN/EN62368-1,UL458, E13,EAC TP TC 004,AS/NZS 62368.1 approved (Please refer to next page “AC output socket” table for more details )
WITHSTAND VOLTAGE: DC I/P - AC O/P:3.0KVac AC O/P - FG:1.5KVac
EMC EMISSION: Parameter Standard Test Level

Radiated FCC for 112,124,148 only(expect for Type-UN) Class A
Radiated BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN) Class A
Harmonic Current BS EN/ EN61000-3-2
Voltage Flicker BS EN/ EN61000-3-3
EMC IMMUNITY: BS EN/ EN55024, BS EN/ EN55035

Parameter Standard Test Level

ESD BS EN/ EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/ EN61000-4-3 Level 2, 3V/m
Magnetic Field BS EN/ EN61000-4-8 Level 1, 1A/m

Parameter	Standard	Test Level
Radiated	FCC for 112,124,148 only(expect for Type-UN)	Class A
Radiated	BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN)	Class A
Harmonic Current	BS EN/ EN61000-3-2
Voltage Flicker	BS EN/ EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/ EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/ EN61000-4-3	Level 2, 3V/m
Magnetic Field	BS EN/ EN61000-4-8	Level 1, 1A/m

OTHERS

MTBF: 475.5K hrs min. Telcordia TR/SR-332 (Bellcore) ; 46.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 400*184*70mm (L*W*H)
PACKING: 4.63Kg; 2pcs/ 12Kg/ 1.76CUFT

Test conditions and notes5

1.Efficiency, AC regulation and THD are tested by 1350W load, linear load at 12.5Vdc/25Vdc/50Vdc input voltage.
2.No load dissipation at non-saving mode(Typ.): 112/124/148 for 16W, 212/224/248 for 29W.
3.All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting.
4.Internal pre-start circuit, the setup time is 8s.
5.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

NTS-1700-224AU AC Output Socket — AC Output Socket

NTS-1700-224AU IRC1/2/3 Remote Controller (Accessory — IRC1/2/3 Remote Controller (Accessory

NTS-1700-224AU Support RS-232 Communication — Support RS-232 Communication

NTS-1700-224AU AC Output Voltage、Frequency、Power — AC Output Voltage、Frequency、Power

NTS-1700-224AU MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

NTS-1700-224AU Accessory List — Accessory List

NTS-1700-224AU TYPICALTYPICAL APPLICATIONAPPLICATION — TYPICALTYPICAL APPLICATIONAPPLICATION

Typical applications

Downloads

Certificates7

Mean Well NTU-NTS-1700-2xx-E13 Certificate PDF Download

Mean Well NTU-NTS-1700-FCC Certificate PDF Download

Mean Well NTU-NTS-1700-EMC Certificate PDF Download

Mean Well NTS-NTU-1700-CB Certificate PDF Download

Mean Well NTS-NTU-1700-DEKRA MarK Certificate PDF Download

Mean Well NTS-NTU-1700-CE-dec Certificate PDF Download

Mean Well NTS-NTU-1700-UK-dec Certificate PDF Download

Test reports1

Mean Well NTS-1700-224 Test Report PDF Download

FAQ

What is the Mean Well NTS-1700-224AU used for?

The NTS-1700-224AU is a true sine wave DC-AC inverter designed to convert 24V DC input into 230V AC output. It is suited to professional and mobile power applications where clean AC power is needed for sensitive equipment and higher continuous loads up to 1700W.

What are the key output specifications of the NTS-1700-224AU?

This model provides 1700W continuous output power with high surge capability up to 3400W. It delivers a true sine wave AC output with THD below 3%, and the AC voltage and frequency are selectable by DIP switch within the supported ranges listed by Mean Well.

Is the output from this inverter suitable for sensitive electronics?

Yes. The NTS-1700-224AU produces a true sine wave output with total harmonic distortion below 3%, which makes it a better choice than modified sine wave units for equipment that requires cleaner AC power. This is one of the main differentiators of the NTS series.

What battery types is the NTS-1700-224AU compatible with?

Mean Well specifies this inverter as suitable for use with lead-acid or lithium-ion batteries. This model is the 24V input version, so it should be matched with a 24V DC battery system.

Can this inverter be used in demanding temperature conditions?

Yes. The NTS-1700-224AU has a wide operating temperature range of -25°C to +70°C, subject to the manufacturer's derating guidance. It also includes a built-in cooling fan to help manage thermal performance under load.

What protection features are built into the NTS-1700-224AU?

This inverter includes protection against output short circuit, overload, over temperature and DC input high voltage, along with battery low-voltage shutdown. Mean Well also specifies overload behavior of 105 to 115% load for 180 seconds and 115 to 150% load for 10 seconds.

Does the NTS-1700-224AU support remote monitoring or accessories?

Yes. The inverter supports power on-off remote control and optional remote controllers including IRC1, IRC2, and IRC3, which are sold separately. It also supports RS-232 communication using the specified optional communication cable.

What certifications does this model include?

The NTS-1700-224AU is listed with approvals including CB IEC62368-1, Dekra BS EN/EN62368-1, UL458, E13, EAC TP TC 004, and AS/NZS 62368.1.
