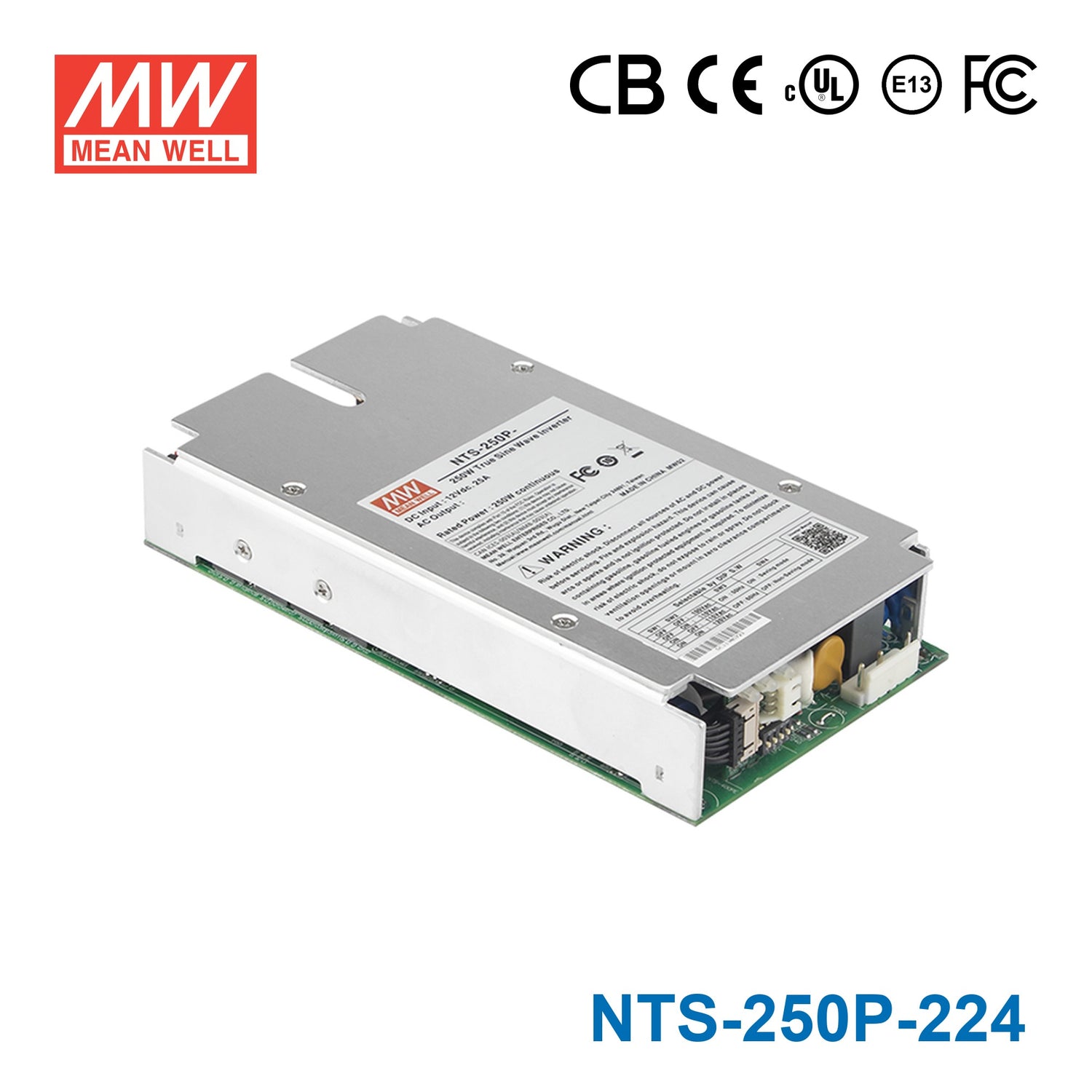

Mean Well NTS-250P-224 True Sine Wave DC-AC Inverter 250W 230V out 24V in

fanless designhigh efficiency up to 93%200% peak power capabilitybuilt-in dip switch to adjust AC output voltagefrequency and work mode

SKU NTS-250P-224

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

NTS-250P-224 is the model of this series: typical efficiency 93%.

NTS-250P is a 250W highly reliable built-in type off-grid true sine wave DC-AC power inverter. Its key features include: digital design with MCU control, streamlined control circuitry that quickly responds to environmental changes and improves reliability, compact size, light weight, fanless quiet design, 500W peak power, adjustable AC output voltage and frequency, -20~+70℃ wide operating temperature range, built-in remote ON/OFF control, low no-load power consumption (energy saving mode < 1.5W max.), complete protection features, and etc. Combined with batteries, the NTS-250P is suitable for use in residential, commercial, marine, automobile, and remote areas with no access to utility power, and the output can be used to power fans, TV, radio, phone charger, PC/laptop, lighting, outdoor camping equipment, marine AC power, and etc.

Features

Compact size and light weight
True sine wave output (THD<3%)
High surge power up to 500W
Fanless design, cooling by free air convection
AC output voltage and frequency selectable by DIP S.W
No load dissipation <1.5W max. at standby saving mode
-20℃~+70℃ wide operating temperature
Power ON-OFF remote control
Protections : Input : Reverse polarity / DC low alarm / DC low shutdown / Over voltage Output : Short circuit / Overload / Over temp.
Battery over discharge protection (Low voltage disconnect)
Suitable for lead-acid or li-ion batteries
Support Tx/Rx for monitoring power inverter status
Conformal coating
3 years warranty

Specifications

NTS-250P-224Specifications from the official datasheet (2026-03-26 edition)

AC OUTPUT

RATED POWER(Continuous): 250W
OVER RATED POWER(3 Min.): 287.5W
PEAK POWER(10 Sec.): 375W
SURGE POWER(30 Cycles): 500W
AC VOLTAGE: Default setting set at 230VAC 200 / 220 / 230 / 240Vac selectable by DIP S.W
FREQUENCY: Default setting set at 50Hz±0.1Hz 50/60Hz selectable by DIP S.W
WAVEFORM^Note.1: True sine wave (THD<3%)
AC REGULATION: ±3.0% at rated output voltage

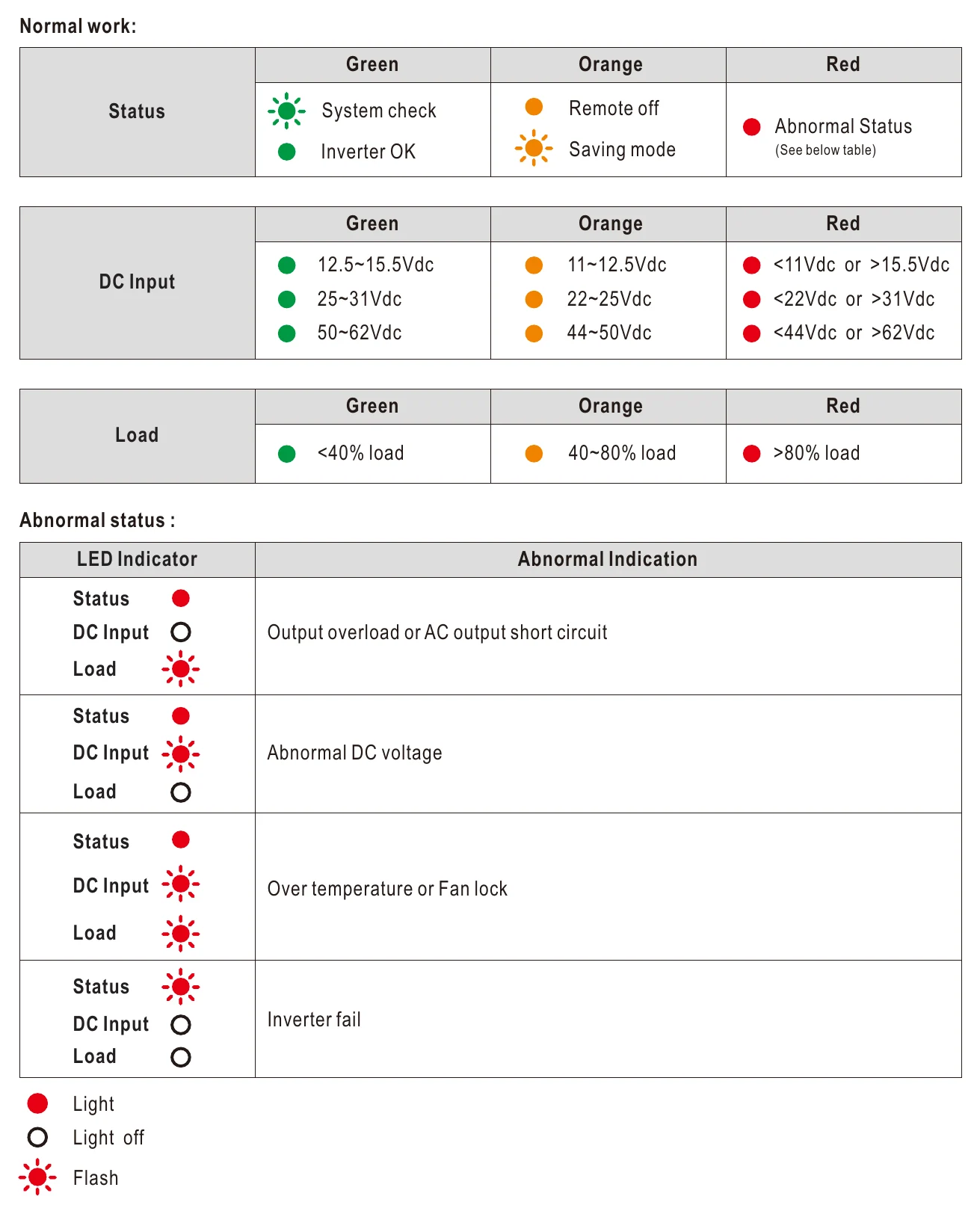

LED STATUS: Please refer to page3

DC INPUT

DC VOLTAGE: 24V
VOLTAGE RANGE (Typ.): 20 ~ 33Vdc
DC CURRENT (Typ.): 13A
NO LOAD DISSIPATION (Typ.) Non-Saving mode: 10W
NO LOAD DISSIPATION (Typ.) Saving mode: Default disable, ≦1.2W ~ 1.5W by models @ auto detec AC output load ≦10W will be changed to saving mode 1.3W
OFF MODE CURRENT DRAW: <1mA at battery ~DC input must be disconnected
EFFICIENCY (Typ.)^Note.1: 93%
BATTERY TYPES: Lead Acid or Li-ion

PROTECTION

FUSE(Internal): 30A*1
DC INPUT LOW ALARM: 22±0.5Vdc
DC INPUT LOW SHUTDOWN: 20±0.5Vdc
DC INPUT LOW RESTART: 25±0.5Vdc
DC INPUT HIGH ALARM: 31±0.5Vdc
DC INPUT HIGH SHUTDOWN: 33±0.5Vdc
DC INPUT HIGH RESTART: 30±0.5Vdc
BAT. POLARITY: By internal fuse open
AC OUTPUT OVER TEMPERATURE: Protection type : Shut down o/p voltage, re-power on to recover
AC OUTPUT OUTPUT SHORT: Protection type : Shut down o/p voltage, re-power on to recover
AC OUTPUT OVER LOAD (Typ.): 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

REMOTE CONTROL: Power ON-OFF remote control by front panel dry contact connector (by RELAY), Open : Normal work ; Short : Remote off
Tx/Rx: Support Tx/Rx for monitoring power inverter status

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃(Refer to “Derating curve”)
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -30 ~ +70℃ / -22 ~ +158℉, 10 ~ 95% RH non-condensing
VIBRATION: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: CB IEC62368-1 2ed, CSA/UL 62368-1 3ed for all models; E13, EAC TPTC004, AS/NZS 62368.1 for NTS-250P-212/224/248 approved (Please refer to next page “Safety overview” table for more details)
WITHSTAND VOLTAGE: DC I/P - AC O/P:3.0KVac AC O/P - FG:1.5KVac
EMC EMISSION: Parameter Standard Test Level

Radiated FCC for 112,124,148 only Class A
Radiated BS EN/EN55032(CISPR32) for 212,224,248 only Class A
Harmonic Current BS EN/EN61000-3-2
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55024, BS EN/EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
Radiated BS EN/EN61000-4-3 Level 3, 10V/m
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m

Parameter	Standard	Test Level
Radiated	FCC for 112,124,148 only	Class A
Radiated	BS EN/EN55032(CISPR32) for 212,224,248 only	Class A
Harmonic Current	BS EN/EN61000-3-2
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
Radiated	BS EN/EN61000-4-3	Level 3, 10V/m
Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A/m

OTHERS

MTBF: 836.9K hrs min. Telcordia TR/SR-332 (Bellcore) ; 84K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 186*100.5*34mm (L*W*H)
PACKING: 0.87Kg; 18pcs/ 16.6Kg/ 1.01CUFT

Test conditions and notes4

1.Efficiency, AC regulation and THD are tested by 250W, linear load at 12.5Vdc/25Vdc/50Vdc input voltage.
2.All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting.
3.Internal pre-start circuit, the setup time is 8s.
4.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

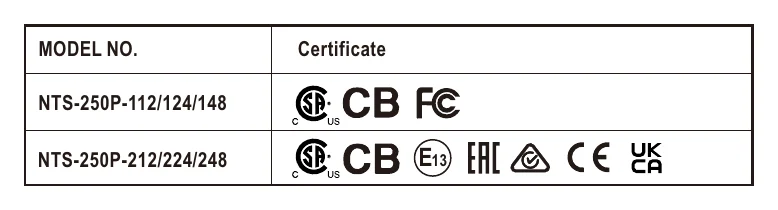

NTS-250P-224 Safety Overview — Safety Overview

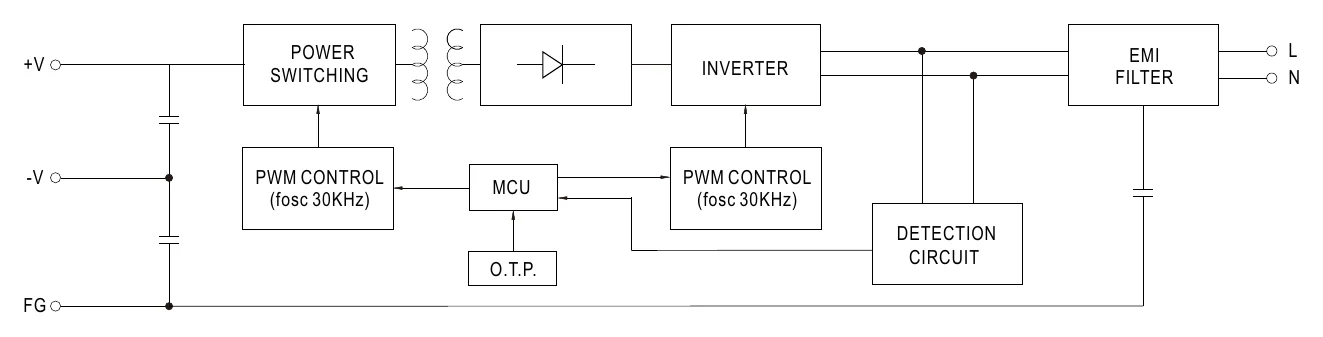

NTS-250P-224 Block Diagram — Block Diagram

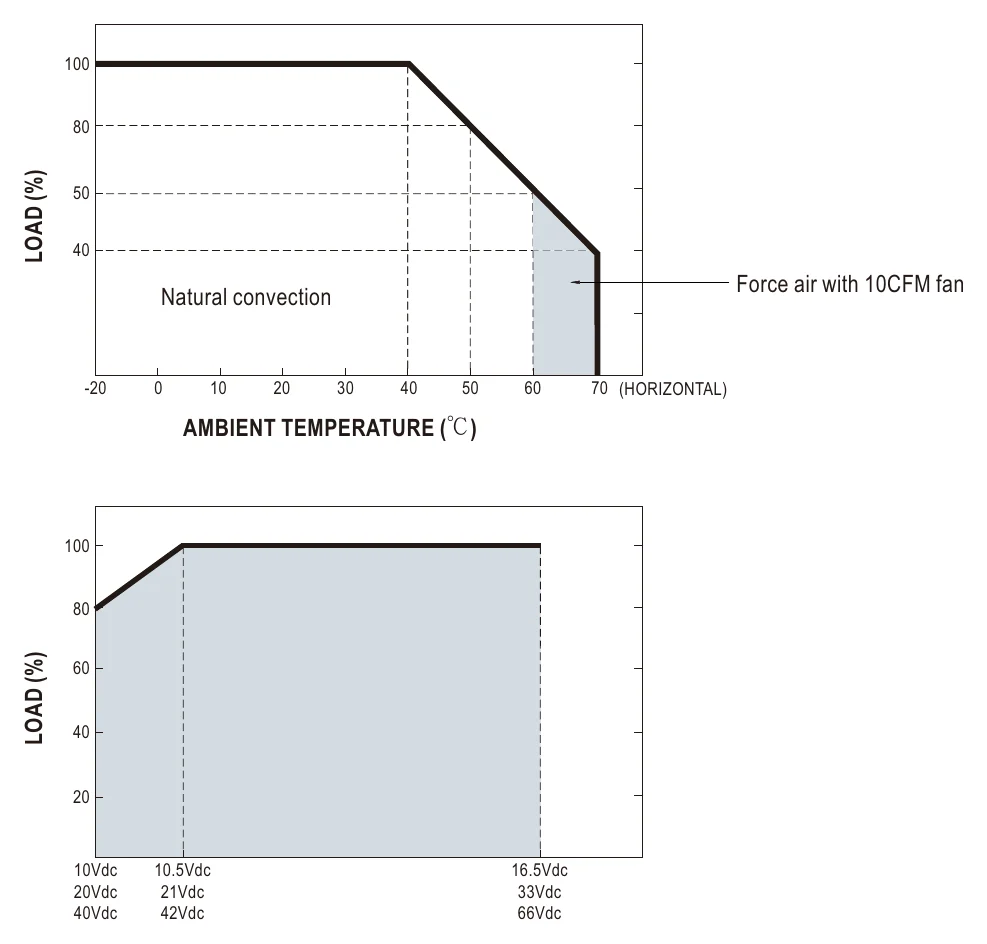

NTS-250P-224 DERATING CURVE — DERATING CURVE

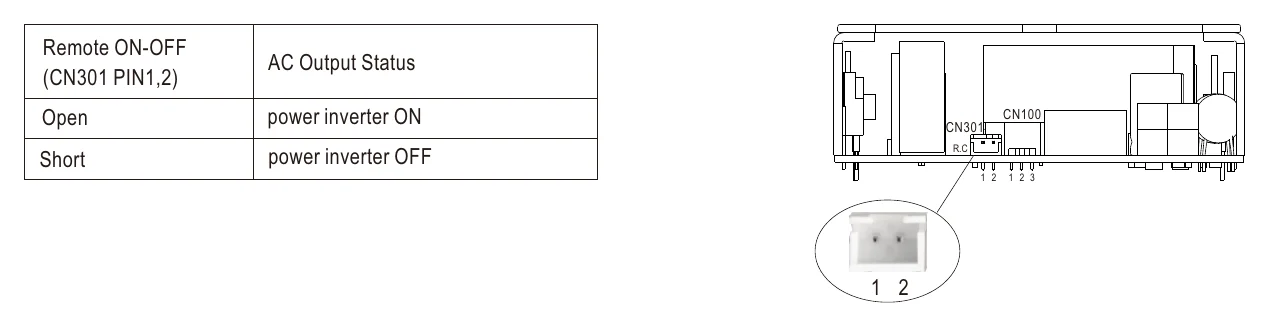

NTS-250P-224 Remote ON-OFF Control — Remote ON-OFF Control

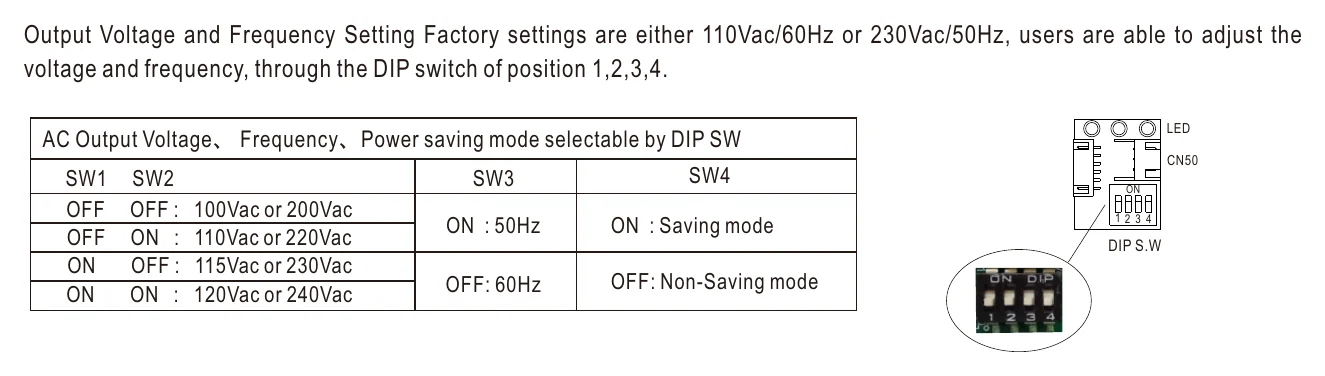

NTS-250P-224 AC output voltage、Frequency、Power — AC output voltage、Frequency、Power

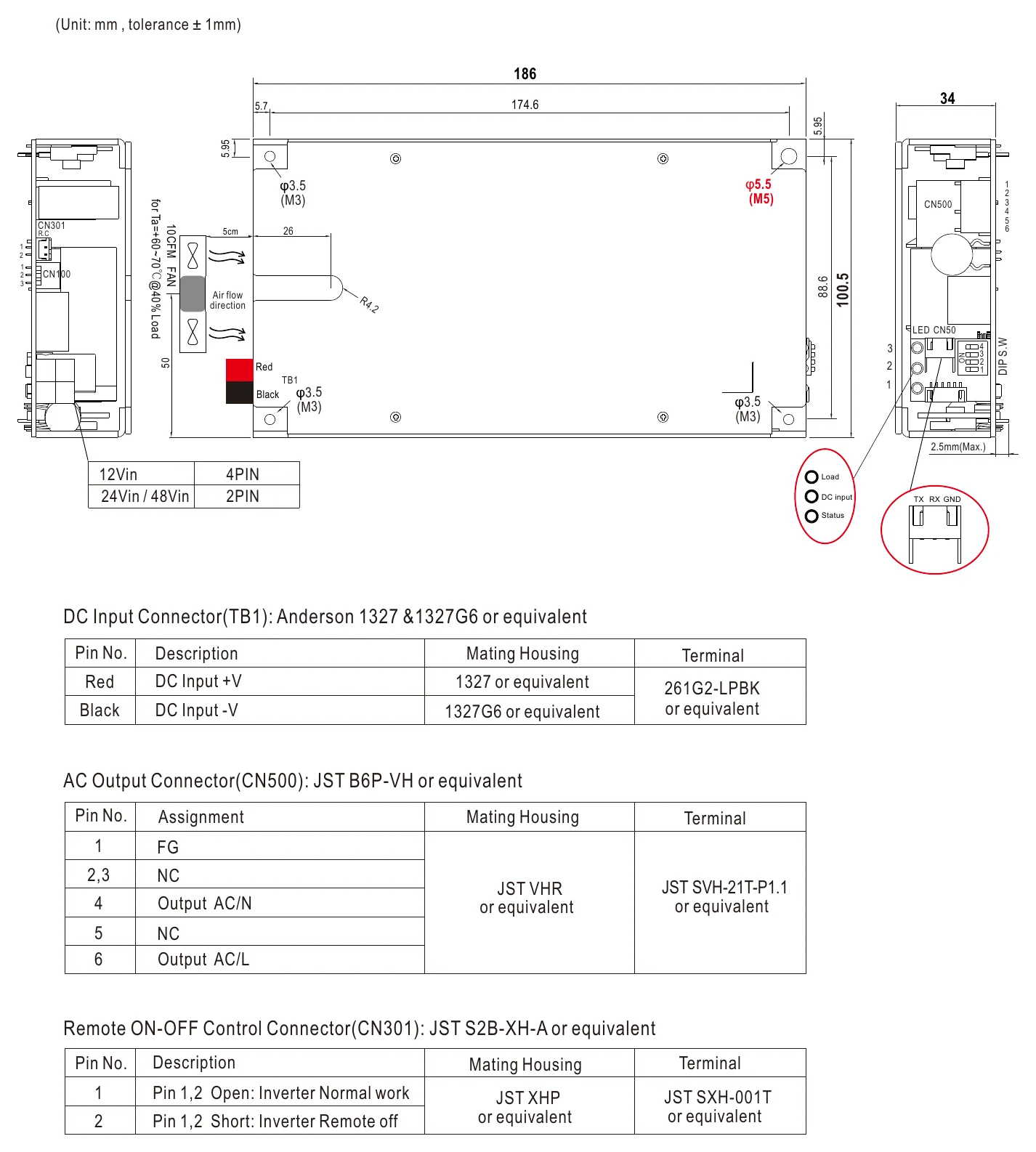

NTS-250P-224 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

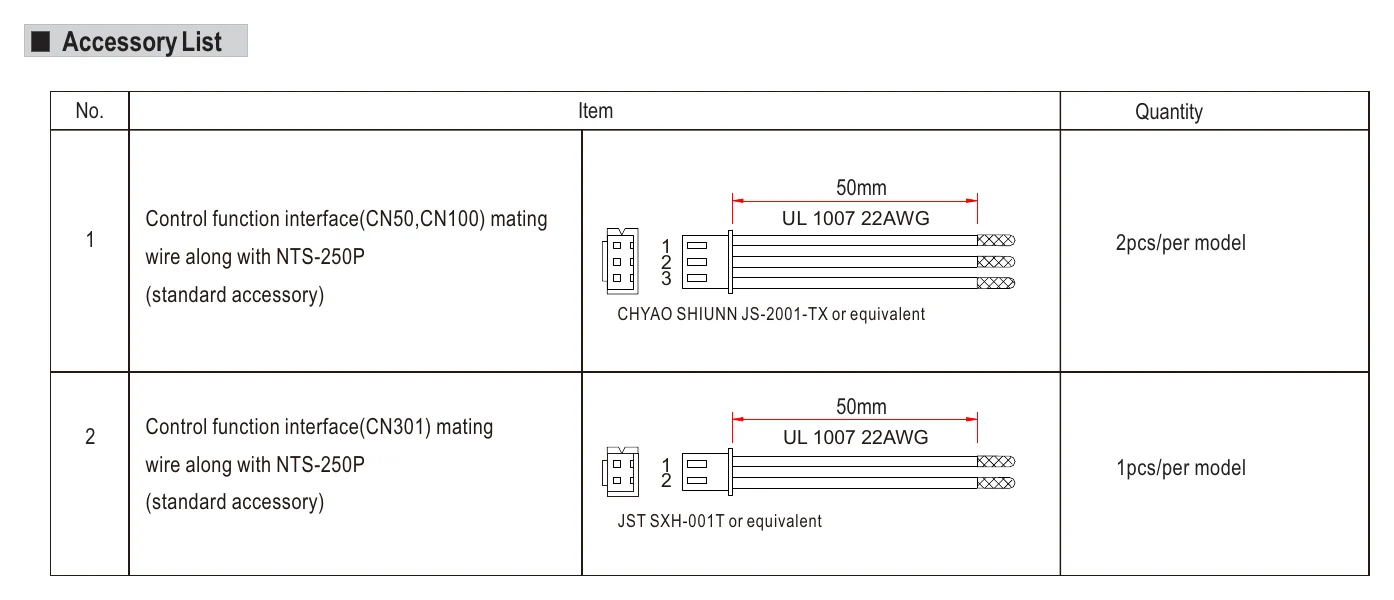

NTS-250P-224 Accessory List — Accessory List

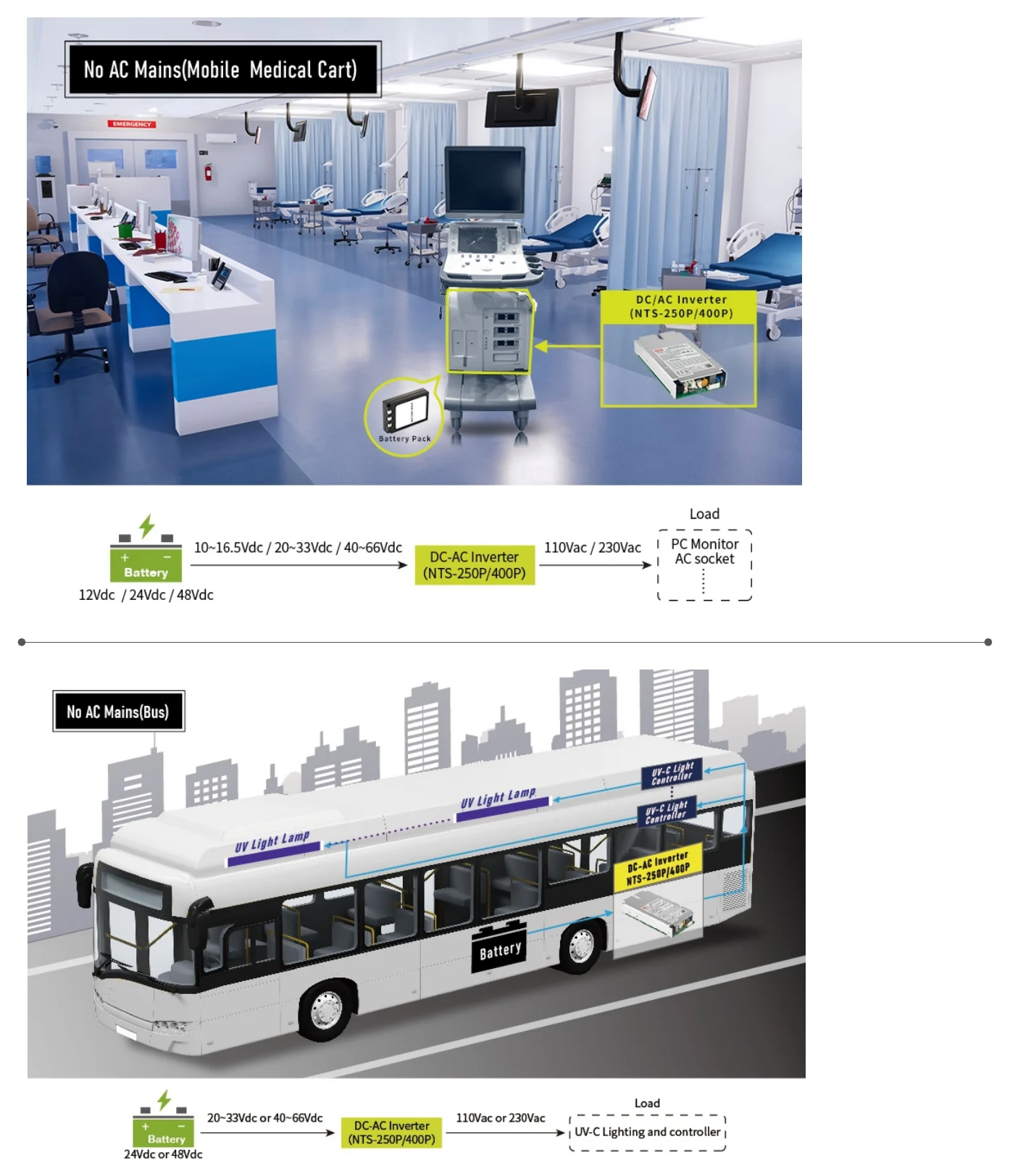

NTS-250P-224 TYPICAL APPLICATION — TYPICAL APPLICATION

Typical applications

Downloads

Certificates5

NTS-250P and NTS-400P Certificate PDF Download

FAQ

What is the Mean Well NTS-250P-224 used for?

The NTS-250P-224 is a 250W true sine wave DC-AC inverter designed to convert 24V DC input power into 230V AC output. It is suited to business and industrial applications that need clean AC power from a battery-based DC source.

Does this inverter produce a true sine wave output?

Yes. The NTS-250P-224 provides a true sine wave output with total harmonic distortion below 3%. That makes it a better fit for equipment that requires cleaner AC power than modified sine wave alternatives.

What input and output voltage does the NTS-250P-224 support?

This model is a 24V DC input inverter with 230V AC output. Its AC output voltage range is selectable by DIP switch across several options, including 200V, 220V, 230V, and 240V AC, with 230V matching this version.

Can the NTS-250P-224 handle startup surges above its rated output?

Yes. Although its continuous power rating is 250W, it supports surge power up to 500W. It also has defined overload behavior, including support for 105 to 115% load for 180 seconds and 115 to 150% load for 10 seconds.

Is this inverter suitable for demanding temperature conditions?

Yes. The NTS-250P-224 has a wide operating temperature range of -20°C to +70°C, subject to the manufacturer's derating curve. That curve covers both natural convection and forced air with a 10CFM fan, which can be connected to the unit's fan connector.

What battery types is the NTS-250P-224 compatible with?

This inverter is suitable for use with lead-acid or lithium-ion battery systems. It also includes DC input low-voltage shutdown at 20±0.5VDC to help protect the DC power source from over-discharge.

What protection features are included in the NTS-250P-224?

The unit includes AC output short circuit, overload and over-temperature protection, which shut down the output until the unit is re-powered. It also has DC input low- and high-voltage alarm and shutdown, and battery reverse-polarity protection by internal fuse.

How compact is the Mean Well NTS-250P-224?

The inverter measures 186 x 100.5 x 34 mm and weighs 0.87 kg. Its compact, built-in design makes it easier to place in space-constrained commercial or mobile power systems.
