Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

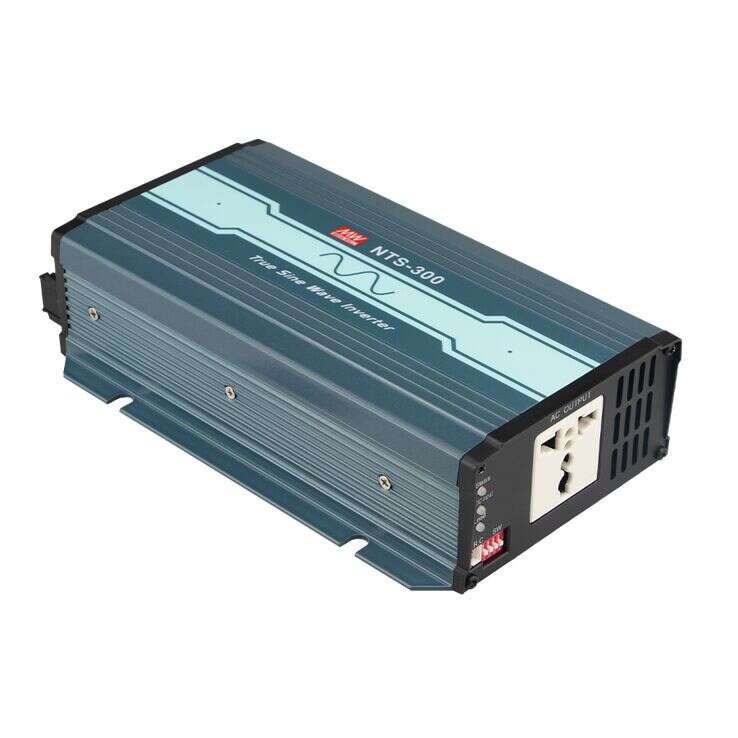

Mean Well NTS-300-224AU True Sine Wave DC-AC Inverter 300W 230V out...
Please Login for Pricing
Description
Description
Features
| Compact size and lightweight |
| True sine wave output (THD<3%) |
| High surge power up to 600W |
| Fanless design |
| AC output voltage and frequency selectable by DIP S.W |
| No load disspation < 1.5W max. at standby saving mode |
| -25℃~+65℃ wide operating temperature |
| Power ON-OFF remote control |
| Front panel indicator for operation status |
| Protections: Short circuit / Overload / Over voltage |
| Battery over-discharge protection(Low voltage disconnect) |
| Suitable for lead-acid or li-ion batteries |
| Carry handle accessory available(Order NO.: DS-Carry handle, sold separately |
| Conformal coating |
| 3 years warranty |
General Specification
| AC output voltage range | 100/110/115/120VAC;200/220/230/240VAC selectable by DIP S.W |
| AC output waveform | True sine wave, THD<3.0% |
| Overload temperature | Shut down o/p voltage, re-power on to recover |
| Overload | 105~115% load for 180s, 115~150% load for 10s |
| Withstand voltage | DC I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC |
| Working temperature | -25~+65°C (refer to output derating curve ) |
| Safety standards | CB IEC62368-1,Dekra BS EN/EN62368-1,E13,EAC TP TC 004 approved;Design refer to AS/NZS 62368.1 |
| EMC standards | EN55032 class A, BS En/EN61000-4-2,3,8 |
| Dimension (LxWxH) | 210x130x55mm |
| Packing | 8pcs / 11.4Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesNTS Series
-
Power Rating300 Watt
-
Output Voltage230 Volt
-
Input Voltage20V~33V
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~65°C
-
Warranty3 Year
-
Length21 cm
-
Width13 cm
-
Height5.5 cm
-
Weight1.3 kg
