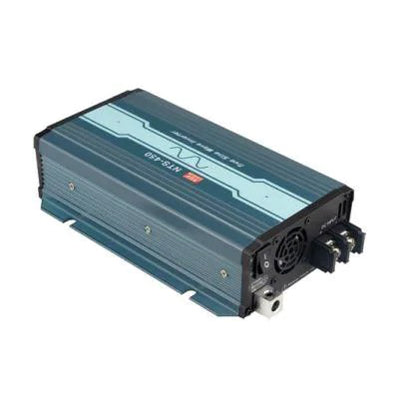

Mean Well NTS-450-248AU True Sine Wave DC-AC Inverter 450W 230V out 48V in with AU Socket

fanless designhigh efficiency up to 93%200% peak power capabilitybuilt-in dip switch to adjust AC output voltagefrequency and work mode

SKU:

NTS-450-248AU

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The NTS-450 is a 450W Mean Well power converter (input range: 10~16.5Vdc, operating temperature: -25~+70℃).

Key Features

✓ Input voltage range: 10~16.5Vdc
✓ Wide operating temperature: -25~+70℃
✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity
✓ Remote ON/OFF control
✓ Safety approvals: CB IEC62368-1,Dekra BS EN/EN62368-1,E13,EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

What is the Mean Well NTS-450-248AU used for?

The NTS-450-248AU is a 450W true sine wave DC-AC inverter designed to convert 48V DC input into 230V AC output. It is suited to applications that need clean AC power from a DC battery source, including commercial, industrial, and mobile power systems.

Does this inverter produce true sine wave output?

Yes. The NTS-450-248AU provides a true sine wave output with total harmonic distortion below 3%, which helps support sensitive AC equipment better than modified sine wave alternatives. This makes it a stronger choice where output quality matters.

What input and output voltages does the NTS-450-248AU support?

This model is built for 48V DC input and is specified here with 230V AC output. The product data also states that AC output voltage and frequency are selectable by DIP switch, with multiple voltage options listed including 200V, 220V, 230V, and 240V AC.

Can this inverter handle startup surges above its rated power?

Yes. Although its continuous power rating is 450W, it supports surge power up to 900W. The specification also lists overload capability of 105 to 115% load for 180 seconds and 115 to 150% load for 10 seconds.

Is the NTS-450-248AU suitable for harsh or variable environments?

It is designed for a wide operating temperature range and is listed for use up to 70°C, with conformal coating for added durability. The inverter also uses a temperature-controlled cooling fan and includes protection for short circuit, overload, over voltage, and battery low voltage disconnect.

What battery types is the NTS-450-248AU compatible with?

The product is stated to be suitable for lead-acid or li-ion batteries. Its low voltage disconnect feature also helps protect the battery from over-discharge during operation.

What are the size, weight, and warranty for this inverter?

The listed dimensions are 210 x 130 x 55 mm, and the product weight is 1.3 kg. Mean Well specifies a 3-year warranty for this model.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Waveform	Frequency
Mean Well NTS-450-212AU True Sine Wave DC-AC Inverter 450W 230V out 12V in with AU Socket	450W	230V	True Sine Wave	50Hz	View
Mean Well NTS-450-224AU True Sine Wave DC-AC Inverter 450W 230V out 24V in with AU Socket	450W	230V	True Sine Wave	50Hz	View
