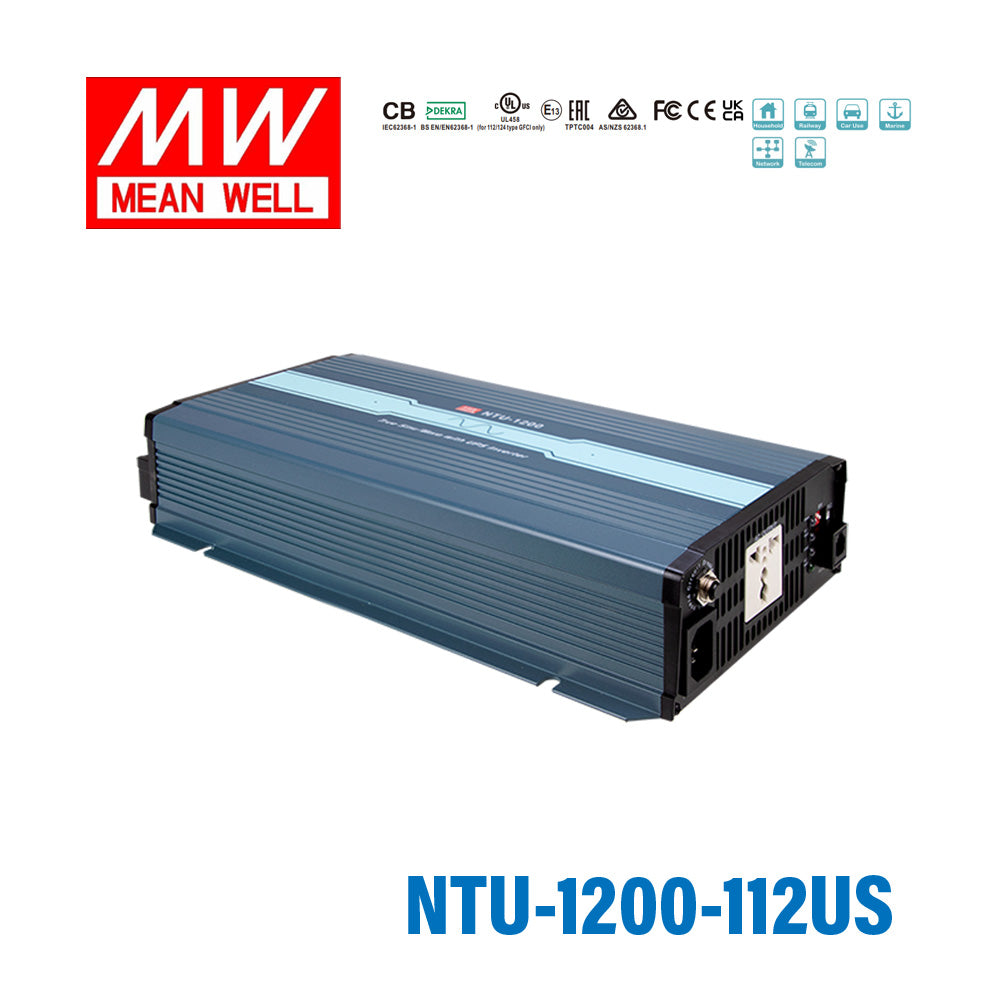

Mean Well NTU-1200-112US True Sine Wave DC-AC Inverter 1200W 110V out 12V in with US Socket

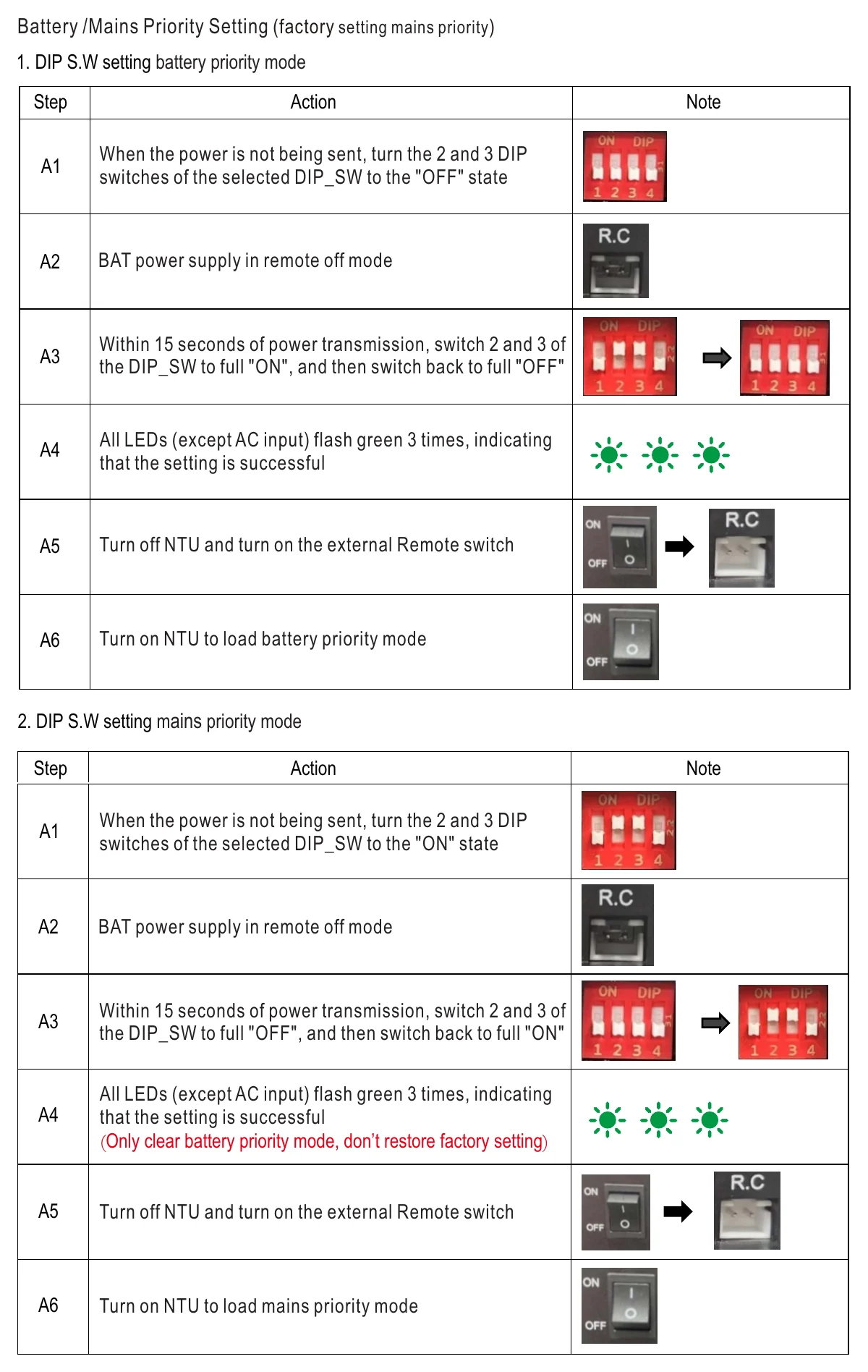

built-in UPS function(AC by-pass), built-in dip switch to adjust AC output voltage, frequency and saving mode, can be remotely controlled by IRC controllers

SKU:

NTU-1200-112US

Please for Pricing

Notify me when it's back in stock

Description

The NTU-1200 is a 1200W Mean Well power converter (input range: 10~16.5Vdc).

Key Features

✓ Input voltage range: 10~16.5Vdc
✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity
✓ Remote ON/OFF control
✓ Safety approvals: CB IEC62368-1,Dekra BS EN/EN62368-1,UL458, E13,EAC TP TC 004
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

NTS Series
Power Rating

1200 Watt
Output Voltage

110 Volt
Input Voltage

10V~16.5V
Standards Met

CB,CE,cUL,E13,FCC
Operation Mode

Constant Voltage
Operating Temperature

-25°C~70°C
Warranty

3 Year

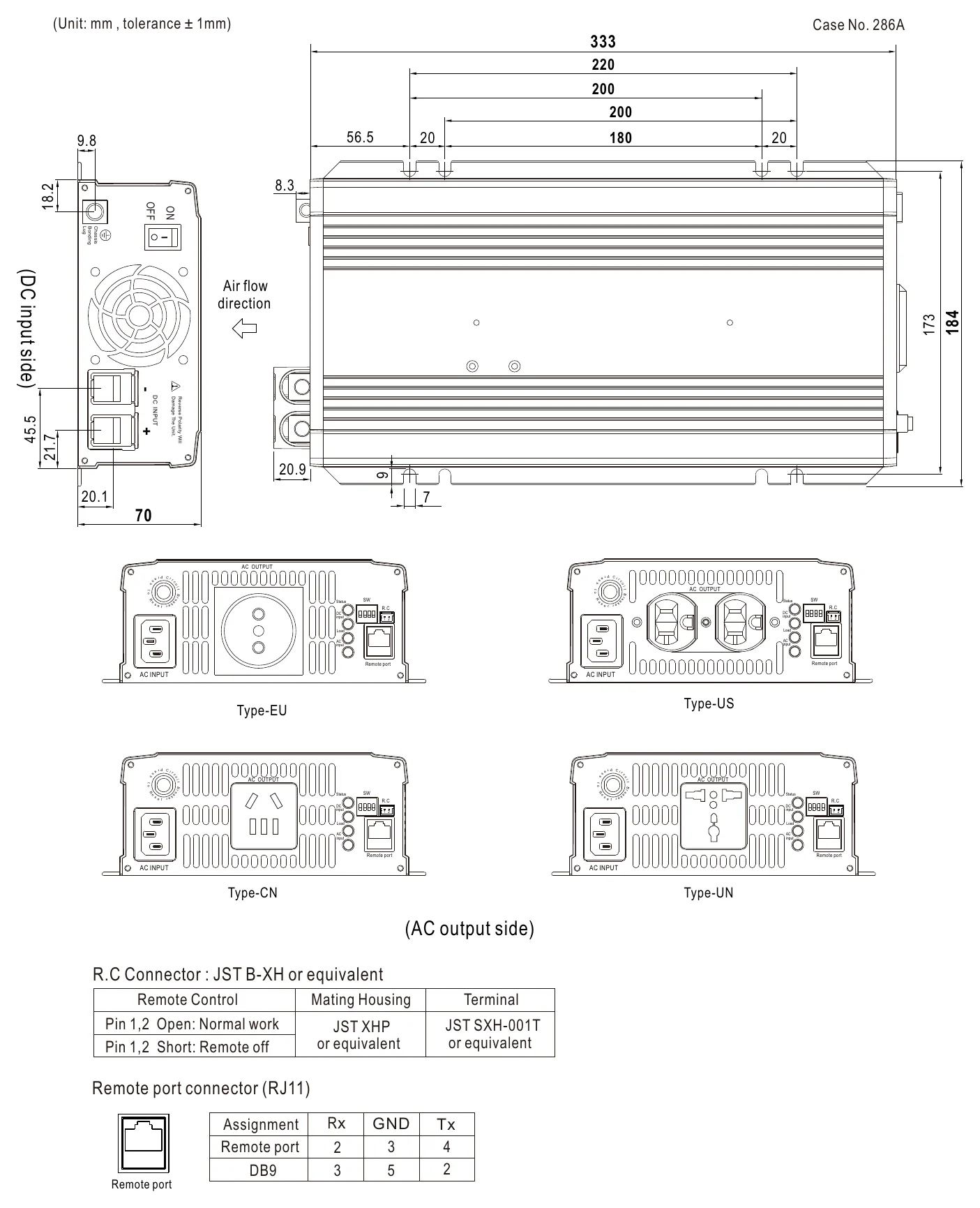

Length

33.3 cm
Width

18.4 cm
Height

7 cm
Weight

3.3 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Mean Well NTU-1200-112US designed for?

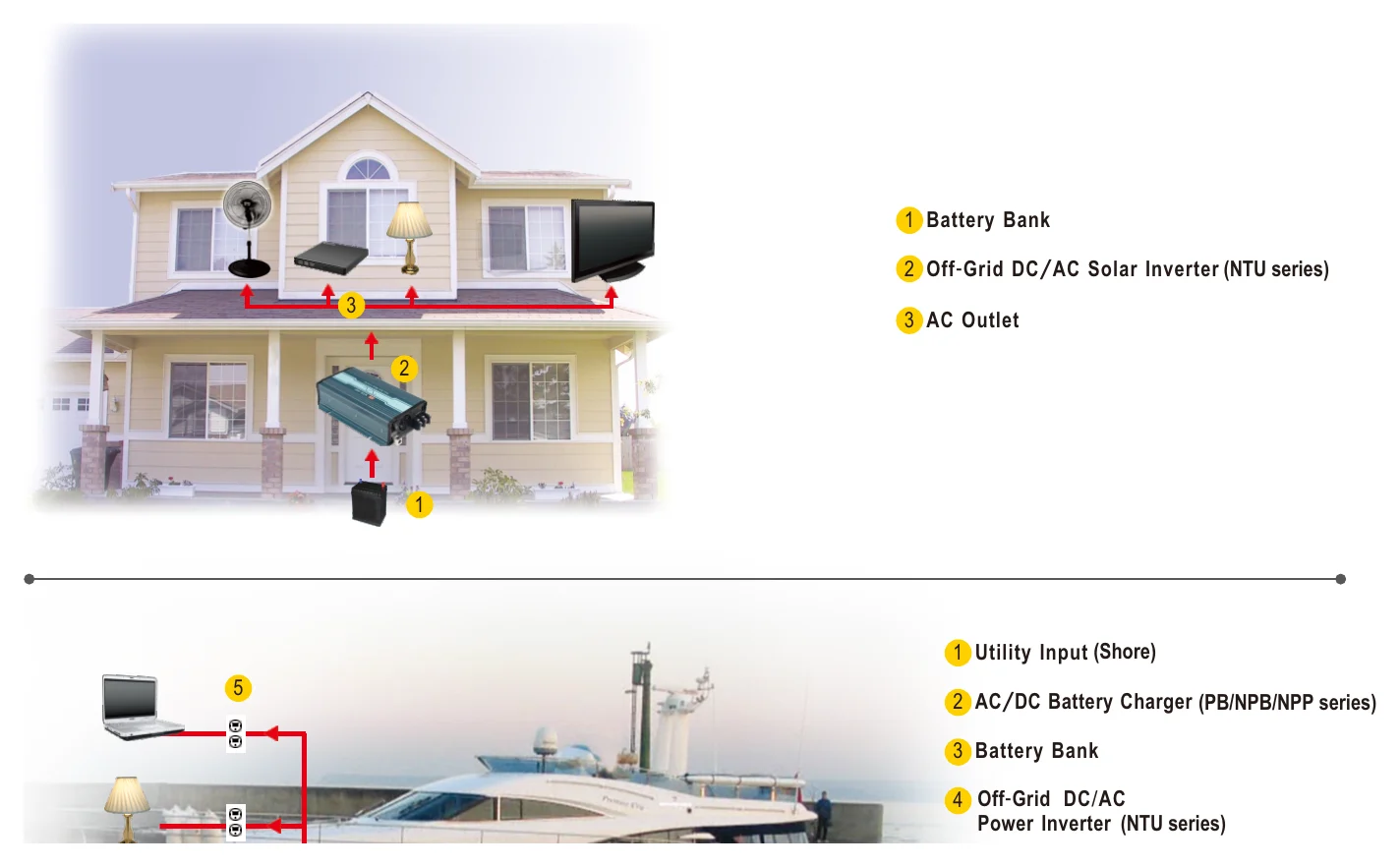

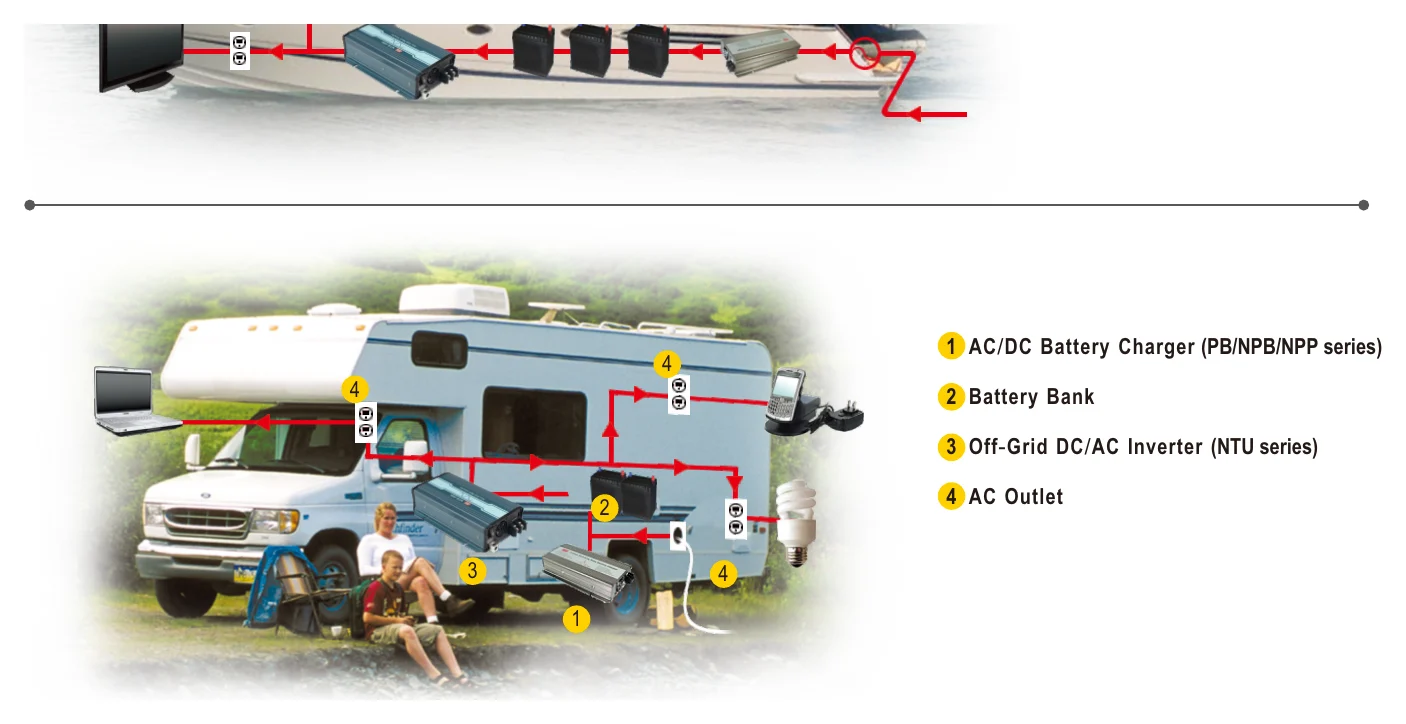

The NTU-1200-112US is a 1200W true sine wave DC-AC inverter for converting 12V DC input into AC output through a US socket. It is suited to applications that need utility-like AC power quality from a DC battery source. This model is part of Mean Well's NTU series and includes a built-in UPS bypass function.

Does this inverter provide true sine wave output?

Yes. The NTU-1200-112US provides true sine wave output with total harmonic distortion below 3%, which helps support equipment that is sensitive to output waveform quality. That makes it a better fit than modified sine wave units for many professional and electronics-focused applications.

What input and output ratings does this model support?

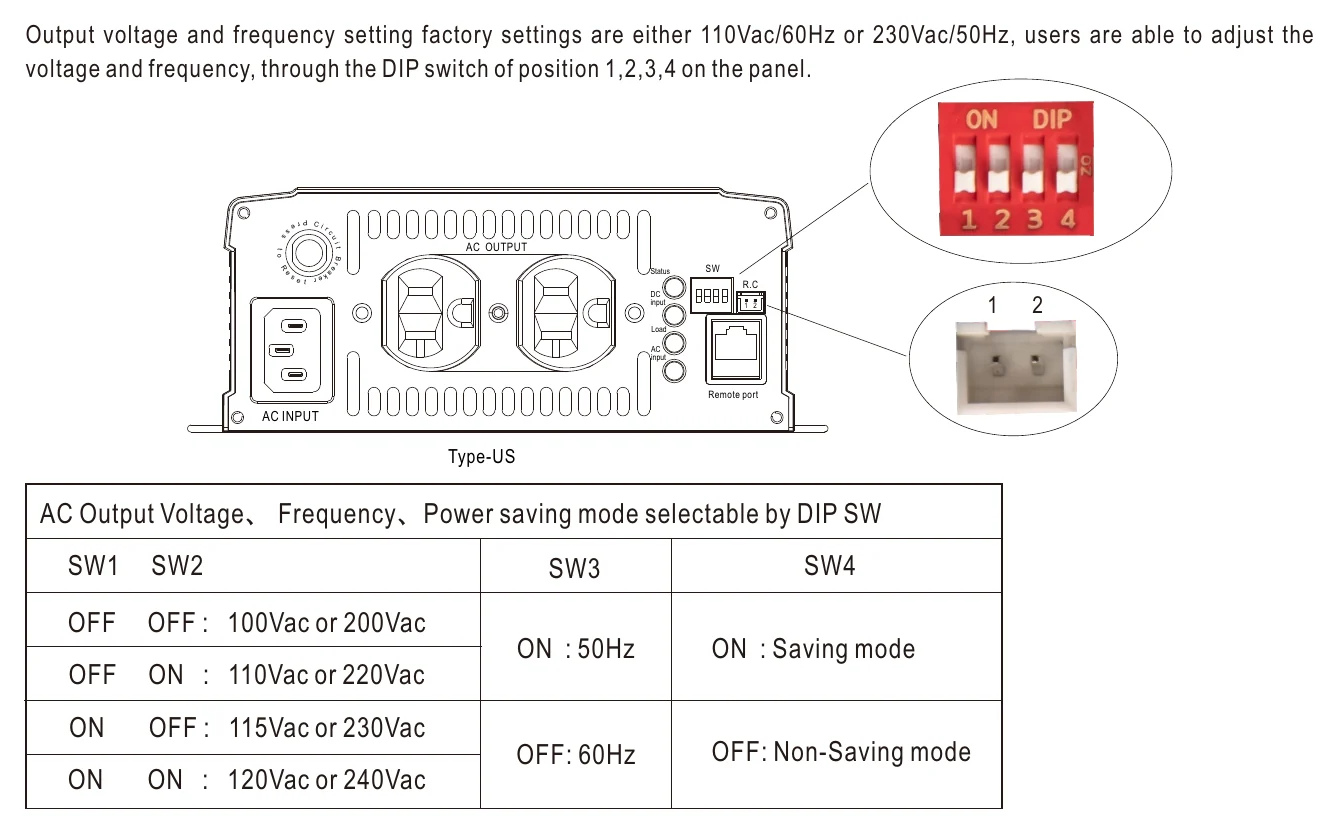

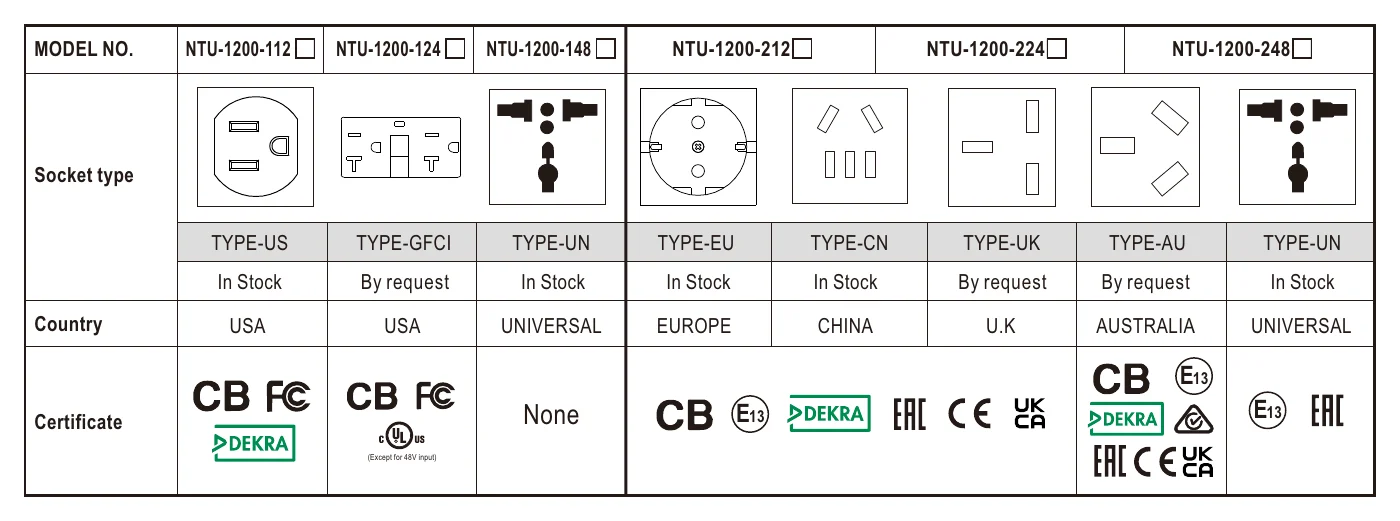

This model is rated for 1200W output and uses a 12V DC input. Its AC output is selectable by DIP switch across 100/110/115/120VAC and 200/220/230/240VAC ranges, with output voltage and frequency both selectable on the unit. The product name variant is configured with a US socket and 110V output designation.

Can the NTU-1200-112US work with different battery types?

Yes. Mean Well specifies this inverter as suitable for both lead-acid and lithium-ion batteries. It also includes battery over-discharge protection with low-voltage disconnect to help protect the connected battery system.

What protection and surge capability does this inverter have?

The NTU-1200-112US includes protection for short circuit, overload, and over voltage conditions. It also supports surge power up to 2000W for higher startup demand loads. Overload behavior is specified as 105 to 115% load for 180 seconds and 115 to 150% load for 10 seconds.

Is this inverter suitable for demanding industrial or commercial environments?

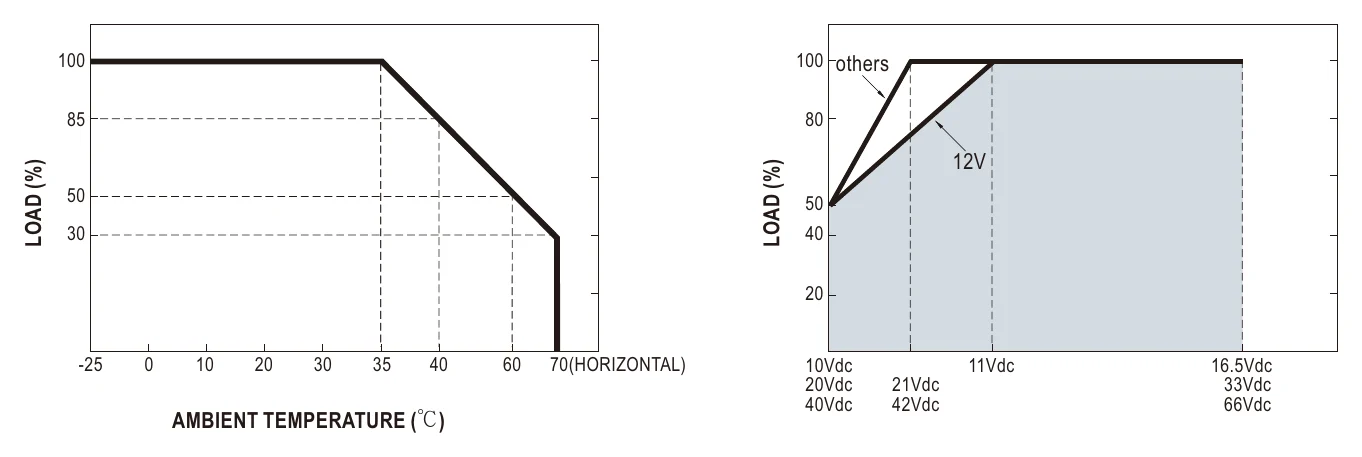

It is designed for a wide operating temperature range of -25°C to +70°C, subject to the stated derating curve. The unit uses a temperature-controlled cooling fan and conformal coating for added durability. Mean Well also lists IEC62368-1 approval and EMC compliance including EN55032 Class A.

Are remote control and communication features available on this model?

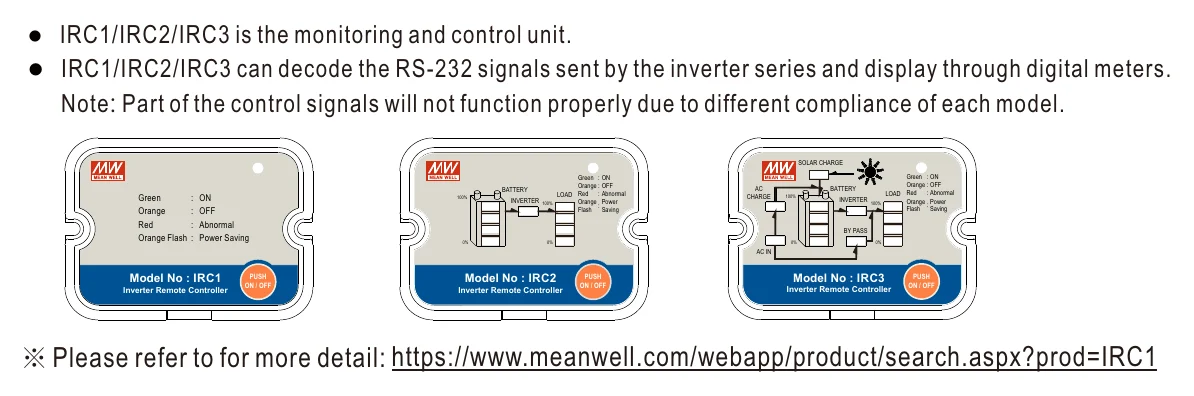

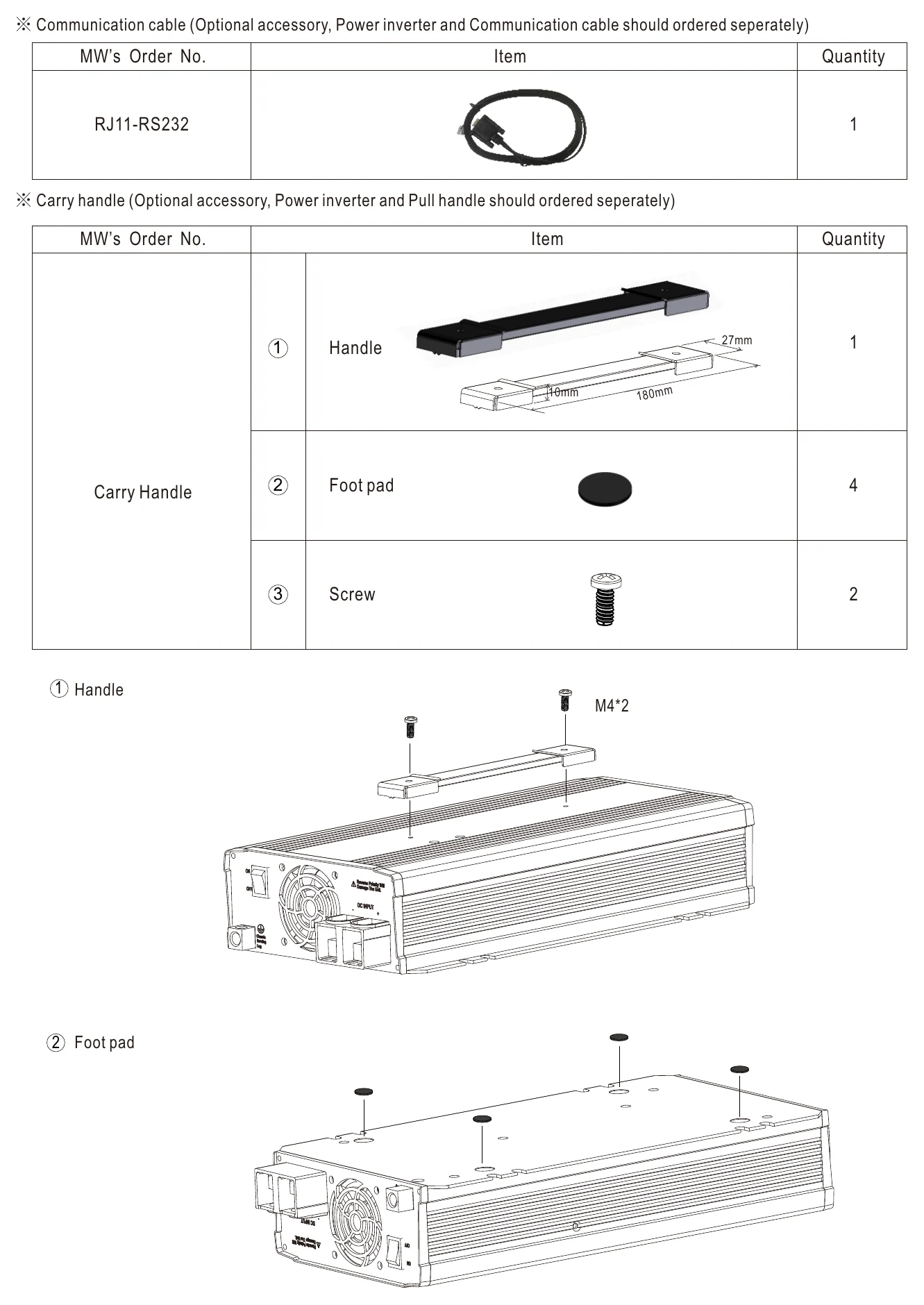

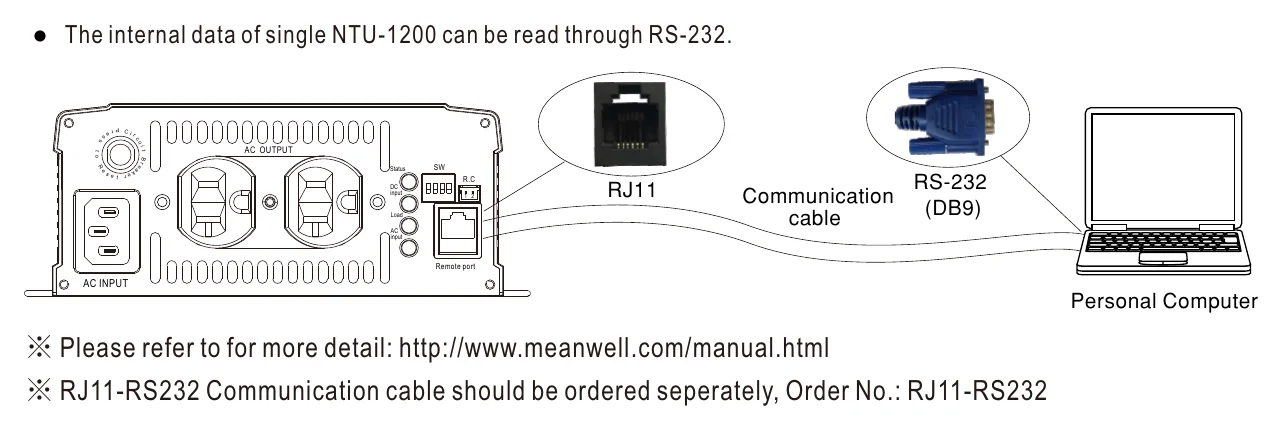

Yes. The NTU-1200-112US supports power on/off remote control and RS-232 communication for monitoring or integration needs. Mean Well lists the remote controllers and the RS-232 communication cable as separate accessories rather than included standard items.

Model	Power	Voltage	Waveform	Frequency
Mean Well NTU-1200-148US True Sine Wave DC-AC Inverter 1200W 110V out 48V in with US Socket	1200W	110V	True Sine Wave	50Hz	View
Mean Well NTU-1200-248AU True Sine Wave DC-AC Inverter 1200W 220V out 48V in with AU Socket	1200W	240V	True Sine Wave	50Hz	View
Mean Well NTU-1200-224AU True Sine Wave DC-AC Inverter 1200W 220V out 24V in with AU Socket	1200W	220V	True Sine Wave	50Hz	View
Mean Well NTU-1200-212AU True Sine Wave DC-AC Inverter 1200W 200V out 12V in with AU Socket	1200W	200V	True Sine Wave	50Hz	View
