Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well NTU-1700-124US True Sine Wave DC-AC Inverter 1700W 110V out 24V in with US Socket, with AC by-pass function

built-in UPS function(AC by-pass)built-in dip switch to adjust AC output voltagefrequency and saving modecan be remotely controlled by IRC controllers

SKU NTU-1700-124US

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

NTU-1700-124US is the model of this series: typical efficiency 90%.

NTU-1700 is a 1700W highly reliable off-grid true sine wave DC-AC power inverter with built-in UPS function(AC by-pass). Its key features include: digital design with MCU control, streamlined control circuitry that quickly responds to environmental changes and improves reliability, high quality fan with low acoustic noise, 3400W peak power, adjustable AC output voltage and frequency, -25~+70℃ wide operating temperature range, complete protection features, and etc. Combined with batteries, the NTU-1700 is suitable for use in residential, commercial, marine, automobile, mine, construction site, and remote areas with no access to utility power, and the output can be used to power fans, TV, radio, phone charger, PC/laptop, lighting, induction stove, air conditioner, electromagnetic tool, communication equipment, power distribution cabinet, outdoor camping equipment, marine AC power, factory equipment, and etc.

Features

Built-in UPS function (AC by-pass)
True sine wave output (THD<3%)
High surge power up to 3400W
Temperature controlled cooling fan
AC output voltage and frequency selectable by DIP S.W
-25℃~+70℃ wide operating temperature
Power ON-OFF remote control
Front panel indicator for operation status
Protections : Input : Reverse polarity / DC low alarm / DC low shutdown / Over voltage Output : Short circuit / Overload / Over temp.
Battery over discharge protection (low voltage disconnect)
Suitable for lead-acid or li-ion batteries
Remote controller (IRC1, IRC2, IRC3 accessory sold separately, please refer to: https://www.meanwell.com/webapp/product/search.aspx?prod=IRC1)
Support RS-232 communication(Communication cable order No.: RJ11-RS232, sold sperately)
Carry handle accessory available(Order NO.: Carry handle, sold separately)
Conformal coating
3 years warranty

Specifications

NTU-1700-124USSpecifications from the official datasheet (2026-02-04 edition)

AC OUTPUT

RATED POWER(Continuous): 1500W
OVER RATED POWER(3 Min.): 1750W
PEAK POWER(10 Sec.): 2250W
SURGE POWER(30 Cycles): 3000W
AC VOLTAGE: Default setting set at 110VAC 100 / 110 / 115 / 120Vac selectable by DIP S.W
FREQUENCY: Default setting set at 60±0.1Hz 50/60Hz selectable by DIP S.W
WAVEFORM^Note.1: True sine wave (THD<3%)
AC REGULATION: ±3.0% at rated output voltage

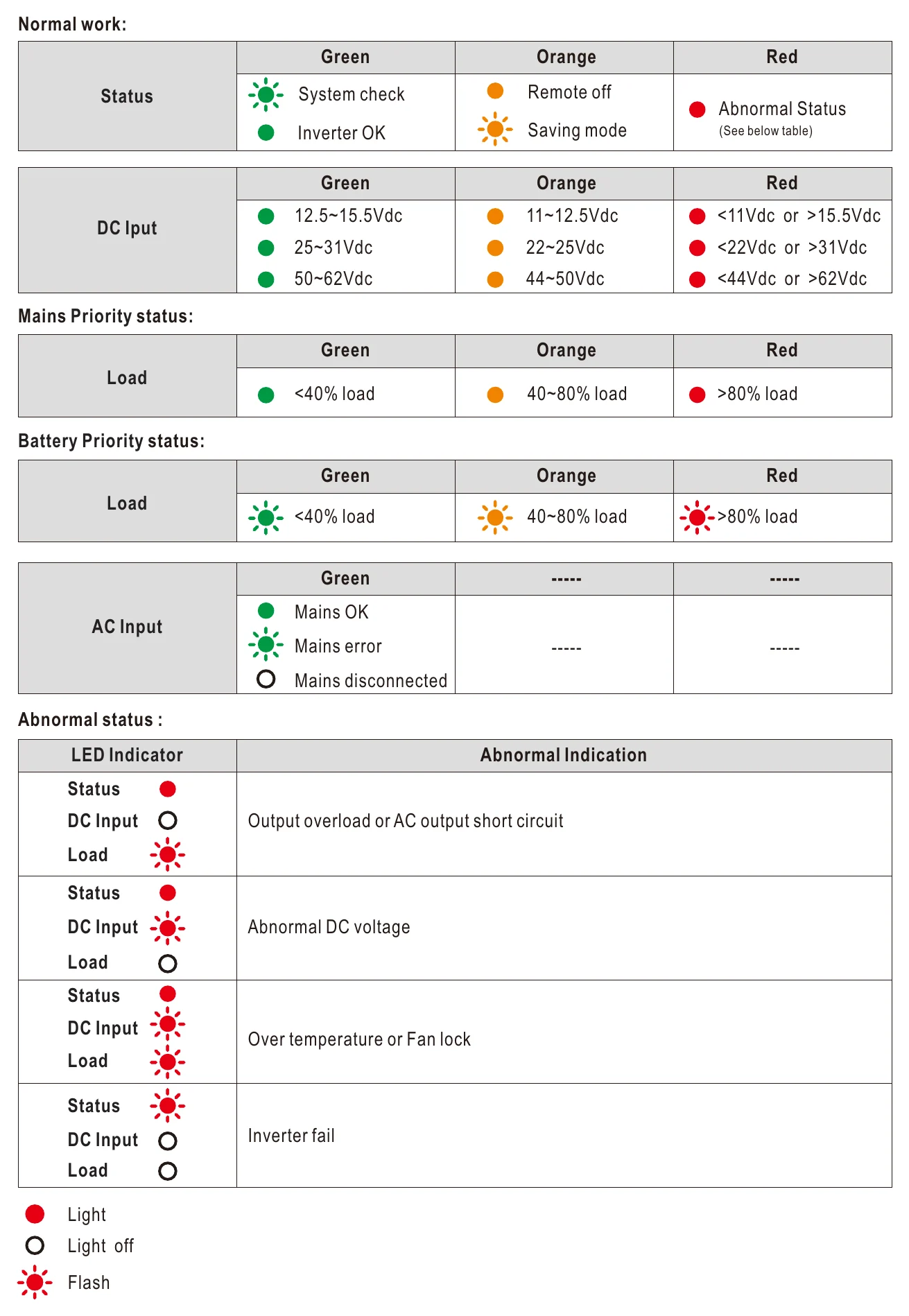

FRONT PANEL LED: Please see page 5

DC INPUT

DC VOLTAGE: 24Vdc
VOLTAGE RANGE (Typ.): 20 ~ 33Vdc
DC CURRENT (Typ.): 75A
NO LOAD DISSIPATION (SAVING MODE)(Typ.)^Note.2: Default disable, auto detect AC output load≦10W will be changed to saving mode <8W
OFF MODE CURRENT DRAW: ≦1mA
EFFICIENCY (Typ.)^Note.1: 90%
BATTERY TYPES: Lead Acid or li-ion

PROTECTION

FUSE (INTERNAL): 40A*3
LOW ALARM: 22±0.5Vdc
LOW SHUTDOWN: 20±0.5Vdc
LOW RESTART: 25±0.5Vdc
HIGH ALARM: 31±0.5Vdc
HIGH SHUTDOWN: 33±0.5Vdc
HIGH RESTART: 30±0.5Vdc
BAT. POLARITY: By internal fuse open
OVER TEMPERATURE: Protection type : Shut down o/p voltage, re-power on to recover
OUTPUT SHORT: Protection type : Shut down o/p voltage, re-power on to recover
OVER LOAD (Typ.): 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. Protection type : Shut down o/p voltage, re-power on to recover
CIRCUIT BREAKER: 15A
GFCI PROCTECTION: UL458 (Only for “GFCI” AC socket, by request)

FUNCTION CONTROL

REMOTE CONNECTOR: Power ON-OFF remote control by front panel dry contact connector(by RELAY), Open : Normal work ; Short : Remote off
ACCESSORY: Remote controller sold separately, Order No.: IRC1,IRC2,IRC3
RS-232 COMMUNICATION: RS-232 ~ RJ11 Type connector (Please refer to page 4 for more details)

AC UPS MODE

AC INPUT RANGE: 100/110/115/120Vac±16%, recover±13%
FREQUENCY RANGE: 45 ~ 65Hz
TRASFER TIME(Typ.): 10ms inverter <--> AC by pass

ENVIRONMENT

WORKING TEMP.: -25 ~ +70℃(Refer to “Derating curve”)
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -30 ~ +70℃ / -22 ~ +158℉, 10 ~ 95% RH non-condensing
VIBRATION: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: CB IEC62368-1,Dekra BS EN/EN62368-1,UL458, E13,EAC TP TC 004,AS/NZS 62368.1 approved (Please refer to next page “AC output socket” table for more details )
WITHSTAND VOLTAGE: DC I/P - AC I/P:3.0KVac DC I/P - AC O/P:3.0KVac AC O/P - FG:1.5KVac
EMC EMISSION: Parameter Standard Test Level

Radiated FCC for 112,124,148 only(expect for Type-UN) Class A
Radiated BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN) Class A
Conducted FCC for 112,124,148 only(expect for Type-UN) Class A
Conducted BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN) Class A
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY^Note.5: BS EN/ EN55024, BS EN/ EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2
EFT / Burst BS EN/EN61000-4-4 Level 2, 1KV
Surge BS EN/EN61000-4-5 Level 3, 1KV/Line-Line 2KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 2
Magnetic Field BS EN/EN61000-4-8 Level 1
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Radiated	FCC for 112,124,148 only(expect for Type-UN)	Class A
Radiated	BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN)	Class A
Conducted	FCC for 112,124,148 only(expect for Type-UN)	Class A
Conducted	BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN)	Class A
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2
EFT / Burst	BS EN/EN61000-4-4	Level 2, 1KV
Surge	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line 2KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 2
Magnetic Field	BS EN/EN61000-4-8	Level 1
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 421.9K hrs min. Telcordia TR/SR-332 (Bellcore) ; 45.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 400*184*70mm (L*W*H)
PACKING: 4.63Kg; 2pcs/ 12Kg/ 1.76CUFT

Test conditions and notes5

1.Efficiency, AC regulation and THD are tested by 1350W load, linear load at 12.5Vdc/25Vdc/50Vdc input voltage.
2.No load dissipation at non-saving mode(Typ.): 112/124/148 for 16W, 212/224/248 for 29W.
3.All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting.
4.Internal pre-start circuit, the setup time is 8s.
5.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

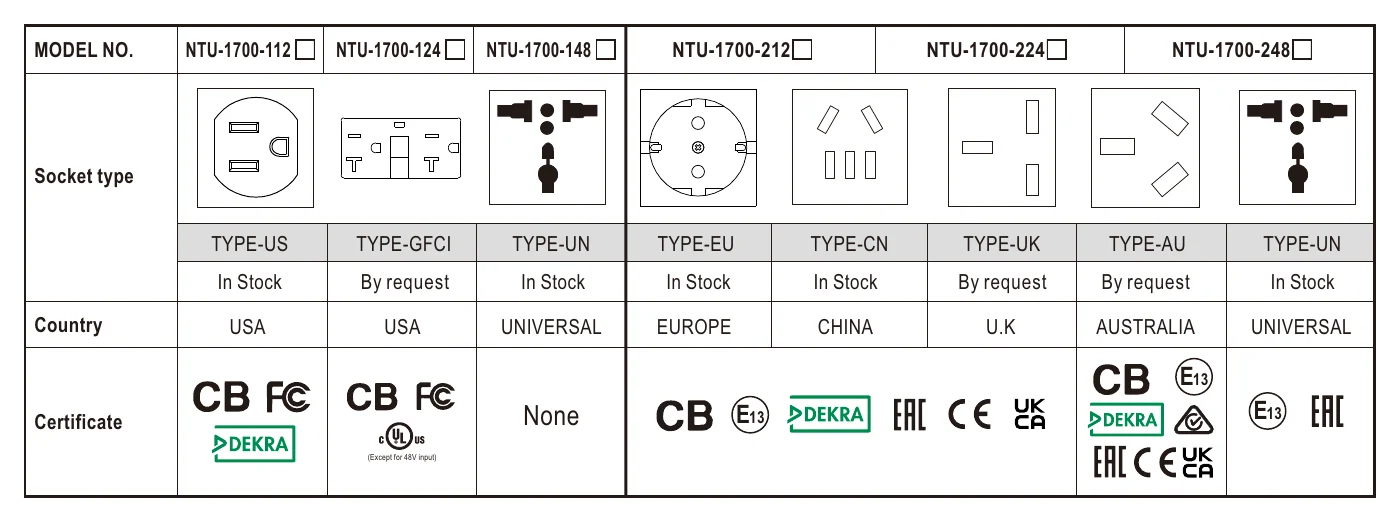

NTU-1700-124US AC Output Socket — AC Output Socket

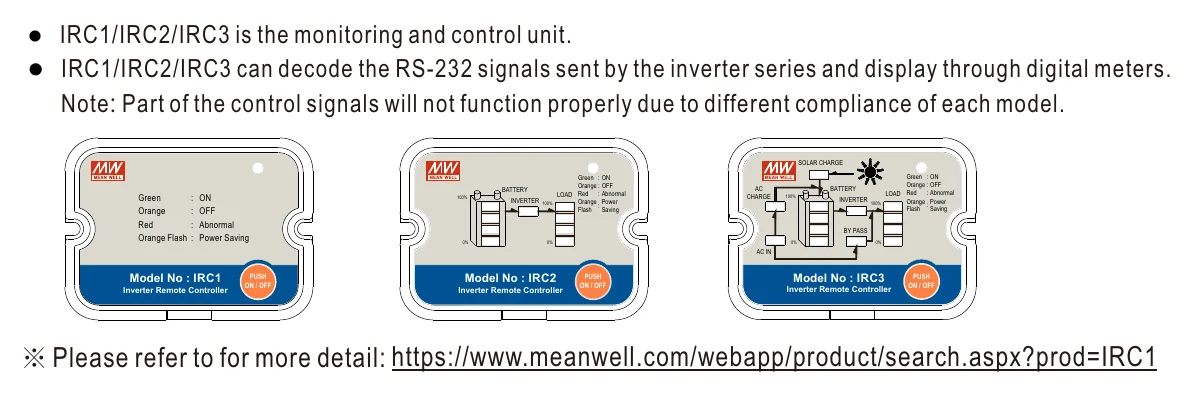

NTU-1700-124US IRC1/2/3 Remote Controller (Accessory — IRC1/2/3 Remote Controller (Accessory

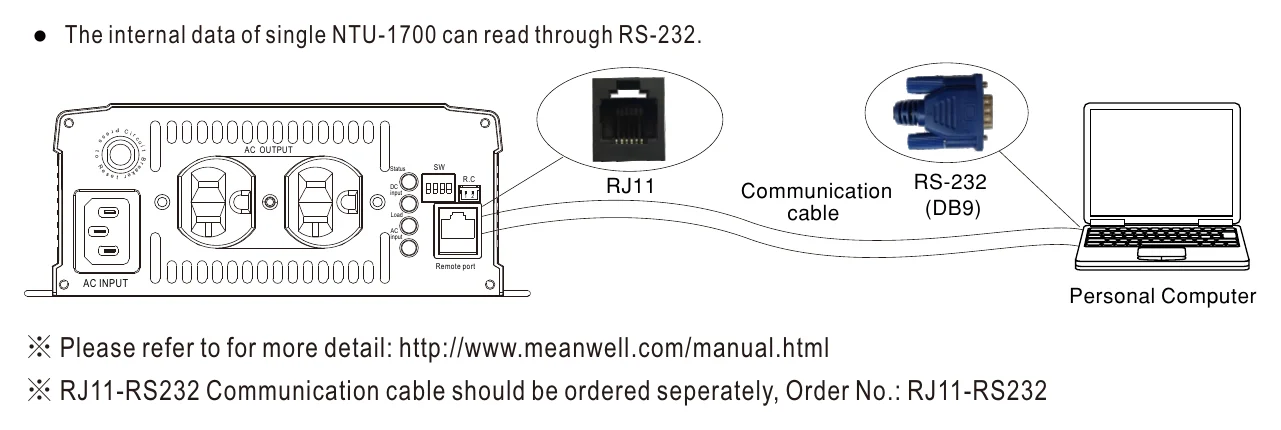

NTU-1700-124US Support RS-232 Communication — Support RS-232 Communication

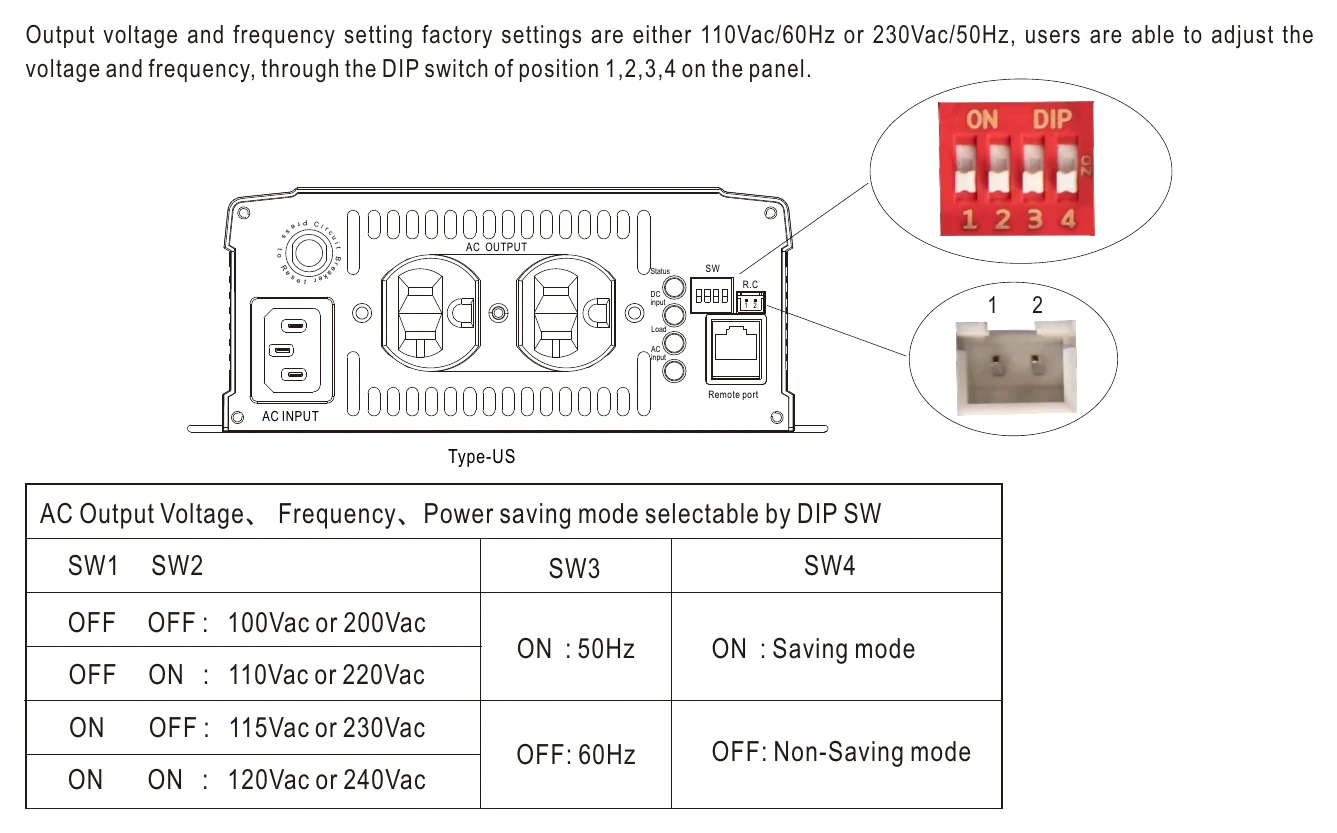

NTU-1700-124US AC Output Voltage、Frequency、Power — AC Output Voltage、Frequency、Power

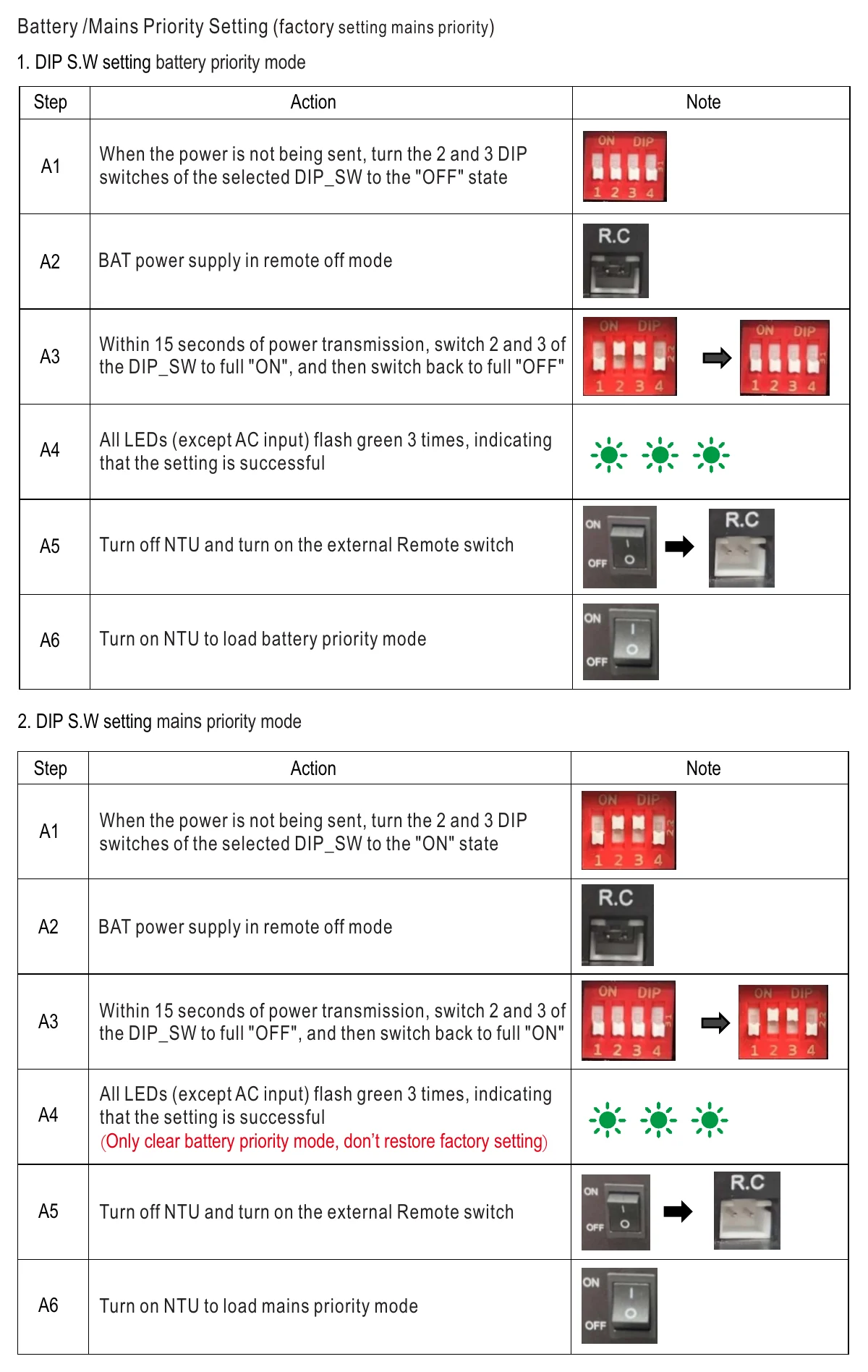

NTU-1700-124US FUNCTION MANUAL — FUNCTION MANUAL

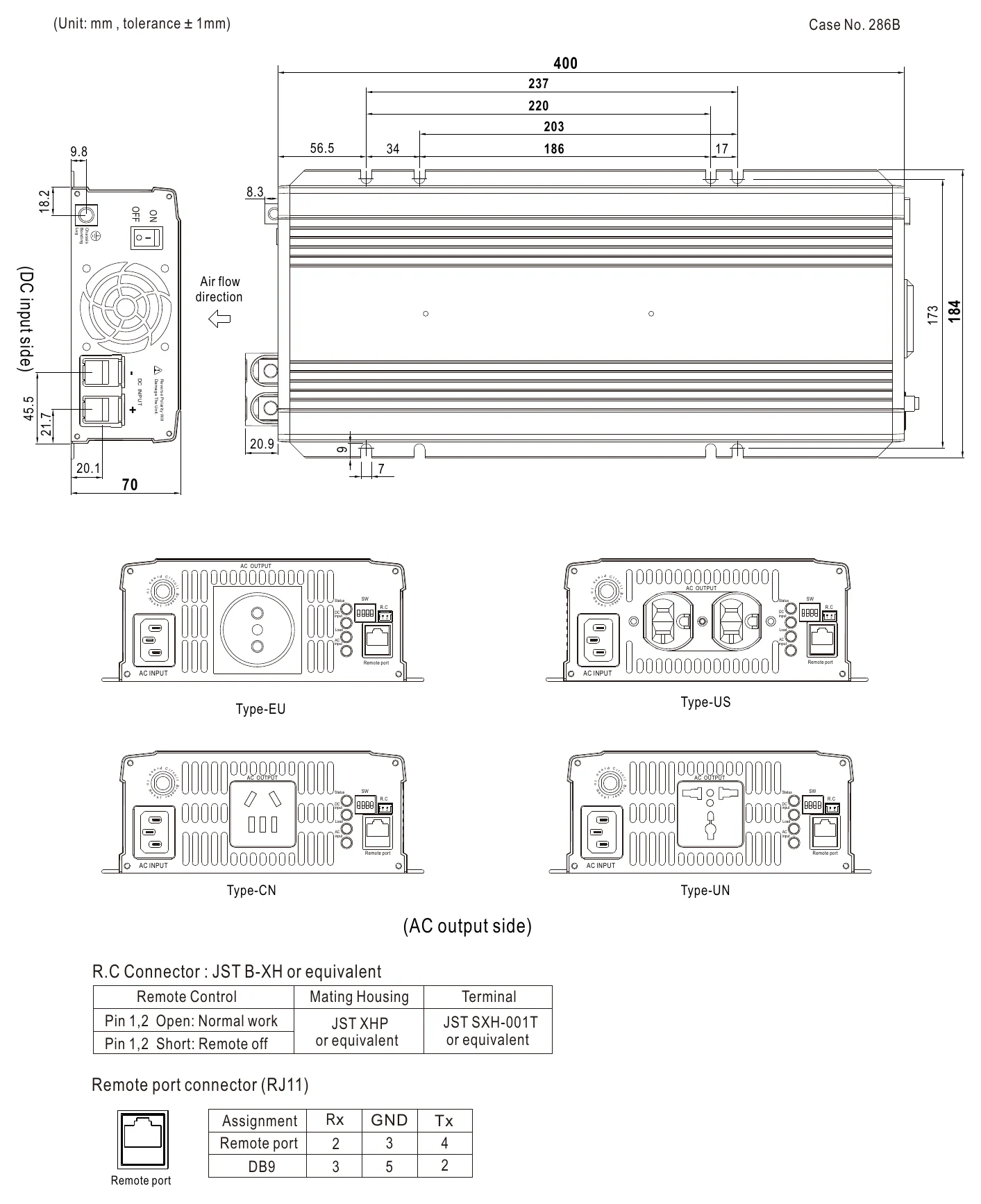

NTU-1700-124US MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

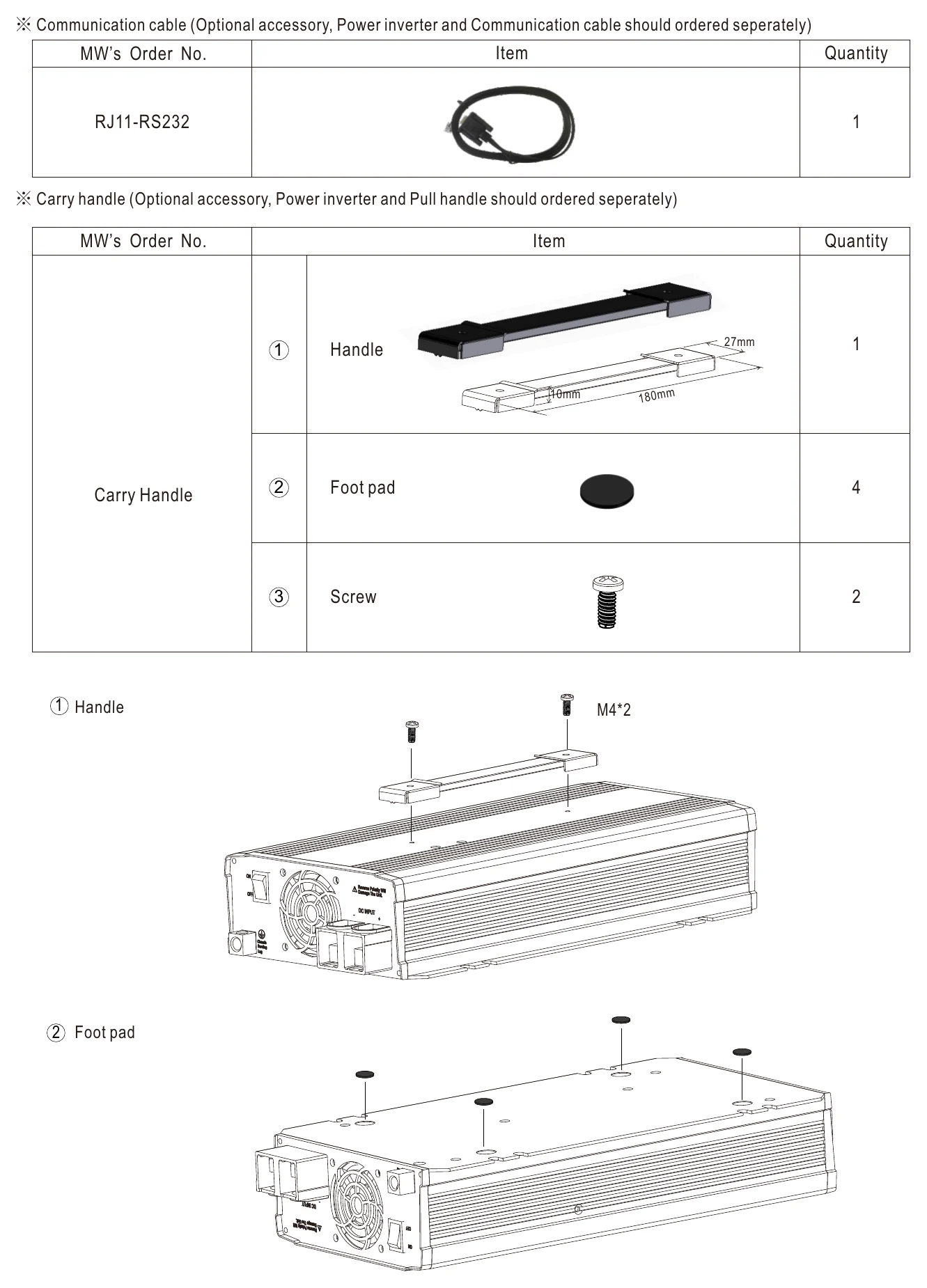

NTU-1700-124US Accessory List — Accessory List

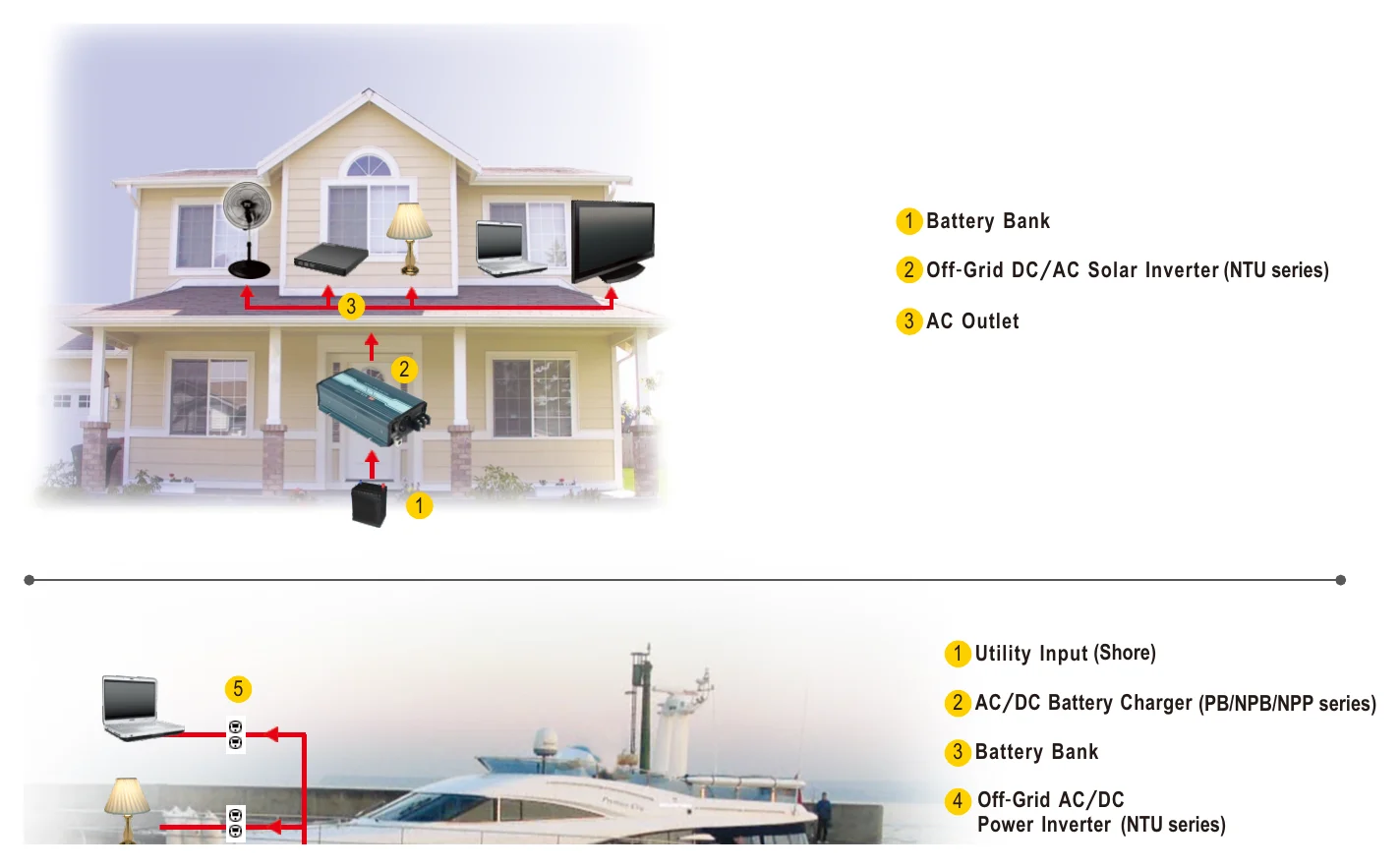

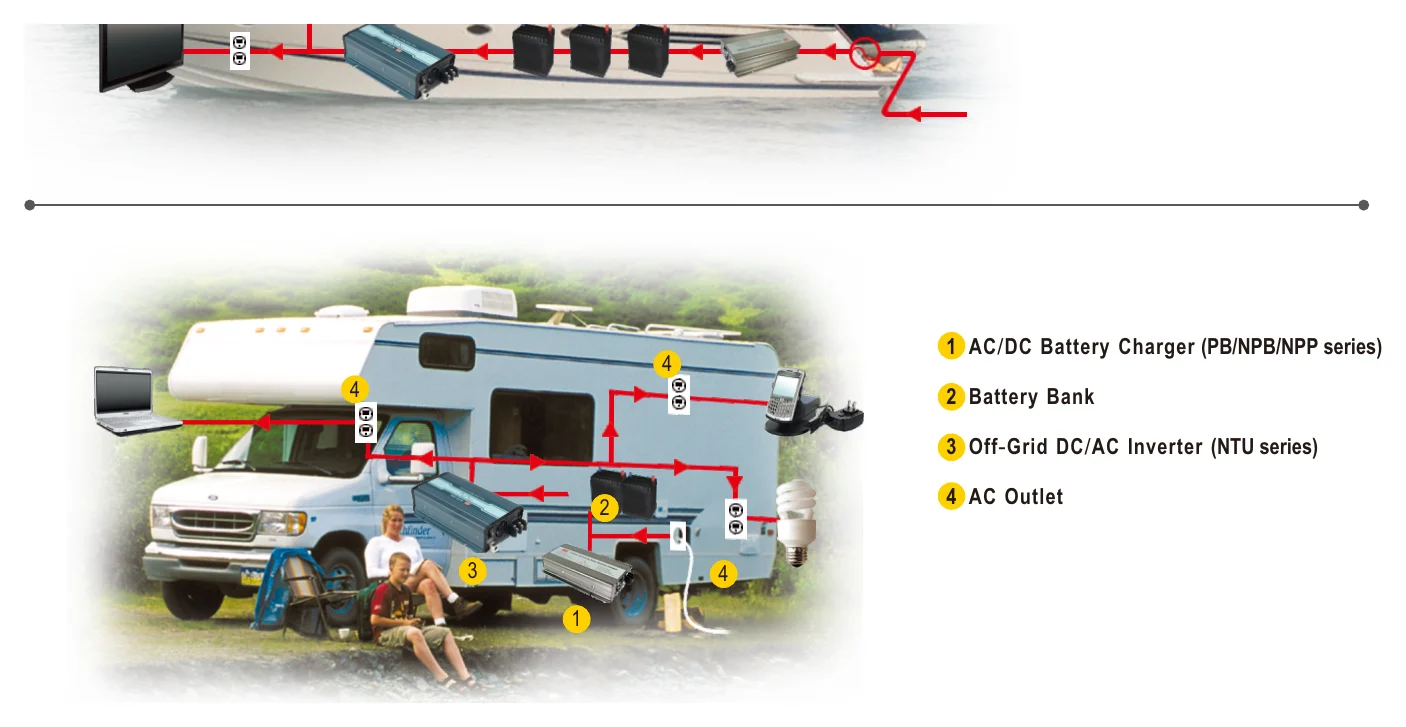

NTU-1700-124US TYPICAL APPLICATION — TYPICAL APPLICATION

Typical applications

Downloads

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

What is the Mean Well NTU-1700-124US designed for?

The NTU-1700-124US is a 1500W true sine wave DC-AC inverter for systems that use a 24V DC input and need 110V-class AC output. It is suited to professional and mobile power applications where clean AC output and higher continuous power capacity are important.

Does this inverter produce true sine wave output?

Yes. This model provides true sine wave AC output with total harmonic distortion below 3%, which makes it a better fit for sensitive electronics than modified sine wave alternatives. That cleaner waveform can be important for devices that expect stable utility-like power.

What makes the NTU-1700-124US different from a basic inverter?

A key differentiator is its built-in UPS function with AC by-pass capability. It also offers high surge power up to 3000W, selectable AC output voltage and frequency by DIP switch, remote on-off control, and built-in RS-232 communication via an RJ11 connector, with IRC1/IRC2/IRC3 remote controllers sold separately.

What input and output ratings does this model have?

This version is rated for 24V DC input (20~33VDC range) and 1500W continuous output power. Its AC output is selectable by DIP switch at 100/110/115/120VAC (default 110VAC/60Hz), and this US version has a US socket.

Can the NTU-1700-124US handle startup surges?

Yes. Mean Well lists surge power up to 3000W (30 cycles) for this inverter, which helps with loads that briefly draw more power at startup than during normal operation. Buyers should still confirm their equipment's running and surge requirements against the inverter's ratings.

Is this inverter suitable for harsh operating environments?

It is built for a wide operating temperature range of -25C to +70C, subject to the output derating curve. The unit also uses a built-in cooling fan and is rated for 10~500Hz, 3G vibration, which support use in more demanding environments.

What battery types is the NTU-1700-124US compatible with?

This inverter is listed as suitable for both lead-acid and lithium-ion battery systems. It also includes battery over-discharge protection with low voltage disconnect, which helps protect the connected battery from excessive discharge.

What protections and certifications does this model include?

The NTU-1700-124US includes protection for output short circuit, overload, over temperature, DC input over-voltage (33±0.5VDC shutdown), and battery over-discharge. Listed safety approvals include CB IEC62368-1 and BS EN/EN62368-1, with UL458 indicated for the GFCI socket type (by request), and EMC emission to FCC Class A.
