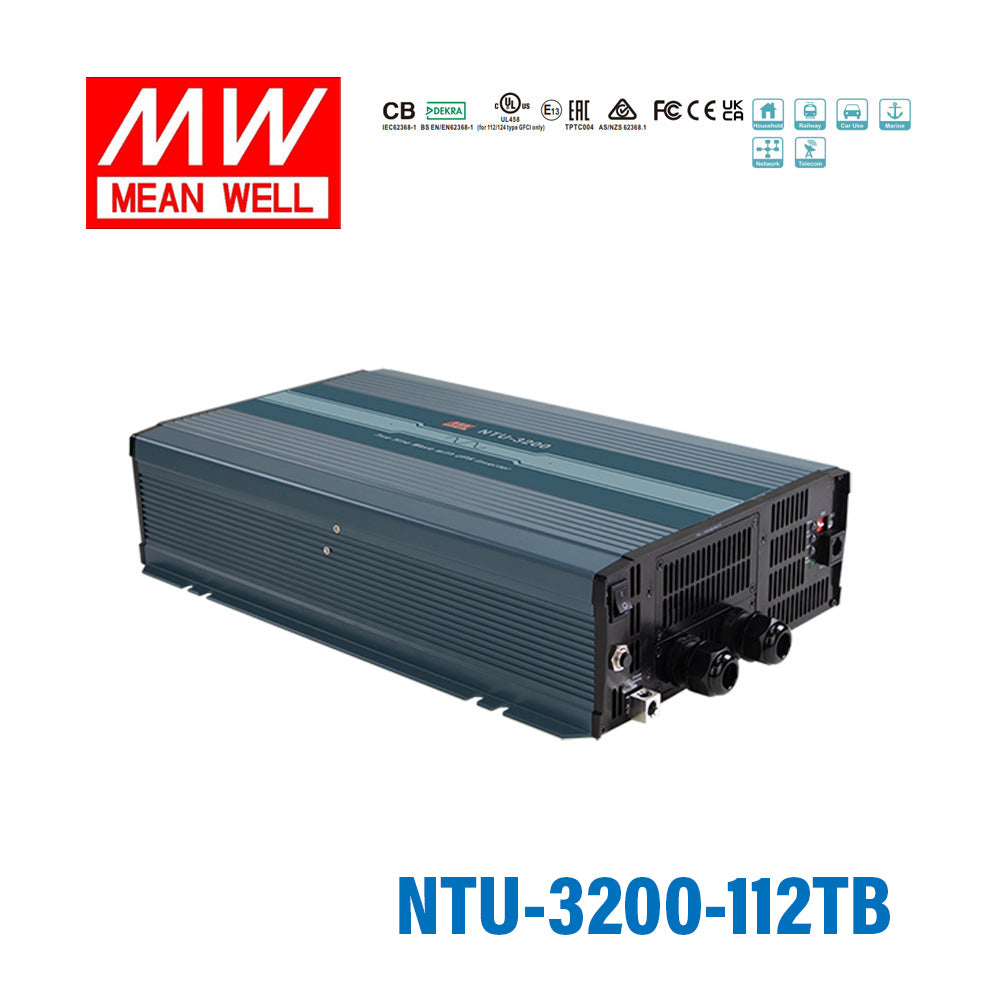

Mean Well NTU-3200-112TB True Sine Wave DC-AC Inverter 3200W 110V out 12V in with TB Socket, with AC by-pass function

SKU NTU-3200-112TB

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

NTU-3200-112TB is the model of this series: typical efficiency 89%.

NTU-3200 is a 3200W highly reliable off-grid true sine wave DC-AC power inverter with built-in UPS function. Its key features include: digital design with MCU control, streamlined control circuitry that quickly responds to environmental changes and improves reliability, high quality fan with low acoustic noise, 6400W peak power, adjustable AC output voltage and frequency, -25~+70℃ wide operating temperature range, complete protection features, and etc. Combined with batteries, the NTU-3200 is suitable for use in residential, commercial, marine, automobile, mine, construction site, and remote areas with no access to utility power, and the output can be used to power fans, TV, radio, phone charger, PC/laptop, lighting, induction stove, air conditioner, electromechanical tool, communication equipment, power distribution cabinet, outdoor camping equipment, marine AC power, factory equipment, and etc.

Features

Built-in UPS function (AC by-pass)
True sine wave output (THD<3%)
High surge power up to 6400W
Temperature controlled cooling fan
AC output voltage and frequency selectable by DIP S.W
-25℃~+70℃ wide operating temperature
Power ON-OFF remote control
Front panel indicator for operation status
Protections :
Input : Reverse polarity / DC. low alarm / DC low shutdown / Over voltage
Output : Short circuit / Overload / Over temp.
Battery over discharge protection (low voltage disconnect)
Suitable for lead-acid or li-ion batteries
Remote controller
(IRC1, IRC2, IRC3 accessory sold separately, please refer to: https://www.meanwell.com/webapp/product/search.aspx?prod=IRC1 )
Support RS-232 communication(Communication cable order No.: RJ11-RS232, sold sperately)
Carry handle accessory available(Order NO.: Carry handle, sold separately)
Conformal coating
3 years warranty

Specifications

NTU-3200-112TBSpecifications from the official datasheet (2026-02-04 edition)

AC OUTPUT

RATED POWER(Continuous): 3000W
OVER RATED POWER(3 Min.): 3500W
PEAK POWER(10 Sec.): 4500W
SURGE POWER(30 Cycles): 6000W
AC VOLTAGE: Factory setting set at 110VAC 100 / 110 / 115 / 120Vac selectable by DIP S.W
FREQUENCY: Factory setting set at 60±0.1Hz 50/60Hz selectable by DIP S.W
WAVEFORM^Note.1: True sine wave (THD<3%)
AC REGULATION: ±3.0% at rated output voltage
FRONT PANEL LED: Please see page 5

DC INPUT

DC VOLTAGE: 12Vdc
VOLTAGE RANGE (Typ.): 10 ~ 16.5Vdc
DC CURRENT (Typ.): 300A
NO LOAD DISSIPATION (SAVING MODE)(Typ.)^Note.2: Default disable, auto detect AC output load≦10W will be changed to saving mode <15W
OFF MODE CURRENT DRAW: ≦2mA
EFFICIENCY (Typ.)^Note.1: 89%
BATTERY TYPES: Lead Acid or li-ion

PROTECTION

FUSE (INTERNAL): 40A*12
LOW ALARM: 11±0.3Vdc
LOW SHUTDOWN: 10±0.3Vdc
LOW RESTART: 12.5±0.3Vdc
HIGH ALARM: 15.5±0.3Vdc
HIGH SHUTDOWN: 16.5±0.3Vdc
HIGH RESTART: 15±0.3Vdc
BAT. POLARITY: By internal fuse open
OVER TEMPERATURE: Protection type : Shut down o/p voltage, re-power on to recover
OUTPUT SHORT: Protection type : Shut down o/p voltage, re-power on to recover
OVER LOAD (Typ.): 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. Protection type : Shut down o/p voltage, re-power on to recover
CIRCUIT BREAKER: 30A
TB TYPE: UL458 (Only for "TB" type AC socket)

FUNCTION CONTROL

REMOTE CONNECTOR: Power ON-OFF remote control by front panel dry contact connector(by RELAY), Open : Normal work ; Short : Remote off
ACCESSORY: Remote controller sold separately, Order No.: IRC1,IRC2,IRC3
RS-232 COMMUNICATION: RS-232 ~ RJ11 Type connector (Please refer to page 4 for more details)

AC UPS MODE

AC INPUT RANGE: 100/110/115/120Vac±16%, recover±13%
FREQUENCY RANGE: 45 ~ 65Hz
TRASFER TIME(Typ.): 10ms inverter AC by pass

ENVIRONMENT

WORKING TEMP.: -25 ~ +70℃(Refer to "Derating curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -30 ~ +70℃ / -22 ~ +158oF, 10 ~ 95% RH non-condensing
VIBRATION: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: CB IEC62368-1,Dekra Seal BS EN/ EN62368-1,UL458, E13,EAC TP TC 004,AS/NZS 62368.1 approved (Please refer to next page “AC output socket” table for more details )
WITHSTAND VOLTAGE: DC I/P - AC I/P:3.0KVAC DC I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
EMC EMISSION: Parameter Standard Test Level

Radiated FCC for 112,124,148 only(expect for Type-UN) Class A
Radiated BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN) Class A
Conducted FCC for 112,124,148 only(expect for Type-UN) Class A
Conducted BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN) Class A
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3 -----
EMC IMMUNITY^Note.5: BS EN/ EN55024, BS EN/ EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2
EFT / Burst BS EN/EN61000-4-4 Level 2, 1KV
Surge BS EN/EN61000-4-5 Level 3, 1KV/Line-Line 2KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 2
Magnetic Field BS EN/EN61000-4-8 Level 1
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Radiated	FCC for 112,124,148 only(expect for Type-UN)	Class A
Radiated	BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN)	Class A
Conducted	FCC for 112,124,148 only(expect for Type-UN)	Class A
Conducted	BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN)	Class A
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3	-----

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2
EFT / Burst	BS EN/EN61000-4-4	Level 2, 1KV
Surge	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line 2KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 2
Magnetic Field	BS EN/EN61000-4-8	Level 1
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 319.3K hrs min. Telcordia TR/SR-332 (Bellcore) ; 30.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 420*270*98mm (L*W*H)
PACKING: 8.6Kg; 1pcs/ 10.4Kg/ 1.39CUFT

Test conditions and notes5

1.Efficiency, AC regulation and THD are tested by 2400W load, linear load at 12.5Vdc/25Vdc/50Vdc input voltage.
2.No load dissipation at non-saving mode(Typ.): 112/124/148 for 25W, 212/224/248 for 55W.
3.All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting.
4.Internal pre-start circuit, the setup time is 8s.
5.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

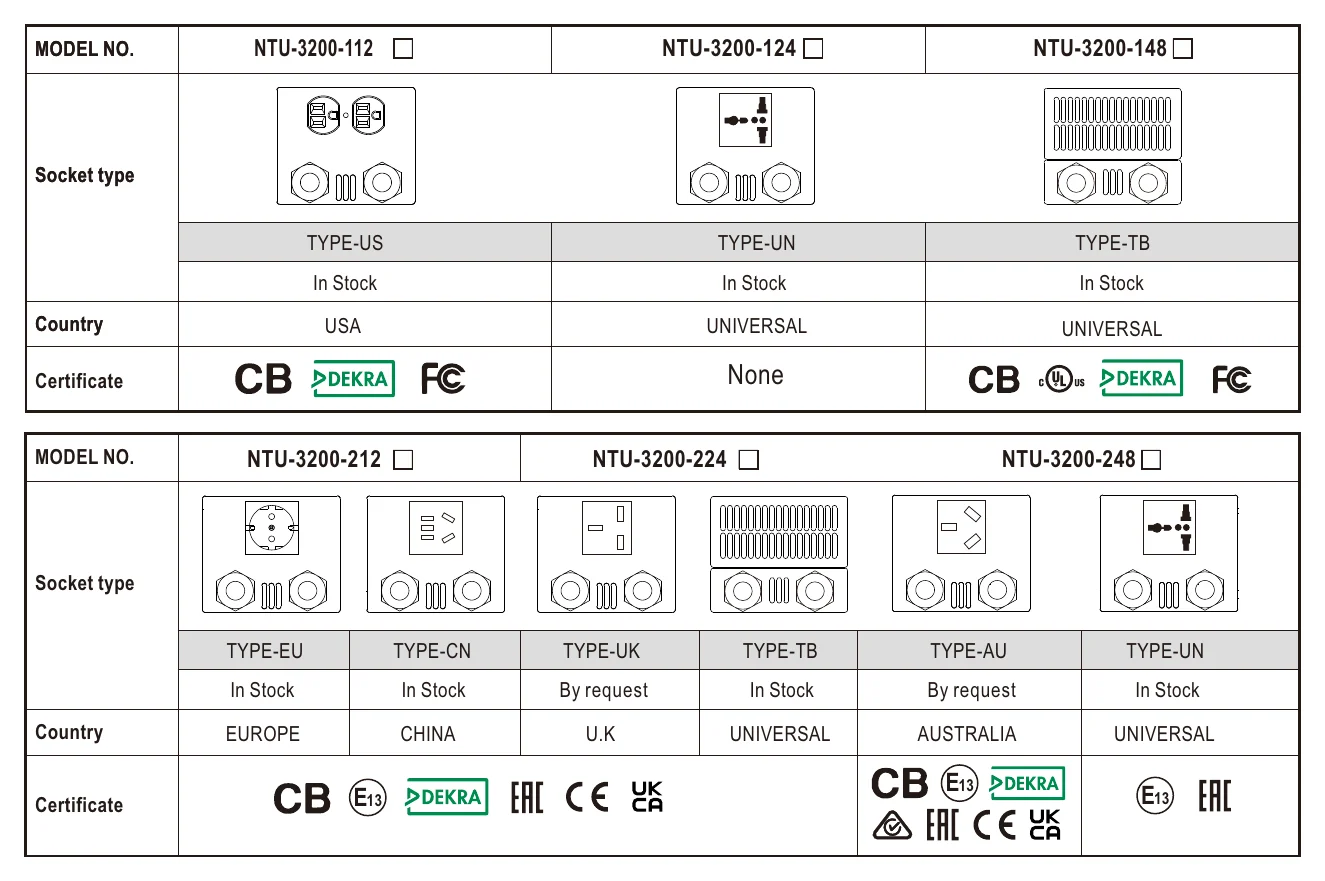

NTU-3200-112TB AC Output Socket — AC Output Socket

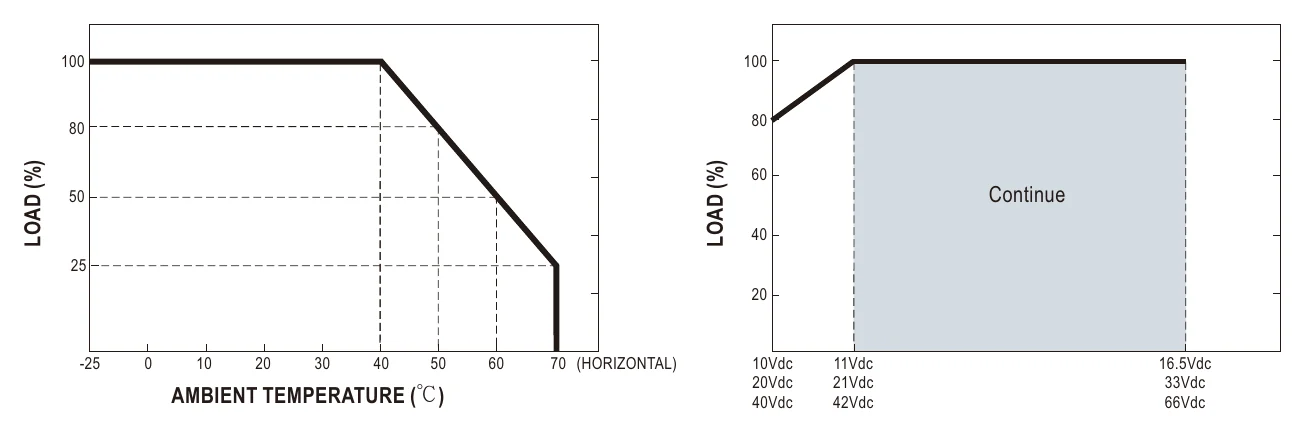

NTU-3200-112TB DERATING CURVE — DERATING CURVE

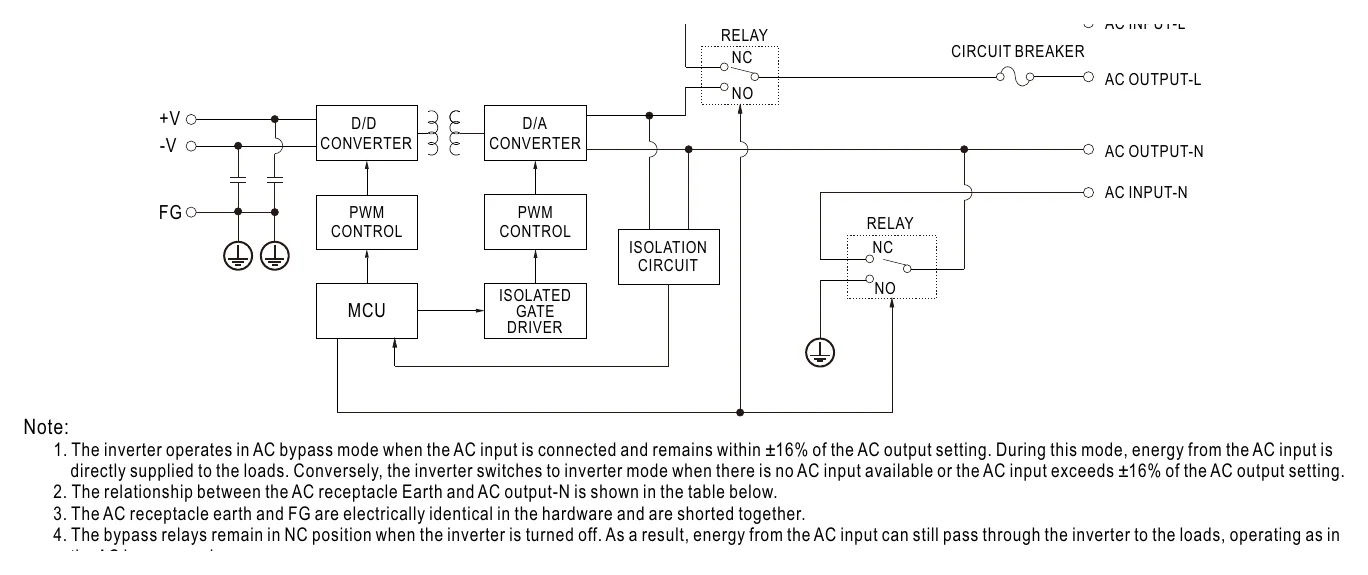

NTU-3200-112TB Block Diagram — Block Diagram

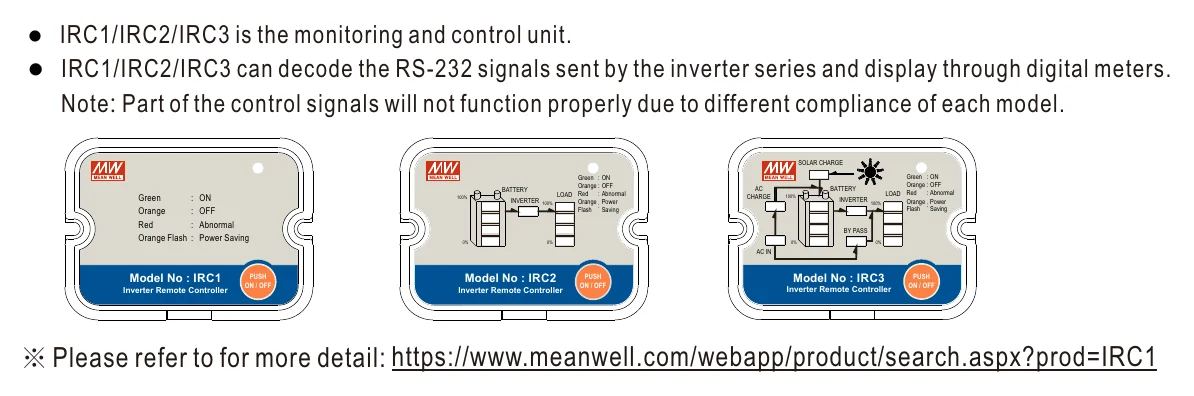

NTU-3200-112TB IRC1/2/3 Remote Controller (Accessory — IRC1/2/3 Remote Controller (Accessory

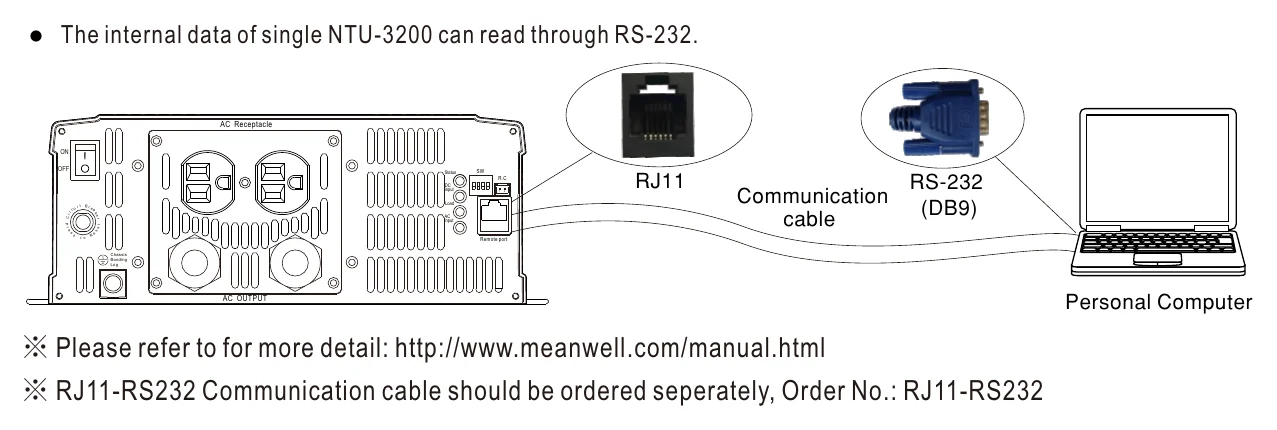

NTU-3200-112TB Support RS-232 Communication — Support RS-232 Communication

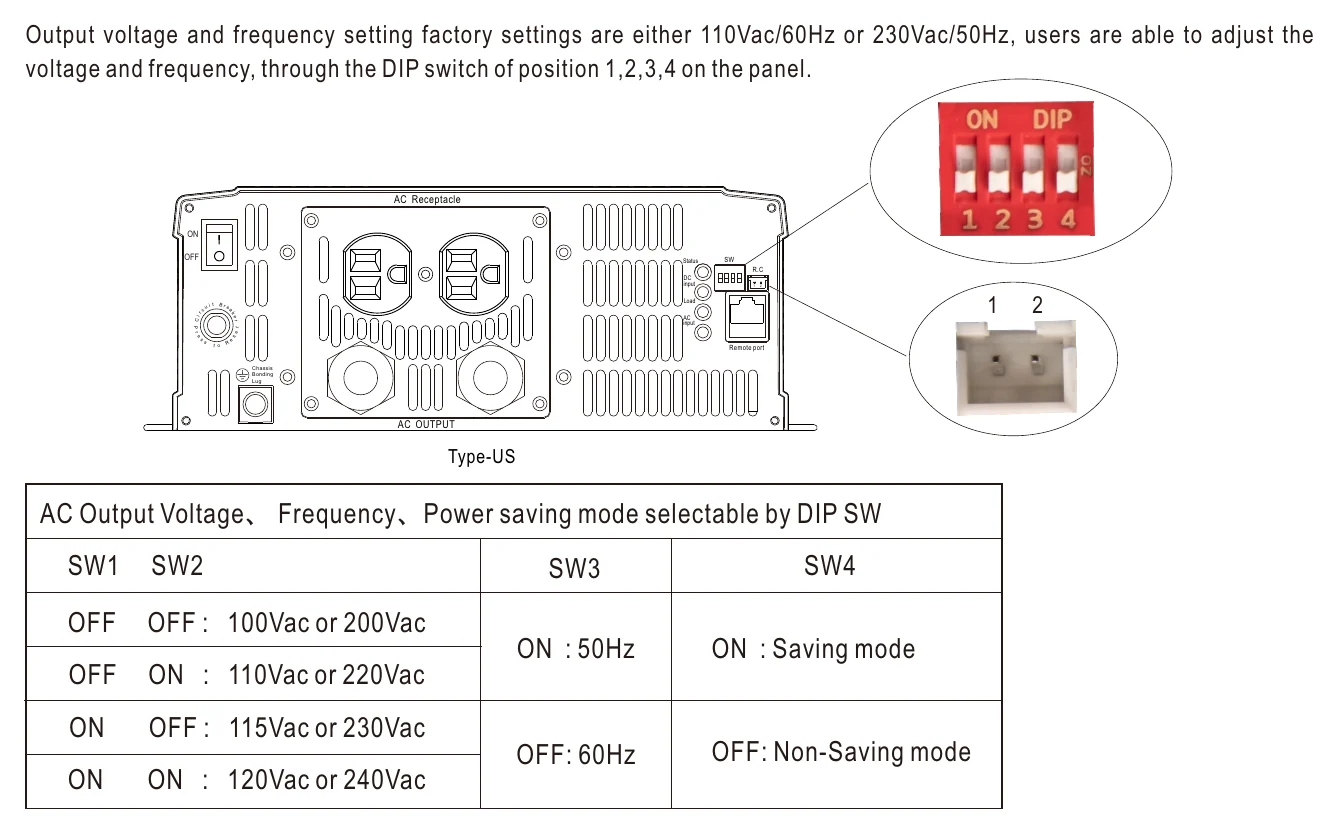

NTU-3200-112TB AC Output Voltage、Frequency、Power — AC Output Voltage、Frequency、Power

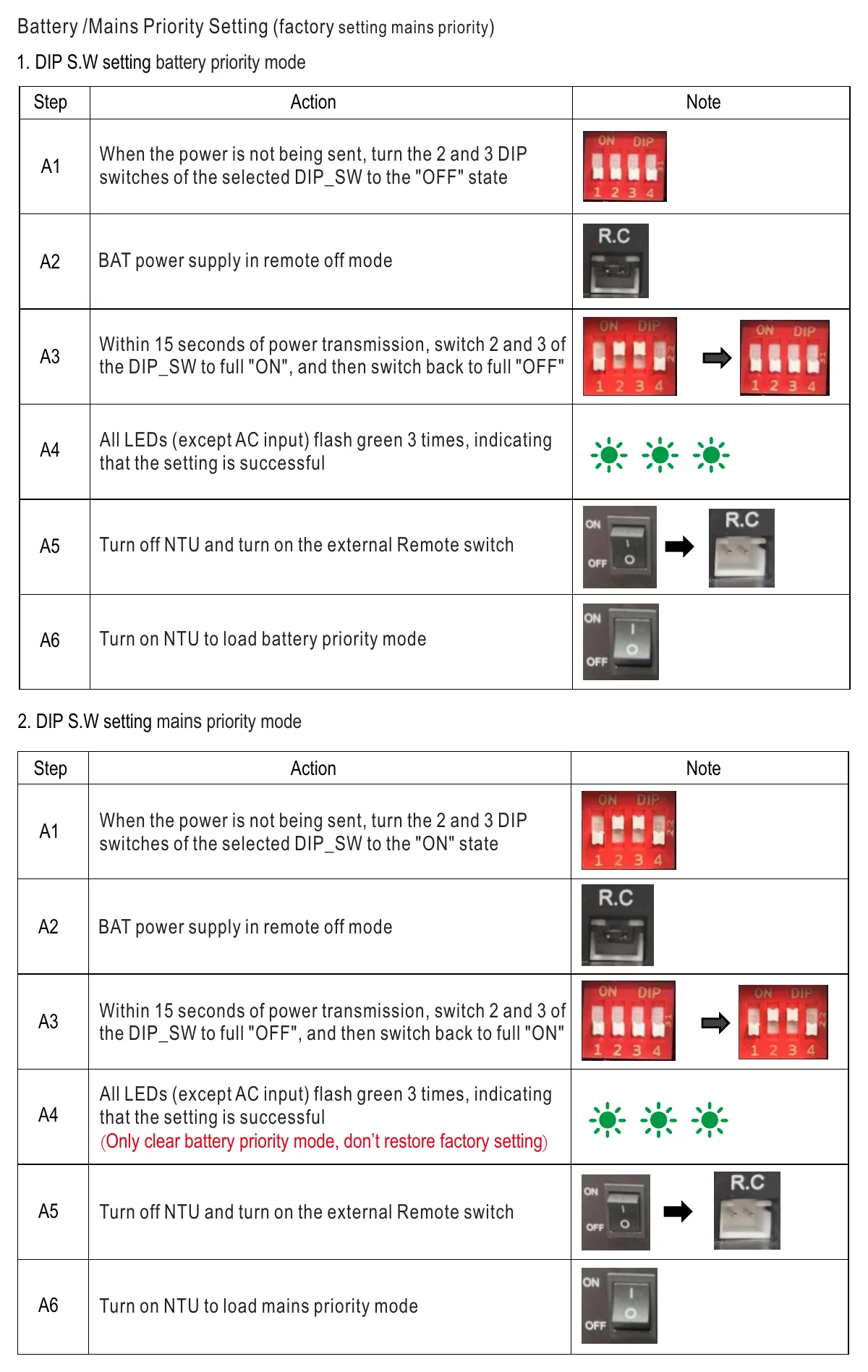

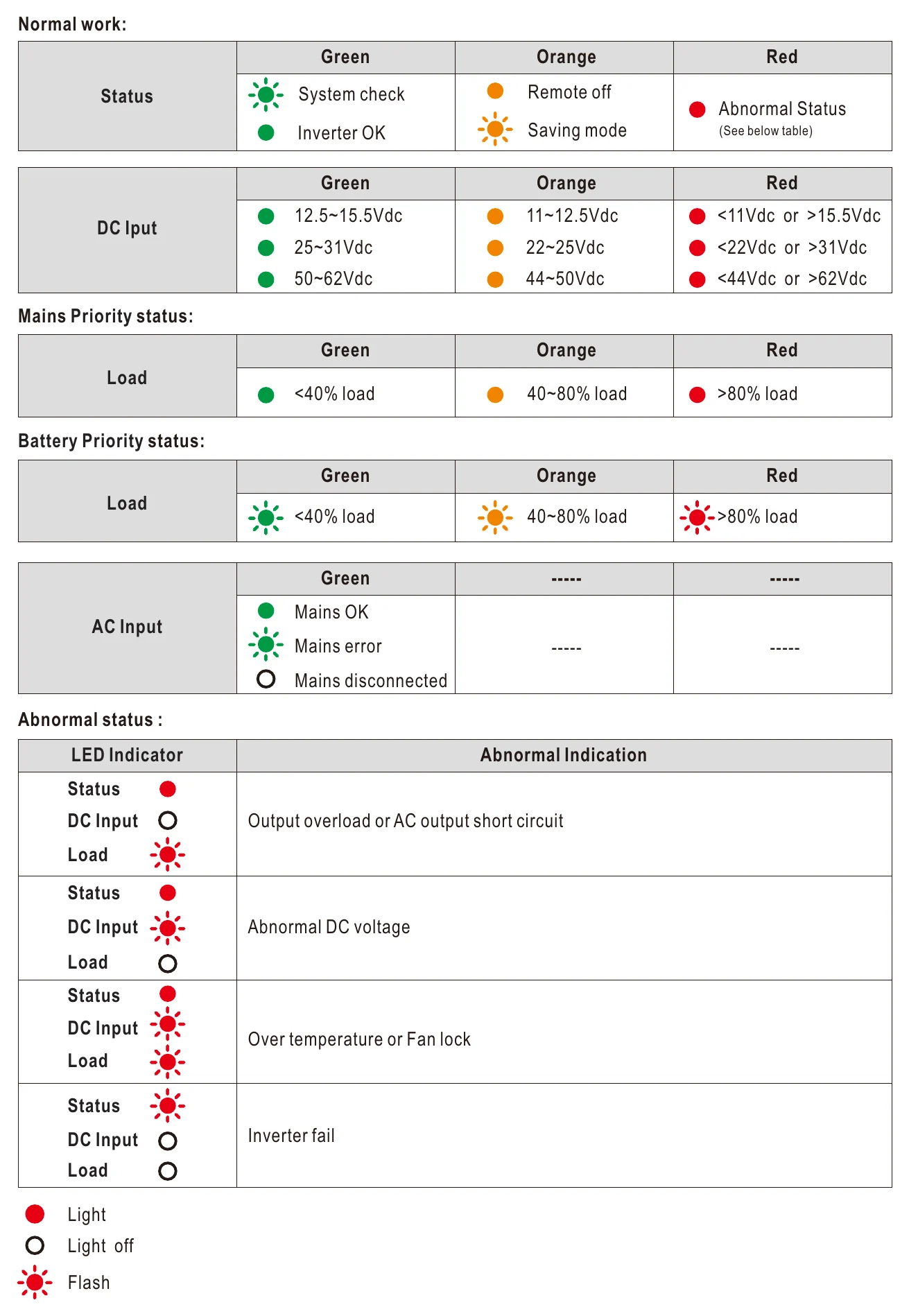

NTU-3200-112TB FUNCTION MANUAL — FUNCTION MANUAL

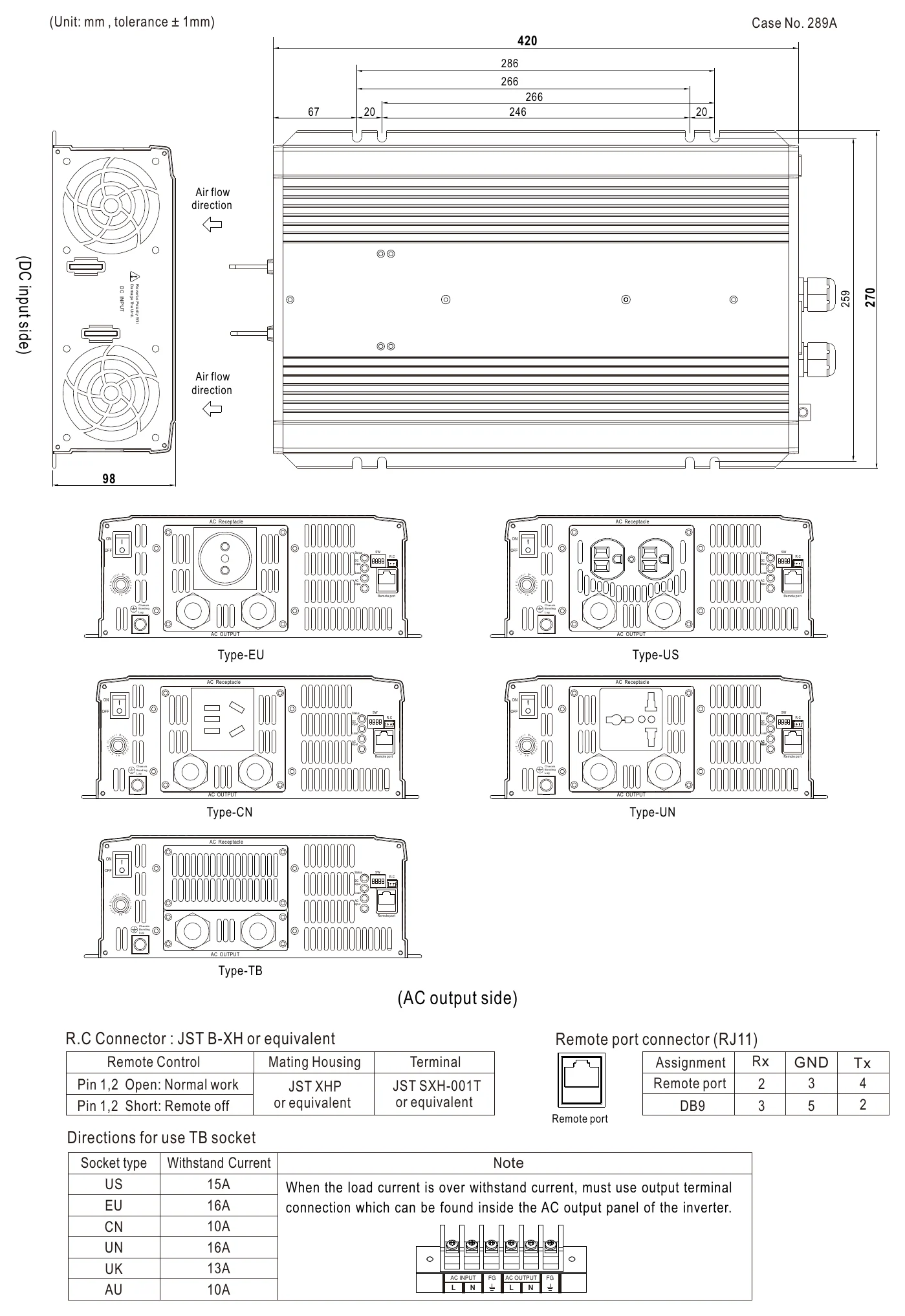

NTU-3200-112TB MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

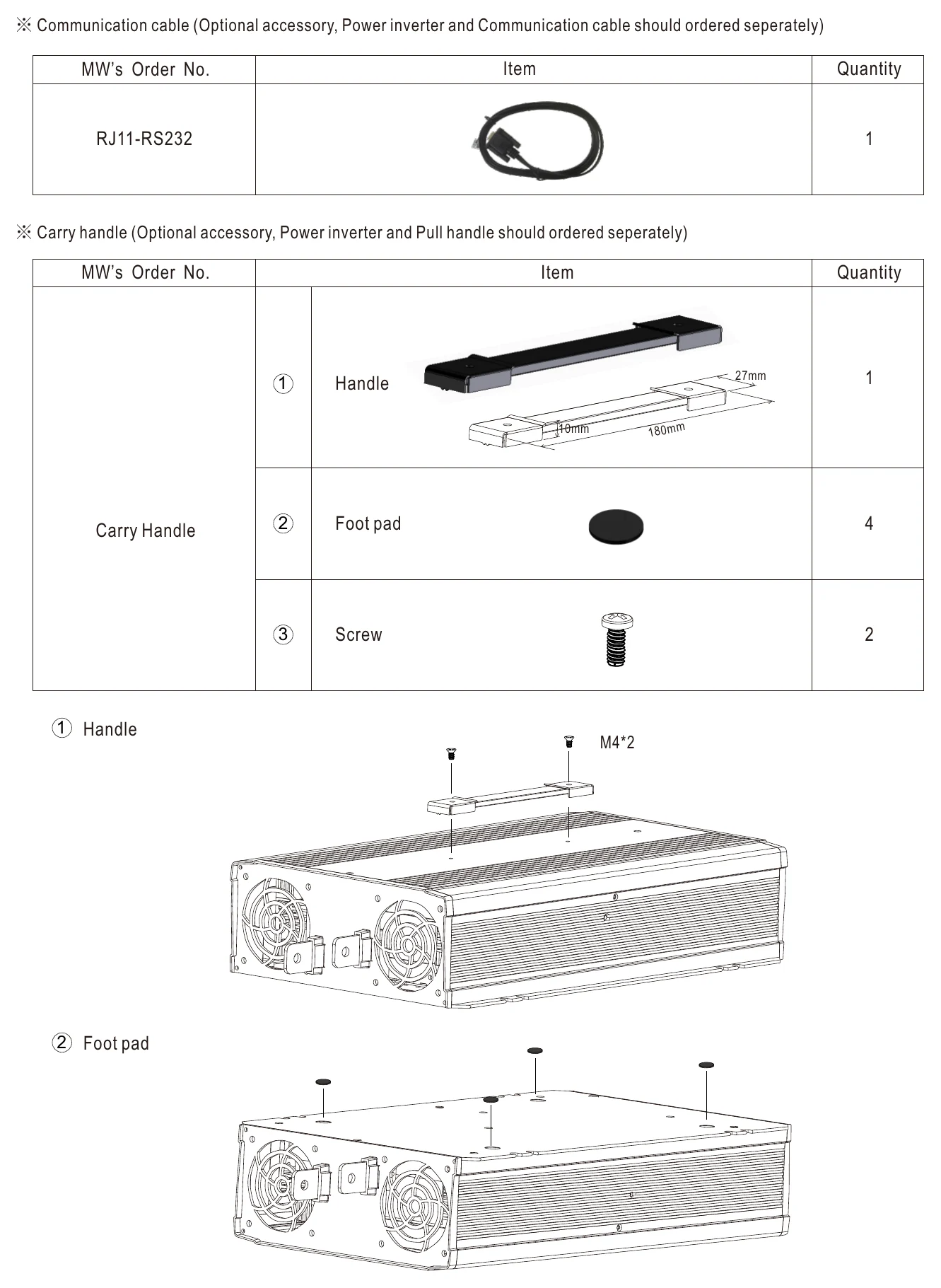

NTU-3200-112TB Accessory List — Accessory List

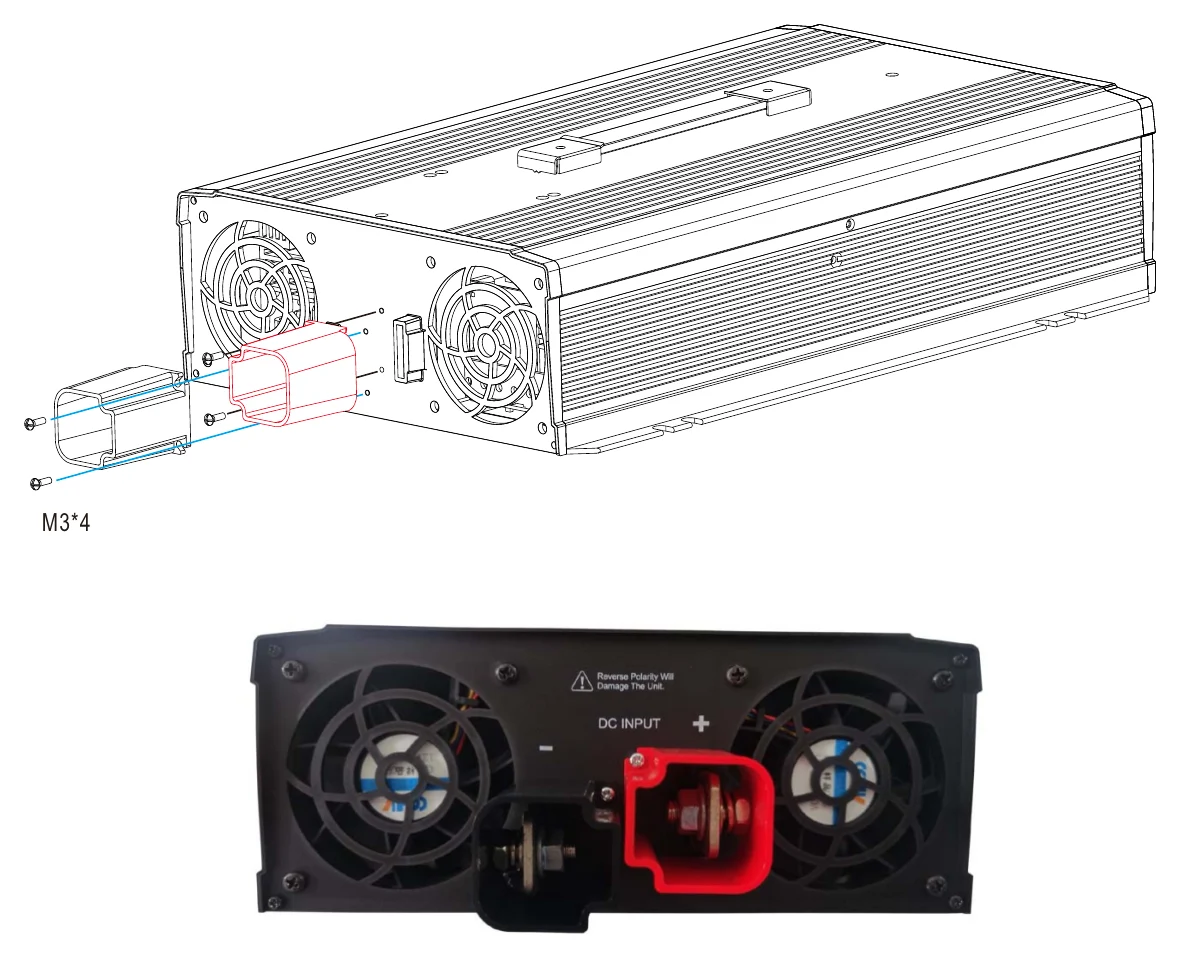

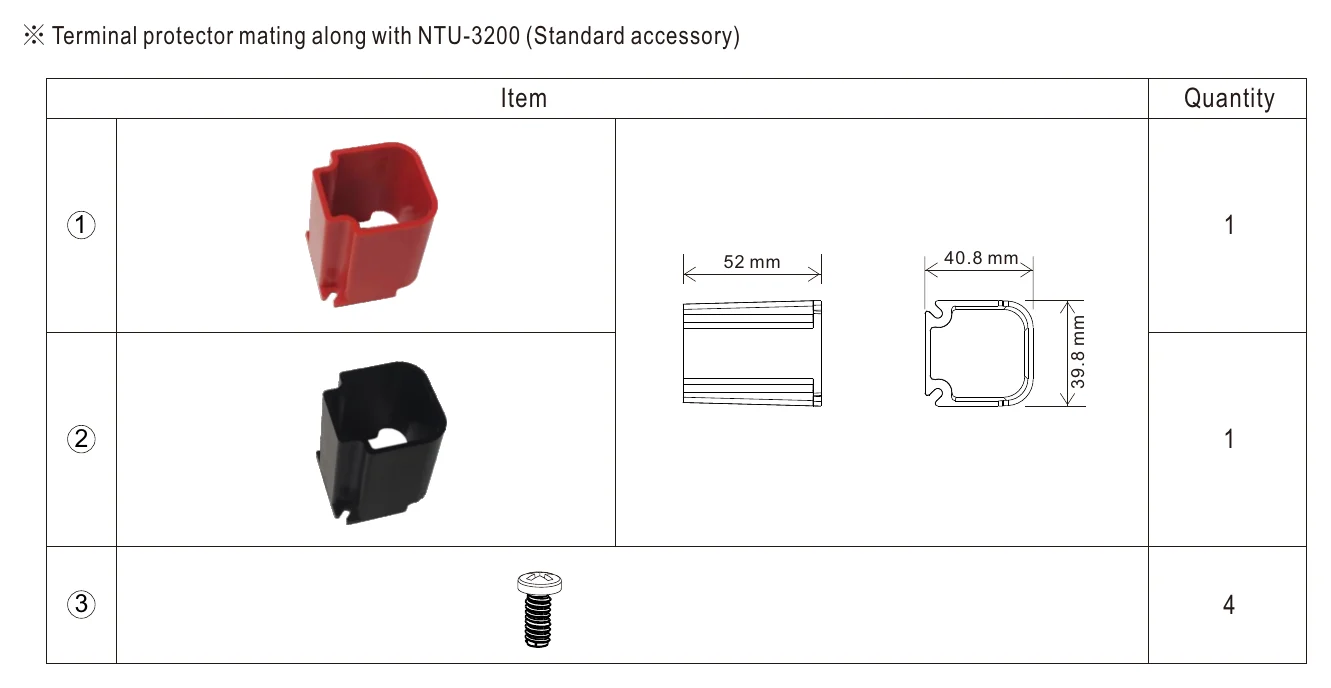

NTU-3200-112TB ※ Terminal protector mating along with NTU-3200… — ※ Terminal protector mating along with NTU-3200…

NTU-3200-112TB Illustration (page 9) — Illustration (page 9)

NTU-3200-112TB TYPICALTYPICAL APPLICATIONAPPLICATION — TYPICALTYPICAL APPLICATIONAPPLICATION

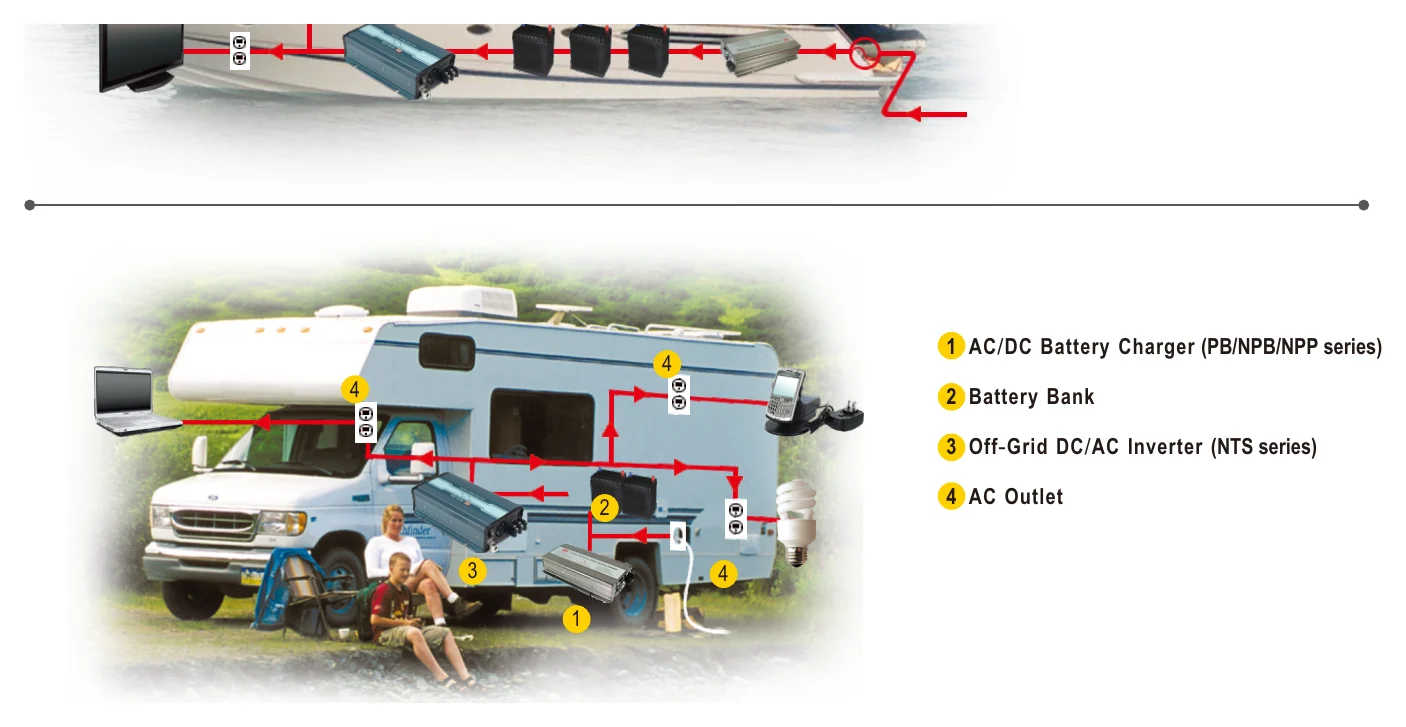

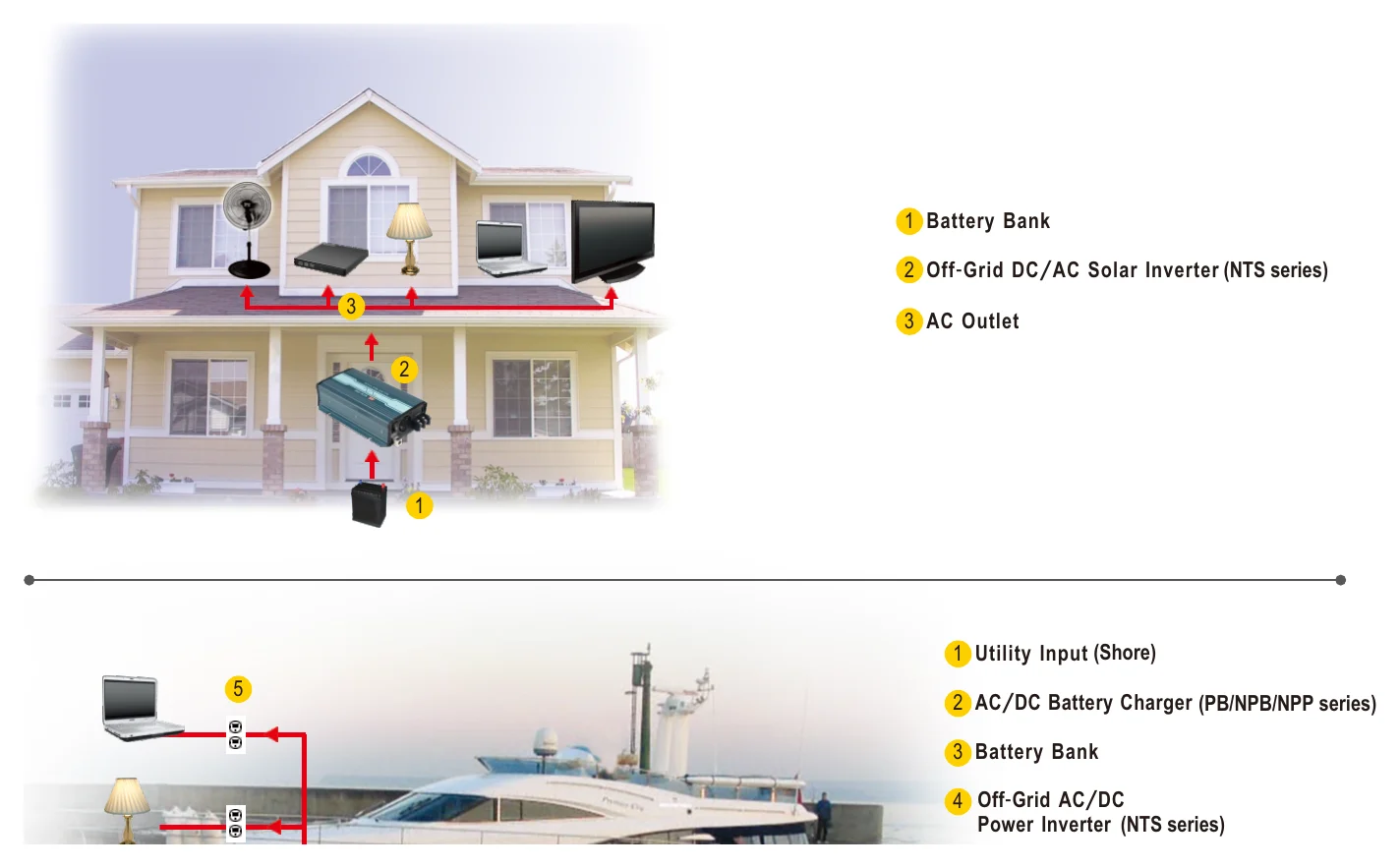

Typical applications

Downloads

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

What is the Mean Well NTU-3200-112TB used for?

The NTU-3200-112TB is a 3000W true sine wave DC-AC inverter designed for applications that need 110V AC output from a 12V DC source. It is suited to commercial, industrial, vehicle, backup power, and mobile power system use where clean AC power and higher surge capability matter.

What are the main electrical specifications of the NTU-3200-112TB?

This model is rated for 3000W continuous output and provides 110V AC output (factory setting) from a 12V DC input. It uses a true sine wave output with THD below 3%, and it can deliver surge power up to 6000W for demanding startup loads.

Does the NTU-3200-112TB support AC by-pass or UPS-style operation?

Yes. The NTU-3200-112TB includes a built-in UPS function with AC by-pass capability. That makes it a stronger fit for systems where continuity of AC power is important compared with a basic inverter without by-pass support.

What types of batteries is the NTU-3200-112TB compatible with?

Mean Well specifies that this inverter is suitable for lead-acid or lithium-ion batteries. It also includes low DC input voltage protection, with an alarm at 11V, shutdown at 10V and restart at 12.5V, to help protect the DC power source.

Can the AC output settings be adjusted on this inverter?

Yes. The AC output voltage and frequency are selectable by DIP switch, with 100/110/115/120VAC and 50/60Hz settings available on this model. For this specific model, the factory setting is 110V AC at 60Hz.

Is the NTU-3200-112TB suitable for demanding environments?

It is built for wide-temperature operation, with a listed working range of -25°C to +70°C and output derating at higher temperatures per the derating curve. The unit is fan-cooled and has over-temperature protection, which supports use in harsher operating conditions.

What protection and certification features does the NTU-3200-112TB include?

This inverter includes protection for output short circuit, overload, over temperature, low and high DC input voltage, and battery reverse polarity via internal fuse. It is also listed with multiple safety and compliance approvals, including CB IEC62368-1, BS EN/EN62368-1, UL458 (TB socket type), EAC TP TC 004, and AS/NZS 62368.1.

Are remote control or communication accessories available for the NTU-3200-112TB?

Yes. Mean Well lists optional remote controllers including IRC1, IRC2, and IRC3, and the unit also supports RS-232 communication using a separately sold cable. A carry handle accessory is available as well for applications where portability matters.
