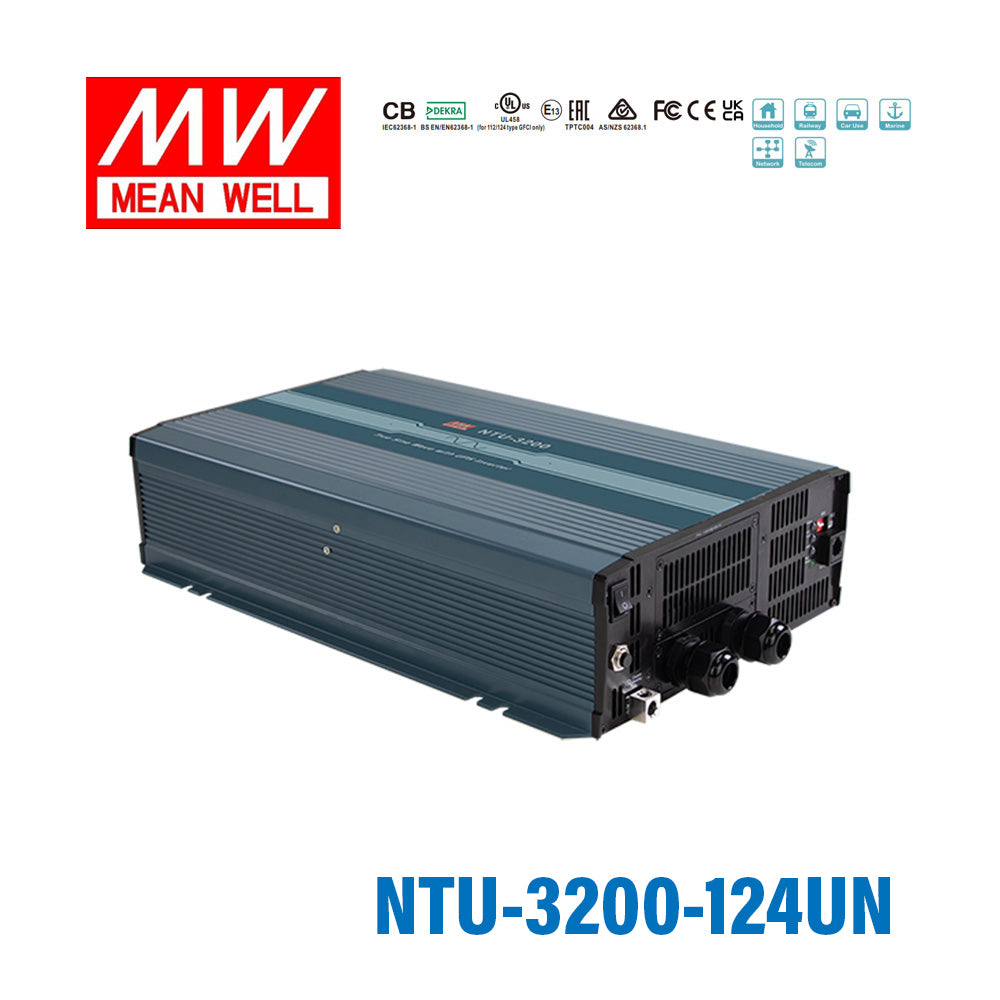

Mean Well NTU-3200-124UN True Sine Wave DC-AC Inverter 3200W 110V out 24V in with UNSocket, with AC by-pass function

SKU NTU-3200-124UN

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

NTU-3200-124UN is the model of this series: typical efficiency 90%.

NTU-3200 is a 3200W highly reliable off-grid true sine wave DC-AC power inverter with built-in UPS function. Its key features include: digital design with MCU control, streamlined control circuitry that quickly responds to environmental changes and improves reliability, high quality fan with low acoustic noise, 6400W peak power, adjustable AC output voltage and frequency, -25~+70℃ wide operating temperature range, complete protection features, and etc. Combined with batteries, the NTU-3200 is suitable for use in residential, commercial, marine, automobile, mine, construction site, and remote areas with no access to utility power, and the output can be used to power fans, TV, radio, phone charger, PC/laptop, lighting, induction stove, air conditioner, electromechanical tool, communication equipment, power distribution cabinet, outdoor camping equipment, marine AC power, factory equipment, and etc.

Features

Built-in UPS function (AC by-pass)
True sine wave output (THD<3%)
High surge power up to 6400W
Temperature controlled cooling fan
AC output voltage and frequency selectable by DIP S.W
-25℃~+70℃ wide operating temperature
Power ON-OFF remote control
Front panel indicator for operation status
Protections :
Input : Reverse polarity / DC. low alarm / DC low shutdown / Over voltage
Output : Short circuit / Overload / Over temp.
Battery over discharge protection (low voltage disconnect)
Suitable for lead-acid or li-ion batteries
Remote controller
(IRC1, IRC2, IRC3 accessory sold separately, please refer to: https://www.meanwell.com/webapp/product/search.aspx?prod=IRC1 )
Support RS-232 communication(Communication cable order No.: RJ11-RS232, sold sperately)
Carry handle accessory available(Order NO.: Carry handle, sold separately)
Conformal coating
3 years warranty

Specifications

NTU-3200-124UNSpecifications from the official datasheet (2026-02-04 edition)

AC OUTPUT

RATED POWER(Continuous): 3000W
OVER RATED POWER(3 Min.): 3500W
PEAK POWER(10 Sec.): 4500W
SURGE POWER(30 Cycles): 6000W
AC VOLTAGE: Factory setting set at 110VAC 100 / 110 / 115 / 120Vac selectable by DIP S.W
FREQUENCY: Factory setting set at 60±0.1Hz 50/60Hz selectable by DIP S.W
WAVEFORM^Note.1: True sine wave (THD<3%)
AC REGULATION: ±3.0% at rated output voltage
FRONT PANEL LED: Please see page 5

DC INPUT

DC VOLTAGE: 24Vdc
VOLTAGE RANGE (Typ.): 20 ~ 33Vdc
DC CURRENT (Typ.): 150A
NO LOAD DISSIPATION (SAVING MODE)(Typ.)^Note.2: Default disable, auto detect AC output load≦10W will be changed to saving mode <15W
OFF MODE CURRENT DRAW: ≦2mA
EFFICIENCY (Typ.)^Note.1: 90%
BATTERY TYPES: Lead Acid or li-ion

PROTECTION

FUSE (INTERNAL): 40A*6
LOW ALARM: 22±0.5Vdc
LOW SHUTDOWN: 20±0.5Vdc
LOW RESTART: 25±0.5Vdc
HIGH ALARM: 31±0.5Vdc
HIGH SHUTDOWN: 33±0.5Vdc
HIGH RESTART: 30±0.5Vdc
BAT. POLARITY: By internal fuse open
OVER TEMPERATURE: Protection type : Shut down o/p voltage, re-power on to recover
OUTPUT SHORT: Protection type : Shut down o/p voltage, re-power on to recover
OVER LOAD (Typ.): 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. Protection type : Shut down o/p voltage, re-power on to recover
CIRCUIT BREAKER: 30A
TB TYPE: UL458 (Only for "TB" type AC socket)

FUNCTION CONTROL

REMOTE CONNECTOR: Power ON-OFF remote control by front panel dry contact connector(by RELAY), Open : Normal work ; Short : Remote off
ACCESSORY: Remote controller sold separately, Order No.: IRC1,IRC2,IRC3
RS-232 COMMUNICATION: RS-232 ~ RJ11 Type connector (Please refer to page 4 for more details)

AC UPS MODE

AC INPUT RANGE: 100/110/115/120Vac±16%, recover±13%
FREQUENCY RANGE: 45 ~ 65Hz
TRASFER TIME(Typ.): 10ms inverter AC by pass

ENVIRONMENT

WORKING TEMP.: -25 ~ +70℃(Refer to "Derating curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -30 ~ +70℃ / -22 ~ +158oF, 10 ~ 95% RH non-condensing
VIBRATION: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: CB IEC62368-1,Dekra Seal BS EN/ EN62368-1,UL458, E13,EAC TP TC 004,AS/NZS 62368.1 approved (Please refer to next page “AC output socket” table for more details )
WITHSTAND VOLTAGE: DC I/P - AC I/P:3.0KVAC DC I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
EMC EMISSION: Parameter Standard Test Level

Radiated FCC for 112,124,148 only(expect for Type-UN) Class A
Radiated BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN) Class A
Conducted FCC for 112,124,148 only(expect for Type-UN) Class A
Conducted BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN) Class A
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3 -----
EMC IMMUNITY^Note.5: BS EN/ EN55024, BS EN/ EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2
EFT / Burst BS EN/EN61000-4-4 Level 2, 1KV
Surge BS EN/EN61000-4-5 Level 3, 1KV/Line-Line 2KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 2
Magnetic Field BS EN/EN61000-4-8 Level 1
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Radiated	FCC for 112,124,148 only(expect for Type-UN)	Class A
Radiated	BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN)	Class A
Conducted	FCC for 112,124,148 only(expect for Type-UN)	Class A
Conducted	BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN)	Class A
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3	-----

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2
EFT / Burst	BS EN/EN61000-4-4	Level 2, 1KV
Surge	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line 2KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 2
Magnetic Field	BS EN/EN61000-4-8	Level 1
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 319.3K hrs min. Telcordia TR/SR-332 (Bellcore) ; 30.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 420*270*98mm (L*W*H)
PACKING: 8.6Kg; 1pcs/ 10.4Kg/ 1.39CUFT

Test conditions and notes5

1.Efficiency, AC regulation and THD are tested by 2400W load, linear load at 12.5Vdc/25Vdc/50Vdc input voltage.
2.No load dissipation at non-saving mode(Typ.): 112/124/148 for 25W, 212/224/248 for 55W.
3.All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting.
4.Internal pre-start circuit, the setup time is 8s.
5.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

NTU-3200-124UN AC Output Socket — AC Output Socket

NTU-3200-124UN DERATING CURVE — DERATING CURVE

NTU-3200-124UN Block Diagram — Block Diagram

NTU-3200-124UN IRC1/2/3 Remote Controller (Accessory — IRC1/2/3 Remote Controller (Accessory

NTU-3200-124UN Support RS-232 Communication — Support RS-232 Communication

NTU-3200-124UN AC Output Voltage、Frequency、Power — AC Output Voltage、Frequency、Power

NTU-3200-124UN FUNCTION MANUAL — FUNCTION MANUAL

NTU-3200-124UN MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

NTU-3200-124UN Accessory List — Accessory List

NTU-3200-124UN ※ Terminal protector mating along with NTU-3200… — ※ Terminal protector mating along with NTU-3200…

NTU-3200-124UN Illustration (page 9) — Illustration (page 9)

NTU-3200-124UN TYPICALTYPICAL APPLICATIONAPPLICATION — TYPICALTYPICAL APPLICATIONAPPLICATION

Typical applications

Downloads

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

What is the main use case for the Mean Well NTU-3200-124UN?

The NTU-3200-124UN is a 3000W true sine wave DC-AC inverter designed for converting 24V DC battery power to 110V AC output. It is suited to higher-power mobile, backup power, industrial, and off-grid applications where clean AC output and UPS-style AC by-pass are important.

Does this inverter support UPS or AC by-pass operation?

Yes. This model includes a built-in UPS function with AC by-pass, which is one of its key differentiators in the NTU series. That makes it a stronger fit for applications that need continuity between battery-backed inverter power and incoming AC power.

Is the NTU-3200-124UN suitable for sensitive electronics?

Yes, this model provides a true sine wave output with total harmonic distortion below 3%. That cleaner waveform is generally preferred for sensitive electronic equipment compared with rougher modified sine wave alternatives.

What battery types is the NTU-3200-124UN compatible with?

According to the product specifications, this inverter is suitable for both lead-acid and lithium-ion battery systems. It also includes low DC input voltage protection (alarm at 22V, shutdown at 20V, restart at 25V) to help protect the connected battery bank.

How much surge capacity does this inverter provide?

The NTU-3200-124UN is rated for 3000W continuous power and supports surge power up to 6000W. The overload specification also notes 105 to 115% load for 180 seconds and 115 to 150% load for 10 seconds.

Can this inverter be used in demanding environmental conditions?

This model is designed for wide-temperature operation, with a working range of -25°C to +70°C and output derating at higher temperatures per the derating curve. It is fan-cooled and has over-temperature protection, which supports use in tougher operating environments.

What certifications and protections does the NTU-3200-124UN include?

The listed protections include output short circuit, overload, over temperature, low and high DC input voltage, and battery reverse polarity via internal fuse. The spec sheet also cites approvals including CB IEC62368-1, BS EN/EN62368-1, EAC TP TC 004, and AS/NZS 62368.1, along with EN61000 immunity standards; its FCC Class A emission listing excludes the UN socket type.
