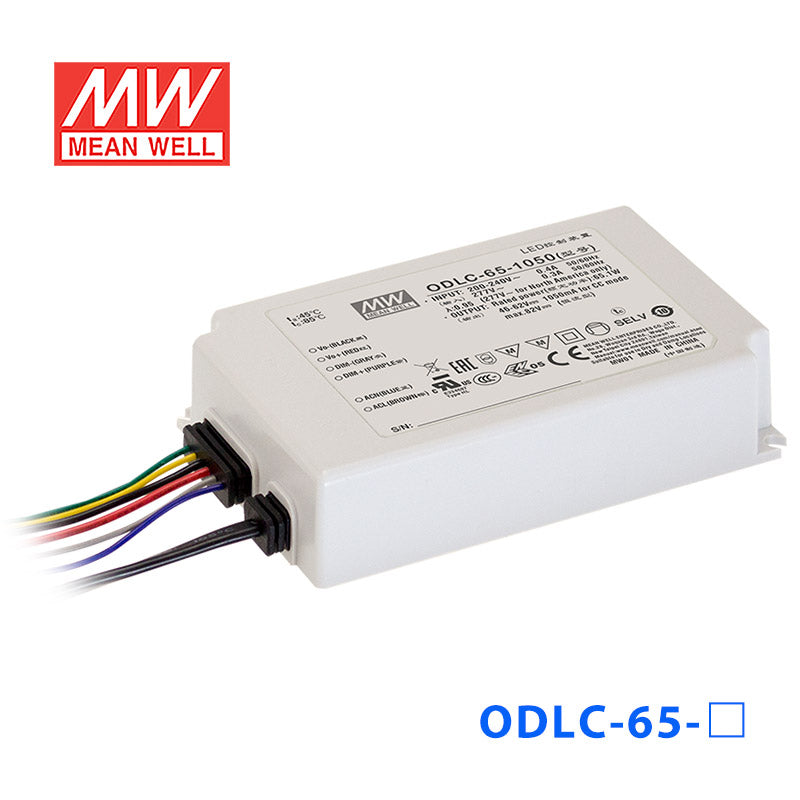

Mean Well ODLC-65A-1750 Power Supply 65W 1750mA(Auxiliary DC output)

SKU ODLC-65A-1750

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

ODLC-65A-1750 is the model of this series: rated current 1750mA, rated power 63W, typical efficiency 86%.

ODLC-65 series is a 65W LED AC/DC driver featuring the constant current mode output with flicker free design. ODLC-65 operates from 180~295VAC and offers models with different rated current ranging between 700mA and 1750mA. Thanks to the efficiency up to 88%, with the fanless design, the entire series is able to operate for -20℃~+85℃ case temperature under free convection. The design of plastic housing and IP67 ingress protection level allows this series to fit indoor wet applications. ODLC-65 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for lighting system.

Features

Constant current mode output
Flicker free design
Plastic housing with class II design
Built-in active PFC function
No load power consumption<0.5W(Blank-Type), Standby power consumption<0.5W(DA-Type)
IP67 rating for indoor or outdoor installations
Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output; DALI
3 years warranty

Specifications

ODLC-65A-1750Specifications from the official datasheet (2022-04-12 edition)

OUTPUT

RATED CURRENT: 1750mA
RATED POWER: 63W
CONSTANT CURRENT REGION^Note.2: 27 ~ 36V
OPEN CIRCUIT VOLTAGE(max.): 53V
CURRENT RIPPLE: 5% max. @rated current
CURRENT TOLERANCE: ±7.0%
SETUP TIME^Note.4: 500ms / 230VAC
AUXILIARY DC OUTPUT^Note.5: Nominal 12V(deviation 11.4~12.6)@50mA for ODLC-65A only

INPUT

VOLTAGE RANGE^Note.3: 180 ~ 295VAC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC, PF>0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧75%/230VAC,277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.): 86%
AC CURRENT: 0.4A/230VAC 0.3A/277VAC
INRUSH CURRENT (Typ.): COLD START 30A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank-Type, <1.2W for ODLC-65A Standby power consumption <0.5W for DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode,auto-recovery after fault condition is removed for DA type； Hiccup mode,re-power on to recovery for other type

ENVIRONMENT

WORKING TEMP.: Tcase=-20 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 45℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”);CSA C22.2 NO.250.13-12; ENEC BS EN/EN61347-1 & BS EN/EN61347-2-13 independent, BS EN/EN62384; EAC TP TC 004, IP67 approved
DALI STANDARDS^Note.7: Compliance to IEC62386-101,102 for DA-Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧75% load) ; BS EN/EN61000-3-3, GB17743,GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity: Line-Line:1KV),EAC TP TC 020

OTHERS

MTBF: 4381.7K hrs min. Telcordia SR-332 (Bellcore) ;402.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 121*77*28.5mm(L*W*H)
PACKING: 0.43Kg; 24pcs/ 11.3Kg/ 0.74CUFT

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time or set up failure
5. Aux. 12V will be damaged with short circuit; It will not be available when output voltage is not in constant current region or output no load condition.
6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
7. The DALI version driver does not support the bit 1: Lamp failure in the Command 144 Query status of the DALI standard.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

ODLC-65A-1750 Block Diagram — Block Diagram

ODLC-65A-1750 DIMMING OPERATION — DIMMING OPERATION

ODLC-65A-1750 Illustration (page 5) — Illustration (page 5)

ODLC-65A-1750 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED panel lighting
LED flood lighting
Indoor LED lighting
Industrial lighting

Downloads

Certificates7

Mean Well ODLC-45-EMC Certificate PDF Download

Mean Well ODLC-65-EMC Certificate PDF Download

Mean Well IDLC-ODLC-45-65-ENEC Certificate PDF Download

Mean Well IDLC-ODLC-45-65(A)-CB Certificate PDF Download

Mean Well IDLC-ODLC-45-65-CE-dec Certificate PDF Download

Mean Well IDLC-ODLC-45-65-UK-dec Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Test reports1

Mean Well ODLC-65-1750 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the ODLC-65A-1750 for LED downlights that require higher drive current?

Yes, this model is intended for constant current LED loads at 1750mA. It fits LED downlights when the fixture is specified for 1750mA and the total LED forward voltage stays within the 27-36V constant current range. It should not be used in place of a constant voltage power supply.

Is the ODLC-65A-1750 suitable for signage modules with a lower forward-voltage LED string?

It can be suitable for signage modules when the LED assembly is designed for 1750mA constant current and the total forward voltage is within 27-36V. This lower voltage window makes it better matched to lower-forward-voltage LED assemblies than higher-voltage constant current models in the same series. The actual number of LEDs depends on the forward voltage of each LED.

Can this driver run a dense small LED array at 1750mA?

Yes, if the small LED array is specified for 1750mA constant current and its total forward voltage falls inside the 27-36V range. With 63W output power, it is aimed at higher-current constant current LED loads rather than constant voltage strips or modules. Load matching should be based on current and total forward voltage together.

What should I check before pairing LEDs with the ODLC-65A-1750?

Make sure the LED load is a constant current load rated for 1750mA. Its total forward voltage must remain within the driver's 27-36V CC output range, and the number of LEDs will vary based on each LED's forward voltage. If the product expects constant voltage output, this is the wrong type of driver.

Is the ODLC-65A-1750 suitable for outdoor or high-temperature LED applications?

Yes, the IP67 rating supports use in exposed environments where dust and water resistance matter. Its operating temperature range is Tcase -20°C to +85°C, which gives it a broad working window for demanding LED applications. Final suitability still depends on the LED load matching the 1750mA, 27-36V constant current output.
