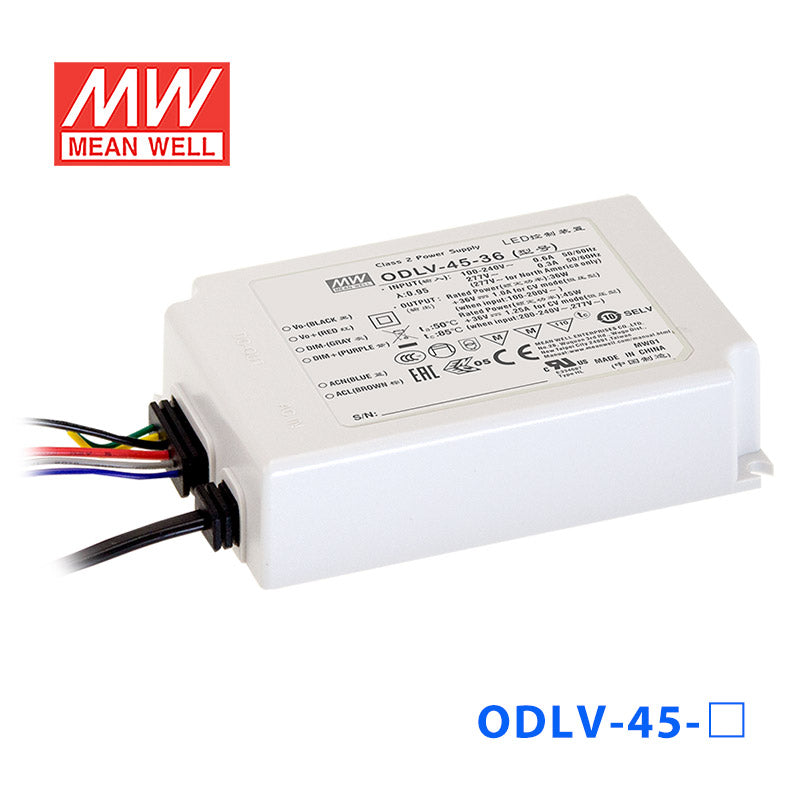

Mean Well ODLV-45-12 Power Supply 45W 12V , Dimmable

SKU:
ODLV-45-12

|

Description

Features

Constant voltage PWM style output with frequency 1KHz
Plastic housing with class II design
Built-in active PFC function
No load power consumption<0.5W(Blank-Type)
IP67 rating for indoor or outdoor installations
Function options: 2 in 1 dimming(dim-to-off); Auxiliary DC output
3 years warranty

General Specification

AC input voltage range 90~295VAC
AC inrush current (Typ.) COLD START 30A(twidth=150μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Short circuit protection Shut down O/P voltage, re-power on to recovery
Over current protection 105~115%
Setup time 500ms / 230VAC; 1200ms/115VAC
Withstand voltage I/P-O/P: 3.75kVAC
Working temperature -20~+85ºC
Safety standards UL8750, ENEC EN61347-1, EN61347-2-13
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020
Dimension (LxWxH)(mm) 111*77*28.5mm
Packing 24pcs/11Kg

Specifications

  • Brand
    Mean Well
  • Series
    ODLV Series
  • Power Rating
    36 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    3 Ampere
  • Input Voltage
    90V~295V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~85°C
  • Warranty
    3 Year
  • Length
    11.1 cm
  • Width
    7.7 cm
  • Height
    2.85 cm
  • Weight
    0.42 kg
